Set gl.BLEND in texture to allow transparent pngs && added line to webgl primitives

[sixhat]

This deals with issue #1878 where users need to set pngs with transparency as textures. Until now the hack would be to call fill with a non-opaque color before calling texture or to manually enable the gl.BLEND mode with

gl = this._renderer.GL;
gl.enable(gl.BLEND);
gl.blendFunc(gl.SRC_ALPHA, gl.ONE_MINUS_SRC_ALPHA);

This solution activates gl.Blend when a texture call is made.

[sixhat]

The latest commit 2475b16 also adds line to the webgl primitives as explained in #1638

[l3ehfar]

gl = this._renderer.GL;
gl.enable(gl.BLEND);
gl.blendFunc(gl.SRC_ALPHA, gl.ONE_MINUS_SRC_ALPHA);

hi i can't figure out where should i put this? would you give me an example with code? should I put it in my setup function?

[stalgiag]

This isn't necessary anymore. Transparent pngs work out of the box now. Here is an example.

[birkb85]

This isn't necessary anymore. Transparent pngs work out of the box now. Here is an example.

Hi.

I tested out the example and found that it does not behave as I expected..

If I modify the code to display two clouds, one rotating and the other one staying still.
The transparency only applies for the cloud to be transparent with the background, not the other cloud.
Sorry if my sentence above does not make enough sense, please try out this code:

let tex;

function preload() {
  tex = loadImage('cloud.png');
}

function setup() {
  createCanvas(400, 400, WEBGL);
  noStroke();
}

function draw() {
  background(0,200,0);

  push();
  texture(tex);
  rotateY(frameCount * 0.02);
  rect(-width/2, -height/2 + 40, 400, 400);
  pop();

  push();
  texture(tex);
  rect(-width/2, -height/2 - 40, 400, 400);
  pop();
}

Is this the intended behavior?
Then the transparency is really not much use, or what??

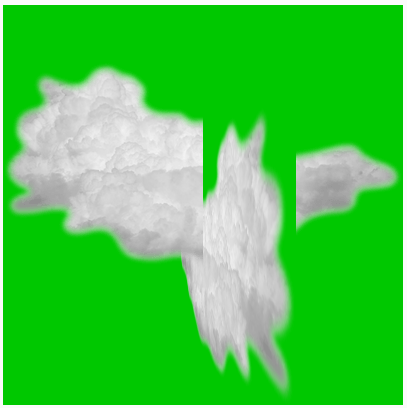

I have also attached an image demonstrating the problem.
See that the transparence does not apply between the two clouds, it only works for the background.

EDIT:

Ahh.. Sorry, now I get it!
The transparency depends on the order the objects are drawn! :D
So I need to draw the objects further away first, and the objects that are closest last.
As in my own example I see that the cloud that is drawn last (the still one) is transparent with the cloud that is drawn first (the rotating one)..
