support user input variables name to PC

[tofuwen]

Description

This PR adds node_names parameters to PC and change the underlying functions accordingly. Now users can specify node_names when running PC.

This PR is intended to fix the following issue that raised by user: #38

Test Plan

Run the following code to make sure we get expected results.

data_path = "tests/TestData/data_linear_10.txt"
data = np.loadtxt(data_path, skiprows=1)  # Import the file at data_path as data
names = [f"tofu{i+1}" for i in range(data.shape[1])]
cg = pc(data, 0.05, fisherz, False, 0, -1, node_names=names)  # Run PC and obtain the estimated graph (CausalGraph object)

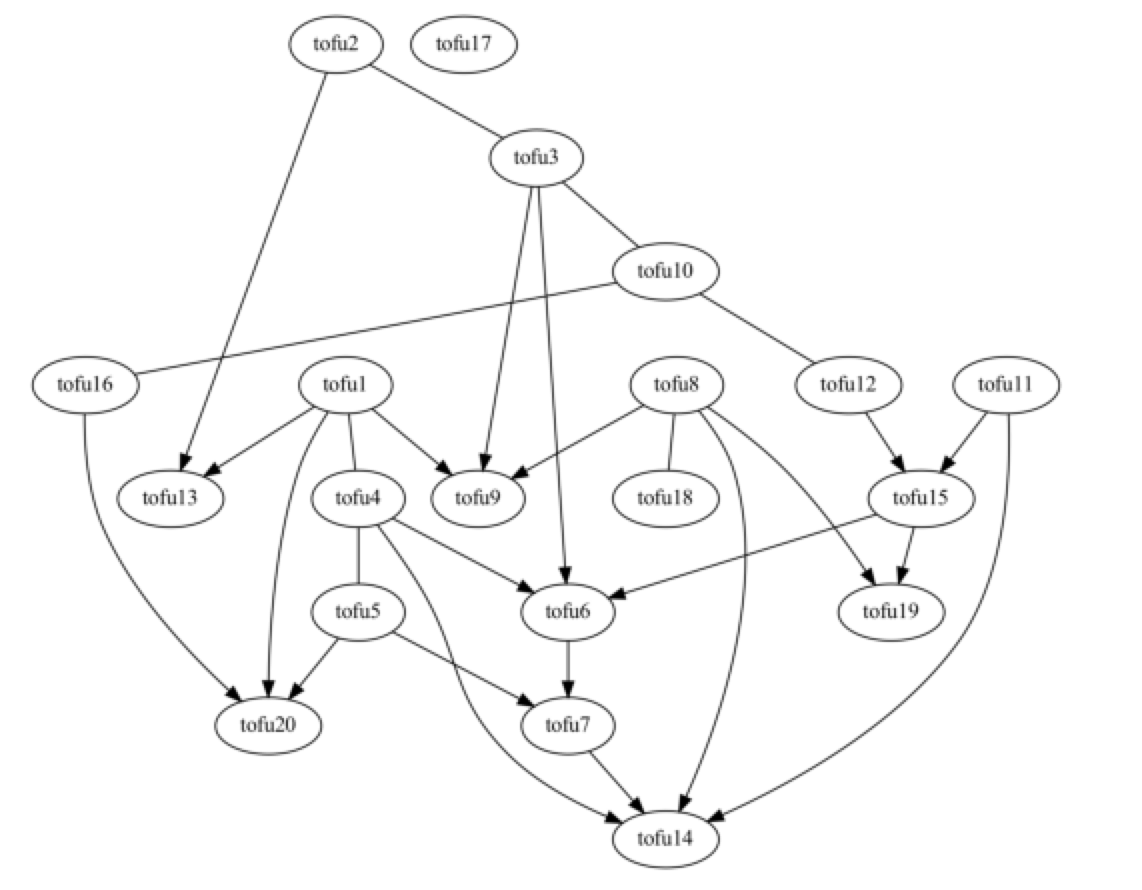

cg.draw_pydot_graph()

[MarkDana]

Hi Yewen! This is looking good. I ran the test example and it is correct. But I have some comments:

Now node_names parameter is added to the functions pc => mvpc_alg, pc_alg => skeleton_discovery, in order to pass it to the CausalGraph instance created in skeleton_discovery. However, this seems to be over coupling - node_names is redundant for functions other than pc.

Is it possible that we add a function in CausalGraph class that changes its nodes names, and here we only have the node_names parameter in pc. After the CausalGraph instance (with nodes names "X%d") is returned by mvpc_alg or pc_alg, we then change its names before it is returned to the user. This seems can be adapted to FCI, CD-NOD, and GES more easily, I guess?

Thanks Yewen for your work :))

[tofuwen]

Hi @MarkDana,

Thanks for your awesome review! :)

1. IMHO, the CausalGraph constructor needs to take node_names as its input parameters --- it makes more sense to initial the nodes with their correct names. We shouldn't initial with wrong names and change it later.
2. mvpc_alg and pc_alg are only used in pc, so I think adding a parameter int those functions is fine? Regarding skeleton_discovery, it is used in more places --- but any function that return a CausalGraph should return a correct graph (i.e. logically it should contain a CausalGraph that shouldn't need more post-process like changing node_names)
3. change node_names in graph may have side effects --- if I remember correctly, sometimes some code will use names as node identifiers. Without good tests, I am afraid doing so will have some troubles. (And I still think initially with wrong names and change it later doesn't seem to logically consistent.) :)

Hope this makes sense and we can discuss more! :)

[MarkDana]

Hi Yewen, I agree with your opinion - it makes more sense to initial with correct names.

Then I think this pr is ready to be merged. @kunwuz Thanks :))

[ztz1989]

Hi @tofuwen and @MarkDana,

Could you do the same for GES? I have a ground truth graph built with txt2generalgraph; the node names in the file do not follow the "X%d" format. So it is hard to use the estimation functions to compute the accuracy and SHD.

Thanks!
