Mythos

Experimental DLL calling for VL64/B64 encoding for the Habbo Hotel protocol from within Visual Basic 6.0

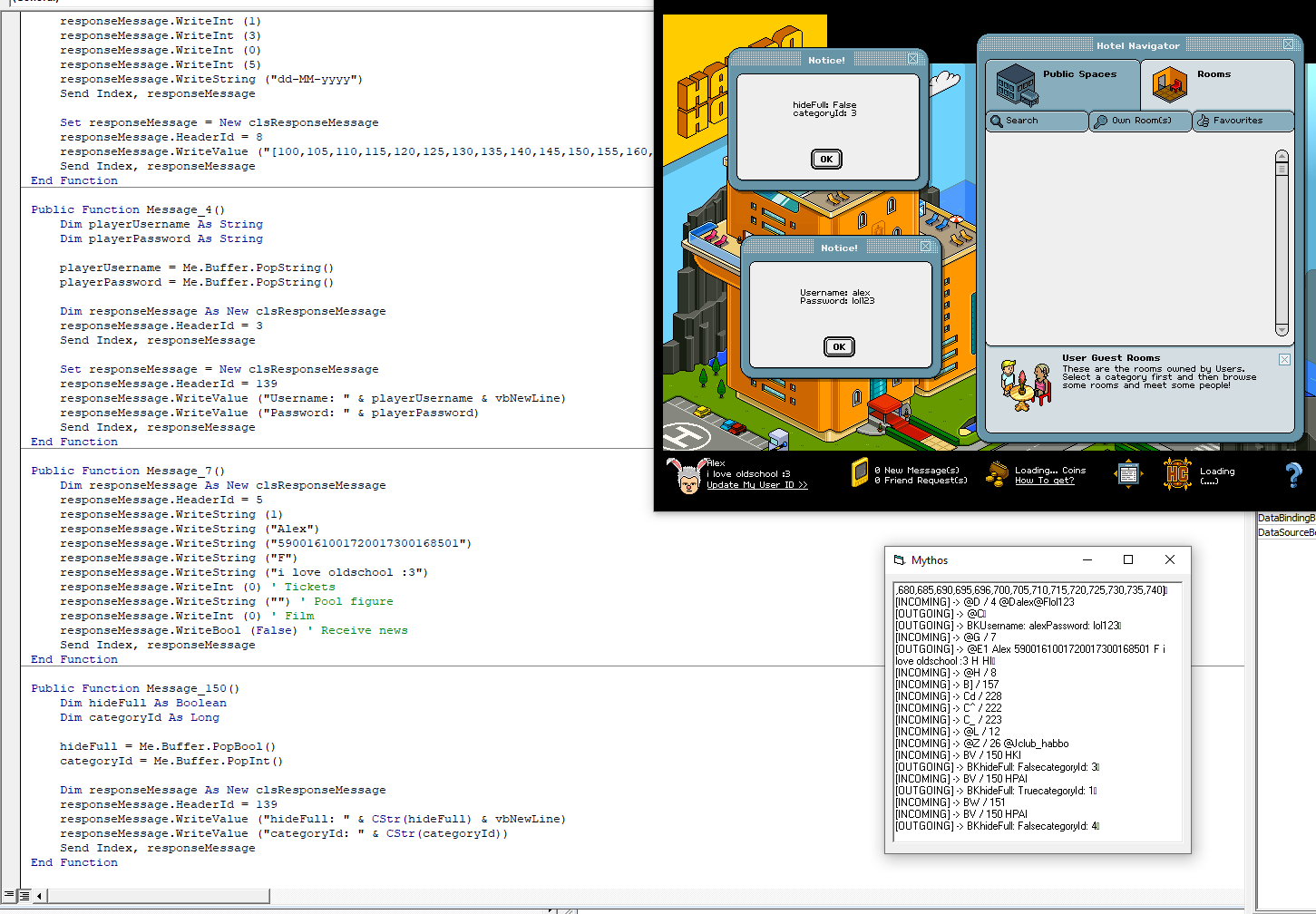

Screenshot

Code Snippets

Private Sub MainServer_DataArrival(Index As Integer, ByVal bytesTotal As Long)
    Dim incomingMessage As String
    Dim incomingMessageLength As Long

    Dim pointer As Long
    pointer = 1

    Dim packetLength As Long
    Dim packetHeader As String
    Dim packetData As String

    ' Check if there are at least 5 bytes available to read the packet length and the first character of data
    If MainServer(Index).BytesReceived >= 5 Then

        ' Read the buffer
        MainServer(Index).GetData incomingMessage
        incomingMessageLength = MainServer(Index).BytesReceived

        Do
            ' Harvest packet length
            packetLength = DecodeB64(Mid(incomingMessage, pointer, 3))
            pointer = pointer + 3

            If packetLength <= 0 Or packetLength > 1000 Then
                ' Invalid packet length
                Exit Sub
            End If

            ' Check if there are enough bytes available to read the entire packet
            If bytesTotal < packetLength Then Exit Do

            ' Harvest packet header
            packetHeader = Mid(incomingMessage, pointer, 2)
            pointer = pointer + 2

            ' Harvest packet data
            packetData = Mid(incomingMessage, pointer, packetLength - 2)
            pointer = pointer + packetLength - 2

            ' Create request class
            Dim requestMessage As New clsRequestMessage
            requestMessage.Buffer = packetData
            requestMessage.Header = packetHeader

            ' Create data handler class
            Dim dataHandler As New clsDataHandler
            dataHandler.Index = Index
            Set dataHandler.Buffer = requestMessage

            ' Handle packets
            Call dataHandler.Parse
        Loop While Len(Mid(incomingMessage, pointer)) > 0
    End If
End Sub

Requirements

• Visual Basic 6.0 IDE
• Your project is compiling under 'native' and not P-code, the DLL calls will not work otherwise
• tdm-gcc 32-bit for Windows; or
• Packages g++ gcc oleaut32 for Linux/Unix systems

How it works

C++ Code

Copying strings back to the memory allocated Visual Basic 6.0 string, this is probably very evil, but it works!

void copystr(LPSTR destination, long destinationLength, std::string output) {
    int j = 0;
    for (int i = 0; i <= destinationLength; i += 2) {
        char ch = *(destination + i);

        if (ch == '\0' || output[j] == '\0')
          break;

        *(destination + i) = output[j];

        j++;

        if (j >= output.length())
          break;
    }
}

The actual 'EncodeInt32' function

void encodeVL64(/*LPSTR*/char *destination, long destinationLength, int *outputLength, int i) {
    int numBytes = 0;
    char* wf = (char*)malloc(6);
    int pos = 0;
    numBytes = 1;
    int startPos = pos;
    int negativeMask = i >= 0 ? 0 : 4;
    i = abs(i);
    wf[pos++] = (char)(64 + (i & 3));
    for (i >>= 2; i != 0; i >>= 6) {
        numBytes++;
        wf[pos++] = (char)(64 + (i & 0x3F));
    }
    wf[startPos] = (char)(wf[startPos] | (numBytes << 3) | negativeMask);

    // Skip the null bytes in the result
    char* bzData = (char*)malloc(numBytes + 1);
    for (int x = 0; x < numBytes; x++) {
        bzData[x] = wf[x];
    }

    bzData[numBytes] = '\0';

    // Copy to allocated VB6 string
    std::string allocated(bzData);
    copystr(destination, destinationLength, allocated);

    // Free memory
    free(wf);
    free(bzData);

    *outputLength = numBytes;
}

Visual Basic 6.0 code

Run dumpbin.exe /exports shared_lib.dll on our shared DLL file.

You will see:

Dump of file shared_lib.dll

File Type: DLL

  Section contains the following exports for shared_lib.dll

           0 characteristics
    663EC498 time date stamp Sat May 11 11:06:32 2024
        0.00 version
           1 ordinal base
           4 number of functions
           4 number of names

    ordinal hint RVA      name

          1    0 000015B9 decodeB64@4
          2    1 00001526 decodeVL64@8
          3    2 00001627 encodeB64@12
          4    3 00001278 encodeVL64@16

The 'EncodeInt32@16' is the exported function name we'll use.

Option Explicit

Private Declare Sub DllEncodeVL64 Lib "shared_lib.dll" _
    Alias "encodeVL64@16" ( _
    ByVal inputPtr As Long, _
    ByVal inputLength As Long, _
    ByRef outputLength As Integer, _
    ByVal i As Long _
)

Private Declare Function DllDecodeVL64 Lib "shared_lib.dll" _
    Alias "decodeVL64@8" ( _
    ByVal bzData As String, _
    ByRef totalBytes As Long _
) As Long


Public Function EncodeVL64(ByVal i As Long) As String
    Dim encodedVal As String
    Dim outputLength As Integer

    encodedVal = Space(6)
    outputLength = 0

    Call DllEncodeVL64(StrPtr(encodedVal), LenB(encodedVal), outputLength, i)

    If (outputLength = 0) Then
        EncodeVL64 = vbNullString
    Else
        EncodeVL64 = Mid(encodedVal, 1, outputLength)
    End If
End Function

Public Function DecodeVL64(ByVal encodedValue As String, ByRef totalBytes As Long) As Long
    DecodeVL64 = DllDecodeVL64(encodedValue, totalBytes)
End Function

Building the DLL

Windows

C:\TDM-GCC-32\bin\g++.exe -std=c++11 -U__STRICT_ANSI__  -c -DBUILD_MY_DLL shared_lib.cpp
C:\TDM-GCC-32\bin\g++.exe -L. -loleaut32 -shared -o shared_lib.dll shared_lib.o -Wl,--out-implib,libshared_lib.a,--enable-stdcall-fixup

Linux/Unix

g++ -std=c++11 -U__STRICT_ANSI__  -c -DBUILD_MY_DLL shared_lib.cpp
g++ -L. -loleaut32 -shared -o shared_lib.dll shared_lib.o -Wl,--out-implib,libshared_lib.a,--enable-stdcall-fixup
