Add the option to wedge two bonds at chiral centers#6108
Merged
Conversation
into the Chirality namespace (since it's not just connected to mol files)
bp-kelley
reviewed
Feb 19, 2023
| auto [chiNbrs, nChiralNbrs] = detail::countChiralNbrs(mol, noNbrs); | ||
| if (chiNbrs) { | ||
| std::sort(indices.begin(), indices.end(), [&](auto i1, auto i2) { | ||
| return nChiralNbrs[i1] < nChiralNbrs[i2]; |
Contributor
There was a problem hiding this comment.
You're going to love this one:
Basically clang is being anal with the specification that tuple unpacking never makes variables and lambdas must only implicitly bind variables.
Contributor
There was a problem hiding this comment.
I believe you can resolve this as follows:
std::sort(indices.begin(), indices.end(), [&, nChiralNbrs=nChiralNbrs](auto i1, auto i2) {
return nChiralNbrs[i1] < nChiralNbrs[i2];
});
Member
Author
There was a problem hiding this comment.
Thanks for pointing that out.
Contributor
|
Hey, it worked! |
Member
Author
|
@bp-kelley: if you have a chance to look at this again, I think it's ready for review |
bp-kelley
reviewed
Mar 10, 2023
bp-kelley
reviewed
Mar 10, 2023
bp-kelley
approved these changes
Mar 10, 2023
This was referenced Jun 1, 2023
Merged
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
2 participants
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Some style guides suggest including wedges at chiral centers. This adds a modification to

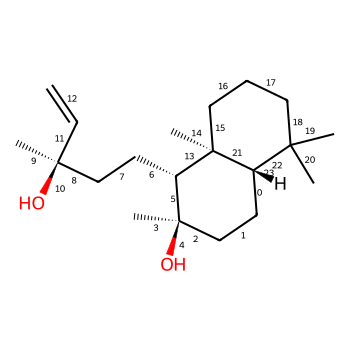

WedgeMolBonds()to allow two neighboring bonds to be wedged:Here's an example of what this does:
There's also some refactoring of the bond wedging code, including pulling it out into a separate source file.
At the moment the functionality here is limited to tetrahedral stereo. The refactoring and cleanup is intended to make it easier to get this working with non-tetrahedral stereo.
