ResponsiveGridLayout (width provider) onlayoutChange recalculates weird y values for grid items

[alex254]

Hi,

To start thank you for this great library. I am retrieving products from the backend and mapping them as grid components in RGL. The usecase is saving new positions of the products as they have been moved. The implementation works although i noticed something strange for ResponsiveGridLayout, this doesnt happen for ReactGridLayout.

Basic component:

import React, { useState } from "react";
import { Responsive, WidthProvider } from "react-grid-layout";
import "../../../../../node_modules/react-grid-layout/css/styles.css";
import "../../../../../node_modules/react-resizable/css/styles.css";

type DraggableProps = {
  children?: React.ReactNode;
  handleLayoutChange?: Function;
  setColumns?: Function;
};

const ResponsiveGridLayout = WidthProvider(Responsive);

const Draggable: React.FC<DraggableProps> = ({
  children, handleLayoutChange, setColumns,
}) => {
  const [rowHeight, setHeight] = useState(350);

  const rowH = {
    lg: 350, md: 350, sm: 350, xs: 350, xxs: 250,
   };

  return (
    <ResponsiveGridLayout
      className="layout"
      breakpoints={{
 lg: 1800, md: 1400, sm: 1200, xs: 1000, xxs: 0,
}}
      cols={{
        lg: 12, md: 10, sm: 6, xs: 4, xxs: 2,
       }}
      margin={[25, 25]}
      isResizable={false}
      autoSize
      rowHeight={rowHeight}
      containerPadding={[0, 0]}
      onLayoutChange={(newLayout: any) => handleLayoutChange(newLayout)}
      onBreakpointChange={(newBreakPoint, newCols) => { setHeight(rowH[newBreakPoint]); setColumns(newCols); }}
    >
      {children}
    </ResponsiveGridLayout>
  );
};

export default Draggable;

on a higher level I have handleLayoutChange:

  const updateProductPositions = useCallback(async (newLayout) => {
    console.log(newLayout);
    const positions = newLayout.map((item: { x: number; y: number; i: string}) => {
        const newPosition = item.y * columns + item.x;
        return { id: parseInt(item.i, 10), position: newPosition };
    });
    console.log(positions);

    updatePositions([positions]);
  }, [columns, updatePositions]);

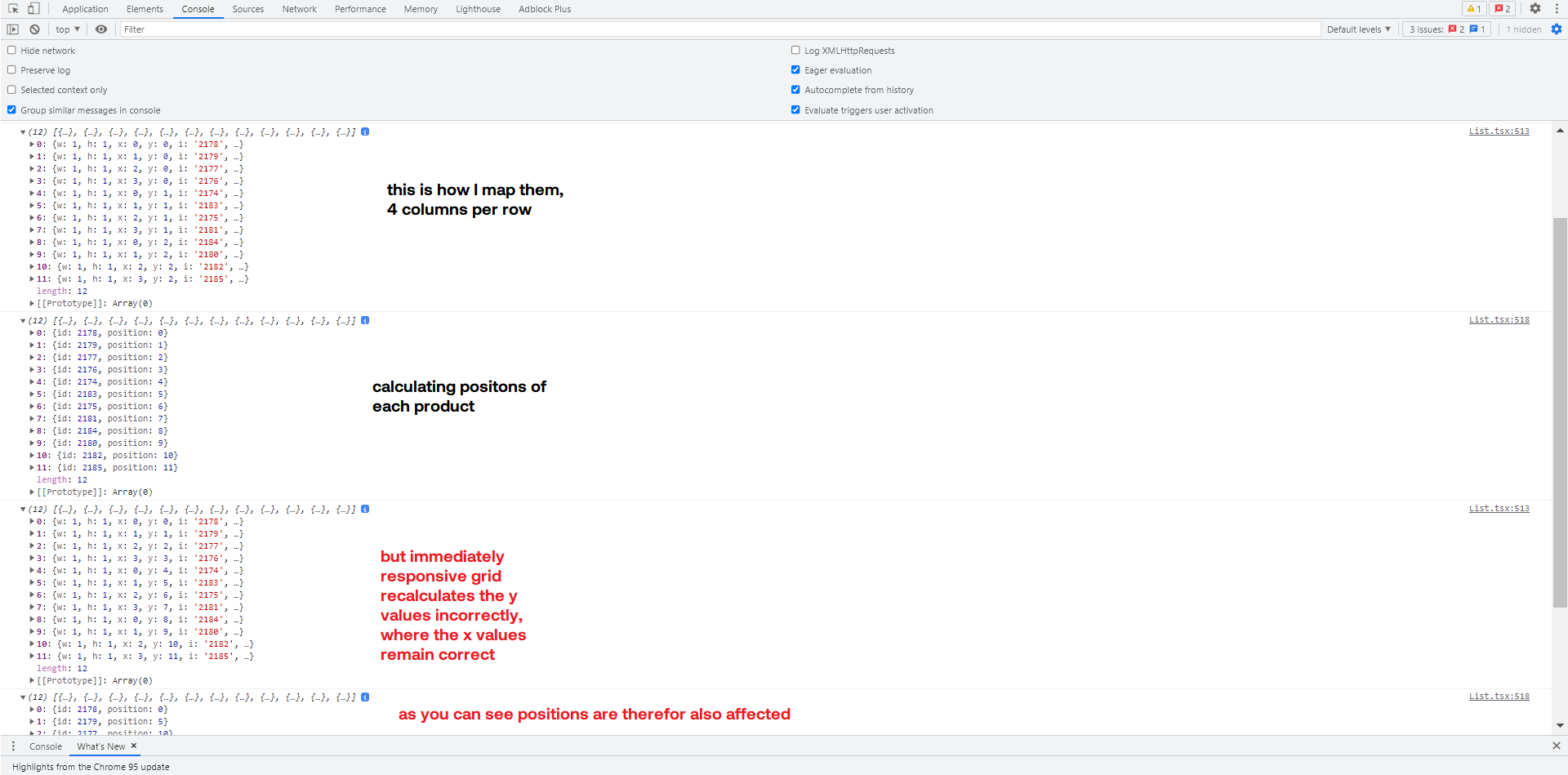

You can see the console logs. Here you can see them when I open the page:

to be complete:

              <Draggable handleLayoutChange={updateProductPositions} setColumns={setColumns}>
                {result.value?.map((product, index) => (
                  <div
                    key={product.id}
                    data-grid={{
                        x: index % columns, y: Math.floor(index), w: 1, h: 1,
                        }}
                  >
                    <ProductCard key={product.id} product={product} />
                  </div>
                ))}
              </Draggable>

For me its workable like this because the positions remain in the correct order even though the values are incorrect. But still y should be calculated correctly. Any idea what the reason could be?

[devclickuk]

We are trying to adjust the height values to make the item collapse and expandable

Collapsing the item works fine and triggers the layout change once

But.... When expanding it triggers twice as yours does which changes the Y to incorrect values

Any update on this?

[DAmisonSSG]

@devclickuk Follow, be interested to track this issue

[DAmisonSSG]

Managed to fix this issue, Our issue was that the Y values where set at a starting point of 1 and not 0, Changing them to 0 fixed this issue

[github-actions]

This issue is stale because it has been open 30 days with no activity. Remove stale label or comment or this issue will be closed in 7 days

[alex254]

its still relevant

[codyaweber]

This still seems to be an issue for anyone stumbling across this. I'm using the regular ReactGridLayout with a WidthProvider. I've only seen the y value come back strangely on first layout, so for now, I'm handling it like so:

  const [didFirstLayout, setDidFirstLayout] = useState<boolean>(false);

  const onLayoutChange = (layout: RGL.Layout[]): void => {
    if (!didFirstLayout) {
      setDidFirstLayout(true);
      return;
    }
}

--------- edit ------------

I discovered in my case that onLayoutChange was returning a different y value because my item coordinates specified overlapping positions, but I have allowOverlap disabled on my grid. So on the first layout, onLayoutChange is called with the positions of the items as the grid actually places them, with the y value updated because items have been shifted down to avoid overlap.
