Andy  ·  PR Handoff Assistant

The PR review that explains what actually changed.
A GitHub Action. One comment. Zero services to authorize.

_{~30s per PR  ·  $0 service cost  ·  1 YAML file to install  ·  runs on your own runner}

---

Table of contents

• Why Andy
• Install — one YAML file
• Anatomy of the comment
• A peek at the output
• On a real PR
• How it works
• Configuration
• What Andy doesn't do
• The landing page is part of the action
• Local development & reproducible screenshots
• Repository layout
• CI / CD
• License & contact

---

Why Andy

Three questions every PR comment fails to answer:

01 "LGTM" Reviewers approve PRs they didn't fully understand because nobody has 90 minutes to trace a 100-file diff. Bugs ship in the gap between looks right and is right.

02 Why does this exist? Context lives in Linear, Slack threads, and the author's head — not in the PR. New reviewers spend half their time inferring intent before they can judge the code.

03 What did it cost? No one can answer in dollars or minutes. The PR closes, the impact disappears into vibes, and the team forgets what they shipped by next quarter.

Andy reads every pull request and posts one comment with the answers — and a 60-second audio summary you can play.

---

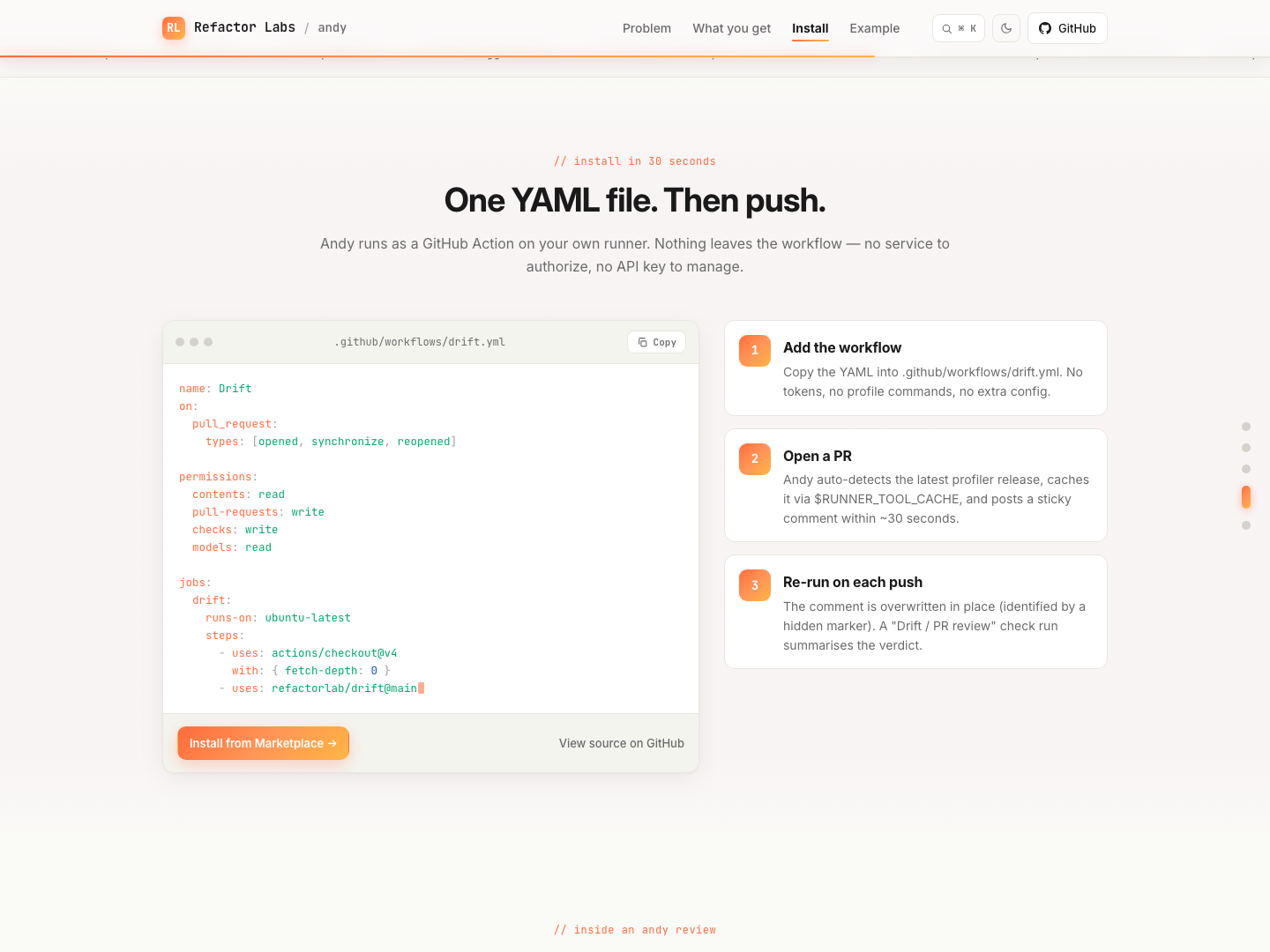

Install — one YAML file

Drop this into .github/workflows/drift.yml. No tokens, no profile commands, no extra config.

name: Drift
on:
  pull_request:
    types: [opened, synchronize, reopened]

permissions:
  contents: read
  pull-requests: write
  checks: write
  models: read

jobs:
  drift:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
        with: { fetch-depth: 0 }
      - uses: refactorlab/drift@main

Then open a PR — Andy auto-detects the latest profiler release, caches it via $RUNNER_TOOL_CACHE, and posts a sticky comment within ~30 seconds.

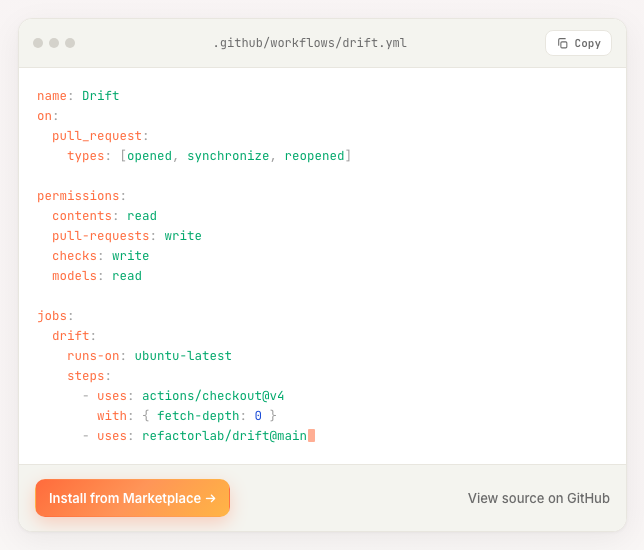

👉 The YAML, close up

---

Anatomy of the comment

flowchart LR
    PR((PR · N files)) --> Andy((🟧 Andy))
    Andy --> A1[🏗 Architecture map]
    Andy --> A2[📊 Value card]
    Andy --> A3[💡 Ranked suggestions]
    Andy --> A4[⚠ Risk quadrant]
    Andy --> A5[🗂 Hot-touch mindmap]
    Andy --> A6[🧭 Business context]
    Andy --> A7[🔊 Audio summary]
    classDef src fill:#1f6feb,stroke:#1d4ed8,color:#fff
    classDef hub fill:#ff6b3d,stroke:#ff9558,color:#fff
    classDef out fill:#fafaf7,stroke:#d4d2cb,color:#1a1a1a
    classDef aud fill:#fff1ea,stroke:#ff9558,color:#1a1a1a
    class PR src
    class Andy hub
    class A1,A2,A3,A4,A5,A6 out
    class A7 aud

Loading

One sticky comment per pull request, re-rendered on every push. Inside it: the visuals that turn a large diff into a guided handoff, plus the code suggestions and risks that actually need a reviewer's eye. And now a 60-second audio summary rides along in the same comment — the whole review, narrated — so the next reviewer can listen to what changed before they read a line.

#	Artifact	What it is
1	🏗 Architecture map	Before → after diagrams of what your PR changed, plus the data structures connecting the two. Rendered as Mermaid.
2	📊 Value card	Money, customer, runtime, runtime-UX — each scored with the formula, the inputs that produced it, and a confidence label.
3	💡 Ranked suggestions	Every code suggestion ships with a confidence score, a category, an applyable diff, and references to specs or docs.
4	⚠️ Risk quadrant	Severity × likelihood map of every risk Andy spotted. Block on what's red before merge; monitor the rest.
5	🗂 Hot-touch mindmap	The files reviewers should open first, grouped by subsystem — the difference between a 100-file PR and a 6-file mental model.
6	🧭 Business context	A product-level diagram with the slice your PR touches highlighted — so reviewers see why the change exists, not just what.

🔊 Plus an audio summary. Not a seventh card — a different modality. Andy attaches a ~60-second narrated overview of the PR (what changed, why it matters, where to start), generated alongside the comment and embedded as a playable clip — for the commute, the code walk, or the reviewer who'd rather listen than scroll.

---

A peek at the output

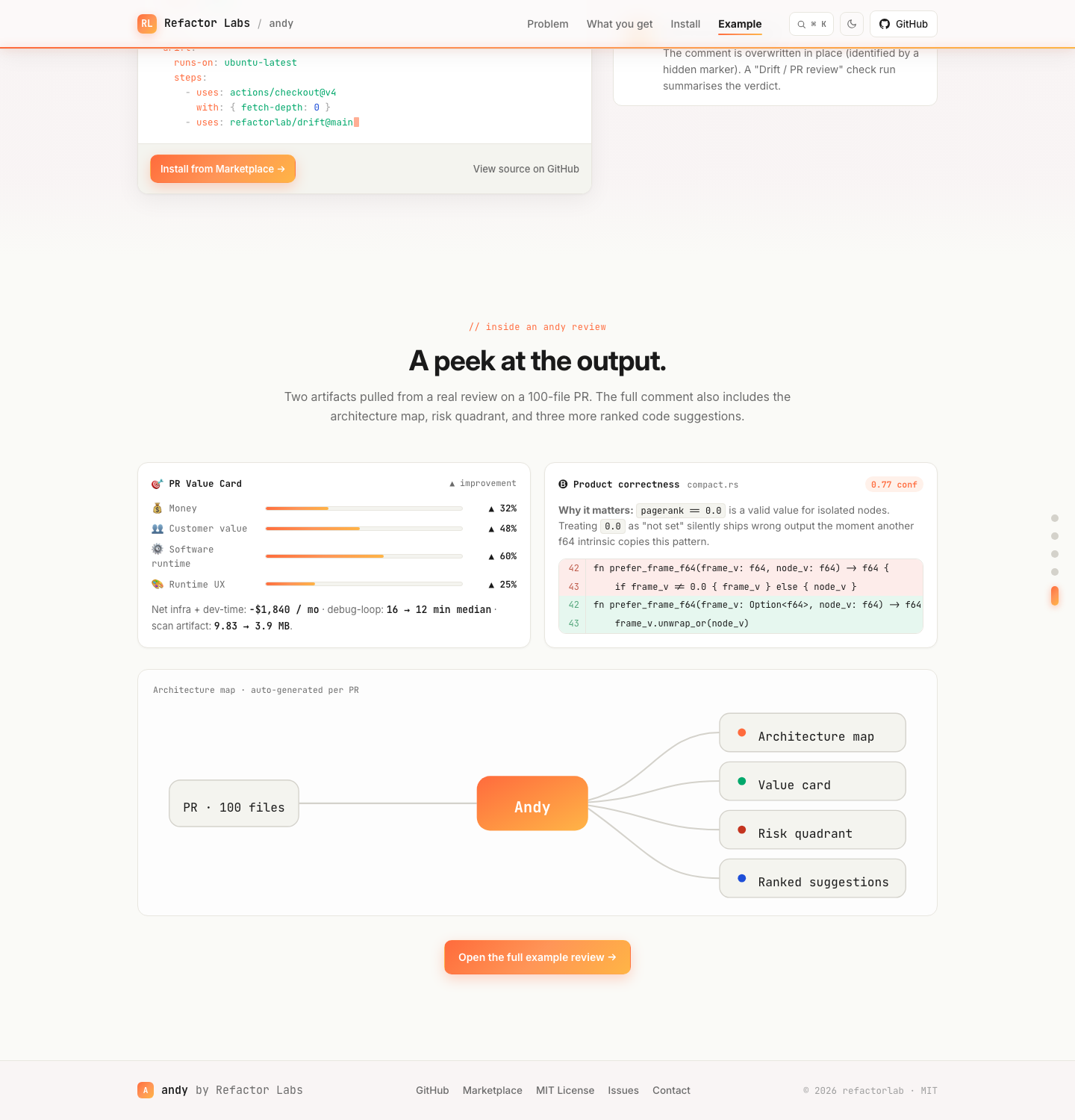

Two artifacts from a real review on a 100-file PR — the value card, a ranked product-correctness suggestion with a fixable diff, and the self-drawing architecture map underneath:

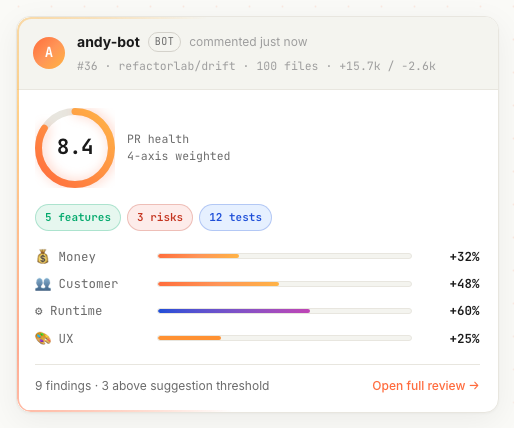

The preview card

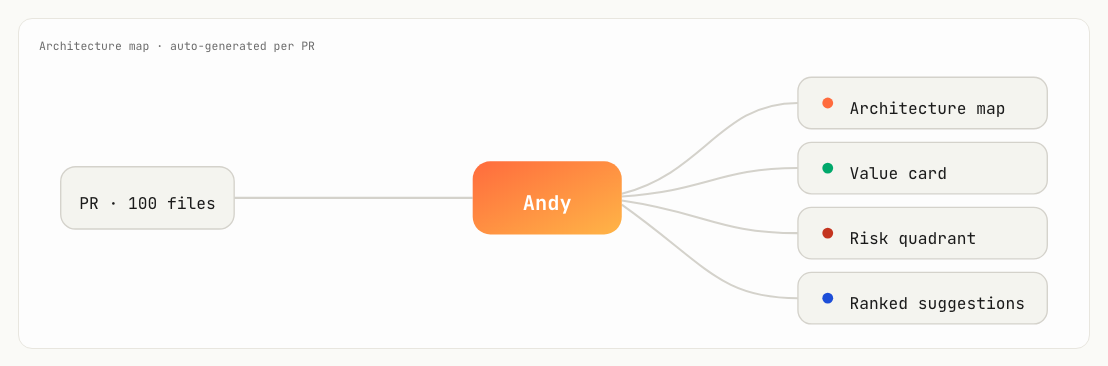

The architecture map

📎 Open the full example review →

---

On a real PR

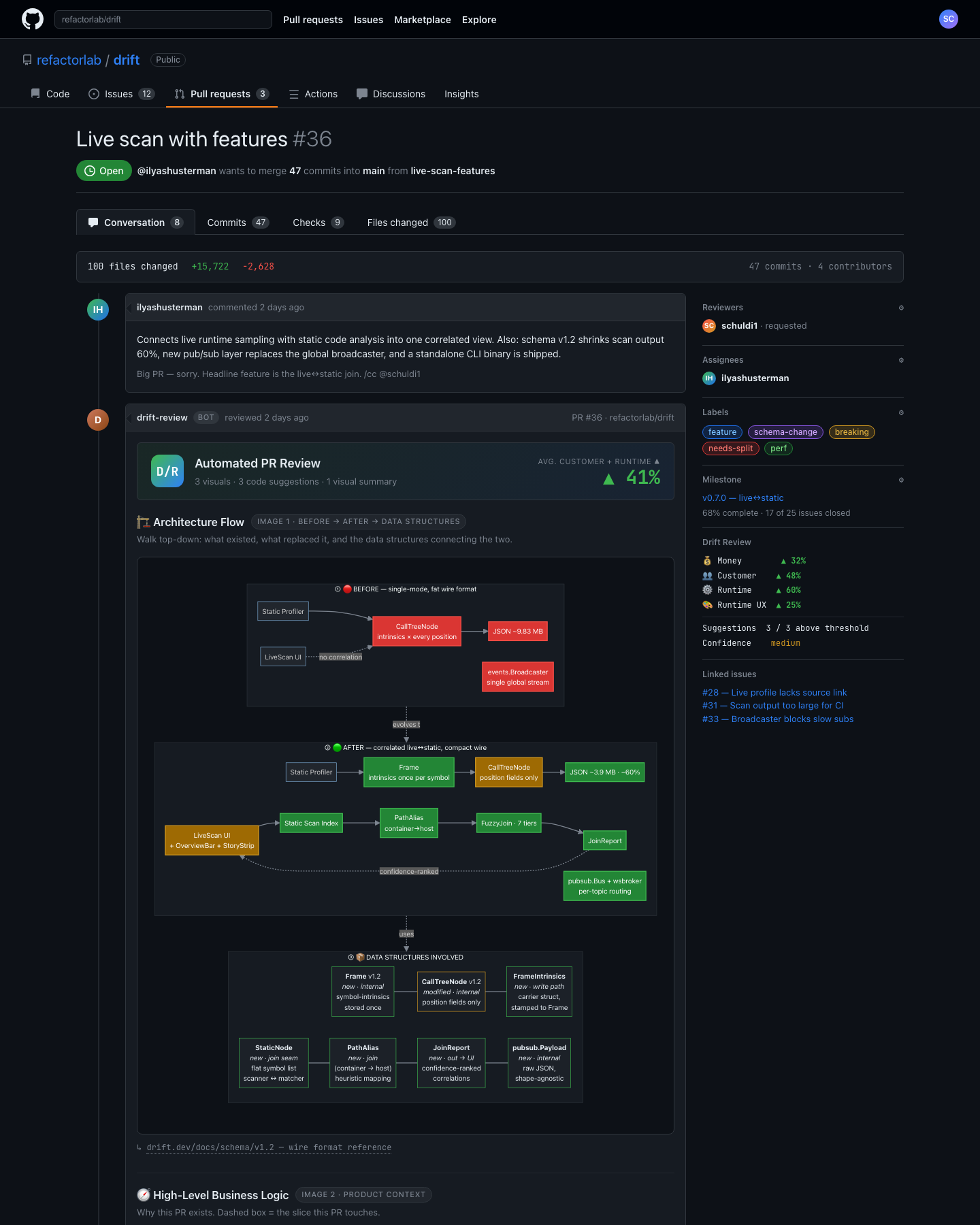

This is exactly what reviewers see when Andy lands on a real pull request (refactorlab/drift#36) — the sticky comment with a live architecture flow, weighted scores, and grouped findings:

---

How it works

1. Runs as a GitHub Action on your own runner. Nothing leaves the workflow — no service to authorize, no API key to manage.
2. Auto-detects the latest profiler release (drift-static-profiler) and caches it via $RUNNER_TOOL_CACHE so subsequent runs are fast.
3. Walks the PR diff against the base branch, builds the call graph + data-structure map, and renders the comment.
4. Posts (or updates) a single sticky comment — identified by a hidden marker, so it's overwritten in place on every push.
5. Adds a Drift / PR review check run summarising the verdict (advisory; does not fail the check).

---

Configuration

Andy works with zero configuration — just paste the YAML above.

🔑 Permissions explained

Permission	Why
contents: read	Read the diff and the base/head trees.
pull-requests: write	Create / update the sticky comment.
checks: write	Emit the Drift / PR review check run.
models: read	Read GitHub Models for LLM-assisted suggestion ranking.

⚙️ Optional knobs (env or with-block)

Variable	Default	Notes
DRIFT_BASE_SHA	inferred	Override the base SHA Andy diffs against.
DRIFT_SUGGESTION_CONFIDENCE	0.75	Floor for showing a code suggestion.
DRIFT_DEV_HOUR_RATE_USD	95	Used in the Money axis formula.

---

What Andy doesn't do

👉 Click for the honesty section

• ❌ Doesn't block merges. Findings surface as a check-run summary; you decide whether to gate on them.
• ❌ Doesn't run your tests, or your code. Pure static analysis on the diff + call graph.
• ❌ Doesn't talk to any external service beyond GitHub APIs. The whole pipeline runs on your runner.
• ❌ Doesn't model new-feature dev time. The Money axis is the cost of servicing what the PR ships (bugs + maintenance + LLM iteration) — not the cost of building it.
• ❌ Doesn't replace human review. It hands the next reviewer a guided map and a short list of things that warrant a second look.

---

The landing page is part of the action

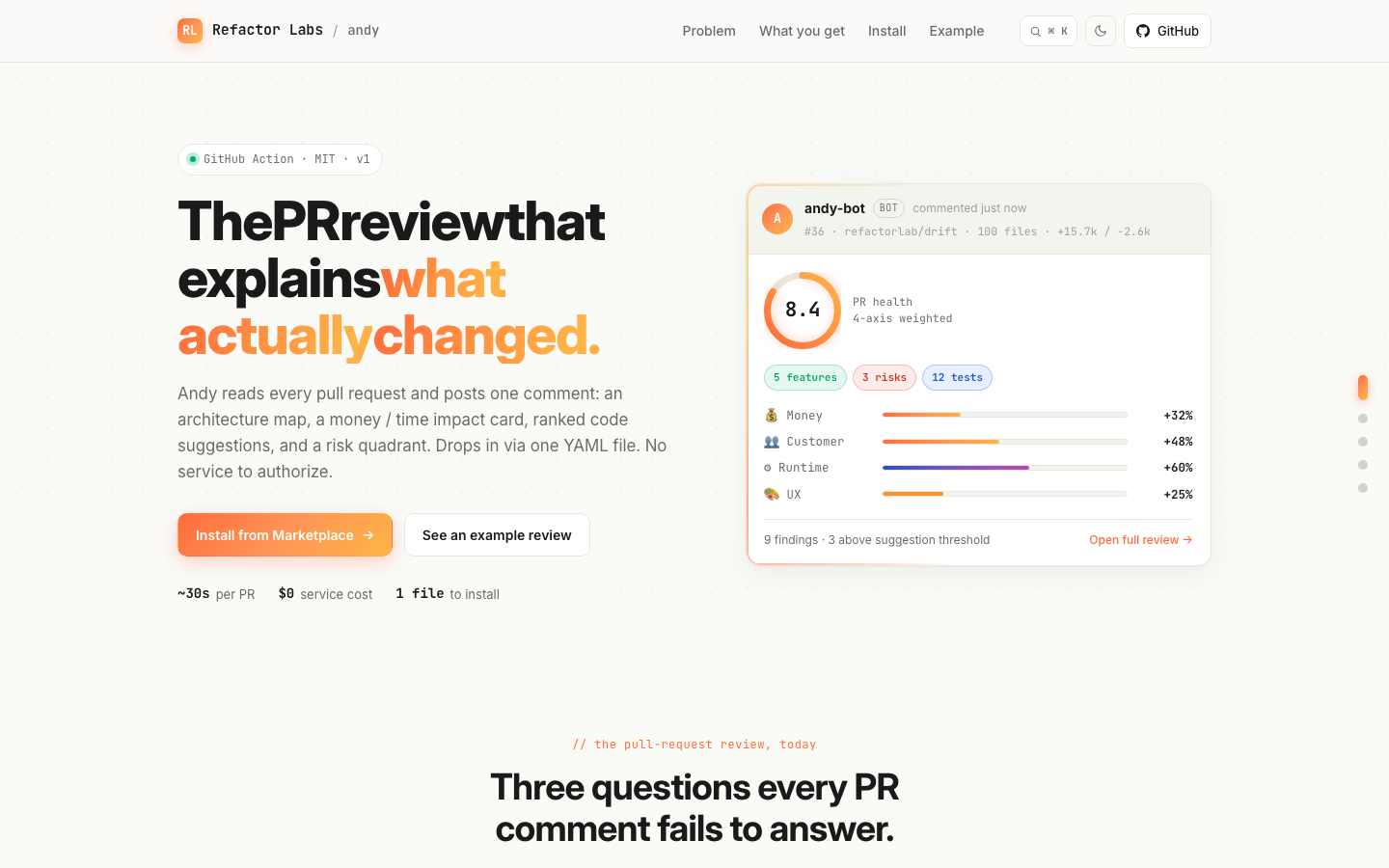

The page at https://refactorlab.github.io/andy/ is shipped from this repo, and it's also a deliberate showcase of modern frontend craft — the kind of thing the action's reviewers care about. A few highlights from the implementation:

• OKLCH color for perceptually-uniform gradients, with an sRGB fallback
• A bento layout with CSS Grid + container queries, so the featured cell adapts to its own width
• A fluid clamp() type & space scale — no breakpoint jumps between mobile and desktop
• Native <dialog> + @starting-style + transition-behavior: allow-discrete for the command palette's entry/exit
• A WebGL2 shader background (OKLCH FBM mesh), a self-drawing SVG architecture diagram, CSS Motion Path data-flow particles, a self-typing syntax-highlighted YAML, kinetic variable-font typography, a spring-physics cursor — all prefers-reduced-motion-aware
• An adaptive perf-lite mode that drops the heaviest layers on weak devices (Save-Data, ≤2 GB RAM, ≤2 cores)
• React.lazy code-splitting moves decorative components off the critical path
• JSON-LD structured data, an installable web app manifest, Speculation Rules prefetch, a skip link, an sr-only utility, and CSS logical properties for RTL readiness

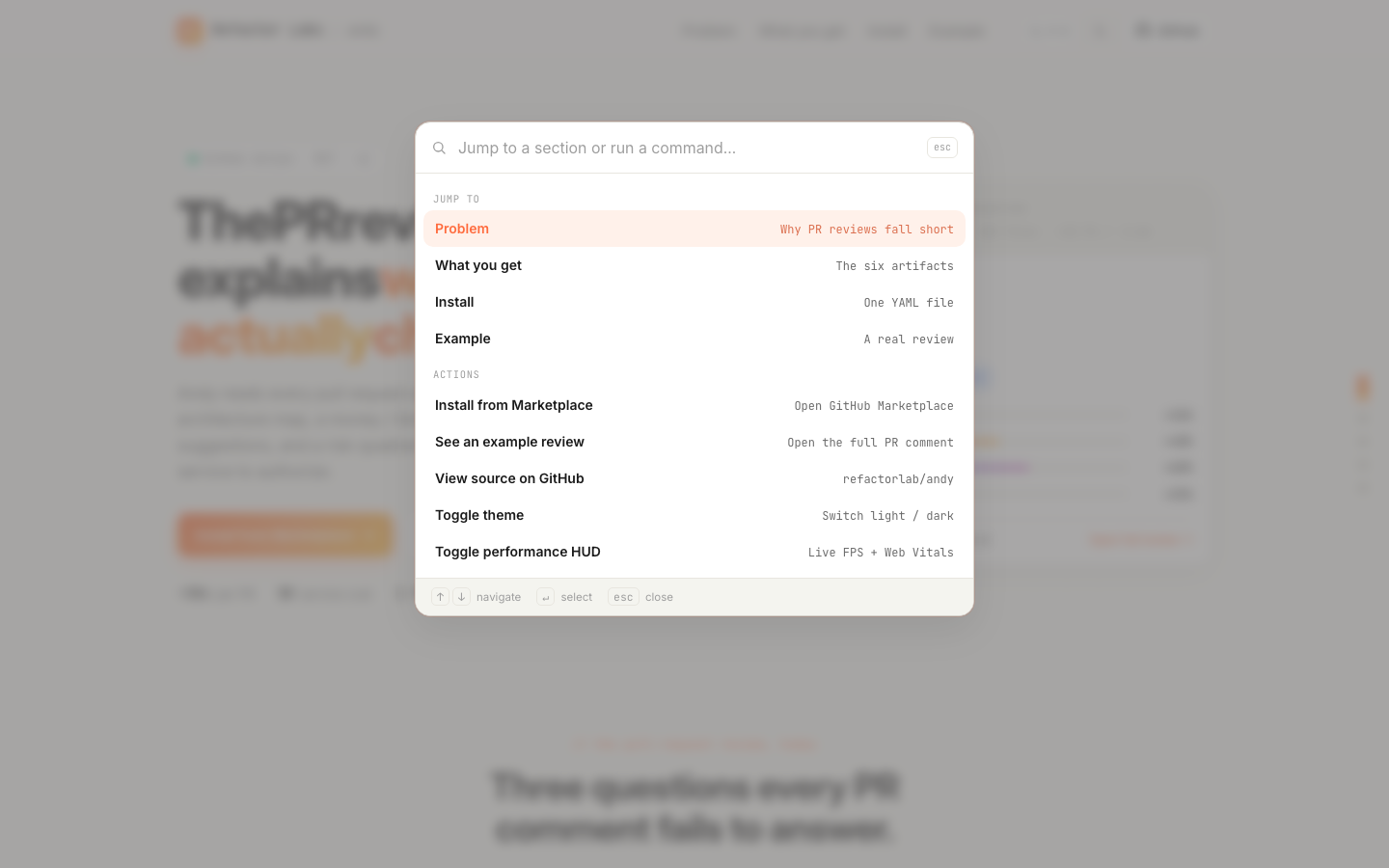

Press ⌘K / Ctrl+K anywhere on the page to open the command palette — fuzzy filter, full keyboard control, with theme/perf/section commands:

_{There's also a hidden treat — try the Konami code: ↑↑↓↓←→←→BA.}

---

Local development & reproducible screenshots

Requires Bun ≥ 1.3.

bun install
bun run dev          # local dev server at http://localhost:5173/andy/
bun run typecheck    # tsc -b --noEmit
bun run test         # bun:test — pure-logic suite (yaml tokenizer, scramble, konami, perf)
bun run build        # production build into dist/
bun run preview      # preview the production build

Every screenshot in this README is generated by scripts/screenshots.ts — a small Chrome DevTools Protocol driver. To regenerate them:

# 1) Start the dev server
bun run dev
# 2) In another shell, launch headless Chrome on a debug port
"/Applications/Google Chrome.app/Contents/MacOS/Google Chrome" \
  --headless=new --disable-gpu --remote-debugging-port=9333 \
  --user-data-dir=/tmp/andy-chrome about:blank &
# 3) Capture every shot in docs/screenshots/  (light + dark + close-ups)
bun scripts/screenshots.ts 5174 9333

The script writes the theme into localStorage before navigation so the page's no-FOUC bootstrap picks it up, emulates prefers-reduced-motion: reduce for deterministic captures, and uses CDP's captureScreenshot clip parameter to crop close-ups precisely to an element's bounding box.

---

Repository layout

public/pr36-github-ui_2.html       # the full example review the landing page links to
public/manifest.webmanifest        # PWA manifest (theme-color, icons, installable)
src/components/                    # React components (Hero, Bento, palette, …)
src/lib/                           # pure logic (yaml tokenizer, scramble, perf, theme store)
src/lib/*.test.ts                  # bun:test unit suite (20 tests, 41 expects)
scripts/screenshots.ts             # CDP-driven screenshot generator
docs/banner.svg                    # the SVG banner at the top of this README
docs/screenshots/                  # 15 PNGs — light, dark, and component close-ups
.github/workflows/ci.yml           # type-check + tests + build on every PR
.github/workflows/deploy.yml       # GitHub Pages deploy pipeline
.github/workflows/drift.yml        # Andy PR review (dogfoods the action on this repo)

---

CI / CD

Three workflows in .github/workflows/:

• ci.yml — type-checks (tsc -b --noEmit), runs the bun test suite, and builds the landing page on every PR.
• drift.yml — runs Andy on this repo's own PRs. The action dogfoods itself.
• deploy.yml — on push to main, builds (vite build, base /andy/) and deploys dist/ to GitHub Pages.

The first time you deploy, enable Pages under Settings → Pages → Source → GitHub Actions.

---

License & contact

• Marketplace: https://github.com/marketplace/actions/andy-pr-handoff-by-drift
• Issues: https://github.com/refactorlab/andy/issues
• Contact: schuldi@gmail.com
• License: MIT

---

_{© Refactor Labs · built to make code review feel less like archaeology.}
