@rsarm rsarm commented Jan 23, 2019

Closes #100

@vkarak vkarak changed the title [test] Add affinity test [test] Add CPU affinity test Jan 23, 2019
@jgphpc
Copy link
Contributor

jgphpc commented Jan 25, 2019

For the sake of clarity, i would add (the output of hwloc) for daint-gpu and daint-mc to
gpu_omp_bind_cores.txt and mc_omp_bind_cores.txt (just for info):

daint-gpu

| | /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\ | |
| | | Core P#0    |  | Core P#1    |  | Core P#2    |  | Core P#3    |  | Core P#4    |  | Core P#5    |  | Core P#8    |  | Core P#9    |  | Core P#10   |  | Core P#11   |  | Core P#12   |  | Core P#13   | | |
| | |             |  |             |  |             |  |             |  |             |  |             |  |             |  |             |  |             |  |             |  |             |  |             | | |
| | | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ | | |
| | | | PU P#0  | |  | | PU P#1  | |  | | PU P#2  | |  | | PU P#3  | |  | | PU P#4  | |  | | PU P#5  | |  | | PU P#6  | |  | | PU P#7  | |  | | PU P#8  | |  | | PU P#9  | |  | | PU P#10 | |  | | PU P#11 | | | |
| | | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ | | |
| | | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ | | |
| | | | PU P#12 | |  | | PU P#13 | |  | | PU P#14 | |  | | PU P#15 | |  | | PU P#16 | |  | | PU P#17 | |  | | PU P#18 | |  | | PU P#19 | |  | | PU P#20 | |  | | PU P#21 | |  | | PU P#22 | |  | | PU P#23 | | | |
| | | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ | | |
| | \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/ | |
| \------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------/ |
\----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------/

daint-mc

| | | /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\
| | | | Core P#0    |  | Core P#1    |  | Core P#2    |  | Core P#3    |  | Core P#4    |  | Core P#8    |  | Core P#9    |  | Core P#10   |  | Core P#11   |
| | | |             |  |             |  |             |  |             |  |             |  |             |  |             |  |             |  |             |
| | | | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |
| | | | | PU P#0  | |  | | PU P#1  | |  | | PU P#2  | |  | | PU P#3  | |  | | PU P#4  | |  | | PU P#5  | |  | | PU P#6  | |  | | PU P#7  | |  | | PU P#8  | |
| | | | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |
| | | | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |
| | | | | PU P#36 | |  | | PU P#37 | |  | | PU P#38 | |  | | PU P#39 | |  | | PU P#40 | |  | | PU P#41 | |  | | PU P#42 | |  | | PU P#43 | |  | | PU P#44 | |
| | | | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |
| | | \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/
 /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\ | | |
 | Core P#16   |  | Core P#17   |  | Core P#18   |  | Core P#19   |  | Core P#20   |  | Core P#24   |  | Core P#25   |  | Core P#26   |  | Core P#27   | | | |
 |             |  |             |  |             |  |             |  |             |  |             |  |             |  |             |  |             | | | |
 | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ | | | |
 | | PU P#9  | |  | | PU P#10 | |  | | PU P#11 | |  | | PU P#12 | |  | | PU P#13 | |  | | PU P#14 | |  | | PU P#15 | |  | | PU P#16 | |  | | PU P#17 | | | | |
 | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ | | | |
 | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ | | | |
 | | PU P#45 | |  | | PU P#46 | |  | | PU P#47 | |  | | PU P#48 | |  | | PU P#49 | |  | | PU P#50 | |  | | PU P#51 | |  | | PU P#52 | |  | | PU P#53 | | | | |
 | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ | | | |
 \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/ | | |
| \---------------------------------------------------------------------------------------------------------------------------------------------------------
| | | /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\
| | | | Core P#0    |  | Core P#1    |  | Core P#2    |  | Core P#3    |  | Core P#4    |  | Core P#8    |  | Core P#9    |  | Core P#10   |  | Core P#11   |
| | | |             |  |             |  |             |  |             |  |             |  |             |  |             |  |             |  |             |
| | | | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |
| | | | | PU P#18 | |  | | PU P#19 | |  | | PU P#20 | |  | | PU P#21 | |  | | PU P#22 | |  | | PU P#23 | |  | | PU P#24 | |  | | PU P#25 | |  | | PU P#26 | |
| | | | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |
| | | | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |
| | | | | PU P#54 | |  | | PU P#55 | |  | | PU P#56 | |  | | PU P#57 | |  | | PU P#58 | |  | | PU P#59 | |  | | PU P#60 | |  | | PU P#61 | |  | | PU P#62 | |
| | | | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |
| | | \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/
 /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\  /-------------\ | | |
 | Core P#16   |  | Core P#17   |  | Core P#18   |  | Core P#19   |  | Core P#20   |  | Core P#24   |  | Core P#25   |  | Core P#26   |  | Core P#27   | | | |
 |             |  |             |  |             |  |             |  |             |  |             |  |             |  |             |  |             | | | |
 | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ | | | |
 | | PU P#27 | |  | | PU P#28 | |  | | PU P#29 | |  | | PU P#30 | |  | | PU P#31 | |  | | PU P#32 | |  | | PU P#33 | |  | | PU P#34 | |  | | PU P#35 | | | | |
 | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ | | | |
 | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ |  | /---------\ | | | |
 | | PU P#63 | |  | | PU P#64 | |  | | PU P#65 | |  | | PU P#66 | |  | | PU P#67 | |  | | PU P#68 | |  | | PU P#69 | |  | | PU P#70 | |  | | PU P#71 | | | | |
 | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ |  | \---------/ | | | |
 \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/  \-------------/ | | |

@vkarak vkarak requested a review from teojgo January 25, 2019 10:53
Copy link
Contributor

@teojgo teojgo left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

lgtm, I also tried myself and it works fine.

@jgphpc
Copy link
Contributor

jgphpc commented Jan 25, 2019

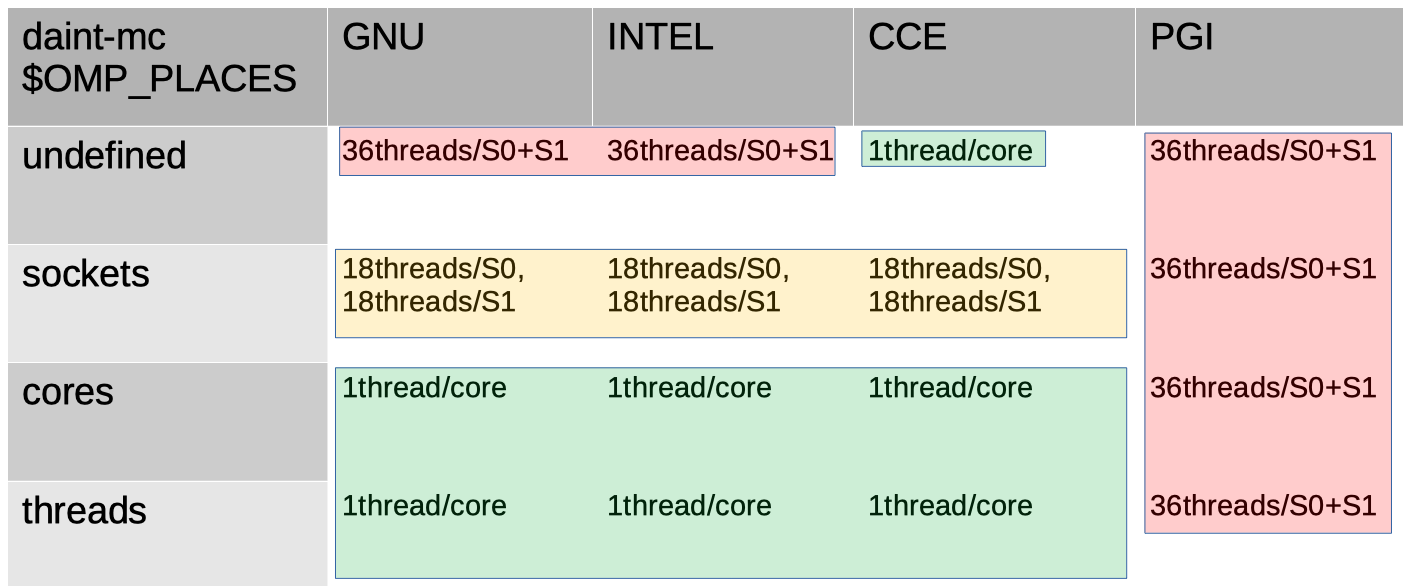

For info, there are variations between compilers on daint-mc (-n1 -c36, no multithreading):
screenshot 2019-01-25 at 14 06 36

@vkarak
Copy link
Contributor

vkarak commented Jan 28, 2019

@jenkins-cscs retry daint

@vkarak
Copy link
Contributor

vkarak commented Jan 29, 2019

@jgphpc You have a point with your comment. However, I wouldn't block this PR for this. I would rather create a follow up one for fixing what you suggest.

@jgphpc
Copy link
Contributor

jgphpc commented Jan 29, 2019 via email

@vkarak vkarak removed this from the ReFrame sprint 2019w03 milestone Jan 30, 2019
@vkarak vkarak modified the milestone: Upcoming sprint Feb 7, 2019
@codecov-io
Copy link

codecov-io commented Feb 12, 2019

Codecov Report

Merging #657 into master will not change coverage.
The diff coverage is n/a.

Impacted file tree graph

@@           Coverage Diff           @@
##           master     #657   +/-   ##
=======================================
  Coverage   91.84%   91.84%
=======================================
  Files          77       77
  Lines        9403     9403
=======================================
  Hits         8636     8636
  Misses        767      767

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update b843ce8...b03aee9. Read the comment docs.

Copy link
Contributor

@vkarak vkarak left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

lgtm

@vkarak
Copy link
Contributor

vkarak commented Feb 13, 2019

@victorusu Can you check and approve this PR?

@vkarak vkarak dismissed victorusu’s stale review February 15, 2019 15:16

All comments are addressed; we need to merge this one.

@vkarak vkarak merged commit 9884fe7 into reframe-hpc:master Feb 16, 2019
@rsarm rsarm deleted the checks/affinity branch November 26, 2019 13:16
