Add higher level commands to RR

[bgirard]

This pull request is adding more powerful commands to GDB to build more useful command.

Here's a starting proof of concept:

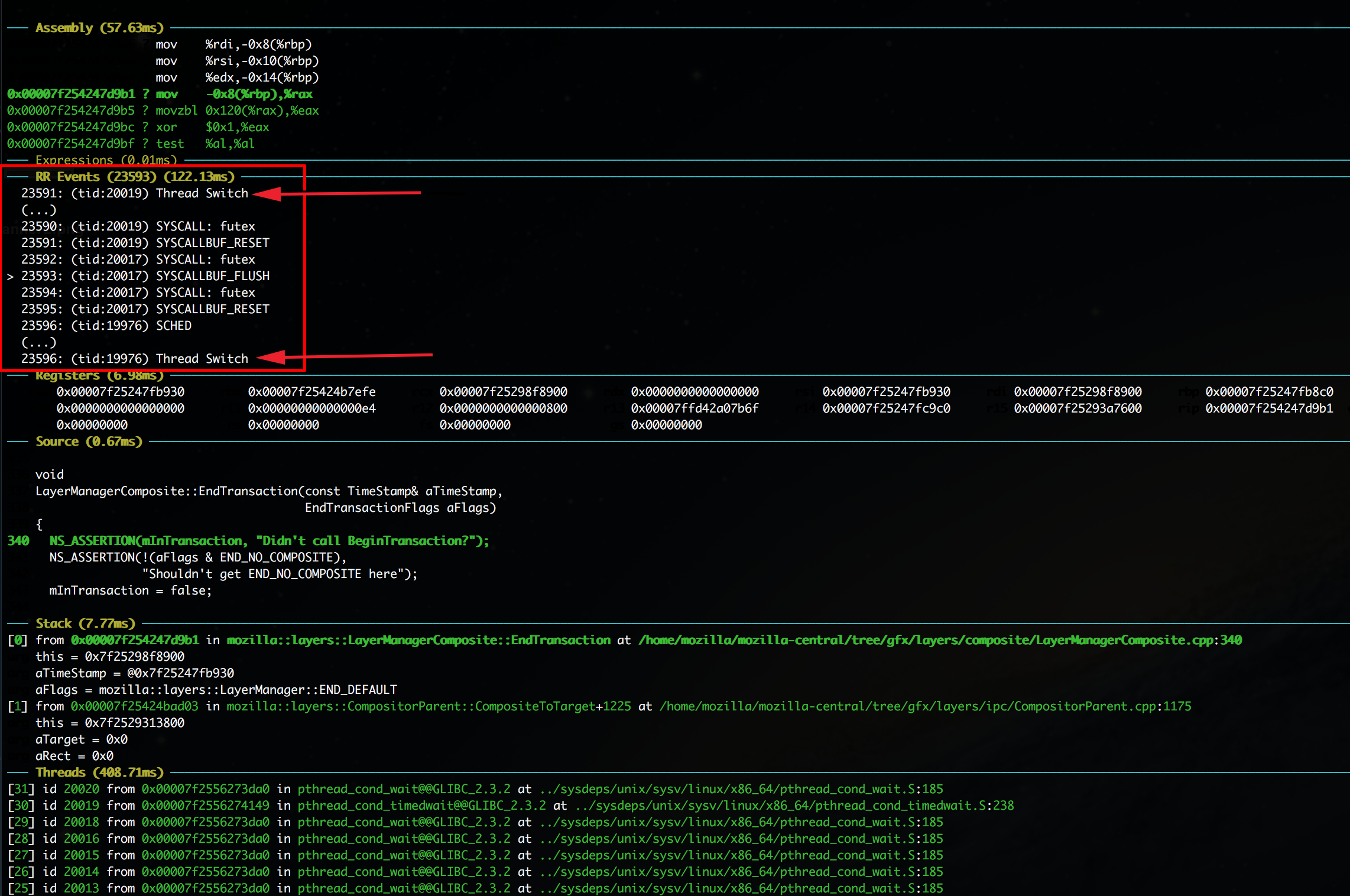

This uses forks gdb-dashboard, which already shows a lot of relevant info (source, stack, threads, disassembly).

I've added RR Events which shows the RR event in the past and in the future. It also shows the previous and upcoming thread switch.

I'm not sure if exposing the low level RR Events is useful to users of RR but it's a step towards being able to expose better data when debugging.

[rocallahan]

Before doing this I'd like to simplify the way we handle target-specific commands in rr/gdb. We can use the maintenance packet command to send an arbitrary packet to rr, which makes it really easy to send whatever data we want without hacks. We can't get a result back from that command, but we can store the result in the special rr memory location and read it from there.

[bgirard]

https://sourceware.org/gdb/onlinedocs/gdb/Maintenance-Commands.html

Do you mean issuing 'maint packet ' from the rr gdbinit? Hopefully GDB doesn't restrict characters and does all the escaping we need. How would we structure 'text'? Something like this (assuming there's no restricted characters by GDB)?

maint packet rr-cmd://
example:
rr-cmd://checkpoint?arg0=1&arg1=--force

We can look for an obvious prefix 'rr-cmd://' when processing the packet.

We can just have a python command in rr's gdbinit to URI encode without much effort. We'd just need to pull in something to decode the URI in the GdbServer.

[rocallahan]

Do you mean issuing 'maint packet ' from the rr gdbinit?

From the commands defined in rr's gdbinit, yes.

I don't think we need to use URIs here. I don't know what escaping is needed, if any; probably need to experiment since it's underdocumented.

How about sending packets of the form :rr:<command_name>:<arbitrary_per_command_data>?

[rocallahan]

Actually, just :<command_name>:<arbitrary_per_command_data> should do.

[rocallahan]

Also I think we should have a generic DREQ_TARGET_COMMAND command; GdbConnection would just extract the command name and per-command data and pass them as a DREQ_TARGET_COMMAND to GdbServer which then handles everything. Want to keep rr-specific features out of GdbConnection.

[bgirard]

Well let's say we want to support a command with multiple string argument. Then we have to pick an argument delimiter that can't appear in the argument or use some kind of length encoding. At this point why not use URI encoding which is well documented and understood.

Also GDB does argument parsing so it's best to let GDB parse the command so there's no inconsistency. For instance: MyRRCmd "this is arg1" "arg2". If we're receiving user commands as a list of arguments we should keep the argument tokenization and not pass arbitrary data and have RR re-parse it.

[rocallahan]

I don't want to implement URI encoding and decoding unless we really need it.

Commands that need to pass arbitrary strings or binary blobs could use gdb's binary encoding described here: https://sourceware.org/gdb/onlinedocs/gdb/Overview.html#Binary%20Data (starting "The binary data representation ...").

How about this, then: :<command_name>:<param1>:<param2>...:<paramN> where the params (of course) cannot contain :. If you want to pass arbitrary strings or binary data, encode them using the gdb binary encoding and be sure to escape :, ,#,$and}.

[rocallahan]

GdbConnection's read_binary_data parses that gdb binary data.

[bgirard]

This should match what we discussed. I went with the two bytes encoding because it's simple. I re-implemented the 'when' commands and made sure they're still passing the test. Once this is merged I'll send another PR for history/info checkpoint.

[rocallahan]

This is no longer used

[rocallahan]

Actually I guess it still is used. But we should replace the checkpoint commands with the new infrastructure, later.

[bgirard]

Yes, I plan on submitting that soon. I just wanted to make sure we were ok with this before I rebased my changes.

[rocallahan]

OK, I merged this. I made one change, which was to make the parameter to RR_CMD() a string rather than a bare set of tokens. This makes clang-format happy.
