component(ModalContainer): modal container initialization

[Stradivario]

Issue

Description

Introduces ModalService with capabilities user to choose what kind of template or component he wants to render. The main idea is to have modal-container appended inside body and then providing content inside of this container.

Checklist:

• Create modal container component like a container wrapper
• Append this container wrapper inside body
• Create service to handle creation and deletion of the modal
• Create ability to inject Data inside modal container when using component as a modal gateway

Modal Service

Usage

Inject ModalModule from @rxdi/ui-kit/modal

import { ModalModule } from '@rxdi/ui-kit/modal';

@Module({
  imports: [ModalModule.forRoot()]
})
export class AppModule {}

In order to have backdropClose which by default is disabled you need to provide optional config

style With this property you can specify default modal-container CSS

backdropClose when click outside of the visible modal area dialog will close

import { ModalModule } from '@rxdi/ui-kit/modal';

@Module({
  imports: [
    ModalModule.forRoot({
      backdropClose: true,
      style: css`
        .wrapper {
          position: absolute;
          top: 0;
          left: 0;
          align-items: center;
          justify-content: center;
          pointer-events: none;
          width: 100%;
          height: 100%;
        }

        .backdrop {
          width: 100%;
          height: 100%;
          top: 0;
          left: 0;
          position: absolute;
          background-color: rgba(0, 0, 0, 0.5);
          pointer-events: all;
          z-index: 10;
        }

        .content {
          z-index: 20;
          position: absolute;
          pointer-events: all;
        }
      `
    })
  ]
})
export class AppModule {}

Three steps demo modal:

1. Inject ModalService inside component

import { ModalService } from '@rxdi/ui-kit/modal';

@Component({
  selector: 'modal-view-component',
  template(this: ModalViewComponent) {
    return html`My test modal`;
  }
})
export class ModalViewComponent extends LitElement {
  @Inject(ModalService) private modalService: ModalService;
}

2. Define descriptor to open modal dialog

openModal() {
  this.modalService.open(html`My Modal Content, <div @click=${this.modalService.close()}>Close</div>`)
}

3. Now lets execute openModal

import { ModalService } from '@rxdi/ui-kit/modal';
import { html, LitElement, Component } from '@rxdi/lit-html';
import { Inject } from '@rxdi/core';

@Component({
  selector: 'modal-view-component',
  template(this: ModalViewComponent) {
    return html`
      <div @click=${() => this.openModal()}>Open Modal Dialog</div>
    `;
  }
})
export class ModalViewComponent extends LitElement {
  @Inject(ModalService) private modalService: ModalService;

  openModal() {
    this.modalService.open(
      html`
        My Modal Content,
        <div @click=${this.modalService.close()}>Close</div>
      `
    ).subscribe();
  }
}

Basic Usage

import { Component, LitElement, html, css } from '@rxdi/lit-html';
import { Inject } from '@rxdi/core';
import { ModalService } from '@rxdi/ui-kit/modal';

@Component({
  selector: 'modal-view-component',
  template(this: ModalViewComponent) {
    return html`
      <div
        @click=${() => this.openBasicModal()}
        style="cursor:pointer; padding: 20px; background-color: blue"
      >
        Open Basic Modal
      </div>
    `;
  }
})
export class ModalViewComponent extends LitElement {
  @Inject(ModalService)
  private modalService: ModalService;

  openBasicModal() {
    this.modalService.open(
      html`
        <style>
          :host {
            width: 100%;
            height: 100%;
            top: 0;
            left: 0;
            position: absolute;
            background-color: black;
          }
        </style>
        <div
          @click=${() => this.closeModal()}
          style="cursor:pointer; padding: 20px; background-color: blue"
        >
          Close Modal
        </div>
      `
    );
  }

  closeModal() {
    this.modalService.close();
  }
}

Using with Component

import { Component, LitElement, html, css } from '@rxdi/lit-html';
import { Inject, Injector } from '@rxdi/core';
import { ModalService } from '@rxdi/ui-kit/modal/modal.service';
import { MODAL_DIALOG_DATA } from '@rxdi/ui-kit/modal/interface';

/* TestModal Component */
@Component({
  selector: 'test-modal',
  style: css`
    :host {
      width: 100%;
      height: 100%;
      top: 0;
      left: 0;
      position: absolute;
      background-color: black;
    }
  `,
  template(this: TestModal) {
    return html`
      Test Modal ${JSON.stringify(this.data)}

      <div
        @click=${() => this.close()}
        style="cursor:pointer; padding: 20px; background-color: blue"
      >
        Close
      </div>
    `;
  }
})
export class TestModal extends LitElement {
  @Injector(MODAL_DIALOG_DATA)
  private data: { omg: string };

  @Inject(ModalService)
  private modalService: ModalService;

  private modalRef = this.modalService.getRef();

  OnInit() {
    console.log('test-modal initialized');
  }
  OnDestroy() {
    console.log('test-modal destroyed');
  }

  close() {
    this.modalService.close();
  }
}

/* Modal View Component */
@Component({
  selector: 'modal-view-component',
  template(this: ModalViewComponent) {
    return html`
      <div
        @click=${() => this.openAdvancedModal()}
        style="cursor:pointer; padding: 20px; background-color: blue"
      >
        Open Advanced Modal
      </div>
    `;
  }
})
export class ModalViewComponent extends LitElement {
  @Inject(ModalService)
  private modalService: ModalService;

  openAdvancedModal() {
    this.modalService.openComponent(TestModal, { omg: 'dada' });
  }
}

Using it to spawn Wizards or Sequence of modals

import { Component, LitElement, html, css } from '@rxdi/lit-html';
import { Inject, Injector } from '@rxdi/core';
import { ModalService } from '@rxdi/ui-kit/modal/modal.service';
import { MODAL_DIALOG_DATA } from '@rxdi/ui-kit/modal/interface';
import { of } from 'rxjs';
import { switchMap } from 'rxjs/operators';


/* TestModal Component */
@Component({
  selector: 'test-modal',
  template(this: TestModal) {
    return html`
      Test Modal ${JSON.stringify(this.data)}

      <div
        @click=${() => this.close()}
        style="cursor:pointer; padding: 20px;position: absolute; bottom: 0; right: 0"
      >
        Close
      </div>
    `;
  }
})
export class TestModal extends LitElement {
  @Injector(MODAL_DIALOG_DATA)
  private data: number;

  @Inject(ModalService)
  private modalService: ModalService;

  private modalRef = this.modalService.getRef();
  OnInit() {
    console.log('test-modal initialized');
  }
  OnDestroy() {
    console.log('test-modal destroyed');
  }

  close() {
    // debugger;
    this.modalService.close(this.data);
  }
}


/* Modal View Component */
@Component({
  selector: 'modal-view-component',
  style: css`
    .button {
      cursor: pointer;
      padding: 20px;
      margin: 20px;
      background-color: blue;
    }
    .button:hover {
      opacity: 0.9;
    }
  `,
  template(this: ModalViewComponent) {
    return html`
      <div @click=${() => this.startWizard()} class="button">
        Open Modal Sequence
      </div>
    `;
  }
})
export class ModalViewComponent extends LitElement {
  @Inject(ModalService)
  private modalService: ModalService;

  startWizard() {
    const data = Array(5)
      .fill(null)
      .map((_, i) => ({ component: TestModal, data: i }));
    of(data)
      .pipe(switchMap((v) => this.modalService.openSequence(v)))
      .subscribe(console.log);
  }

  closeModal() {
    this.modalService.close();
  }

}

Hacks

  OnInit() {
    const container = document.querySelector('modal-container');
    const content = container.shadowRoot.querySelector('.content');
    content.addEventListener('click', () => this.close());
  }

Modal service

import { Injectable, Inject } from '@rxdi/core';
import { html, css } from '@rxdi/lit-html';
import { ModalService } from '@rxdi/ui-kit/modal/modal.service';

@Injectable()
export class ModalViewService {
  @Inject(ModalService)
  private modalService: ModalService;

  openMainModal() {
    return this.modalService.openMainModal(
      {
        title: `Default`,
        description: `
          Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do
          eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim
          ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut
          aliquip ex ea commodo consequat. Duis aute irure dolor in
          reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla
          pariatur. Excepteur sint occaecat cupidatat non proident, sunt in
          culpa qui officia deserunt mollit anim id est laborum.
          `
      },
      { backdropClose: true }
    );
  }

  openBasicModal() {
    return this.modalService.open(
      html`
        <div
          @click=${() => this.modalService.close(false)}
          style="cursor:pointer; padding: 20px; background-color: blue"
        >
          Close Modal
        </div>
      `
    );
  }

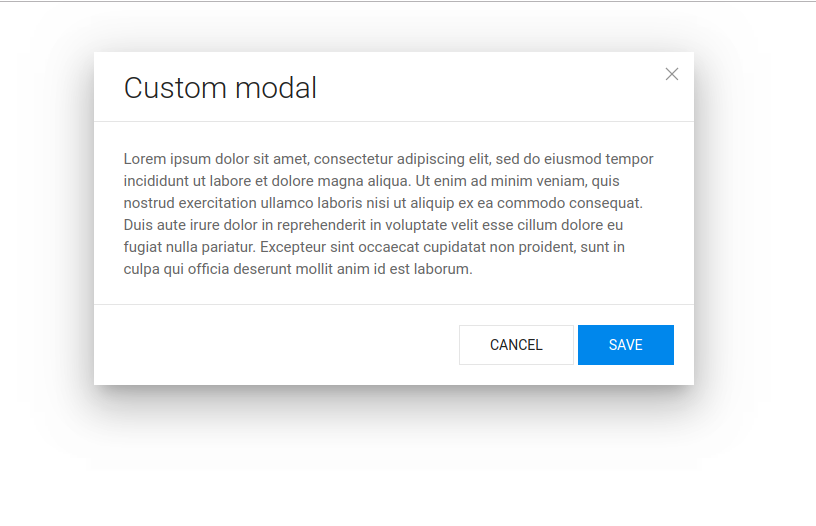

  openCustomMainModal() {
    return this.modalService.openMainModal(
      {
        template: html`
          <div style="padding: 15px 30px;border-bottom: 1px solid #e5e5e5;">
            <h1>Custom modal</h1>
          </div>
          <div
            style="padding: 10px 30px 10px 30px; border-bottom: 1px solid #e5e5e5;"
          >
            <p>
              Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do
              eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut
              enim ad minim veniam, quis nostrud exercitation ullamco laboris
              nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in
              reprehenderit in voluptate velit esse cillum dolore eu fugiat
              nulla pariatur. Excepteur sint occaecat cupidatat non proident,
              sunt in culpa qui officia deserunt mollit anim id est laborum.
            </p>
          </div>
          <div style="text-align: right">
            <span @click=${() => this.modalService.close()}>Cancel</span>
            <span>Save</span>
          </div>
        `,
        style: css`
          .dialog {
            padding: 0 !important;
          }
        `
      },
      { backdropClose: false }
    );
  }

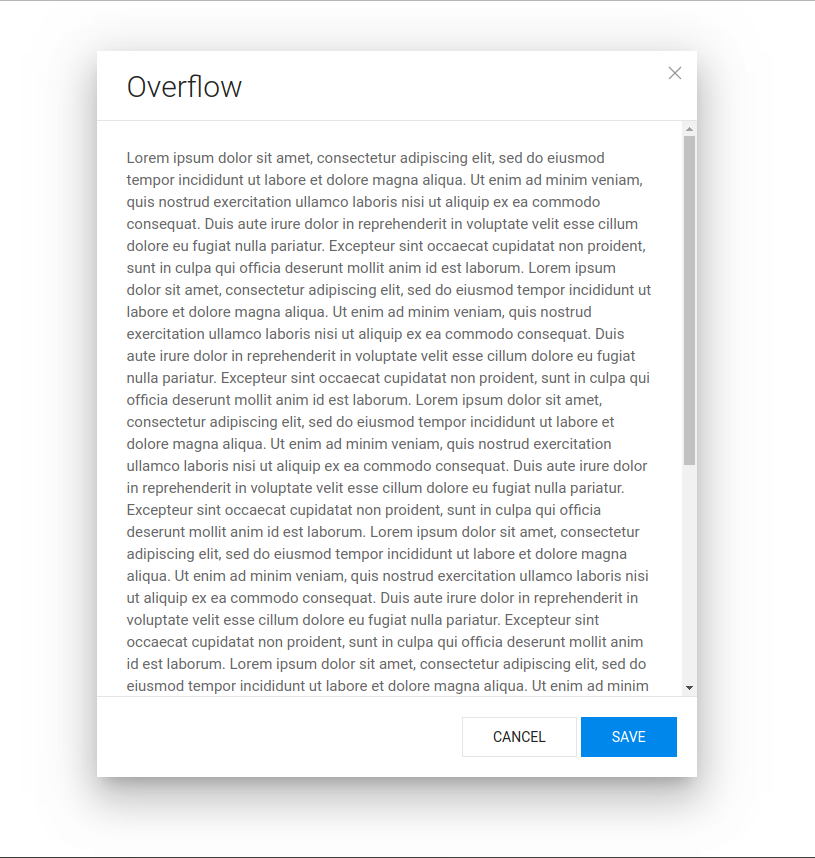

  openOverflowCustomModal() {
    return this.modalService.openMainModal(
      {
        template: html`
          <div style="padding: 15px 30px;border-bottom: 1px solid #e5e5e5;">
            <h1>Overflow</h1>
          </div>
          <div class="content">
            <p>
          Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do
          eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim
          ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut
          aliquip ex ea commodo consequat. Duis aute irure dolor in
          reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla
          pariatur. Excepteur sint occaecat cupidatat non proident, sunt in
          culpa qui officia deserunt mollit anim id est laborum.
          Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do
          eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim
          ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut
          aliquip ex ea commodo consequat. Duis aute irure dolor in
          reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla
          pariatur. Excepteur sint occaecat cupidatat non proident, sunt in
          culpa qui officia deserunt mollit anim id est laborum.
          Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do
          eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim
          ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut
          aliquip ex ea commodo consequat. Duis aute irure dolor in
          reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla
          pariatur. Excepteur sint occaecat cupidatat non proident, sunt in
          culpa qui officia deserunt mollit anim id est laborum.
          Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do
          eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim
          ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut
          aliquip ex ea commodo consequat. Duis aute irure dolor in
          reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla
          pariatur. Excepteur sint occaecat cupidatat non proident, sunt in
          culpa qui officia deserunt mollit anim id est laborum.
          Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do
          eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim
          ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut
          aliquip ex ea commodo consequat. Duis aute irure dolor in
          reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla
          pariatur. Excepteur sint occaecat cupidatat non proident, sunt in
          culpa qui officia deserunt mollit anim id est laborum.
          Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do
          eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim
          ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut
          aliquip ex ea commodo consequat. Duis aute irure dolor in
          reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla
          pariatur. Excepteur sint occaecat cupidatat non proident, sunt in
          culpa qui officia deserunt mollit anim id est laborum.
            </p>
          </div>
          <div style="text-align: right">
            <span @click=${() => this.modalService.close()}>Cancel</span>
            <span>Save</span>
          </div>
        `,
        style: css`
          .dialog {
            padding: 0 !important;
          }
          .content {
            padding: 10px 30px 10px 30px;
            border-bottom: 1px solid #e5e5e5;
            overflow: auto;
            min-height: 150px;
            max-height: 555px;
          }
        `
      },
      { backdropClose: true }
    );
  }

  openFullScreenModal() {
    return this.modalService.openMainModal(
      {
        template: html`
          <div class="flex-grid">
            <img src="https://getuikit.com/docs/images/photo.jpg" />
            <h1>Full-screen modal</h1>
          </div>
        `,
        style: css`
          .container {
            padding: 0px !important;
          }
          .flex-grid {
            display: flex;
            flex-wrap: wrap;
            margin: 0;
            padding: 0;
            list-style: none;
          }
          img {
            background-position: 50% 50%;
            background-repeat: no-repeat;
            width: 50%;
            min-height: calc(100vh);
            box-sizing: border-box;
            background-size: cover;
          }
          .dialog {
            padding: 0 !important;
            width: 100% !important;
            height: 100% !important;
          }

          .container {
            height: 100%;
          }
        `
      },
      { backdropClose: false }
    );
  }
}
