This Python program features a tkinter user interface that allows users to generate random eight-puzzles and solve them with their choice of search algorithm. Once a solution has been found, the program will display statistics such as time elapsed for the search, number of nodes expanded, and number of moves required.

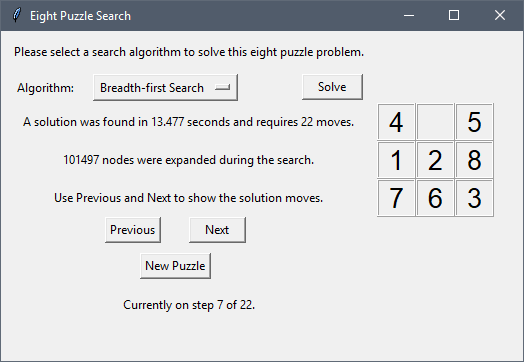

Here is a screenshot of the program:
As of 6/30/2018, the following search algorithms have been implemented:
- Depth-first Search
- Breadth-first Search
And the following search algorithms are planned to be added:
- Uniform-cost Search (in progress)
- Greedy Best-first Search
- A* Search [Manhattan Distance Heuristic]
- Recursive Best-first Search
Some algorithms are inherently slow to find a solution. Please be patient if you choose such algorithms.
Further notes:
- Only solvable eight-puzzles will be generated. This is done with a check on the number of inversions in the input state of the puzzle.
- The selection of search algorithms is accessible using a dropdown menu.
- Currently, you can run the program using main.py, but I plan to create a Windows executable in the near future.
- Implemented in Python 3, do not use Python 2 versions.
