DropNode — Secure File Upload Portal

Built by OneHackers for Cyber Carnival 2K26 | VIT-B
Team: Shanzal Firoz (Lead), Navni Danwani, Aditya Vishwakarma

---

Warning

Do Not git clone This Repository. The GitHub repository (github.com/shanzal-vitb/dropnode) is connected to the live web demo and may contain dev artifacts or demo-specific changes not intended for self-hosted use. Always download source from the Releases page instead.

---

Overview

DropNode is a self-hosted, browser-based file upload portal that scans every uploaded file against the VirusTotal multi-engine API before making it available for download. Safe files are moved to permanent storage; unsafe files are quarantined and automatically deleted after three minutes. Every scan is persisted to a local SQLite database and can be retrieved at any time via a unique Drop ID.

---

Project Structure

dropnode/
├── app.py                  # Flask backend — routes, scanning logic, DB, deletion scheduler
├── index.html              # Single-page frontend (Tailwind CSS + vanilla JS)
├── requirements.txt        # Python dependencies
├── .api_key                # Persisted VT API key (chmod 600, auto-created by Set API modal)
├── dropnode.db             # SQLite database (auto-created on first run)
├── static/
│   ├── assets/             # SVG icons and logos (file-based / CDN URL references)
│   └── fonts/              # Custom font files (SamsungSharpSans, PPSupplySans)
├── cache/                  # Temporary file storage (pre-scan, auto-created)
├── uploads/                # Permanent safe file storage (post-scan, auto-created)
├── demo/                   # Demo build — same codebase + warning banner [V1.1]
└── venv/                   # Python virtual environment (not committed to version control)

---

Requirements

• Python 3.10 or later
• A VirusTotal API key (free tier available at https://www.virustotal.com)
• Internet access (for VirusTotal API calls)

---

Setup

1. Download from Releases

Important

Do not git clone this repository. Download the latest source archive from the Releases page.

2. Create and activate a virtual environment

It is strongly recommended to run DropNode inside a Python virtual environment to avoid dependency conflicts.

Linux / macOS:

python3 -m venv venv
source venv/bin/activate

Windows (Command Prompt):

python -m venv venv
venv\Scripts\activate.bat

Windows (PowerShell):

python -m venv venv
venv\Scripts\Activate.ps1

You should see (venv) prefixed in your terminal prompt once the environment is active.

3. Install dependencies

pip install -r requirements.txt

4. Set your VirusTotal API key

Get a free API key from https://www.virustotal.com/gui/my-apikey after registering.

Option A — In-browser via "Set API" modal (V1.1) [recommended]:

Start the app, then click "Set API" in the header nav. Enter your key in the popup — it is saved to .api_key (chmod 600) and persists across server restarts. No restart required.

Option B — Environment variable:

Linux / macOS:

export VT_API_KEY="your_api_key_here"

Windows (Command Prompt):

set VT_API_KEY=your_api_key_here

Windows (PowerShell):

$env:VT_API_KEY="your_api_key_here"

Option C — Edit app.py directly:

Open app.py and replace the placeholder on the relevant line:

VIRUSTOTAL_API_KEY = 'your_api_key_here'

Key resolution order: .api_key file → VT_API_KEY env var → hardcoded value in app.py.

5. Run the application

python app.py

The server starts on http://localhost:5000 in debug mode. Open that URL in your browser.

To deactivate the virtual environment when done:

deactivate

---

How It Works

Upload

The file is sent to the /upload endpoint via an XHR request with real-time progress tracking. It is saved to the cache/ directory and its SHA-256 and MD5 hashes are computed immediately. File metadata (name, size, type, hashes) is displayed to the user before scanning begins.

Scan

On user confirmation, the file is submitted to the VirusTotal API v3 (/files endpoint). The backend polls the analysis endpoint until a result is ready, then aggregates the engine verdicts into a single result object containing:

• Threat status (Clean / Suspicious / Malicious)
• Risk score (0–100) and risk badge (Low / Medium / High)
• Detection ratio (flagged engines / total engines)
• Malware signature name and threat category
• List of flagging engines
• Full file metadata from VirusTotal (MIME type, file type, publisher, certificate validity)

A unique 20-character uppercase alphanumeric Drop ID is generated for each scan and stored in the database.

Result Disposition

Verdict	Action
Safe	File is moved from cache/ to uploads/. Download becomes available.
Unsafe	File remains in cache/ and is scheduled for deletion after 3 minutes. Download is disabled.

The deletion is handled by a background daemon thread. The timer starts at the moment of the first scan and is never reset, even if the file is re-scanned. The frontend chip updates in real-time from "File will be deleted in 3 minutes" to "File has been deleted" once the timer expires.

Search

Past scans can be retrieved by Drop ID or filename via the search bar. Results are fetched from the SQLite database and persist across server restarts.

Report

A full HTML scan report can be downloaded at any time for any scan result, referenced by Drop ID or filename. The report includes all scan metadata, engine results, and file hashes — styled with the same custom fonts as the main webapp.

---

API Endpoints

Method	Endpoint	Description
GET	/	Serves the main web UI
POST	/upload	Receives a file, saves it to cache/, returns hashes and metadata
POST	/scan	Submits cached file to VirusTotal, returns full scan result
GET	/file-status?filename=<name>	Returns real-time deletion status for a cached file (pending, seconds_remaining, exists)
GET	/search?q=<query>	Searches scan history by Drop ID or filename (up to 20 results)
GET	/download/<filename>	Downloads a safe file from uploads/; returns 410 Gone if file_deleted=1
GET	/report/<upload_id>	Downloads a full HTML scan report by Drop ID or filename
POST	/set-api-key	[V1.1] Accepts VT API key at runtime; persists to .api_key (chmod 600)
POST	/delete-file	[V1.1] Removes physical file, sets file_deleted=1; preserves scan history
POST	/delete-result	[V1.1] Hard-purges: removes file AND DB row
POST	/cleanup-cache	[V1.1] Beacon endpoint; cleans orphaned cache/ files on page unload

---

Database Schema

Scan results are stored in dropnode.db (SQLite). The scan_results table schema:

Column	Type	Description
id	INTEGER	Auto-incremented primary key
upload_id	TEXT	Unique 20-character Drop ID
filename	TEXT	Sanitized filename
is_safe	INTEGER	1 = safe, 0 = unsafe
threat_status	TEXT	Clean / Suspicious / Malicious
risk_score	INTEGER	0–100
risk_badge	TEXT	Low / Medium / High
detection_ratio	TEXT	e.g. "3/72"
engines_scanned	INTEGER	Total AV engines queried
malware_signature	TEXT	Signature name from flagging engine
threat_category	TEXT	Detection method / category
flagged_engines	TEXT	JSON array of engine names
file_type	TEXT	Human-readable file type
file_size	INTEGER	Size in bytes
mime_type	TEXT	MIME / type tag from VirusTotal
sha256	TEXT	SHA-256 hash
md5	TEXT	MD5 hash
digital_signature	TEXT	Signature validity status
publisher	TEXT	Publisher subject from cert info
cert_validity	TEXT	Valid / Not Signed / Unverified
file_created	TEXT	File creation timestamp
last_modified	TEXT	File modification timestamp
scan_timestamp	TEXT	UTC timestamp of scan
created_at	TEXT	DB row creation timestamp
file_deleted	INTEGER	[V1.1] 1 if file manually deleted; 0 otherwise

---

Limits and Constraints

Constraint	Value
Maximum file size	32 MB
VirusTotal free tier rate limit	4 req/min, 500/day
Unsafe file auto-deletion	180 seconds after first scan
Large file scan time	Up to 5 minutes (VirusTotal queue)
Search results returned	Up to 20 per query
Drop ID length	20 chars, uppercase alphanumeric

---

Security Notes

• Filenames are sanitized using werkzeug.utils.secure_filename before being written to disk — applied at all endpoints including the new V1.1 deletion endpoints.
• SHA-256 and MD5 hashes are computed locally with Python's hashlib before any VirusTotal submission.
• The .api_key file is written with chmod 0o600 (owner-read-only) — no world-readable API key exposure.
• Unsafe files are isolated in cache/ and never moved to uploads/; they are deleted by a daemon thread after 3 minutes.
• /download/<filename> checks both is_safe and file_deleted before serving; returns 410 Gone for manually deleted files.
• VirusTotal API v3 provides multi-engine scanning across 70+ antivirus engines.
• /cleanup-cache refuses to delete files already on the auto-delete timer — prevents timer bypass via the beacon endpoint.

---

V1.1 Changelog

Backend (app.py)

• [NEW] #1 — /set-api-key POST endpoint: accepts VirusTotal API key at runtime, no restart required.
• [NEW] _load_api_key() — three-tier cascade: .api_key file → VT_API_KEY env var → hardcoded fallback.
• [SEC] API key persisted to .api_key with chmod 0o600 (owner-read-only).
• [NEW] #4 — /delete-file: removes physical file from uploads/, sets file_deleted=1 in DB, preserves scan history.
• [NEW] #4 — /delete-result: hard-purges file from uploads/ or cache/ AND deletes the DB row.
• [NEW] #16 — /cleanup-cache: sendBeacon endpoint; cleans orphaned cache/ files on page unload; skips files already on the auto-delete timer.
• [NEW] #16 — _startup_cache_sweep(): runs at import time; clears all orphaned cache/ files from crashed or reloaded sessions.
• [NEW] file_deleted column (INTEGER DEFAULT 0) added to scan_results table.
• [UPD] Zero-downtime DB migration: ALTER TABLE ADD COLUMN file_deleted runs automatically on existing DBs.
• [UPD] save_result() and row_to_dict() read/write file_deleted; exposed as boolean in all API JSON responses.
• [FIX] #7 — /download/<filename> returns HTTP 410 Gone when file_deleted=1.
• [FIX] schedule_delete() is idempotent — re-scan cannot reset an already-running deletion timer.
• [UPD] DB connections use Flask g context via get_db()/close_db(), preventing connection leaks.
• [SEC] secure_filename (werkzeug) applied at all new deletion endpoints.

Frontend — New Features (index.html)

• [NEW] #1 — "Set API" item added to desktop header nav (right of About) and mobile hamburger menu.
• [NEW] #1 — Clicking "Set API" opens a blurred-background popup with smooth fade+scale animation.
• [NEW] #1 — Password-type input with eye-toggle; tick-button in --accent colour submits via submitApiKey().
• [NEW] #1 — On success: modal closes with reverse animation; success snackbar: "API key has been saved & Applied."
• [NEW] #1 — Modal dismisses on backdrop click and Escape key; input cleared after successful submission.
• [NEW] #4 — Delete button added right of Re-Scan in the results area.
• [NEW] #4 — Delete confirmation popup: "Delete File & Result" and "Delete File Only" for SAFE files.
• [NEW] #4 — UNSAFE delete popup: shows "Delete Result" only + note "File will be deleted in 3 mins automatically."
• [NEW] #5 — Download File button repositioned to immediately right of the Delete button.
• [NEW] #21 — Demo build warning banner for demo/ build.
• [NEW] #4 / #30 — Re-Scan button disabled with hover/tap tooltip when file manually deleted: "The file has been deleted by the user, re-upload it to re-scan."
• [NEW] crossDissolvePanel(data) — fade-out/update/fade-in animation for smooth in-place re-scan panel updates.
• [NEW] sendBeacon /cleanup-cache fires on beforeunload, preventing orphaned temp files in cache/.
• [NEW] Dedicated Search modal overlay with scoped clickable result cards.
• [NEW] showSnack({type, message, buttonLabel, onButton, duration}) — unified toast system with stacking, auto-dismiss, and action buttons.

Frontend — Bug Fixes (index.html)

• [FIX] #8 — System status pill no longer flashes "Checking..." every 10 s during keep-alive ping. "Checking" (yellow) only shown during genuine online ↔ offline transition.
• [FIX] #7 — Download button on search result cards no longer triggers the active scan result's download; scoped to each card's own Drop ID.
• [FIX] #29 — "Delete File Only" button disabled immediately after use; prevents repeated snackbar loop.
• [FIX] #10 — Unsafe delete popup note updates from "File will be deleted in 3 mins" → "File has been deleted automatically." in real-time when the timer fires.
• [FIX] #16 — Files in cache/ after a mid-scan page reload are cleaned up on page unload via sendBeacon.
• [FIX] Module-level scanIntervalId and deleteTimer prevent duplicate polling loops across re-scan attempts.
• [FIX] resetAll() correctly clears all timers, intervals, XHR refs, and UI state on new upload.
• [FIX] #28 — Drop ID search box now centred correctly in the nav header.

UI / UX Updates

• [UPD] #2 — Tagline: "The node that protects" → "The node that protects." (full stop added).
• [UPD] #17 — Upload area heading: "Secure File Portal" → "Secure File Upload Portal".
• [UPD] #13 — Nav label and popup heading: "Settings" → "Set API" throughout.
• [UPD] #13 — GitHub profile URLs for all three team members confirmed and updated in the footer.
• [UPD] #13 — Build chip: Build: Beta, V1.1 - 250226.
• [UPD] #3 — Mobile brand logo clamp() minimum value increased for better small-screen legibility.
• [UPD] #6 — System status pill: yellow colour while in "Checking..." state.
• [UPD] #13 — Status pill text and size slightly reduced for a cleaner footer.
• [UPD] #9 — Delete confirmation popup buttons sized relative to text content for uniform appearance.
• [UPD] #11 — Buttons in the upload/scanning area wrap to left-aligned on narrow screens.
• [UPD] #12 — Buttons in the results area wrap to left-aligned on narrow screens.
• [UPD] #15 — Inline SVGs reverted to file-based / CDN URL references for easier maintenance.
• [UPD] #18 — HTML scan report: custom fonts (SamsungSharpSans / PPSupplySans via CDN) match main webapp.
• [UPD] #19 — HTML report generator updated to include the live DropNode webapp link.
• [UPD] #30 — After file-only deletion (safe file): "Delete File & Result" relabels to "Result Only".
• [UPD] #30 — Note "The file has been deleted by the user." appears below action description after file-only deletion.

Demo Build

• [NEW] #14 — Separate demo/ folder created inside the V1.1 production directory:
  • #21 — Warning banner about demo usage and public file exposure risk.
  • #22 — Build chip: Build: Beta, V1.1 - 250226_demo
• [UPD] Demo warning committed to the dropnode main branch alongside all V1.1 changes.

---

Demo Video

---

Screenshots

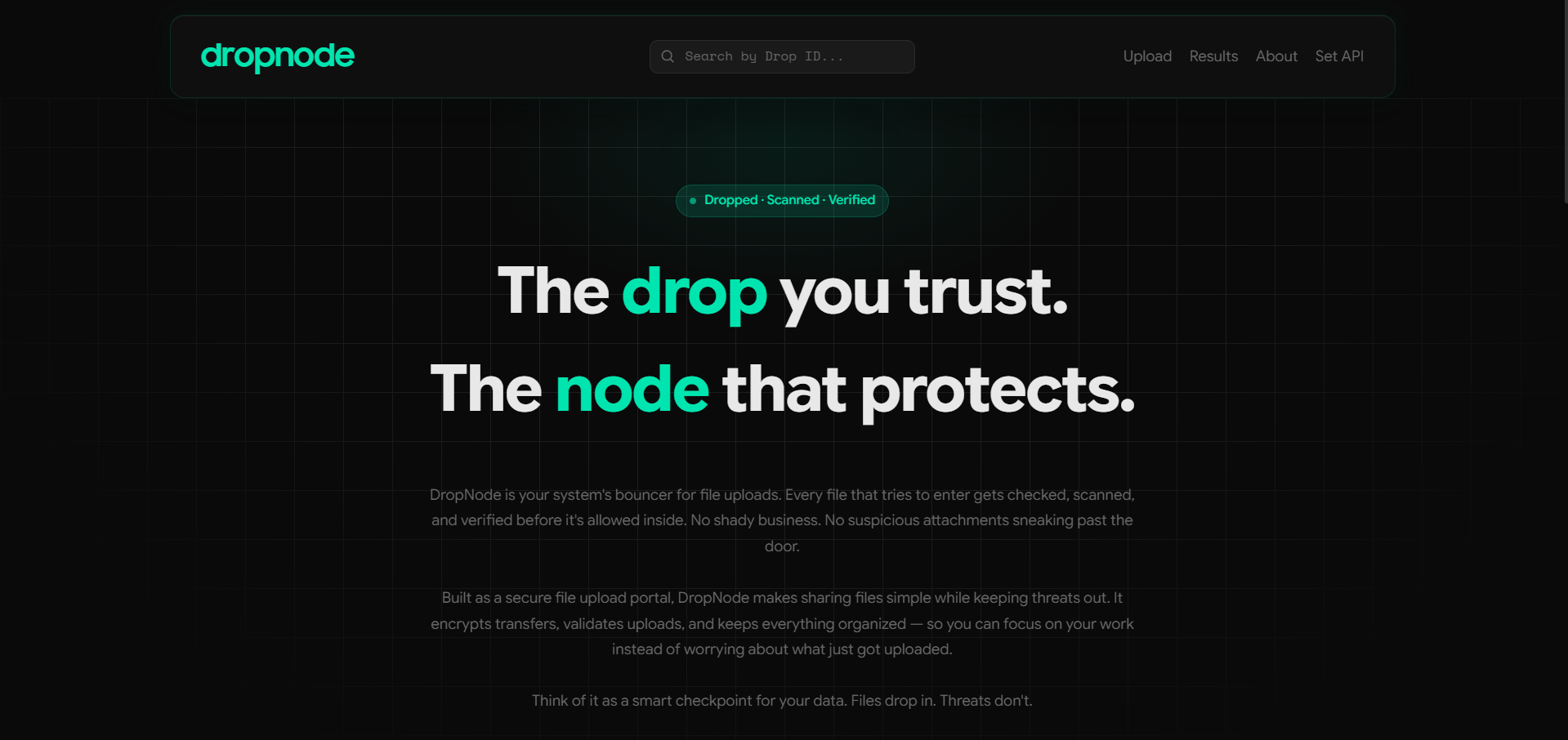

Landing Page

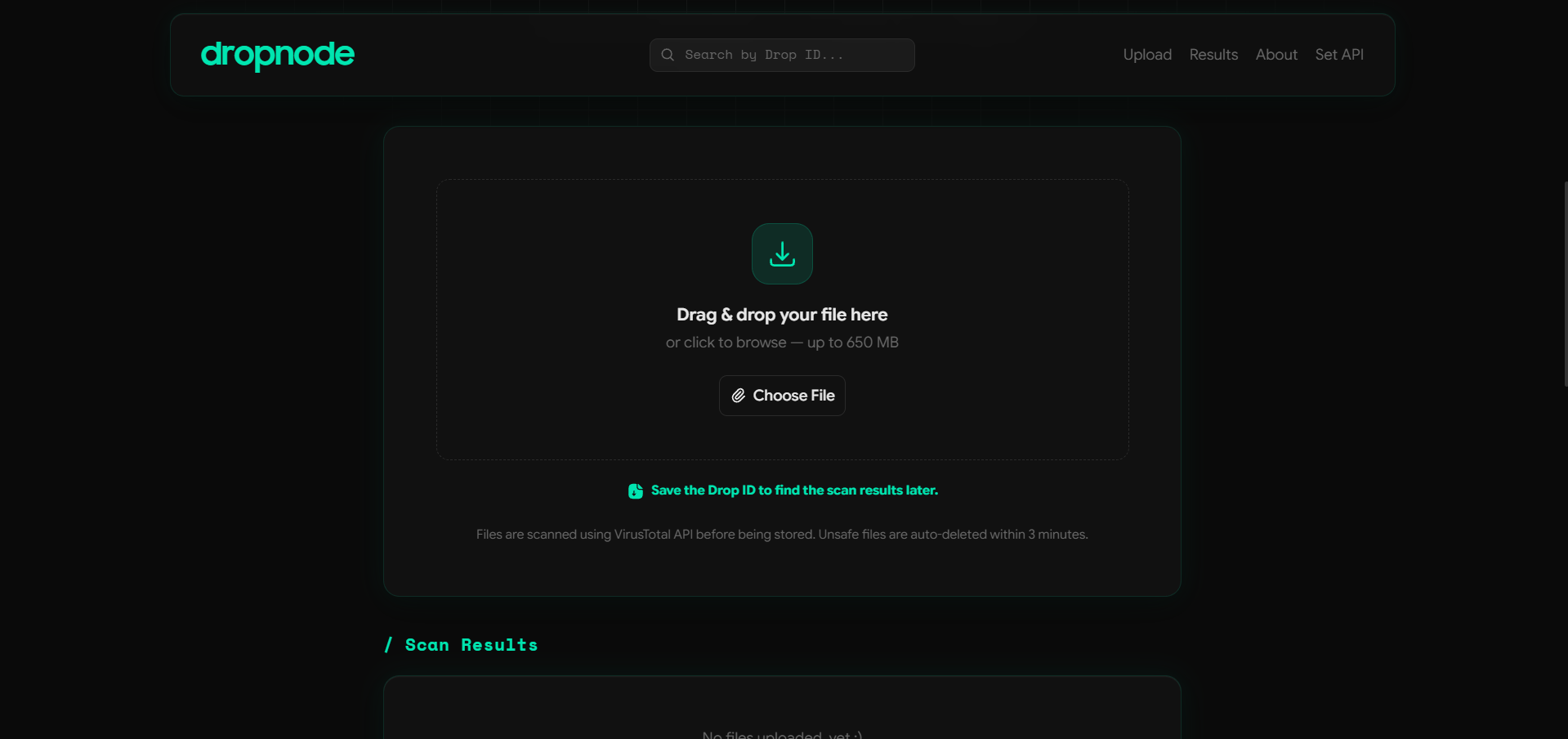

Drop area

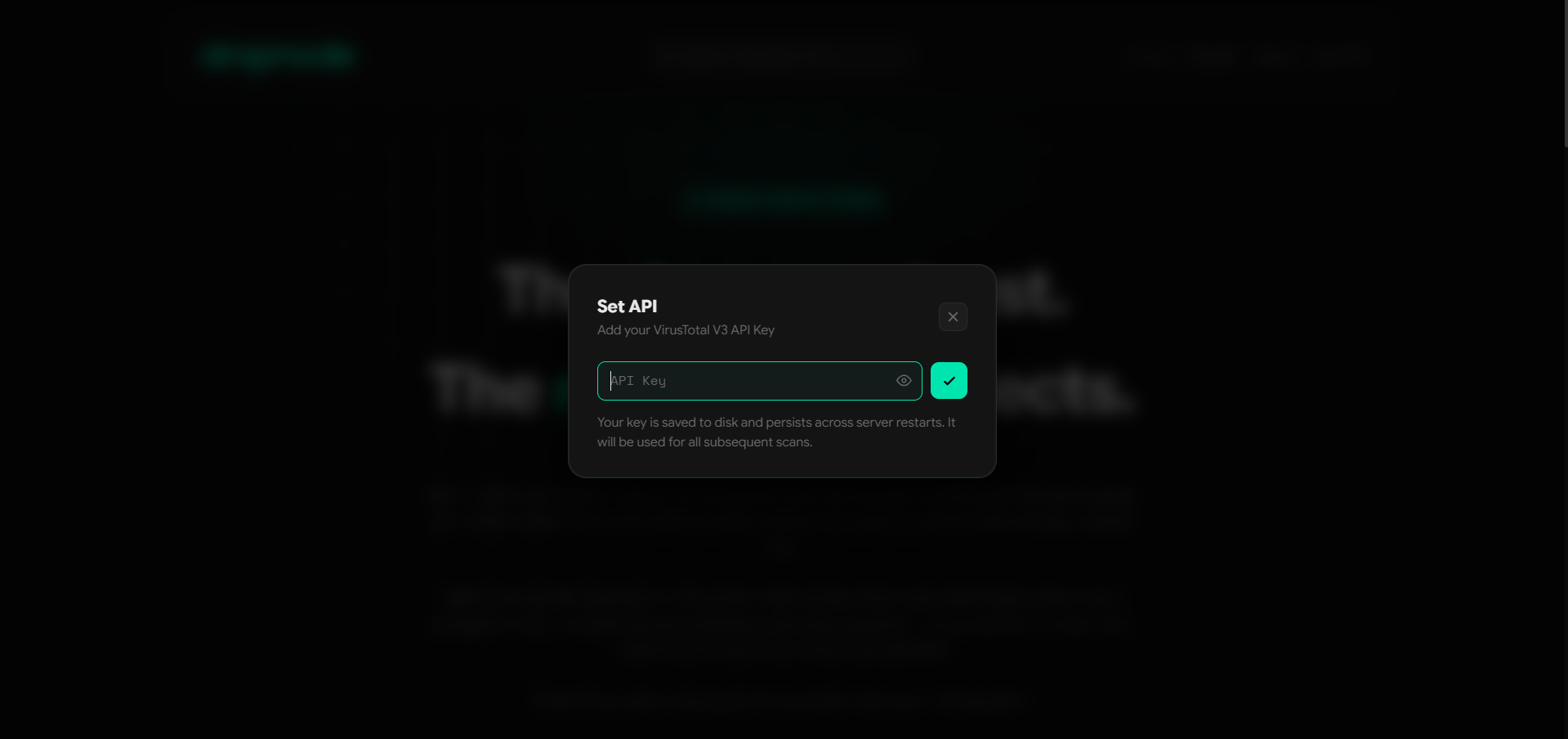

User API Key

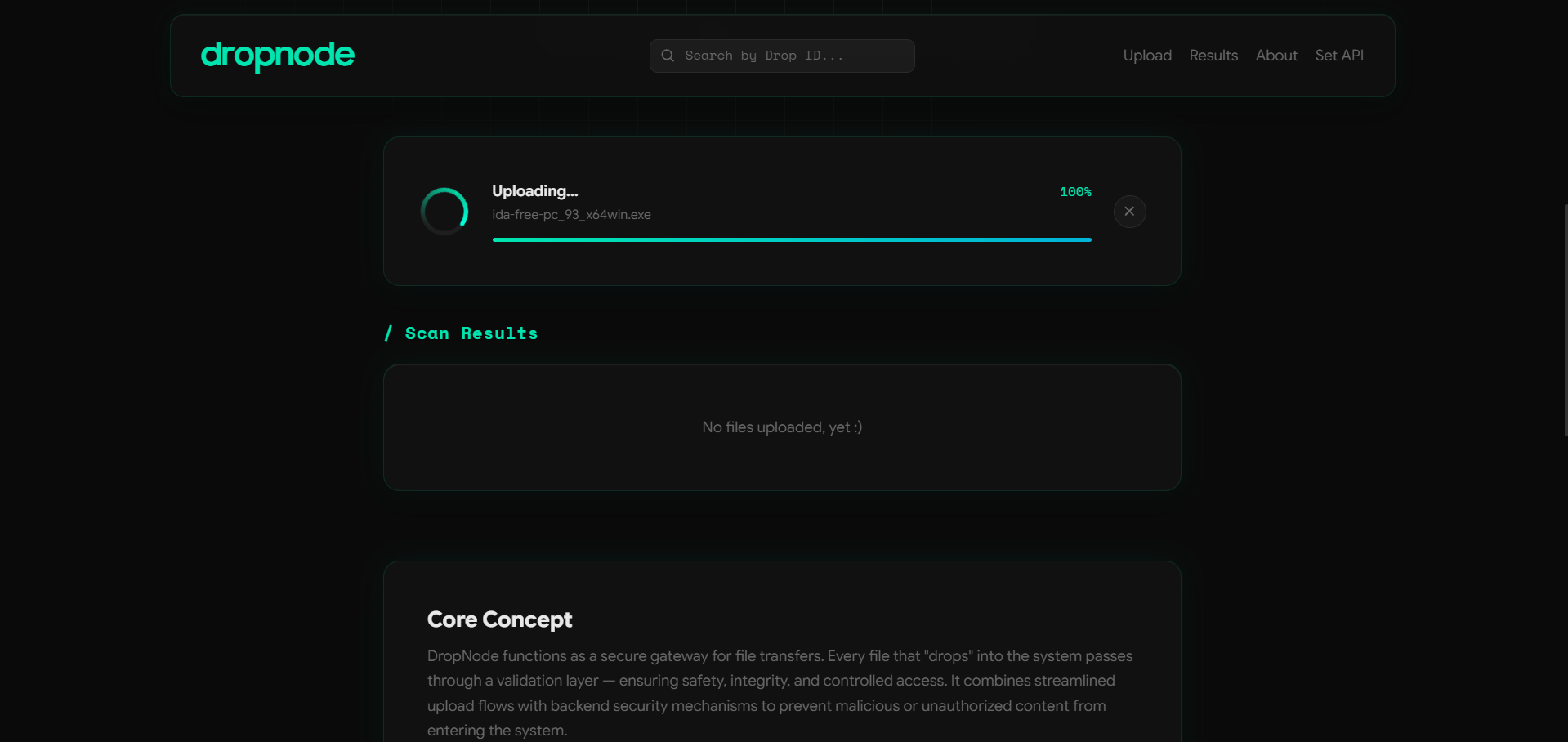

File Uploading

File Uploaded

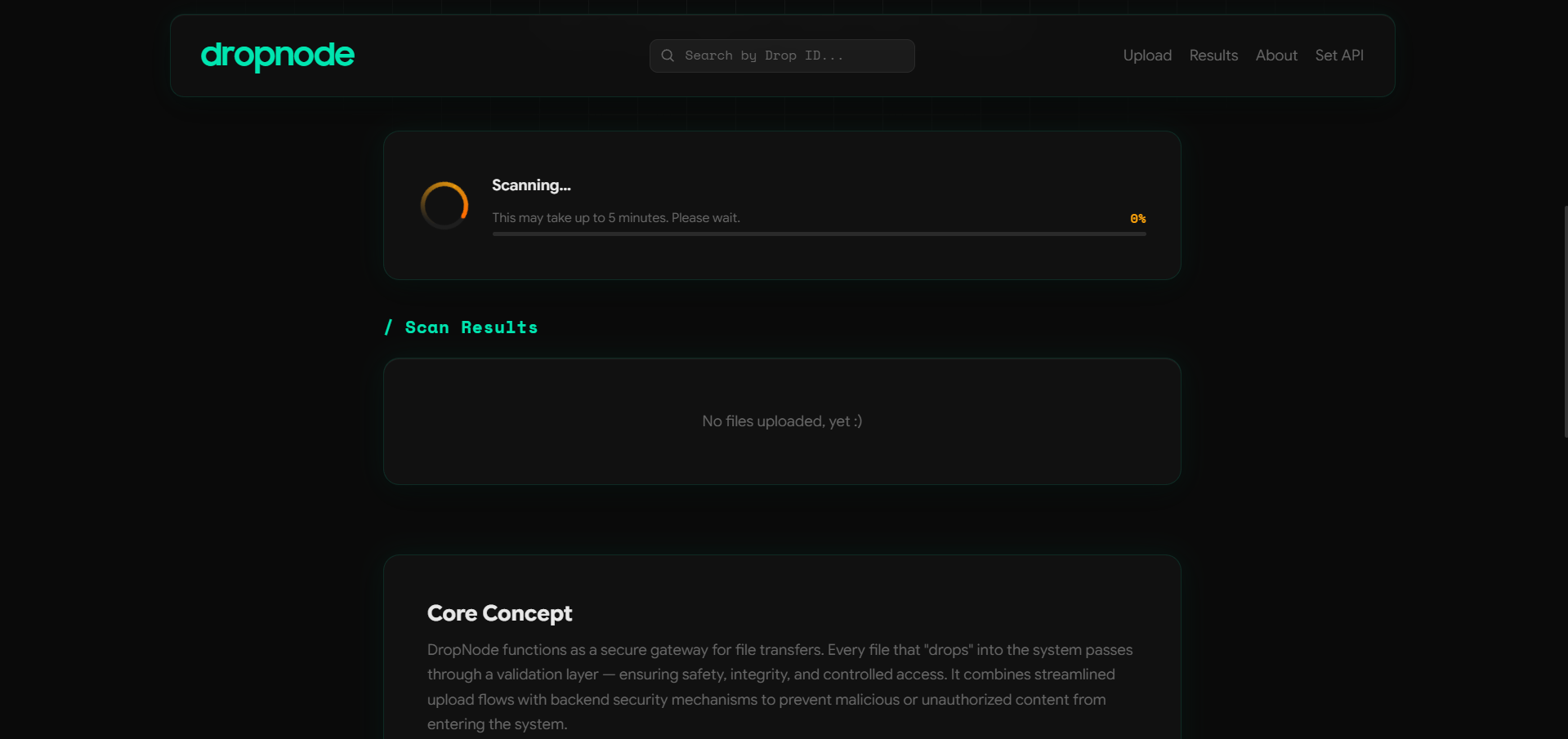

File Scanning

Safe File Result

Unsafe Or Malicious File Result

Search and Drop ID Lookup

Footer

---

Development Notes

• The app runs with Flask's built-in development server (debug=True) on port 5000. For production, use Gunicorn behind a reverse proxy (Nginx or Caddy).
• Scan results use INSERT OR REPLACE so re-scanning a file with the same Drop ID updates the existing row.
• The deletion registry (_pending_deletions) is in-memory. If the server restarts mid-timer, the timer is lost — the file will remain in cache/ until the next startup sweep (_startup_cache_sweep()) clears it.
• The .api_key file takes precedence over the VT_API_KEY environment variable, which in turn takes precedence over the hardcoded value in app.py.
• The Drop ID is generated independently of VirusTotal's analysis_id — it is a local 20-character alphanumeric identifier unique within the local database.
