feat: add gradient as a first-class widget color#404

Open
akkaz wants to merge 1 commit into
sirmalloc:mainfrom
akkaz:gradient-pr
Open

feat: add gradient as a first-class widget color#404
akkaz wants to merge 1 commit into
sirmalloc:mainfrom
akkaz:gradient-pr

Conversation

@akkaz
Copy link
Copy Markdown

@akkaz akkaz commented May 30, 2026

What

Adds gradient as a selectable widget text color, alongside the existing solid colors. A widget's text can now be painted with a multi-stop color gradient spread across its characters.

Two forms are supported:

  • Named presetsgradient:atlas, gradient:rainbow, gradient:vice, … (the named gradients shipped by gradient-string, reproduced as raw stops).
  • Custom stopsgradient:RRGGBB-RRGGBB[-RRGGBB...] (2+ hex stops).

The ColorMenu TUI gains a gradient picker so it can be configured interactively.

How

  • New src/utils/gradient.ts: parses a gradient: color spec and interpolates it across the visible characters of the text, emitting one ANSI color code per character. Whitespace is skipped (matching gradient-string behavior).
  • Color-level aware: truecolor → 38;2;r;g;b, ansi256 → nearest xterm-256 index, ansi16 → falls back to a solid first-stop color (gradients can't be represented at 16 colors).
  • colors.ts / renderer.ts hook the gradient path into the existing color application flow; non-gradient colors are unaffected.

Why tinygradient (not gradient-string directly)

gradient-string (already present transitively via ink-gradient) is built to emit chalk/ink-styled strings at the render layer. The status line renderer needs raw, per-character ANSI codes at a specific color level (with 256-color downsampling and whitespace handling) outside the React/Ink layer, so this uses tinygradient — the underlying interpolation primitive — directly. Preset stops are reproduced from gradient-string (MIT) with attribution in the source.

Tests

Adds focused tests for gradient parsing, color interpolation, 256-color downsampling, sanitization, and renderer integration. Full suite green.

Add a 'gradient:' color prefix (alongside hex:/ansi256:) that paints a
per-character truecolor gradient across a widget's text. Supports named
presets (retro, rainbow, vice, ...) and custom start/end stops
(gradient:RRGGBB-RRGGBB). Selectable from the TUI color menu via 'g'.

- src/utils/gradient.ts: presets, parseGradientSpec, rgbToAnsi256, applyGradientToText
- src/utils/colors.ts: applyColors per-char gradient + getColorAnsiCode first-stop fallback (powerline/ansi16)
- src/tui/components/ColorMenu.tsx: gradient picker UI
- tests for parsing, rendering and color-level sanitize passthrough
cameronsjo added a commit to cameronsjo/ccstatusline that referenced this pull request May 30, 2026
…n core

Converges the two same-day gradient PRs into one coherent feature. sirmalloc#406
added line-spanning gradients via overrideForegroundColor (OKLab, zero-dep);
sirmalloc#404 (@akkaz) added gradient as a per-widget color with named presets and a
ColorMenu picker. Both created src/utils/gradient.ts and would conflict, so
this meshes them onto a single shared OKLab engine:

- gradient.ts: GRADIENT_PRESETS (akkaz's stops, gradient-string MIT;
  rainbow/pastel re-expressed as multi-stop hue wheels for OKLab); unified
  parseGradientSpec accepting presets, dash (RRGGBB-RRGGBB), and comma
  (hex:..,..) forms; applyGradientToText for the per-widget sweep.
- colors.ts: per-widget gradient hook in applyColors; getColorAnsiCode
  collapses a gradient to its first stop (powerline / ansi16 degrade).
- ColorMenu.tsx: 'g' opens a gradient picker (preset list + custom hex),
  foreground-only, colorLevel >= 2.
- No new dependency (tinygradient dropped in favor of OKLab).

Precedence: overrideForegroundColor gradient (line-span) > widget.color
gradient (per-widget) > solid. Gradients self-degrade at render time, so
color-sanitize leaves them untouched at every level.

Builds on the per-widget design from sirmalloc#404 by @akkaz.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
@cameronsjo
Copy link
Copy Markdown

Hey @akkaz — looks like we landed on the same idea the same day. 👋 You opened this (#404) a few hours before I opened #406 — yours adds gradient as a per-widget color with named presets and a ColorMenu picker; mine started as a line-spanning gradient (overrideForegroundColor, OKLab, no deps). They're complementary scopes, but both create src/utils/gradient.ts, so they can't both merge as-is.

Rather than have them compete, I've meshed the two onto one shared OKLab core in #406:

  • kept your per-widget model, presets, and TUI picker (credited you in the PR + commit);
  • unified the parser to accept presets, dash (RRGGBB-RRGGBB), and comma forms;
  • swapped interpolation to OKLab so it's dependency-free — rainbow/pastel are re-expressed as multi-stop hue wheels (OKLab can't do an HSV hue-spin);
  • both scopes coexist: overrideForegroundColor (whole line) and widget.color (one widget).

Since you were here first, I don't want to step on your PR — happy to fold this into #404 instead if you'd prefer, or have you review #406. Your call on how we converge, and credit is yours to share. Thanks for the picker work especially. 🙏

@akkaz
Copy link
Copy Markdown
Author

akkaz commented May 30, 2026

Hey @cameronsjo — thanks for meshing these together so thoughtfully, and for the credit note. 🙏 The OKLab core and the line-span work are genuinely nice, and I'm glad the per-widget model + presets + TUI picker live on in #406.

One thing that does matter to me: I'd like to end up a real contributor on the merged history, not just a mention in the description. Two ways, in order of preference:

  1. Preserve my original feat: add gradient as a first-class widget color #404 commit (cherry-pick / rebase it in) so I'm the author of record on the per-widget parts — cleanest, and it shows up everywhere including the repo's Contributors graph.
  2. If that's awkward given how you've restructured things, at minimum add a co-author trailer to the per-widget commit:
    Co-authored-by: akkaz <giomarco@cleversoft.it>


Happy to review #406 and converge there — just want the attribution set up properly before it merges. Thanks again! 🙌

@sirmalloc
Copy link
Copy Markdown
Owner

@akkaz @cameronsjo I'll work on getting #406 reviewed if that's what you both have decided on. I typically squash merge these to main, but I believe if there is a commit authored by @akkaz in #406's history then it should attribute both. If it doesn't I can roll it back and we can try again. Let me know what the final decision is and I'll review that PR.

@akkaz
Copy link
Copy Markdown
Author

akkaz commented May 30, 2026

Thanks @sirmalloc! Yes, let's go with #406, that's the decision.

One thing to flag since you squash-merge: right now none of #406's commits have a Co-authored-by trailer, so a squash would credit it only to @cameronsjo. @cameronsjo could you add this to one of the per-widget commits?

Co-authored-by: akkaz <giomarco@cleversoft.it>

With that in the history the squashed commit should credit both of us. Happy to review #406 too.

Also, once this lands, in my fork I built dynamic value-based widget colors (a dynamic: ramp on top of the same gradient engine) that I'd be glad to send as a separate PR if there's interest.

@akkaz
Copy link
Copy Markdown
Author

akkaz commented May 30, 2026

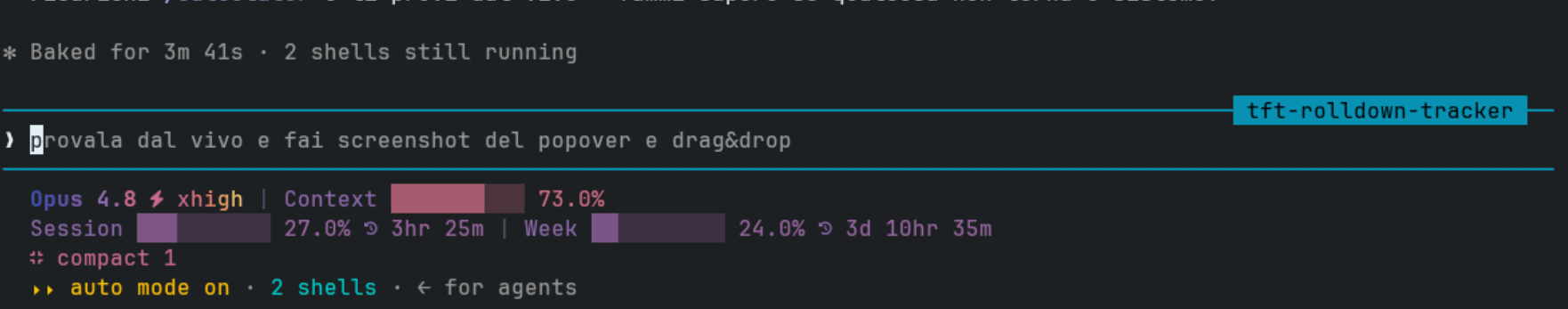

Here's the dynamic colors I mentioned, in case it helps picture it:

dynamic value-based widget colors

The Context bar/percentage warms toward red as it fills (73% here), while Session and Week stay cooler at lower fill. Same gradient engine, just sampled by each widget's fill ratio.

cameronsjo added a commit to cameronsjo/ccstatusline that referenced this pull request May 30, 2026
…n core

Converges the two same-day gradient PRs into one coherent feature. sirmalloc#406
added line-spanning gradients via overrideForegroundColor (OKLab, zero-dep);
sirmalloc#404 (@akkaz) added gradient as a per-widget color with named presets and a
ColorMenu picker. Both created src/utils/gradient.ts and would conflict, so
this meshes them onto a single shared OKLab engine:

- gradient.ts: GRADIENT_PRESETS (akkaz's stops, gradient-string MIT;
  rainbow/pastel re-expressed as multi-stop hue wheels for OKLab); unified
  parseGradientSpec accepting presets, dash (RRGGBB-RRGGBB), and comma
  (hex:..,..) forms; applyGradientToText for the per-widget sweep.
- colors.ts: per-widget gradient hook in applyColors; getColorAnsiCode
  collapses a gradient to its first stop (powerline / ansi16 degrade).
- ColorMenu.tsx: 'g' opens a gradient picker (preset list + custom hex),
  foreground-only, colorLevel >= 2.
- No new dependency (tinygradient dropped in favor of OKLab).

Precedence: overrideForegroundColor gradient (line-span) > widget.color
gradient (per-widget) > solid. Gradients self-degrade at render time, so
color-sanitize leaves them untouched at every level.

Builds on the per-widget design from sirmalloc#404 by @akkaz.

Co-Authored-By: Claude Opus 4.8 <noreply@anthropic.com>
Co-authored-by: akkaz <giomarco@cleversoft.it>
@cameronsjo
Copy link
Copy Markdown

Thanks for the thoughtful note, @akkaz, and for offering to carry the per-widget design forward. Just force-pushed: the mesh commit (98f384f) now carries Co-authored-by: akkaz <giomarco@cleversoft.it>, so the squash-merge should credit you on the Contributors graph.

On the cherry-pick option — I genuinely considered it, but the branches diverged on gradient.ts itself: your parseGradientSpec returns a GradientSpec with HSV flags and uses tinygradient, mine returns Rgb[] and interpolates in OKLab with zero deps. Cherry-picking would hard-conflict on every file we both touched (gradient.ts, colors.ts, ColorMenu.tsx) and the conflict resolution would mostly walk back toward what's already on the branch — an author=akkaz commit whose content has been edited away from your original. The trailer felt like the truer attribution for what actually shipped: your design (per-widget hook, presets verbatim with the gradient-string MIT attribution, the TUI picker logic) carried forward on a different engine.

The dynamic value-based widget colors look great — the context bar warming toward red is exactly the kind of thing a shared gradient engine should make easy. Please do open a PR on top of this once it lands; happy to review.
