DECENTRALISED AUDIT APPLICATION

This application is to track the transfer of funds(or bills) between different departments for different projects in an organization.

Technologies used

1. Smart Contracts
2. Solidity
3. Metamask
4. Rinkeby test network
5. React.js
6. Hardhat

Steps to run locally

1. Clone the repository
2. Install required softwares
3. Deploy required contracts
4. Start the react application

Step 1. Clone the repository

git clone https://github.com/spandanx/DAudit.git

Step 2. Install required softwares

Node.js Metamask chrome extension

Step 3. Deploy required contracts

1. AccountManagerAudit.sol 2. BillManager.sol 3. DepartmentArrays.sol 4. VoteManager.sol

Click to expand!

1. AccountManagerAudit.sol

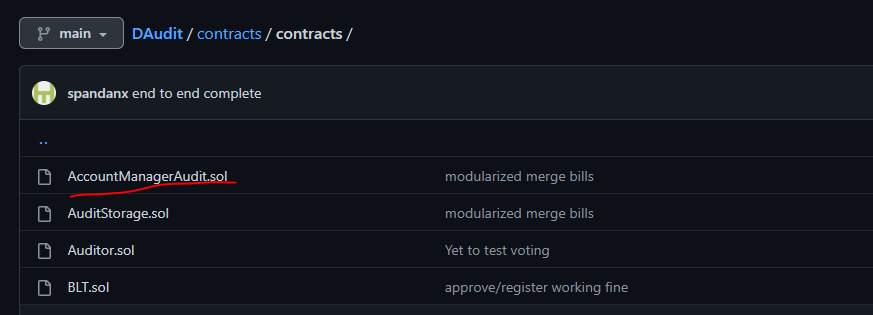

Open AccountManagerAudit.sol file in remix IDE

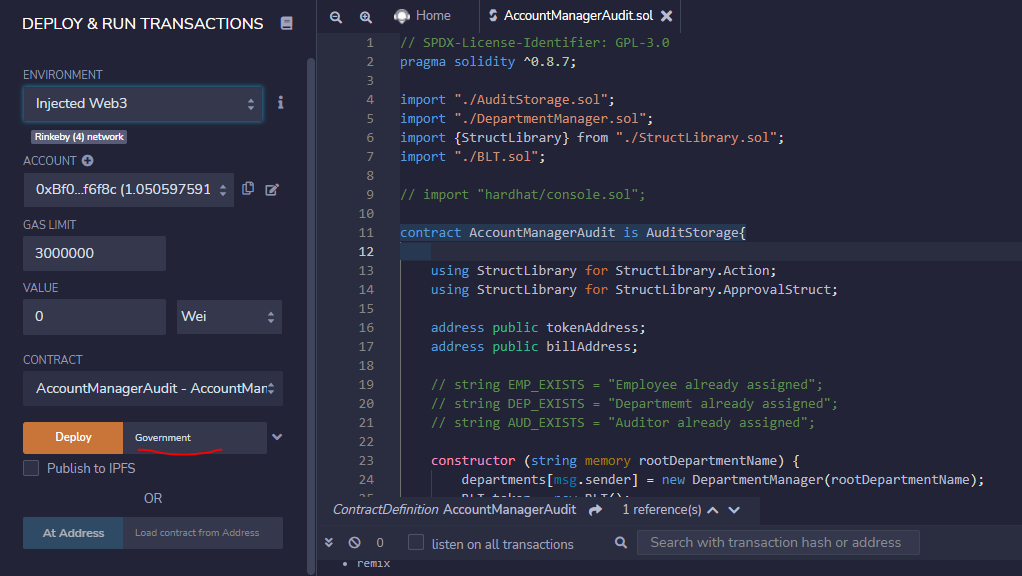

Deploy the file in rinkeby test network using metamask

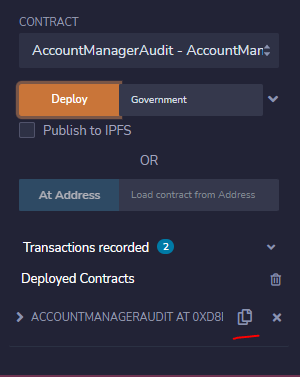

copy the address

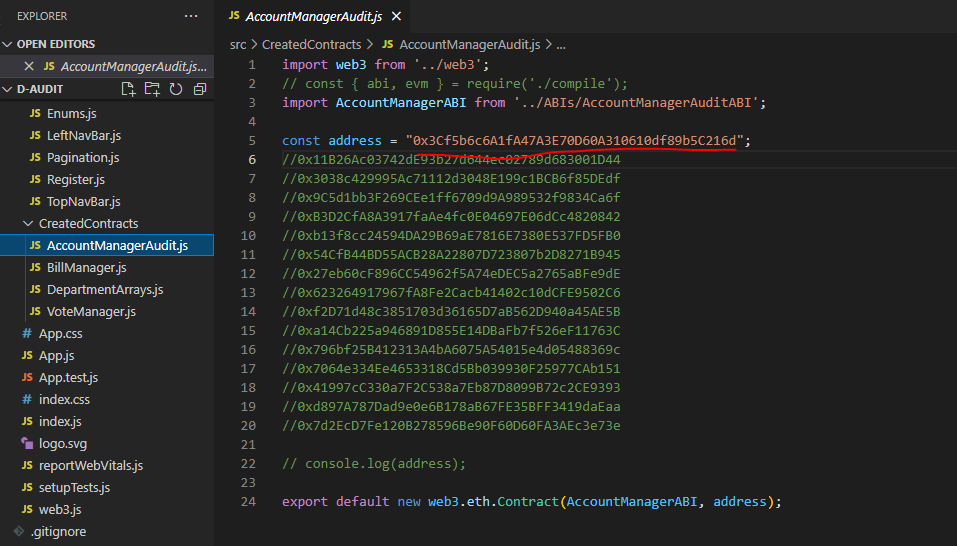

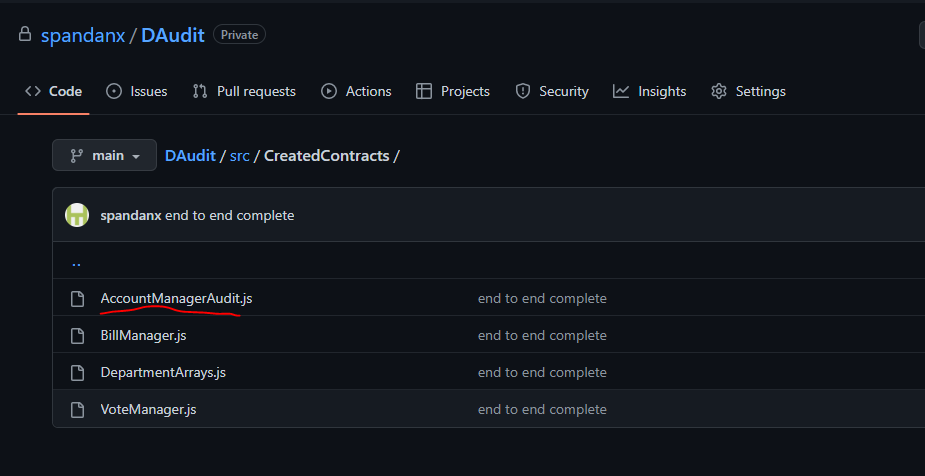

replace the address in the AccountManagerAudit.js file under CreatedContracts folder

2. BillManager.sol

Open BillManager.sol file in remix IDE

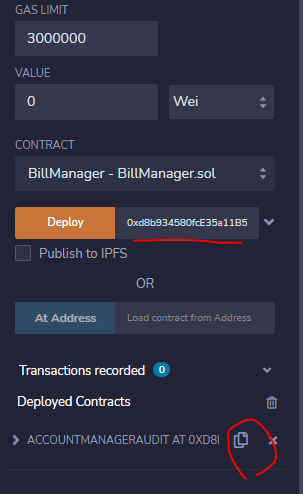

Deploy the contract in the rinkeby network providing the address of the AccountManagerAudit Contract

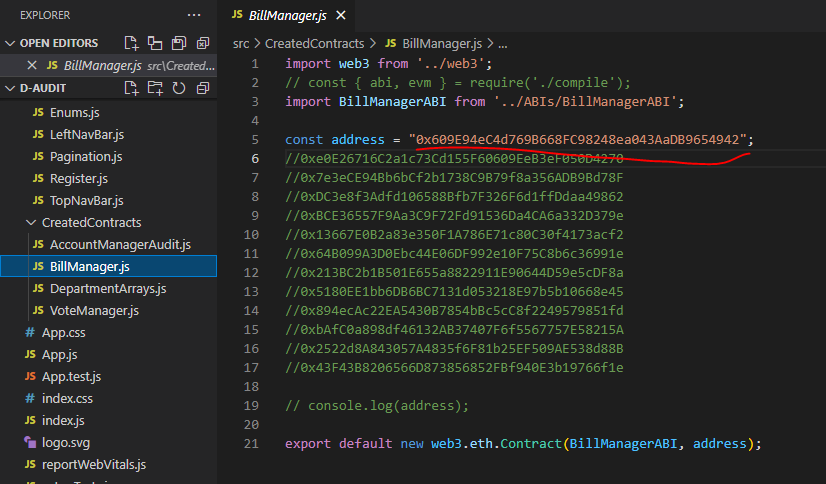

Similarly replace the contract address in the BillManager.js file under the CreatedContracts folder

3. DepartmentArrays.sol

Similarly create contract, this contract can be created with no parameters

replace the address

4. VoteManager.sol

Similarly create this contract and replace address

Step 4. Start the react application

go to directory

npm install

npm start run

ER Diagram

Sample Department Hierarchy

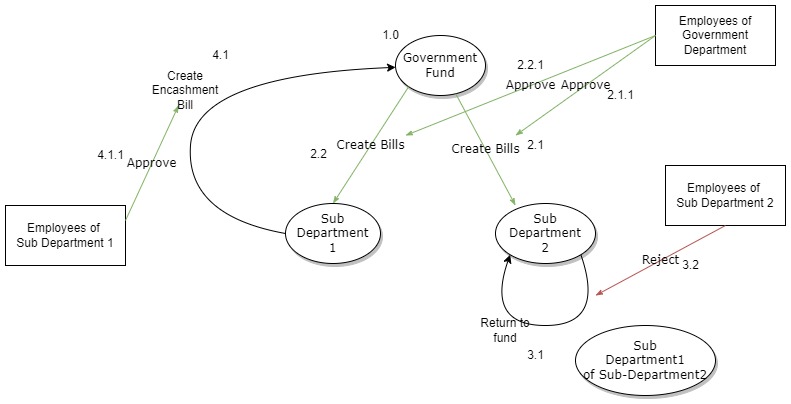

Flow of funds diagram

Website

https://lingering-night-4575.on.fleek.co/

Youtube link

https://youtu.be/iTgtS_oRdDA
