SpecMind

Architecture that evolves with your code, not after it.

SpecMind is an open-source developer tool for spec-driven vibe coding — a workflow where architecture and implementation stay in sync from the very first commit.

Tests License: MIT TypeScript Node

The Problem

Vibe coding is becoming the default. AI assistants help developers ship features faster than ever. But this creates new challenges:

  • Conflicting architectures: Each team member can generate code with different patterns
  • Design in isolation: Developers create their own solutions without alignment
  • Review difficulty: Hard to review AI-generated code directly
  • Rapid inconsistency: Architectural drift compounds with every AI-generated feature
  • No shared vision: Without specs, codebases become patchworks of individual decisions

The real solution: Review architecture/design first (before implementation), then ensure the code follows it.

SpecMind enables this: Spec-driven vibe coding where architecture evolves with your code, maintaining consistency across your team.

The Solution

SpecMind automatically generates, evolves, and validates architecture designs as you build features.

Core Workflow

1. /analyze - Understand your system

Analyzes your codebase and generates .specmind/system.sm containing:

  • System-wide architecture diagram (services, databases, external integrations)
  • Cross-service flow diagrams (sequence diagrams showing request/response cycles)
  • Per-service architecture diagrams (classes/methods organized by layer)
  • Entity-Relationship (ER) diagrams for detected database models (TypeORM, Django, SQLAlchemy, etc.)
  • Technology stack and architecture violations

2. /design <feature> - Plan before you code

Creates .specmind/features/{feature-name}.sm showing how the feature will update your system:

  • Overview, Requirements, and Design Decisions
  • System Architecture Updates (new/modified/removed services with color-coded changes)
  • Cross-Service Flows Updates (new or modified sequence diagrams)
  • Service Architecture Updates (affected classes/methods by layer)
  • Integration Points and Summary

3. /implement <feature> - Build with context

Implements the feature following its .sm specification, then:

  • Updates .specmind/system.sm with actual changes (removes color coding)
  • Updates the feature .sm file if implementation diverged from design
  • Appends entry to .specmind/system.changelog documenting what changed

All .sm files use Markdown + Mermaid diagrams and can be viewed with the SpecMind VS Code extension.

Quick Start

Note: SpecMind is currently in active development. Star the repo to follow progress!

Requirements: Currently supports Claude Code, Windsurf, and Cursor. Support for Codex coming soon.

Installation

Step 1: Setup SpecMind for your AI assistant

# For Claude Code
npx specmind setup claude-code

# For Windsurf
npx specmind setup windsurf

# For Cursor
npx specmind setup cursor

# Or interactive mode - choose your assistant(s)
npx specmind setup

# Or install globally first
npm install -g specmind
specmind setup claude-code  # or windsurf

This copies the assistant files to your project:

  • Claude Code: .claude/commands/ (slash commands)
  • Windsurf: .windsurf/workflows/ (Cascade workflows)
  • Cursor: .cursor/prompts/ (custom prompts)

Step 2: Install VS Code extension (optional)

Search "SpecMind" in VS Code extensions marketplace for visual .sm file rendering.

Using Commands

In Claude Code (slash commands):

/analyze

In Windsurf (slash commands):

/analyze

In Cursor (custom prompts):

@analyze

The AI will analyze your codebase and create .specmind/system.sm with your architecture.

Design a feature:

Claude Code:

/design Real-time Notifications

Windsurf:

/design Real-time Notifications

Cursor:

@design Real-time Notifications

You can provide either:

  • A short name: Real-time Notifications
  • Or a detailed description: Real-time notification system using WebSockets for live updates and push events

The AI will extract the feature name and create a slugified filename.

Creates .specmind/features/real-time-notifications.sm with:

  • Overview and requirements
  • Two architecture diagrams showing system with feature integrated:
    • Component/Dependency graph (with color-coded changes)
    • Sequence diagram (showing feature flow through system)
  • Architectural impact analysis (what's added/modified/removed)
  • Design decisions and rationale
  • Integration points
  • Notes section for additional context

Implement the feature:

Claude Code:

/implement Real-time Notifications

Windsurf:

/implement Real-time Notifications

Cursor:

@implement Real-time Notifications

The AI uses the .sm file as context to implement code that aligns with your architecture.

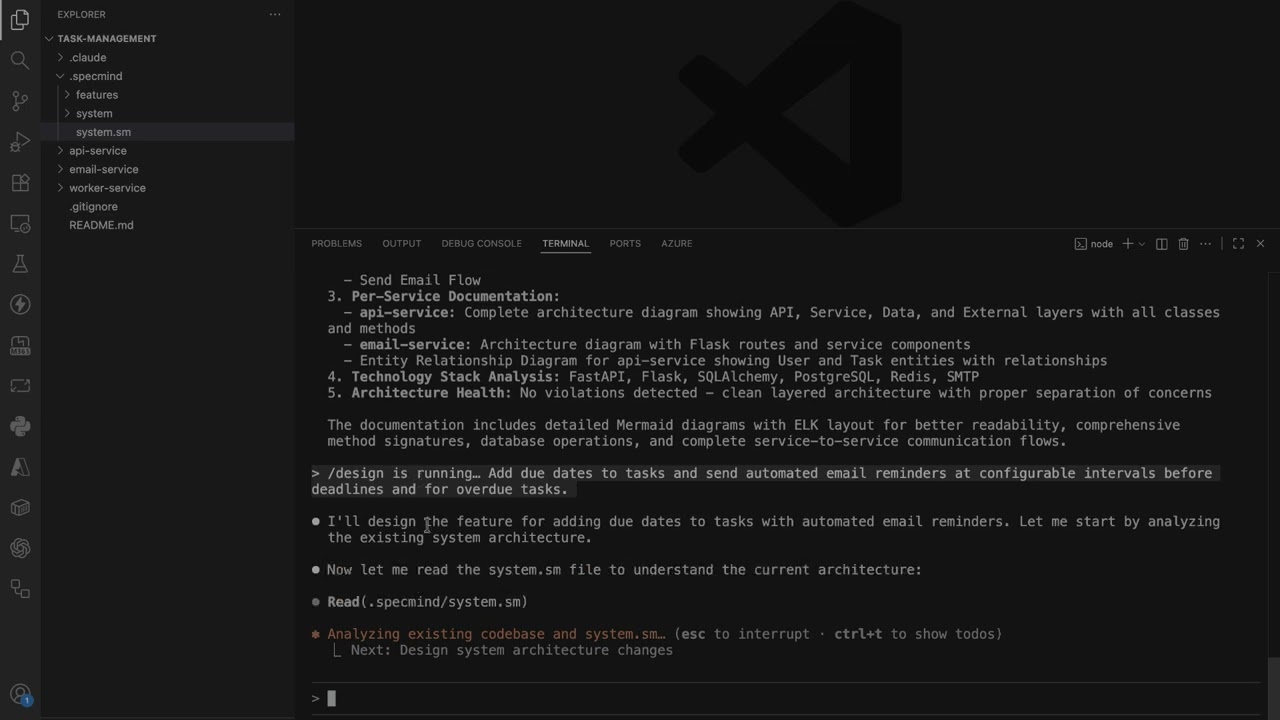

Demo

SpecMind Demo

Supported AI Assistants

SpecMind uses slash commands that are specific to each AI coding assistant. Here's our current support status:

AI Assistant Status Implementation Method Commands
Claude Code ✅ Supported .claude/commands/ invoking npx specmind /analyze, /design, /implement
Windsurf ✅ Supported .windsurf/workflows/ Cascade workflows with shared prompts /analyze, /design, /implement
Cursor ✅ Supported .cursor/prompts/ custom prompts with shared templates @analyze, @design, @implement
Codex 🚧 Coming Soon Custom prompts + bash invocation Planned

Each AI assistant requires its own implementation method, but all use the same shared prompt templates for consistency.

Language Support

SpecMind uses tree-sitter for code analysis, enabling support for multiple programming languages:

Language Status Notes
TypeScript ✅ Supported Full support for TS/TSX files
JavaScript ✅ Supported Full support for JS/JSX files
Python ✅ Supported Full support for .py/.pyi files
C# ✅ Supported Full support for .cs files
Go 🚧 Planned Coming soon
Rust 🚧 Planned Coming soon
Java 🚧 Planned Coming soon
C++ 🚧 Planned Coming soon

Tree-sitter supports 50+ languages, so additional language support can be added based on community demand.

File Exclusions

SpecMind respects your project's .gitignore file to automatically exclude files and directories from analysis.

.gitignore Support

When running /analyze, SpecMind automatically:

  • Loads all .gitignore files from the analysis directory up to the repository root
  • Excludes files and directories matching gitignore patterns
  • Supports all gitignore syntax (wildcards, negation, directory patterns, etc.)

This means build outputs (dist/, node_modules/), environment files (.env), and other ignored files are automatically excluded from analysis.

.specmindignore

For files you want in git but not in architecture analysis, create a .specmindignore file in your project root:

# Exclude test fixtures
fixtures/
__mocks__/

# Exclude example code
examples/
*.example.ts

# Exclude generated documentation
docs/api/

# Exclude specific files
scripts/legacy-migration.ts

Use cases for .specmindignore:

  • Test fixtures and mock data that should be in git but not analyzed
  • Example code that demonstrates usage but isn't part of the architecture
  • Generated documentation or API specs
  • Legacy migration scripts
  • Temporary experimental code

Both .gitignore and .specmindignore patterns are combined, so you get precise control over what's analyzed.

Example .sm File

Here's an example using the recommended structure (you can customize this):

# User Authentication

## Overview
Implement secure user authentication with JWT tokens, supporting email/password
and OAuth providers (Google, GitHub).

## Requirements
- Secure password hashing (bcrypt)
- JWT token generation and validation
- OAuth 2.0 integration
- Session management
- Password reset flow

## Architecture

### Component Diagram
```mermaid
graph TD
    Client[Client App] -->|POST /auth/login| AuthAPI[Auth API]
    AuthAPI --> AuthService[Auth Service]
    AuthService --> UserDB[(User Database)]
    AuthService --> TokenService[JWT Token Service]
    AuthService --> OAuthService[OAuth Service]
    OAuthService -->|OAuth Flow| GoogleAuth[Google OAuth]
    OAuthService -->|OAuth Flow| GitHubAuth[GitHub OAuth]
    TokenService --> Redis[(Redis Cache)]
```

### Sequence Diagram
```mermaid
sequenceDiagram
    participant Client
    participant AuthAPI
    participant AuthService
    participant TokenService
    participant UserDB

    Client->>AuthAPI: POST /auth/login
    AuthAPI->>AuthService: validateCredentials(email, password)
    AuthService->>UserDB: findUser(email)
    UserDB-->>AuthService: user
    AuthService->>AuthService: verifyPassword(password, hash)
    AuthService->>TokenService: generateToken(userId)
    TokenService-->>AuthService: JWT token
    AuthService-->>AuthAPI: token
    AuthAPI-->>Client: { token, user }
```

## Design Decisions

### Why JWT over sessions?
- Stateless authentication for horizontal scaling
- Better for microservices architecture
- Mobile app support

### Why Redis for token blacklist?
- Fast lookup for revoked tokens
- Automatic expiration (TTL)
- Scalable for high traffic

## Integration Points
- **User Service**: Validates user credentials
- **Email Service**: Sends password reset emails
- **Logging Service**: Audit trail for auth events

## Notes
⚠️ **Security**: Ensure HTTPS in production
💡 **Optimization**: Consider refresh token rotation

Note: This structure is just a suggestion. You can modify the prompts in assistants/_shared/ to use different sections or formats.

Rendered Diagrams

Here's how the diagrams above render visually:

Component Diagram

graph TD
    Client[Client App] -->|POST /auth/login| AuthAPI[Auth API]
    AuthAPI --> AuthService[Auth Service]
    AuthService --> UserDB[(User Database)]
    AuthService --> TokenService[JWT Token Service]
    AuthService --> OAuthService[OAuth Service]
    OAuthService -->|OAuth Flow| GoogleAuth[Google OAuth]
    OAuthService -->|OAuth Flow| GitHubAuth[GitHub OAuth]
    TokenService --> Redis[(Redis Cache)]
Loading

Sequence Diagram

sequenceDiagram
    participant Client
    participant AuthAPI
    participant AuthService
    participant TokenService
    participant UserDB

    Client->>AuthAPI: POST /auth/login
    AuthAPI->>AuthService: validateCredentials(email, password)
    AuthService->>UserDB: findUser(email)
    UserDB-->>AuthService: user
    AuthService->>AuthService: verifyPassword(password, hash)
    AuthService->>TokenService: generateToken(userId)
    TokenService-->>AuthService: JWT token
    AuthService-->>AuthAPI: token
    AuthAPI-->>Client: { token, user }
Loading

💡 Tip: To view .sm files with rendered diagrams in VS Code, install the SpecMind extension:

  1. Open VS Code
  2. Go to Extensions (Ctrl+Shift+X / Cmd+Shift+X)
  3. Search for "SpecMind"
  4. Click Install
  5. Open any .sm file and click the preview icon or press Ctrl+K V (Cmd+K V on Mac)

Project Structure

Current Structure

For large codebases, SpecMind automatically splits analysis into services and layers with chunking:

.specmind/
├── system.sm                    # AI-generated system architecture documentation
├── features/                    # Feature specifications
│   ├── user-auth.sm
│   └── payment-flow.sm
└── system/                      # Split analysis output (chunked)
    ├── metadata.json            # Root metadata with cross-service dependencies
    └── services/                # Per-service layer analysis
        ├── api-gateway/
        │   ├── metadata.json        # Service metadata with cross-layer dependencies
        │   ├── data-layer/
        │   │   ├── summary.json         # Layer summary with entity metadata (optional)
        │   │   ├── chunk-0.json         # File analysis (minified, ~18K tokens)
        │   │   ├── chunk-1.json         # Additional chunks as needed
        │   │   ├── entities-chunk-0.json # Entity data (minified, ~18K tokens)
        │   │   └── entities-chunk-1.json # Additional entity chunks as needed
        │   ├── api-layer/
        │   │   ├── summary.json
        │   │   └── chunk-0.json
        │   ├── service-layer/
        │   │   └── ...
        │   └── external-layer/
        │       └── ...
        └── worker-service/
            ├── metadata.json
            └── ...

Benefits:

  • Chunked files (~18K tokens, ~72KB) fit within LLM context windows (well under 25K limit)
  • AI-generated system.sm with four diagram types:
    • System Architecture - Global view with brand colors for databases/external services
    • Per-Service Architecture - One diagram per service showing all classes/methods by layer
    • Cross-Service Flows - Sequence diagrams showing complete request/response cycles
    • Entity-Relationship (ER) Diagrams - Database schema from entity chunk files
  • Summary files provide quick layer overview without loading full data
  • Organized by architectural concerns (data/api/service/external)
  • Supports both monorepo (multiple services) and monolith (single service)
  • Three-level dependency hierarchy (cross-service, cross-layer, same-layer)
  • Detects 180+ frameworks, ORMs, databases, and SDKs
  • Pattern-driven entity detection - Uses ORM import patterns, then tree-sitter for AST parsing
  • Entity chunking - Large entity datasets split into separate files to prevent token limit errors
  • Entity metadata (totalEntities, totalEntityChunks, entityChunkManifest) stored in summary.json
  • Minified chunks maximize data density while keeping summaries readable
  • Token-based chunking ensures all chunks can be read by AI without hitting context limits

See ANALYSIS_SPLIT_SPEC.md for the complete specification.

Architecture

SpecMind is built as a TypeScript monorepo with clear package boundaries:

specmind/
├── assistants/     # AI assistant integrations
│   ├── _shared/    # Shared prompt templates (✅ Implemented)
│   ├── claude-code/  # Claude Code integration (✅ Implemented)
│   ├── cursor/       # Cursor integration (✅ Implemented)
│   ├── windsurf/     # Windsurf integration (✅ Implemented)
│   └── codex/         # Codex integration (🚧 Planned)
├── packages/
│   ├── core/       # @specmind/core - Analysis engine (✅ Implemented)
│   ├── format/     # @specmind/format - .sm file parser (✅ Implemented)
│   ├── cli/        # specmind - CLI wrapper + setup (✅ Implemented)
│   └── vscode/     # VS Code extension (✅ Published)

Technology Stack

  • Language: TypeScript 5.x
  • Runtime: Node.js 20+
  • Parser: Tree-sitter (multi-language AST)
  • Diagrams: Mermaid.js
  • Monorepo: pnpm workspaces
  • Validation: Zod schemas

See CONSTITUTION.md for detailed architectural decisions.

Roadmap

Phase 1: Core Foundation (✅ Complete)

  • Project structure and constitution
  • Tree-sitter integration (@specmind/core)
  • .sm file format parser (@specmind/format)
  • VS Code extension (syntax highlighting + preview)
  • Slash commands for AI assistants
  • AI-generated architecture diagrams (System, Per-Service, Cross-Service Flows)
  • LLM-powered documentation generation
  • TypeScript, JavaScript, Python language support
  • CLI integration

Phase 2: Split Analysis Architecture (✅ Complete)

  • Split analysis architecture
  • Service detection (monorepo/monolith)
  • Layer categorization (data/api/service/external)
  • Pattern-based detection with JSON configs (180+ packages/tools)
  • Cross-layer dependency tracking
  • Database type detection (PostgreSQL, MySQL, Redis, MongoDB)
  • API endpoint extraction (32 frameworks)
  • Message queue detection (RabbitMQ, Kafka, SQS, etc.)

Phase 3: Advanced Features

  • Code alignment validation
  • GitHub PR integration
  • Architecture diff visualization
  • Performance and security analysis
  • Additional language support (Go, Rust, Java, PHP, Ruby)

Phase 4: Community & Ecosystem

  • Plugin system
  • Custom diagram types
  • Architecture templates
  • Community gallery

Contributing

We welcome contributions! SpecMind is built in the open, and we'd love your help.

Getting Started

  1. Read the CONSTITUTION.md - Understand our architectural principles
  2. Check open issues - Find something to work on
  3. Join discussions - Share ideas and feedback

Development Setup

# Clone the repo
git clone https://github.com/specmind/specmind.git
cd specmind

# Install dependencies
pnpm install

# Build all packages
pnpm build

# Run tests
pnpm test

# Link CLI globally for local development
cd packages/cli
pnpm link --global

Contribution Guidelines

  • All code must align with CONSTITUTION.md
  • Write tests for new features
  • Update documentation
  • Follow TypeScript best practices
  • Keep PRs focused and atomic

Philosophy

Spec-Driven Vibe Coding

Traditional workflows:

Code → (Maybe) Docs → (Eventually) Architecture Diagrams

SpecMind workflow:

Architecture Spec → Implementation → Validated Architecture

Core Principles

  1. Architecture evolves with code - Not after, not separately
  2. Text-based everything - Git-friendly, searchable, composable
  3. One feature, one file - Complete context in a single .sm file
  4. AI-powered by design - LLM generates documentation, tree-sitter analyzes code
  5. Extensible language support - Built on tree-sitter for future multi-language support

See CONSTITUTION.md for our complete philosophy and principles.

FAQ

How is this different from C4 diagrams or PlantUML?

SpecMind is workflow-first, not just diagramming. It:

  • Automatically generates diagrams from code
  • Keeps architecture in sync with implementation
  • Integrates with AI coding assistants
  • Combines documentation + diagrams in one file

Do I need AI to use SpecMind?

Yes! SpecMind is AI-powered by design. All three slash commands (/analyze, /design, /implement) are LLM-powered and work by invoking the specmind CLI to get code analysis data (via tree-sitter), then use that data to generate documentation and diagrams.

Can I use this with existing projects?

Yes! /analyze analyzes your existing codebase and generates the initial architecture.

Is this only for web apps?

No! SpecMind works for any software project - web, mobile, backend, CLI tools, libraries, etc.

License

MIT License - see LICENSE for details.

Acknowledgments

Built with:

Connect

Made with ❤️ by developers who believe architecture should evolve with code.

⭐ Star this repo to follow our progress!

About

Spec-driven development with auto-generated architecture documentation.

Resources

Readme

License

MIT license
Activity
Custom properties

Stars

40 stars

Watchers

0 watching

Forks

3 forks
Report repository

Releases

28 tags

Contributors

Languages
