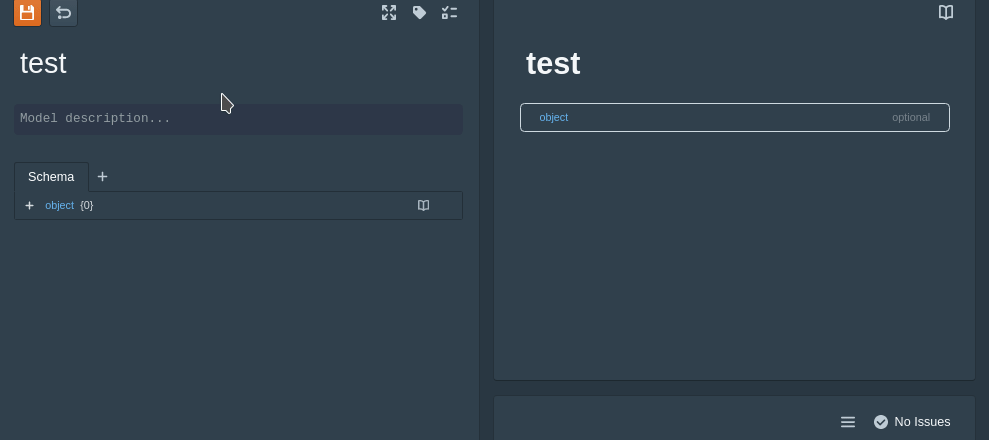

feat: mask editor [STU-313]

[lag-of-death]

Dependency graph:

#33 -> https://github.com/stoplightio/json-schema-editor/pull/32 -> https://github.com/stoplightio/studio-internal/pull/336

[P0lip]

The UI is not quite right. We should be using the Checkbox component from Blueprint

It does not take allOf merging we have into account, therefore schemas containing allOf combiners are likely to be broken.

[P0lip]

This should be done differently, we cannot have it hardcoded like this.
JSV is open-source and therefore likely to be used by more entities and users than just Stoplight.

[chris-miaskowski]

@P0lip can you add some suggestions on how do you think this should be done. Will be easier to process.

[P0lip]

Custom renderRow function. There is a similar case in tree-list and other components.

[P0lip]

What I mean is that we should make JSV more flexible & provide the support for allOf.
By support for allOf, I mean exposing mapped paths, as right now there is no way to determine the path of the original property.

Masking components could be placed in Studio.

[lag-of-death]

@P0lip, so do you mean, that MaskControls component should be placed in Studio (together with its state - [selectedProps, setSelectedProps] and passed to JSV through JSE ? Or do you mean that the whole rowRenderer should be composed in Studio? I'm not sure if the second is an option since it would mean moving SchemaRow component to Studio too?

[P0lip]

Or do you mean that the whole rowRenderer should be composed in Studio?

Yeah, rowRenderer prop should be exposed in JSV and the rest should be composed in Studio.
You can export SchemaRow from JSV, similarly to tree-list and its default row.

[chris-miaskowski]

Similarly to JSE: I will skip the review on that for now since I'll be working on extending this with SRN anyway. Plus this will most likely change once Matt is done with the array/allOf support

[P0lip]

Suggest passing custom rowRenderer rather than having this weird logic here.
You can refer to https://github.com/stoplightio/tree-list/blob/master/src/components/TreeListItem.tsx#L39 to have a better understanding.

[marbemac]

Agree with @P0lip re keeping mask specific terminology (like maskControls) out of this repo - it should remain fairly generic and be focused on rendering json schemas.

We have a couple of options:

1. rowRenderer as @P0lip mentioned. However, doing it this way means we have to re-create a lot of the row UI ourselves when used in mask editor (the colors, spacing, etc), which isn't fun.
2. Add a rowRenderRight function prop that receives the row info, and can render react element(s) that are placed on the right side of the row. Could do same for left side, but I don't think we need that now.

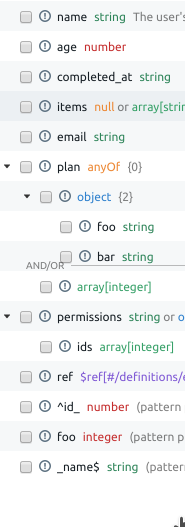

Related to number 2, UX wise I suggest that we render the required toggle and the checkbox on the right side of the rows (required, then checkbox). Putting them on the right side will keep them all aligned, which makes it easier to just move your mouse down the list and click checkboxes as you go. In addition, the required button will end up right next to the required text which better associates the button to the thing it's changing.

[P0lip]

@marbemac
Speaking of rowRenderer - this shouldn't be as complicated as it may seem to.
We could export a default row component, same as we do in case of tree-list and its row.
This would mean splitting the current Row component into more composable pieces so that you can glue everything together in Studio.
As you said, re-implementing everything in Studio is certainly not the best idea.

[chris-miaskowski]

closing in favour of #37
