Azure End-to-End DevOps

An End-to-End azure implementation for DevOps, focusing on automation, security, and observability.

---

Features

• Infrastructure as Code (IaC) & Configuration
  Fully automated provisioning using Terraform modules (Compute, Network, Monitoring) and Cloud-Init. Ensures environments are reproducible, immutable, and free from configuration drift.

• Automated DevOps Pipeline
  End-to-end GitHub Actions workflow that enforces quality and security at every stage: Linting (ESLint), Infrastructure Planning, Container Vulnerability Scanning (Trivy), and Automated Smoke Testing post-deployment.

• Enterprise-Grade Security
  Built-in hardening with Azure Key Vault for secret management (no hardcoded credentials), Managed Identity (RBAC) for secure resource access, and strict Network Security Groups to minimize attack surface.

• Full-Stack Observability
  Integrated monitoring ecosystem using Azure Monitor and Log Analytics. Includes custom Dashboards for real-time visualization and Action Groups for automated alerting on critical system metrics (CPU, HTTP Errors).

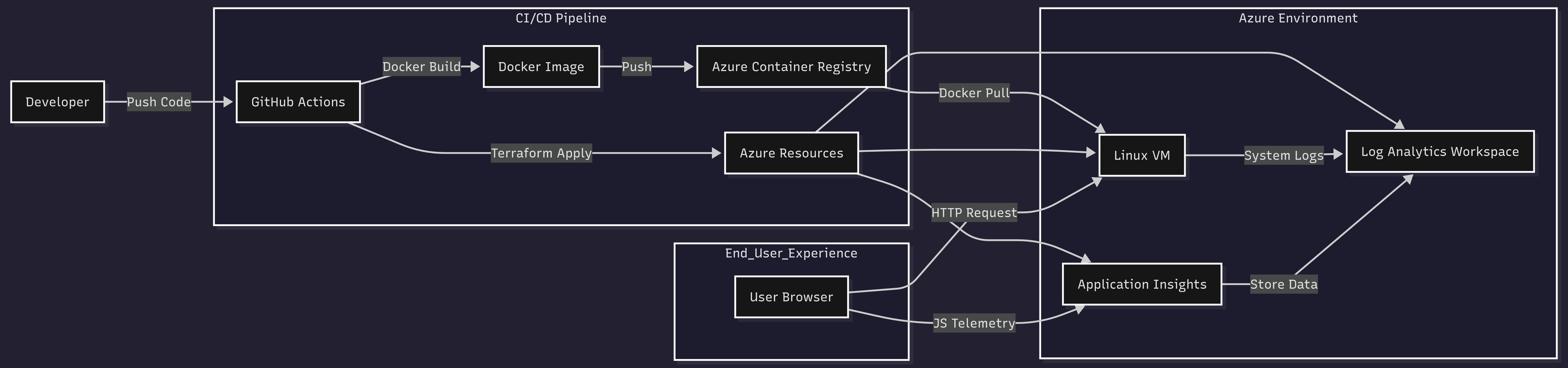

Architecture

(See Architecture Docs for details)

Tech Stack

Category	Technologies
Cloud Provider	Microsoft Azure (VM, VNET, ACR, Key Vault, Monitor)
Infrastructure	Terraform (HCL), Cloud-Init
Containerization	Docker, Nginx (Alpine)
CI/CD	GitHub Actions
Security	Trivy, Azure Managed Identity, Azure Key Vault
Observability	Azure Application Insights, Log Analytics, Azure Monitor
Scripting	Bash (Automation & Testing)

Setup Instructions

Step 1: Get the Code

Fork or Clone this repository to your GitHub account.

Step 2: Configure Azure Credentials

1. Obtain Credentials
   Since this requires a Service Principal, please refer to the official documentation on how to generate these credentials or request them from your Azure Administrator:

   • Microsoft Docs: Connect GitHub Actions to Azure

2. Add Secrets to GitHub
   In your repository, navigate to Settings > Secrets and variables > Actions > New repository secret. Add the following secrets:

   • AZURE_CLIENT_ID
   • AZURE_CLIENT_SECRET
   • AZURE_SUBSCRIPTION_ID
   • AZURE_TENANT_ID

Step 3: Configure Variables

1. Backend Configuration
   Edit terraform/backend.tf to match your existing Azure Storage Account (used for storing Terraform state):

   resource_group_name  = "<YOUR_RESOURCE_GROUP>"
   storage_account_name = "<YOUR_STORAGE_ACCOUNT>"
   container_name       = "<YOUR_CONTAINER_NAME>"
   key                  = "terraform.tfstate"

2. Environment Variables
   Check .github/workflows/main.yml and update the environment variables (under env:) to match your project details (Resource Group name, Location, etc.).

Step 4: Deploy

1. Navigate to the Actions tab in your repository.
2. Select the Deploy to Azure workflow.
3. Click Run workflow (or simply push a commit to the main branch).
4. Wait for the pipeline to complete. The workflow will output the VM Public IP.

Step 5: Verify Deployment

• Web App
  Visit http://<VM_PUBLIC_IP> to see the deployed application.
• Monitoring
  Go to the Azure Portal, find the created Dashboard, and view live metrics.
• Logs
  Check the Log Analytics Workspace to query Nginx access logs.

License

This project is licensed under the MIT License - see the LICENSE file for details.
