loci

Transform any learning material into an immersive 3D memory palace. Upload documents or describe what you want to learn, and AI generates an interactive medieval palace with themed rooms, unique low-poly 3D objects representing key concepts, a voice-powered AI tutor, and built-in testing.

Built on the ancient Method of Loci mnemonic technique — the idea that spatial memory is far more powerful than rote memorization.

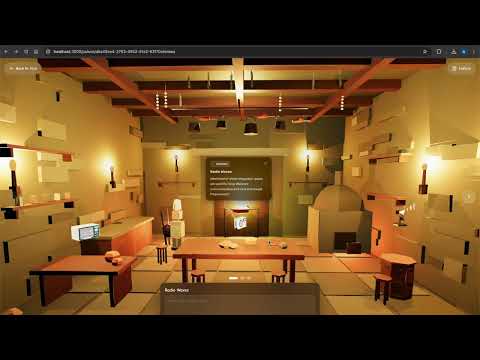

Demo

How It Works

1. Upload or describe — Drop in PDFs, slides, or text, or just type a topic you want to learn
2. AI builds your palace — Gemini analyzes the material, organizes concepts into themed rooms (Library, Great Hall, Dungeon, etc.), and assigns each concept a metaphorical 3D object
3. Explore in 3D — Walk through your palace, click objects to review concepts, and interact with an AI companion that knows your material
4. Test yourself — Take AI-generated quizzes grounded in your source material with instant feedback

Features

• AI-generated 3D objects — Each concept becomes a unique low-poly Three.js model (a telescope for "exploration," a zipper for "DNA replication," etc.)
• Voice AI companion — Real-time voice conversation powered by Gemini Live API; ask questions, get explanations, navigate rooms by voice
• Semantic search — Ask "where did we cover X?" and the AI finds the right room and object
• RAG-powered Q&A — Chat with any object to get answers grounded in your source documents
• Spaced repetition testing — Track scores across sessions to measure retention
• Pre-built prompt library — Quick-start templates for medical, legal, STEM, and other domains

Getting Started

Prerequisites

• Node.js 18+
• pnpm
• Python 3.10+ (for the voice proxy server)
• A Supabase project
• Google AI Studio API key (for Gemini + Imagen)
• Moorcheh API key (for vector search)

Setup

# Install dependencies
pnpm install
pip install -r requirements.txt

# Configure environment
cp .env.example .env.local
# Fill in your keys (see Environment Variables below)

# Set up database
pnpm prisma generate
pnpm prisma db push

# Initialize storage bucket
pnpm run init-bucket

# Start development
pnpm dev                # Next.js on :3000
python server.py        # Voice proxy on :8080 (separate terminal)

Environment Variables

# Supabase
NEXT_PUBLIC_SUPABASE_URL=
NEXT_PUBLIC_SUPABASE_ANON_KEY=
SUPABASE_SERVICE_ROLE_KEY=

# Database
DATABASE_URL=
DIRECT_URL=

# Google AI
VERTEX_AI_KEY=              # Google AI Studio API key

# Vector Search
MOORCHEH_API_KEY=
MOORCHEH_PREFIX=            # Namespace prefix (e.g. your username)

# Voice Proxy
GCP_PROJECT_ID=
GCP_LOCATION=us-central1

Architecture

User uploads docs / enters prompt
        |
        v
  Gemini extracts text & generates palace structure
  (rooms, objects, descriptions, metaphors, questions)
        |
        v
  Gemini 3.1 Pro generates Three.js code for each object (parallel)
  Imagen generates cover art
  Moorcheh indexes document chunks for RAG
        |
        v
  Everything stored: Prisma (structure), Supabase Storage (meshes, images)
        |
        v
  User explores palace in React Three Fiber
  Clicks objects, talks to AI buddy, takes tests

Built With

Layer	Technology
Frontend	Next.js 16, React 19, TypeScript, React Three Fiber
3D	Three.js r158 with low-poly flat-shaded aesthetic
Styling	TailwindCSS 4, Shadcn/ui
Database	PostgreSQL via Supabase, Prisma ORM
Storage	Supabase Object Storage
AI — Content	Google Gemini 2.5 Flash (structuring, grading, search)
AI — Meshes	Google Gemini 3.1 Pro (Three.js code generation)
AI — Images	Google Imagen 4.0 (cover art)
AI — Voice	Gemini Live API via Python WebSocket proxy
Vector Search	Moorcheh SDK (document chunking + semantic retrieval)
Auth	Supabase Auth (Google OAuth)

License

MIT
