Description

Collision is a Javascript library that provides basic 2D rectangular OBB collision detection and resolution. To see an example in action, check out this asteroid generator (turn off "immune" in the options.)

Instructions

Download and include the library:

<script src="lib/collision.min.js"></script>

You will then be able to access the library through the Collision object. First, set up your objects with axis-aligned bounding boxes, like so:

var A = {
    UL: {x: 10, y: 10},
    UR: {x: 59, y: 10},
    LR: {x: 59, y: 59},
    LL: {x: 10, y: 59}
}
var B = {
    UL: {x: 110, y: 80 },
    UR: {x: 159, y: 80 },
    LR: {x: 159, y: 159},
    LL: {x: 110, y: 159}
}

To test for collision, simply run Collision.test(A,B);, where A is the object who is in motion. The resulting object will have the following properties:

• did_collide: A boolean representing collision or not.
• entity: The object that A is in collision with (in this case, B)
• projection: The resolution vector for object A. This is an object like {x: 5, y: -10} such that adding those values to each of A's coordinates will resolve collision. Note: if there is no collision, this property will always be {x: 0, y: 0}

Examples

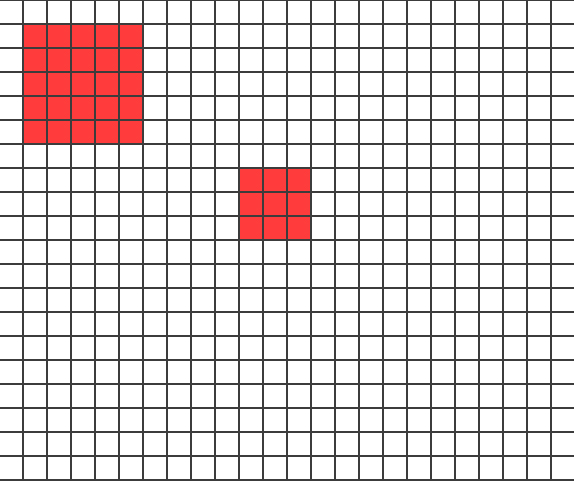

Here are two objects not in collision:

Here is their object representations:

var A = {
    UL: {x: 10, y: 10},
    UR: {x: 59, y: 10},
    LR: {x: 59, y: 59},
    LL: {x: 10, y: 59}
}
var B = {
    UL: {x: 110, y: 80 },
    UR: {x: 159, y: 80 },
    LR: {x: 159, y: 159},
    LL: {x: 110, y: 159}
}

Running test return false:

Collision.test(A,B); //did_collide will return false

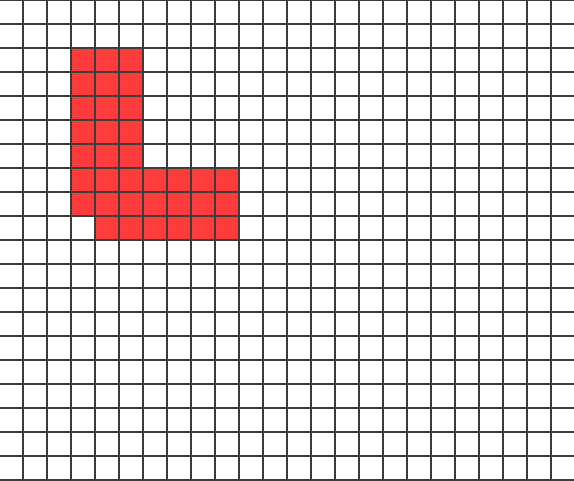

Here we have two objects in collision:

Here is their object representations:

var A = {
    UL: {x: 30, y: 20},
    UR: {x: 59, y: 20},
    LR: {x: 30, y: 89},
    LL: {x: 59, y: 89}
}
var B = {
    UL: {x: 40, y: 70},
    UR: {x: 99, y: 70 },
    LR: {x: 99, y: 99},
    LL: {x: 40, y: 99}
}

Let's check for collision, then add the result to A:

var result = Collision.test(A,B); //did_collide will return true, so add the projection
A = {
    UL: {x: 30+result.projection.x, y: 20+result.projection.y},
    UR: {x: 59+result.projection.x, y: 20+result.projection.y},
    LR: {x: 30+result.projection.x, y: 89+result.projection.y},
    LL: {x: 59+result.projection.x, y: 89+result.projection.y}
}
var result = Collision.test(A,B); //did_collide will return false

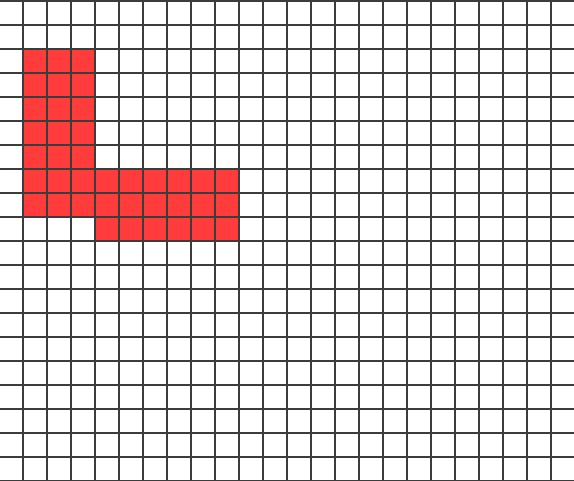

Here is the result of adding the projection -- no collision:

This is a simple example using axis-aligned boxes. See the example in the description for an implementation that uses oriented bounding boxes.
