Reversing an axis drops minor_breaks

[markpayneatwork]

Hi,

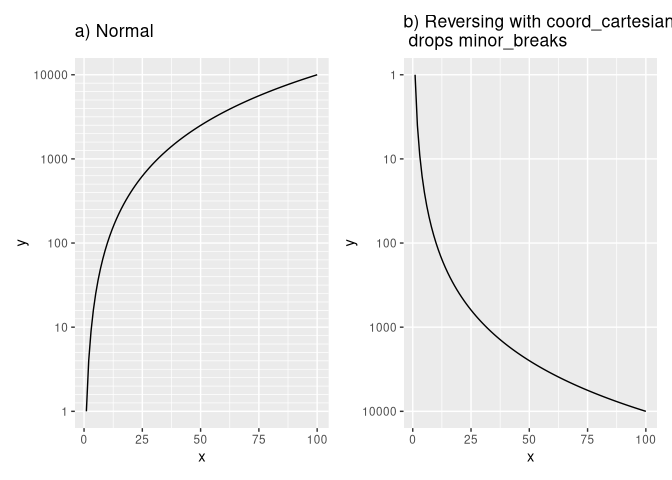

Reversing an axis in ggplot drops the minor_breaks. Panel a) shows how the "normal" plot, with minor_breaks being plotted, but after reversing the yaxis using coord_cartesian() they are dropped (Panel b). Similar results are also seen when working with scale_y_continuous() instead of scale_y_log10().

Is this a bug? Or a misunderstanding of how to reverse a (log) axis in ggplot on my part?

Thanks.

Mark

library(ggplot2)
library(patchwork)

dat <- data.frame(x=1:100)
dat$y <- dat$x^2

p1 <- ggplot(dat,aes(x,y))+
  geom_line()+
  scale_y_log10(minor_breaks = 10^seq(0,4,by=0.1))+
  labs(title="a) Normal")
p2 <- p1 +
  coord_cartesian(ylim=c(10000,1))+
  labs(title="b) Reversing with coord_cartesian\n drops minor_breaks")

wrap_plots(p1,p2)

^{Created on 2021-06-17 by the reprex package (v0.3.0)}

Session info

devtools::session_info()
#> ─ Session info ───────────────────────────────────────────────────────────────
#>  setting  value
#>  version  R version 4.0.5 (2021-03-31)
#>  os       Manjaro Linux
#>  system   x86_64, linux-gnu
#>  ui       X11
#>  language (EN)
#>  collate  en_DK.UTF-8
#>  ctype    en_DK.UTF-8
#>  tz       Europe/Copenhagen
#>  date     2021-06-17
#>
#> ─ Packages ───────────────────────────────────────────────────────────────────
#>  package     * version date       lib source
#>  assertthat    0.2.1   2019-03-21 [1] CRAN (R 4.0.2)
#>  backports     1.1.7   2020-05-13 [1] CRAN (R 4.0.0)
#>  cachem        1.0.4   2021-02-13 [1] CRAN (R 4.0.3)
#>  callr         3.6.0   2021-03-28 [1] CRAN (R 4.0.3)
#>  cli           2.3.1   2021-02-23 [1] CRAN (R 4.0.3)
#>  colorspace    2.0-0   2020-11-11 [1] CRAN (R 4.0.3)
#>  crayon        1.4.1   2021-02-08 [1] CRAN (R 4.0.3)
#>  curl          4.3     2019-12-02 [1] CRAN (R 4.0.0)
#>  desc          1.2.0   2018-05-01 [1] CRAN (R 4.0.0)
#>  devtools      2.3.0   2020-04-10 [1] CRAN (R 4.0.0)
#>  digest        0.6.27  2020-10-24 [1] CRAN (R 4.0.2)
#>  dplyr         1.0.2   2020-08-18 [1] CRAN (R 4.0.3)
#>  ellipsis      0.3.1   2020-05-15 [1] CRAN (R 4.0.0)
#>  evaluate      0.14    2019-05-28 [1] CRAN (R 4.0.0)
#>  fansi         0.4.2   2021-01-15 [1] CRAN (R 4.0.3)
#>  farver        2.1.0   2021-02-28 [1] CRAN (R 4.0.3)
#>  fastmap       1.1.0   2021-01-25 [1] CRAN (R 4.0.3)
#>  fs            1.5.0   2020-07-31 [1] CRAN (R 4.0.2)
#>  generics      0.0.2   2018-11-29 [1] CRAN (R 4.0.0)
#>  ggplot2     * 3.3.4   2021-06-16 [1] CRAN (R 4.0.5)
#>  glue          1.4.2   2020-08-27 [1] CRAN (R 4.0.3)
#>  gtable        0.3.0   2019-03-25 [1] CRAN (R 4.0.0)
#>  highr         0.8     2019-03-20 [1] CRAN (R 4.0.0)
#>  htmltools     0.5.1.1 2021-01-22 [1] CRAN (R 4.0.3)
#>  httr          1.4.2   2020-07-20 [1] CRAN (R 4.0.3)
#>  knitr         1.28    2020-02-06 [1] CRAN (R 4.0.0)
#>  labeling      0.4.2   2020-10-20 [1] CRAN (R 4.0.3)
#>  lifecycle     1.0.0   2021-02-15 [1] CRAN (R 4.0.3)
#>  magrittr      2.0.1   2020-11-17 [1] CRAN (R 4.0.3)
#>  memoise       2.0.0   2021-01-26 [1] CRAN (R 4.0.3)
#>  mime          0.9     2020-02-04 [1] CRAN (R 4.0.0)
#>  munsell       0.5.0   2018-06-12 [1] CRAN (R 4.0.0)
#>  patchwork   * 1.1.1   2020-12-17 [1] CRAN (R 4.0.3)
#>  pillar        1.5.1   2021-03-05 [1] CRAN (R 4.0.3)
#>  pkgbuild      1.0.8   2020-05-07 [1] CRAN (R 4.0.0)
#>  pkgconfig     2.0.3   2019-09-22 [1] CRAN (R 4.0.0)
#>  pkgload       1.0.2   2018-10-29 [1] CRAN (R 4.0.0)
#>  prettyunits   1.1.1   2020-01-24 [1] CRAN (R 4.0.0)
#>  processx      3.5.1   2021-04-04 [1] CRAN (R 4.0.3)
#>  ps            1.6.0   2021-02-28 [1] CRAN (R 4.0.3)
#>  purrr         0.3.4   2020-04-17 [1] CRAN (R 4.0.0)
#>  R6            2.5.0   2020-10-28 [1] CRAN (R 4.0.3)
#>  remotes       2.1.1   2020-02-15 [1] CRAN (R 4.0.0)
#>  rlang         0.4.10  2020-12-30 [1] CRAN (R 4.0.3)
#>  rmarkdown     2.7     2021-02-19 [1] CRAN (R 4.0.5)
#>  rprojroot     1.3-2   2018-01-03 [1] CRAN (R 4.0.0)
#>  scales        1.1.1   2020-05-11 [1] CRAN (R 4.0.0)
#>  sessioninfo   1.1.1   2018-11-05 [1] CRAN (R 4.0.0)
#>  stringi       1.5.3   2020-09-09 [1] CRAN (R 4.0.5)
#>  stringr       1.4.0   2019-02-10 [1] CRAN (R 4.0.5)
#>  testthat      3.0.2   2021-02-14 [1] CRAN (R 4.0.3)
#>  tibble        3.1.0   2021-02-25 [1] CRAN (R 4.0.3)
#>  tidyselect    1.1.0   2020-05-11 [1] CRAN (R 4.0.0)
#>  usethis       1.6.1   2020-04-29 [1] CRAN (R 4.0.0)
#>  utf8          1.2.1   2021-03-12 [1] CRAN (R 4.0.3)
#>  vctrs         0.3.6   2020-12-17 [1] CRAN (R 4.0.3)
#>  withr         2.4.1   2021-01-26 [1] CRAN (R 4.0.3)
#>  xfun          0.22    2021-03-11 [1] CRAN (R 4.0.5)
#>  xml2          1.3.2   2020-04-23 [1] CRAN (R 4.0.0)
#>  yaml          2.2.1   2020-02-01 [1] CRAN (R 4.0.0)
#>
#> [1] /home/mpay/R/x86_64-pc-linux-gnu-library/4.0
#> [2] /usr/lib/R/library

[thomasp85]

@clauswilke /@paleolimbot can you remember what we ended up deciding for this idiom (i.e. flipping axes by flipping their limits in the coord). Is this a bug or simply undefined behaviour?

[clauswilke]

There's an issue somewhere with a long discussion about reversing axes, but I think this particular problem is different. The minor breaks shouldn't disappear in any scenario.

[thomasp85]

@paleolimbot while you are taking a look at Coords and axes? 🙂
