React Audio Visualizer Hook

A tiny, high-performance audio visualizer hook for React using Web Audio API + Canvas

Features • Installation • Quick Start • API Reference • Examples • Performance • Live Demo

📋 Table of Contents

Overview
Visual Gallery
Features
Installation
Quick Start
Visualization Modes
API Reference
Usage Examples
Advanced Usage
Performance
Browser Support
Troubleshooting
Architecture
Contributing
License

🎯 Overview

@tkhdev/react-audio-visualizer is a lightweight, performant React hook that provides real-time audio visualization capabilities. Built on top of the Web Audio API and HTML5 Canvas, it offers 38 unique visualization modes with zero React re-renders per frame, making it perfect for music players, voice analysis tools, and interactive audio experiences.

Key Highlights

🚀 Zero Re-renders: Uses requestAnimationFrame for smooth 60 FPS animations without triggering React re-renders
📦 Tree-shakeable: Dynamic imports ensure only used renderers are bundled
🎨 38 Visualization Modes: From classic waveforms to artistic patterns
🔧 Fully Typed: Complete TypeScript support with comprehensive type definitions
🌐 SSR Safe: Works seamlessly with Next.js and other SSR frameworks
🎤 Dual Input Support: Works with microphone input or HTML audio elements
📱 Mobile Ready: Optimized for mobile browsers with high-DPI display support

🎨 Visual Gallery

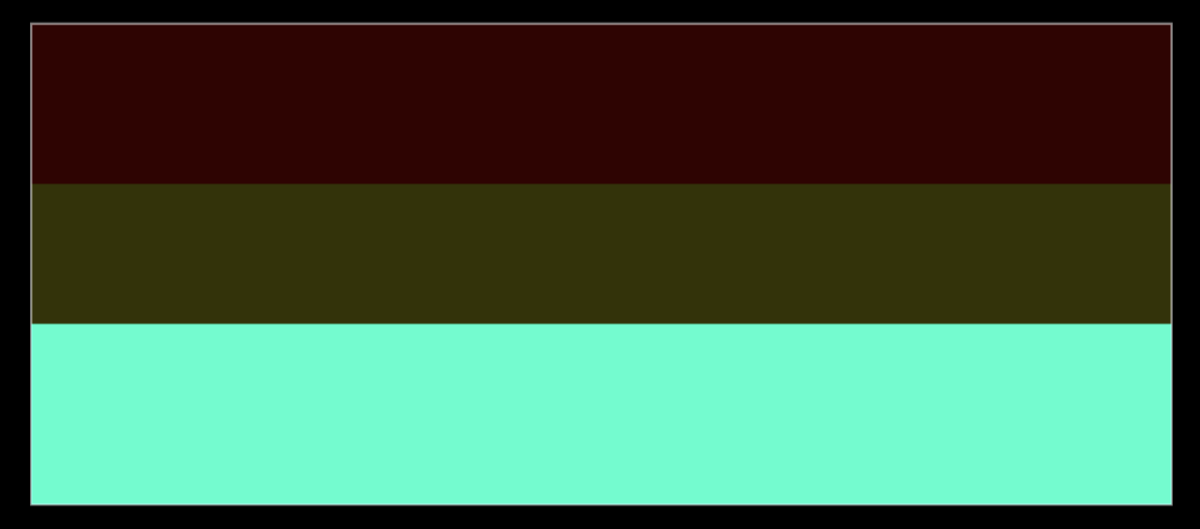

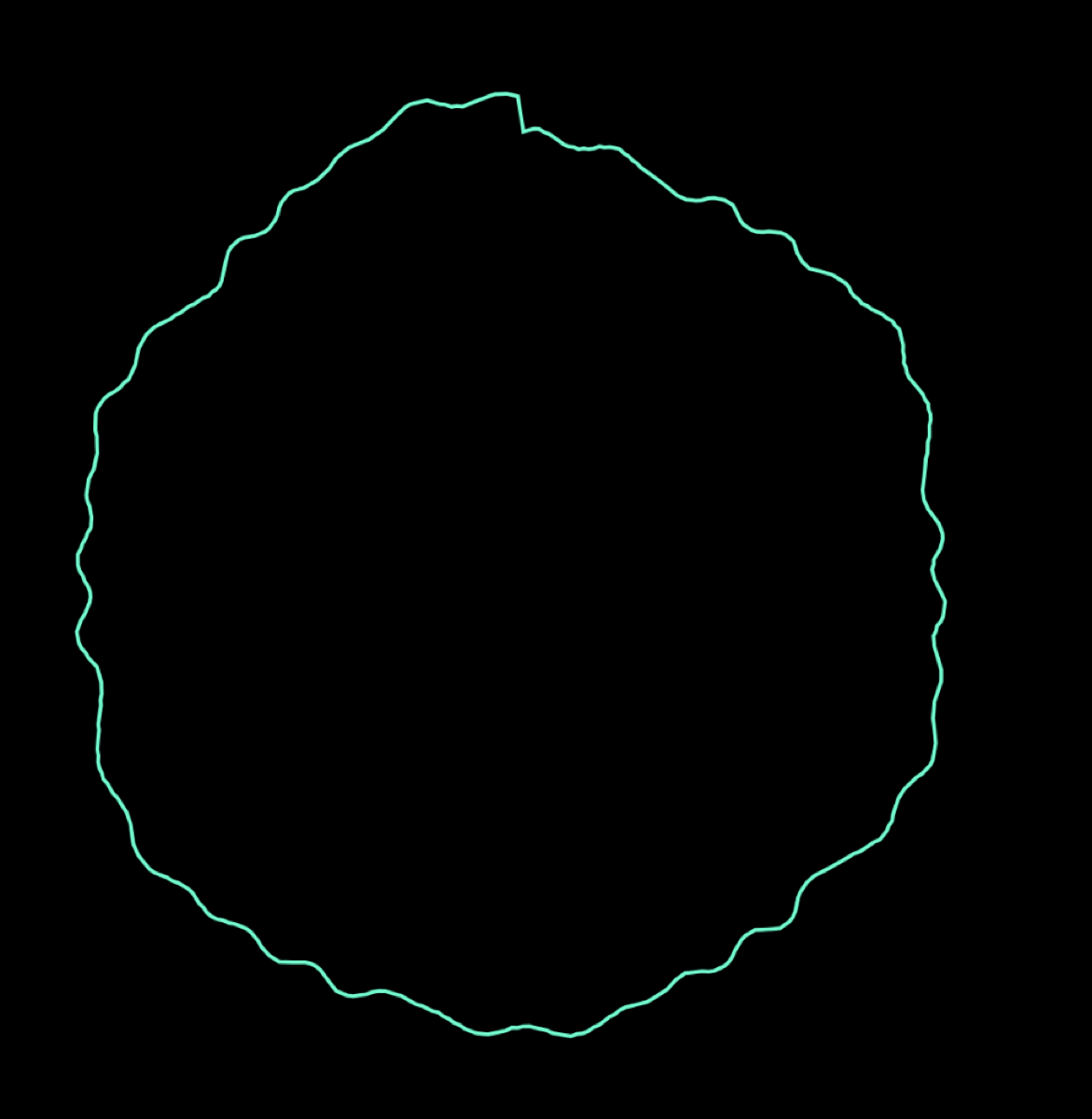

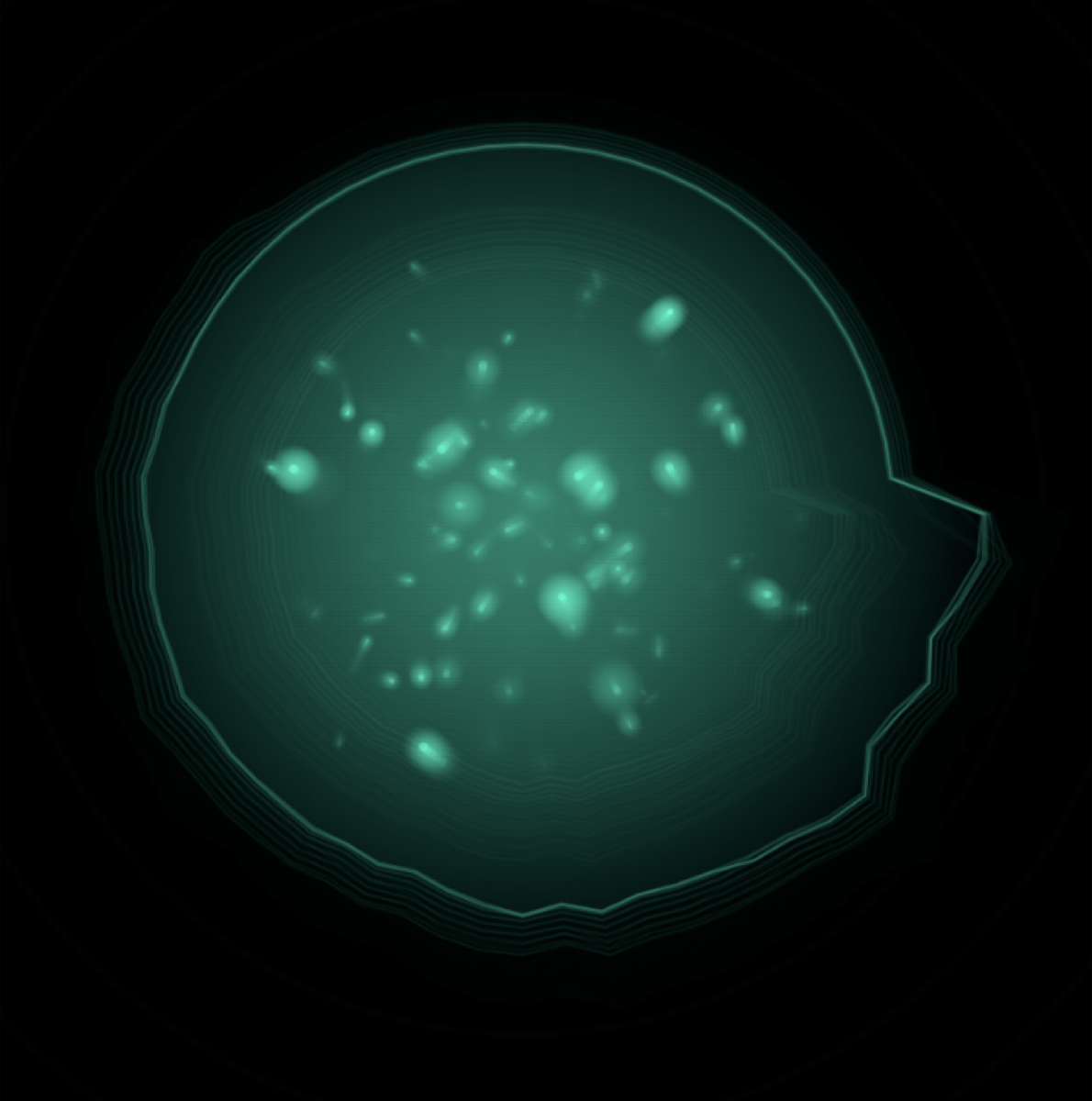

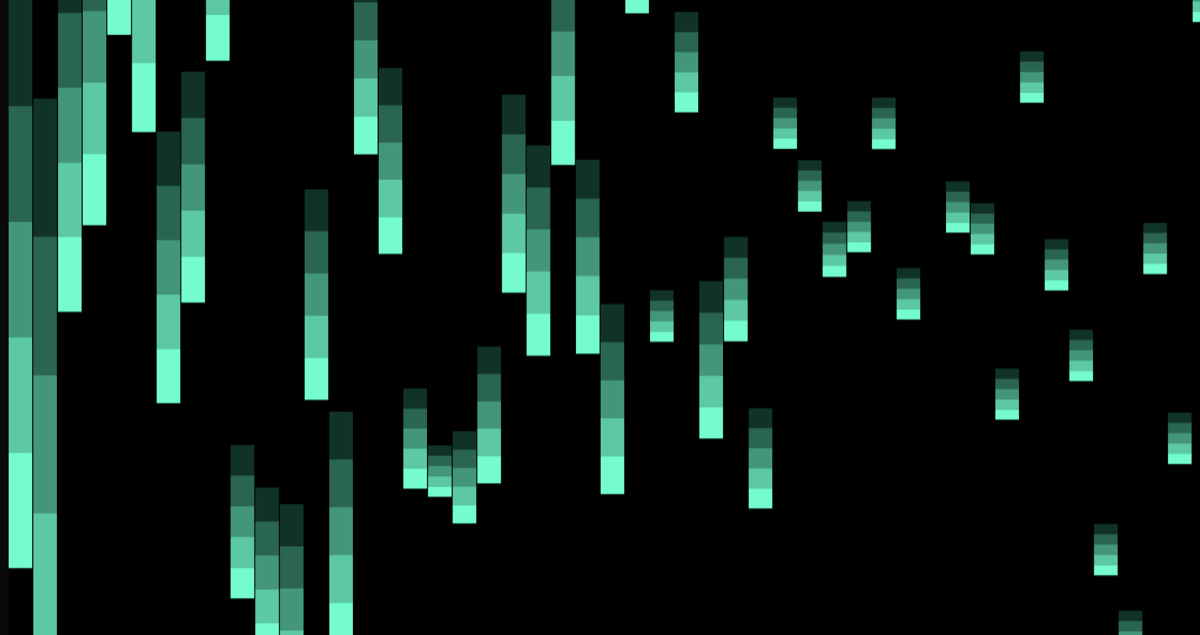

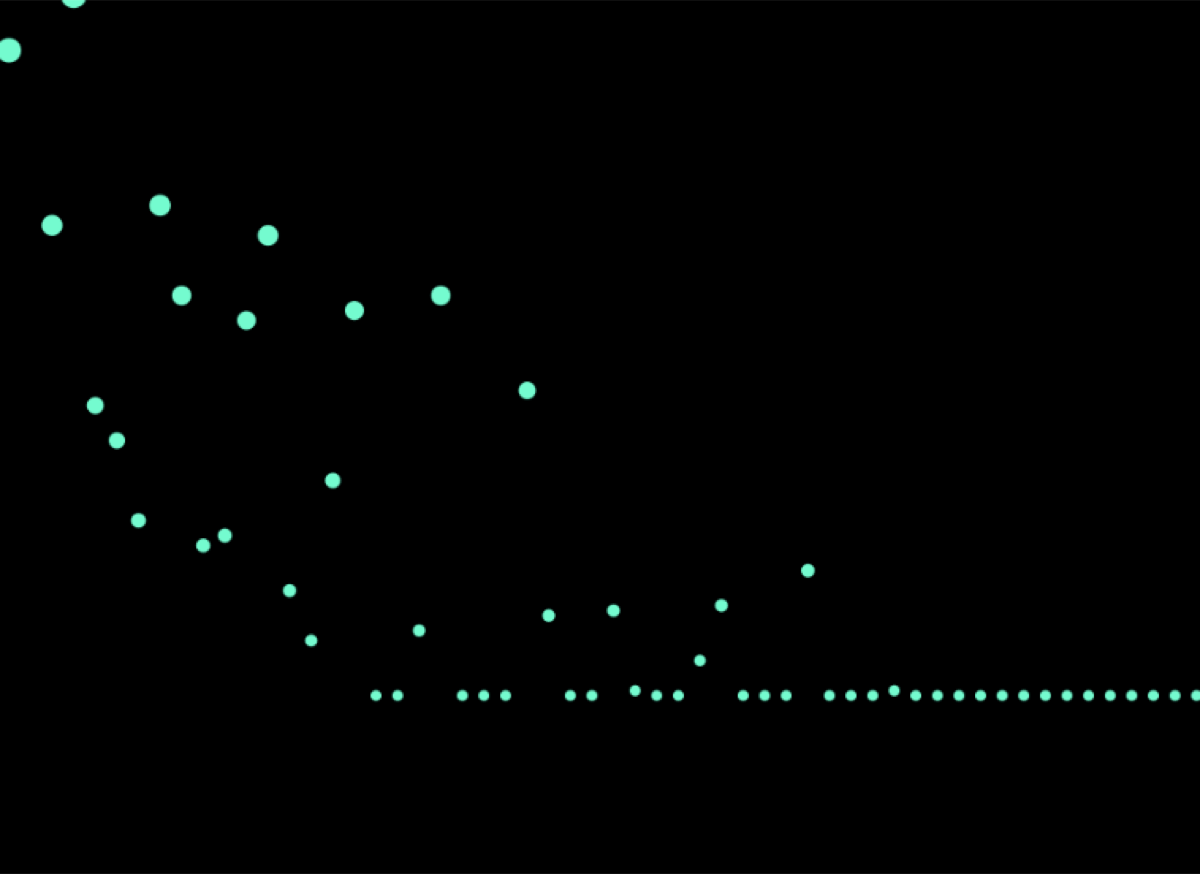

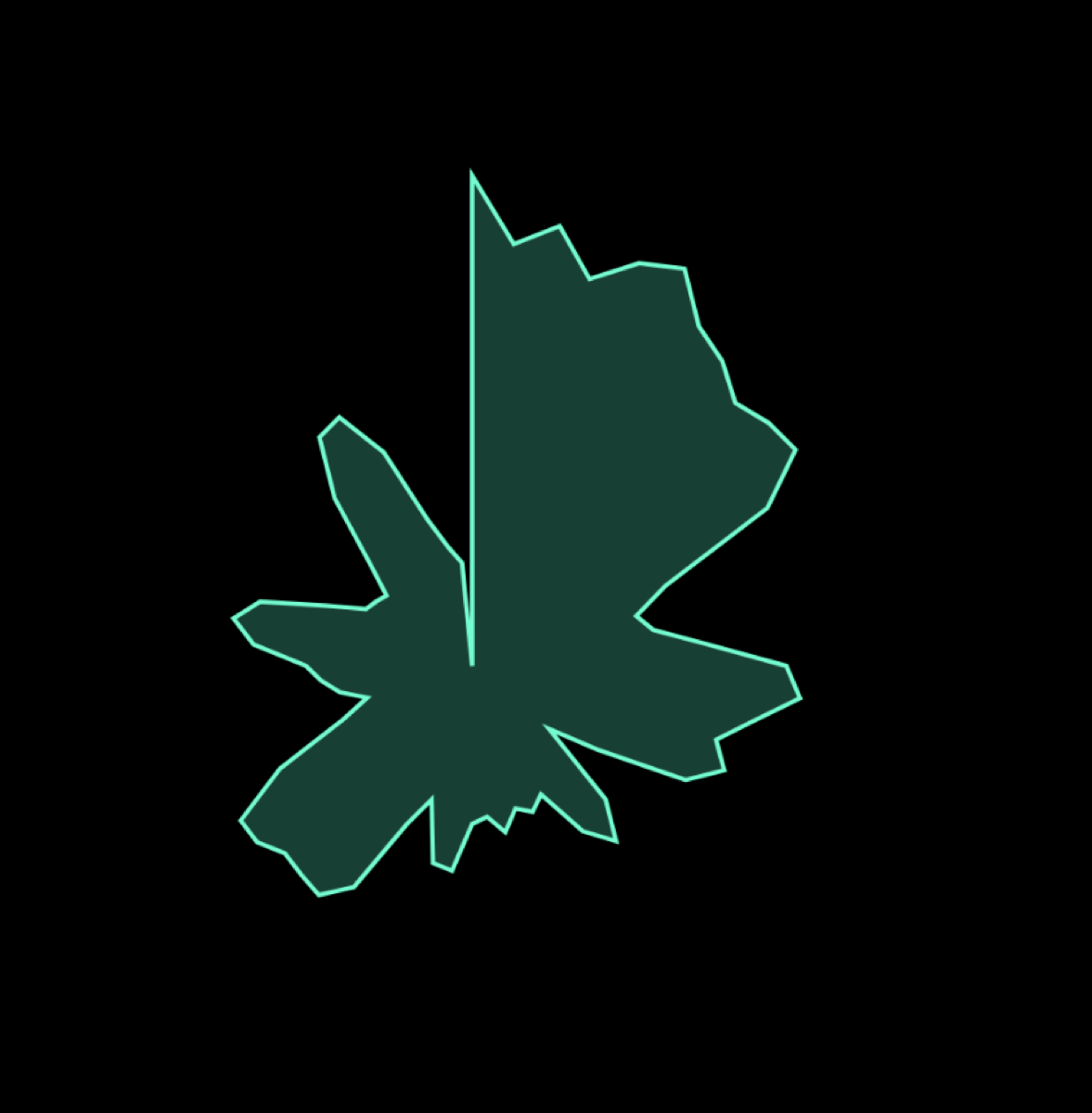

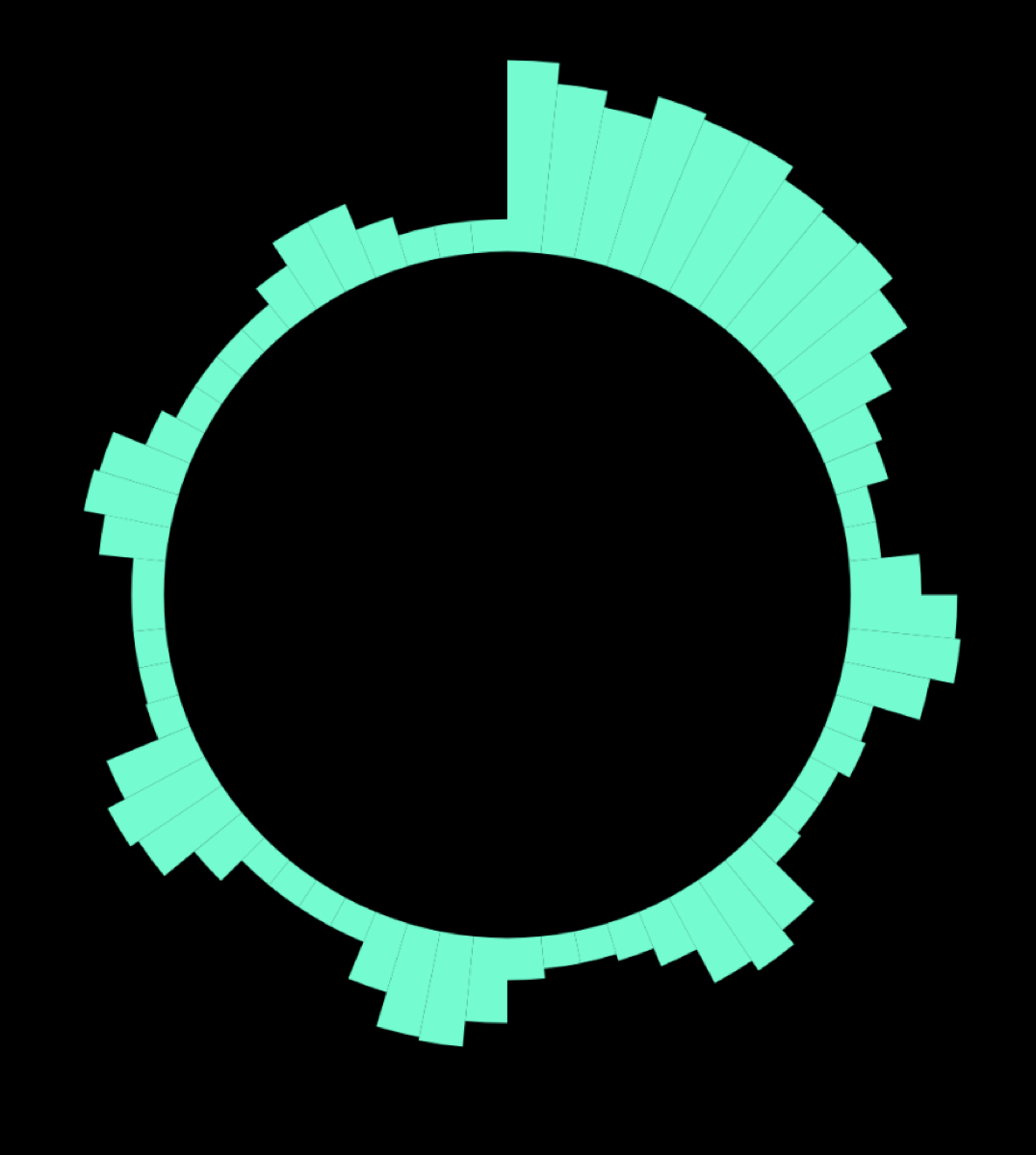

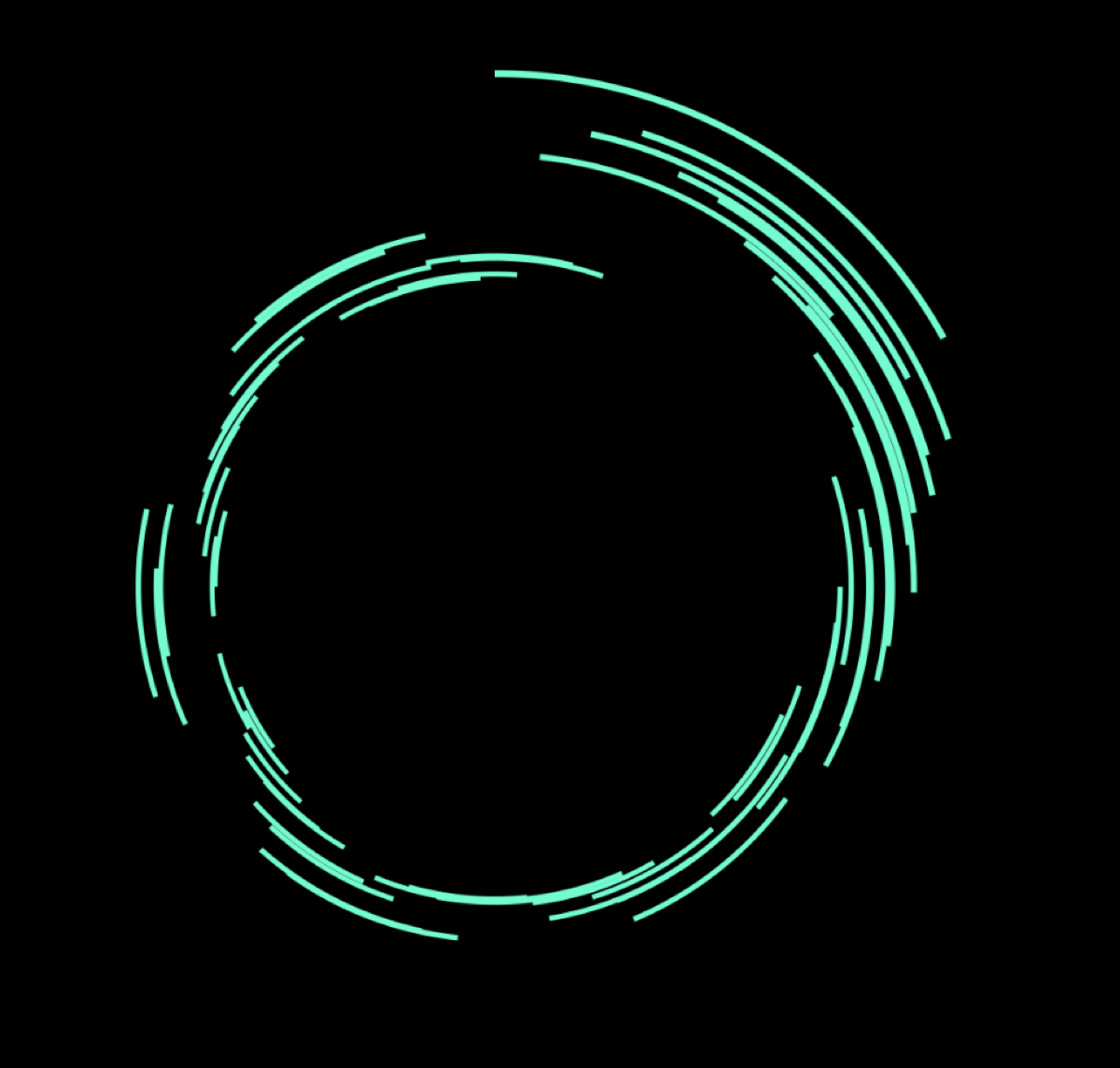

Here are some examples of the visualizations in action:

✨ Features

Core Capabilities

Multiple Audio Sources
- 🎤 Microphone input with device selection
- 🎵 HTML audio/video element support
- 🔄 Automatic source management and cleanup
Rich Visualization Options
- 📊 38 built-in visualization modes
- 🎨 Customizable colors (static or dynamic functions)
- 🔄 Mirror mode for symmetric visualizations
- 📐 Configurable FFT sizes (256, 512, 1024, 2048)
- 🎚️ Adjustable smoothing and decibel ranges
Performance Optimizations
- ⚡ Zero React re-renders per frame
- 🖼️ High-DPI canvas scaling
- 💾 Renderer caching and lazy loading
- 🧹 Automatic resource cleanup
- 📦 Code splitting for smaller bundle sizes
Developer Experience
- 📘 Full TypeScript support
- 🎯 Comprehensive error handling
- 🔔 Lifecycle callbacks (onStart, onStop, onError)
- 📖 Extensive documentation and examples

📦 Installation

npm install @tkhdev/react-audio-visualizer

or

yarn add @tkhdev/react-audio-visualizer

or

pnpm add @tkhdev/react-audio-visualizer

Peer Dependencies

react >= 17

🚀 Quick Start

Basic Example with Microphone

import { useAudioVisualizer } from '@tkhdev/react-audio-visualizer';

function App() {
  const { canvasRef, start, stop, isRunning } = useAudioVisualizer({
    source: 'mic',
    mode: 'spectrum',
  });

  return (
    <div>
      <canvas ref={canvasRef} width={800} height={200} />
      <button onClick={start} disabled={isRunning}>
        Start
      </button>
      <button onClick={stop} disabled={!isRunning}>
        Stop
      </button>
    </div>
  );
}

Basic Example with Audio Element

import { useRef } from 'react';
import { useAudioVisualizer } from '@tkhdev/react-audio-visualizer';

function App() {
  const audioRef = useRef<HTMLAudioElement>(null);

  const { canvasRef, start, stop } = useAudioVisualizer({
    source: audioRef.current!,
    mode: 'waveform',
  });

  return (
    <div>
      <audio
        ref={audioRef}
        controls
        src="/path/to/audio.mp3"
        onPlay={start}
        onPause={stop}
      />
      <canvas ref={canvasRef} width={800} height={200} />
    </div>
  );
}

🎨 Visualization Modes

The library provides 38 visualization modes organized by category:

Waveform Modes

waveform - Classic time-domain waveform
dual-waveform - Dual mirrored waveforms
oscilloscope - Oscilloscope-style display
waveform-bars - Waveform represented as bars
waveform-fill - Filled waveform area
radial-waveform - Circular waveform pattern
waveform-history - Waveform with history trail
energy-waves - Energy-based wave visualization

Spectrum Modes

spectrum - Classic frequency spectrum bars
line-spectrum - Frequency spectrum as lines
radial-spectrum - Circular frequency spectrum
frequency-bands - Grouped frequency bands
rounded-bars - Rounded frequency bars
frequency-dots - Frequency data as dots
frequency-lines - Frequency lines visualization
frequency-arcs - Arced frequency display
frequency-rings - Concentric frequency rings

Artistic Modes

circular - Circular visualization
spiral - Spiral pattern
star - Star-shaped visualization
flower - Flower-like pattern
mandala - Mandala pattern
kaleidoscope - Kaleidoscope effect
light-rays - Light ray effects
glow - Glowing visualization
bubbles - Bubble effects
particles - Particle system
particle-trails - Particles with trails
matrix - Matrix-style visualization
pulse - Pulsing visualization
nebula - Flowing organic patterns with particles and gradients

Analysis Modes

loudness - Overall loudness meter
vu-meter - VU meter display
equalizer - Equalizer visualization
spectrogram - Spectrogram (frequency over time)
sound-waves - Sound wave patterns
lissajous - Lissajous curves
combined - Combined waveform and spectrum

Example: Using Different Modes

import { useState } from 'react';
import { useAudioVisualizer, type VisualizerMode } from '@tkhdev/react-audio-visualizer';

const modes: VisualizerMode[] = [
  'waveform',
  'spectrum',
  'spiral',
  'circular',
  'particles',
  // ... more modes
];

function App() {
  const [mode, setMode] = useState<VisualizerMode>('spectrum');

  const { canvasRef, start, stop } = useAudioVisualizer({
    source: 'mic',
    mode,
    barColor: '#00ffcc',
  });

  return (
    <div>
      <select value={mode} onChange={(e) => setMode(e.target.value as VisualizerMode)}>
        {modes.map((m) => (
          <option key={m} value={m}>{m}</option>
        ))}
      </select>
      <canvas ref={canvasRef} width={800} height={400} />
      <button onClick={start}>Start</button>
      <button onClick={stop}>Stop</button>
    </div>
  );
}

📚 API Reference

`useAudioVisualizer(options)`

The main hook that provides audio visualization capabilities.

Parameters

`options: UseAudioVisualizerOptions`

Option	Type	Default	Required	Description
`source`	`'mic' \| HTMLAudioElement`	-	✅	Audio source. Use `'mic'` for microphone input or pass an `HTMLAudioElement` reference.
`mode`	`VisualizerMode`	-	✅	Visualization mode. See Visualization Modes for all available options.
`fftSize`	`256 \| 512 \| 1024 \| 2048`	`1024`	❌	FFT (Fast Fourier Transform) size. Higher values provide more frequency resolution but use more CPU.
`smoothing`	`number`	`0.85`	❌	Smoothing time constant (0-1). Higher values create smoother transitions but slower response.
`minDecibels`	`number`	`-90`	❌	Minimum decibel value for frequency analysis.
`maxDecibels`	`number`	`-10`	❌	Maximum decibel value for frequency analysis.
`barColor`	`string \| (value: number) => string`	`'#00ffcc'`	❌	Color for bars/lines. Can be a static color string or a function that returns a color based on the normalized value (0-1).
`backgroundColor`	`string`	`'#000'`	❌	Canvas background color. Use `'transparent'` for transparent background.
`lineWidth`	`number`	`2`	❌	Line width for waveform-based visualizations (in pixels).
`deviceId`	`string`	`undefined`	❌	Specific microphone device ID. Use `navigator.mediaDevices.enumerateDevices()` to get available devices.
`mirror`	`boolean`	`false`	❌	Enable mirror mode for symmetric visualizations.
`onStart`	`() => void`	`undefined`	❌	Callback function called when visualization starts.
`onStop`	`() => void`	`undefined`	❌	Callback function called when visualization stops.
`onError`	`(err: Error) => void`	`undefined`	❌	Error callback function. Called when an error occurs during initialization or runtime.

Returns

`UseAudioVisualizerReturn`

Property	Type	Description
`canvasRef`	`RefObject<HTMLCanvasElement \| null>`	React ref to attach to a `<canvas>` element. The hook will automatically handle canvas setup and scaling.
`start`	`() => Promise<void>`	Starts the audio visualization. Returns a Promise that resolves when initialization is complete. May throw if initialization fails.
`stop`	`() => void`	Stops the audio visualization and cleans up all resources.
`isRunning`	`boolean`	Current running state. `true` when visualization is active, `false` otherwise.
`error`	`Error \| null`	Current error state. `null` when no error, or an `Error` object if an error occurred.

Type Definitions

type VisualizerMode =
  | 'waveform'
  | 'spectrum'
  | 'loudness'
  | 'circular'
  | 'frequency-bands'
  | 'rounded-bars'
  | 'particles'
  | 'dual-waveform'
  | 'line-spectrum'
  | 'radial-spectrum'
  | 'oscilloscope'
  | 'vu-meter'
  | 'frequency-dots'
  | 'sound-waves'
  | 'spiral'
  | 'matrix'
  | 'equalizer'
  | 'spectrogram'
  | 'star'
  | 'bubbles'
  | 'lissajous'
  | 'waveform-bars'
  | 'frequency-rings'
  | 'pulse'
  | 'waveform-fill'
  | 'radial-waveform'
  | 'frequency-lines'
  | 'frequency-arcs'
  | 'kaleidoscope'
  | 'mandala'
  | 'flower'
  | 'glow'
  | 'particle-trails'
  | 'light-rays'
  | 'energy-waves'
  | 'waveform-history'
  | 'nebula'
  | 'combined';

type AudioSource = 'mic' | HTMLAudioElement;

type FFTSize = 256 | 512 | 1024 | 2048;

type BarColor = string | ((value: number) => string);

🎮 Live Demo

Try the interactive demo with all 38 visualization modes:

👉 View Live Demo

The demo showcases all visualization modes with both microphone input and audio file playback.

💡 Usage Examples

Example 1: Dynamic Color Function

import { useAudioVisualizer } from '@tkhdev/react-audio-visualizer';

function App() {
  const { canvasRef, start, stop } = useAudioVisualizer({
    source: 'mic',
    mode: 'spectrum',
    // Dynamic color based on frequency value
    barColor: (value) => {
      // Create a gradient from blue to red based on intensity
      const hue = value * 240; // 0-240 (blue to red)
      return `hsl(${hue}, 100%, 50%)`;
    },
  });

  return (
    <div>
      <canvas ref={canvasRef} width={800} height={200} />
      <button onClick={start}>Start</button>
      <button onClick={stop}>Stop</button>
    </div>
  );
}

Example 2: Microphone Device Selection

import { useState, useEffect } from 'react';
import { useAudioVisualizer } from '@tkhdev/react-audio-visualizer';

function App() {
  const [devices, setDevices] = useState<MediaDeviceInfo[]>([]);
  const [selectedDevice, setSelectedDevice] = useState<string>('');

  useEffect(() => {
    // Get available audio input devices
    navigator.mediaDevices.enumerateDevices().then((deviceList) => {
      const audioInputs = deviceList.filter(
        (device) => device.kind === 'audioinput'
      );
      setDevices(audioInputs);
    });
  }, []);

  const { canvasRef, start, stop } = useAudioVisualizer({
    source: 'mic',
    mode: 'spectrum',
    deviceId: selectedDevice || undefined,
  });

  return (
    <div>
      <select
        value={selectedDevice}
        onChange={(e) => setSelectedDevice(e.target.value)}
      >
        <option value="">Default Microphone</option>
        {devices.map((device) => (
          <option key={device.deviceId} value={device.deviceId}>
            {device.label || `Device ${device.deviceId}`}
          </option>
        ))}
      </select>
      <canvas ref={canvasRef} width={800} height={200} />
      <button onClick={start}>Start</button>
      <button onClick={stop}>Stop</button>
    </div>
  );
}

Example 3: Multiple Visualizations

import { useAudioVisualizer } from '@tkhdev/react-audio-visualizer';

function App() {
  const audioRef = useRef<HTMLAudioElement>(null);

  const visualizer1 = useAudioVisualizer({
    source: audioRef.current!,
    mode: 'waveform',
    barColor: '#00ffcc',
  });

  const visualizer2 = useAudioVisualizer({
    source: audioRef.current!,
    mode: 'spectrum',
    barColor: '#ff00cc',
  });

  const handlePlay = () => {
    visualizer1.start();
    visualizer2.start();
  };

  const handlePause = () => {
    visualizer1.stop();
    visualizer2.stop();
  };

  return (
    <div>
      <audio
        ref={audioRef}
        controls
        src="/audio.mp3"
        onPlay={handlePlay}
        onPause={handlePause}
      />
      <div style={{ display: 'flex', gap: '20px' }}>
        <canvas ref={visualizer1.canvasRef} width={400} height={200} />
        <canvas ref={visualizer2.canvasRef} width={400} height={200} />
      </div>
    </div>
  );
}

Example 4: Error Handling

import { useState } from 'react';
import { useAudioVisualizer } from '@tkhdev/react-audio-visualizer';

function App() {
  const [errorMessage, setErrorMessage] = useState<string>('');

  const { canvasRef, start, stop, error } = useAudioVisualizer({
    source: 'mic',
    mode: 'spectrum',
    onError: (err) => {
      setErrorMessage(err.message);
      console.error('Visualizer error:', err);
    },
    onStart: () => {
      setErrorMessage('');
      console.log('Visualization started');
    },
    onStop: () => {
      console.log('Visualization stopped');
    },
  });

  return (
    <div>
      {error && (
        <div style={{ color: 'red', padding: '10px' }}>
          Error: {errorMessage || error.message}
        </div>
      )}
      <canvas ref={canvasRef} width={800} height={200} />
      <button onClick={start}>Start</button>
      <button onClick={stop}>Stop</button>
    </div>
  );
}

Example 5: Next.js Integration

'use client'; // For Next.js 13+ App Router

import { useRef } from 'react';
import { useAudioVisualizer } from '@tkhdev/react-audio-visualizer';

export default function AudioVisualizer() {
  const audioRef = useRef<HTMLAudioElement>(null);

  const { canvasRef, start, stop } = useAudioVisualizer({
    source: audioRef.current!,
    mode: 'spectrum',
  });

  return (
    <div>
      <audio
        ref={audioRef}
        controls
        src="/api/audio-stream"
        onPlay={start}
        onPause={stop}
      />
      <canvas ref={canvasRef} width={800} height={200} />
    </div>
  );
}

Example 6: Custom Styling with Transparent Background

import { useAudioVisualizer } from '@tkhdev/react-audio-visualizer';

function App() {
  const { canvasRef, start, stop } = useAudioVisualizer({
    source: 'mic',
    mode: 'particles',
    backgroundColor: 'transparent',
    barColor: '#ffffff',
  });

  return (
    <div style={{ background: 'linear-gradient(135deg, #667eea 0%, #764ba2 100%)' }}>
      <canvas
        ref={canvasRef}
        width={800}
        height={400}
        style={{
          borderRadius: '10px',
          boxShadow: '0 4px 6px rgba(0, 0, 0, 0.1)'
        }}
      />
      <button onClick={start}>Start</button>
      <button onClick={stop}>Stop</button>
    </div>
  );
}

🔧 Advanced Usage

FFT Size Selection

The FFT size determines the frequency resolution of the analysis:

256: Lower CPU usage, fewer frequency bins (128), faster updates
512: Balanced performance (256 bins)
1024: Default, good balance (512 bins)
2048: Higher resolution (1024 bins), more CPU intensive

const { canvasRef, start, stop } = useAudioVisualizer({
  source: 'mic',
  mode: 'spectrum',
  fftSize: 2048, // Higher resolution for detailed analysis
});

Smoothing Configuration

Smoothing controls how quickly the visualization responds to audio changes:

0.0: Instant response, may appear jittery
0.85: Default, smooth transitions
1.0: Very smooth, slower response

const { canvasRef, start, stop } = useAudioVisualizer({
  source: 'mic',
  mode: 'spectrum',
  smoothing: 0.5, // More responsive
});

Decibel Range Tuning

Adjust the decibel range to focus on specific audio levels:

const { canvasRef, start, stop } = useAudioVisualizer({
  source: 'mic',
  mode: 'spectrum',
  minDecibels: -100, // Capture quieter sounds
  maxDecibels: 0,    // Full range
});

Responsive Canvas

The hook automatically handles high-DPI displays. For responsive sizing, use CSS:

<canvas
  ref={canvasRef}
  width={800}
  height={200}
  style={{
    width: '100%',
    height: 'auto',
    maxWidth: '800px',
  }}
/>

⚡ Performance

Optimization Features

Zero Re-renders: The animation loop runs entirely outside React's render cycle using requestAnimationFrame and refs.
Dynamic Imports: Renderers are loaded on-demand, reducing initial bundle size.
Renderer Caching: Once loaded, renderers are cached to avoid redundant imports.
Efficient Canvas Operations: Uses optimized Canvas 2D API calls and minimizes redraws.
Automatic Cleanup: All resources (AudioContext, MediaStream, animation frames) are properly cleaned up on unmount.

Performance Tips

Lower FFT Size: Use fftSize: 512 or 256 for better performance on lower-end devices.
Reduce Smoothing: Lower smoothing values (e.g., 0.5) can improve responsiveness.
Single Visualization: Avoid running multiple visualizations simultaneously if performance is a concern.
Canvas Size: Smaller canvas dimensions reduce rendering overhead.

Benchmarks

On a modern desktop (Chrome):

60 FPS maintained with default settings
< 5% CPU usage for single visualization
~50KB gzipped bundle size (with tree-shaking)

🌐 Browser Support

Browser	Minimum Version	Notes
Chrome	25+ (2013)	Full support for all features
Firefox	25+ (2013)	Full support for all features
Safari	6+ (2012)	Uses `webkitAudioContext` prefix. Full `AudioContext` support since Safari 14.1+ (2021)
Edge (Legacy)	12+ (2015)	Full support
Edge (Chromium)	79+ (2020)	Full support, same as Chrome
Opera	27+ (2014)	Full support
Mobile Chrome	25+	Full support for all features
Mobile Safari	6+	Requires user gesture to start AudioContext
Mobile Firefox	25+	Full support

Web Audio API Support

The library requires browsers that support:

AudioContext or webkitAudioContext (for Safari < 14.1)
getUserMedia (for microphone input)
HTMLCanvasElement and CanvasRenderingContext2D

Browser-Specific Considerations

Safari: Has stricter autoplay policies. The hook automatically handles AudioContext resumption, but users must interact with the page (click, tap) before audio can start. Older Safari versions (< 14.1) use the webkitAudioContext prefix, which is automatically handled by the library.
Mobile Browsers: All mobile browsers require user interaction before starting audio. This is a security feature and cannot be bypassed.
HTTPS Requirement: Microphone access (getUserMedia) requires HTTPS in production. Localhost is allowed for development.

Feature Detection

The library automatically detects browser capabilities and uses appropriate APIs. If your target browsers are very old, consider using polyfills for:

AudioContext / webkitAudioContext
getUserMedia

🐛 Troubleshooting

Common Issues

1. "Audio element is not available"

Problem: The audio element ref is null when the hook is initialized.

Solution: Ensure the audio element is rendered and has a valid ref before using it:

const audioRef = useRef<HTMLAudioElement>(null);

// Wait for audio element to be ready
useEffect(() => {
  if (audioRef.current) {
    // Audio element is ready
  }
}, []);

const { canvasRef, start, stop } = useAudioVisualizer({
  source: audioRef.current!, // Use non-null assertion only when sure
  mode: 'spectrum',
});

2. "Permission denied" for microphone

Problem: Browser blocked microphone access.

Solution:

Ensure the site is served over HTTPS (required for getUserMedia)
Check browser permissions in settings
Request permission explicitly before calling start()

3. No visualization appears

Problem: Canvas is not rendering.

Solution:

Verify canvasRef is attached to a <canvas> element
Check that start() was called successfully
Ensure audio source is active (playing or microphone is capturing)
Check browser console for errors

4. Audio plays but no visualization

Problem: Audio element is playing but canvas is blank.

Solution:

Ensure start() is called when audio starts playing
Check that the audio element has a valid src
Verify the mode is correct for your use case

5. Performance issues

Problem: Low FPS or high CPU usage.

Solution:

Reduce fftSize (try 512 or 256)
Use a smaller canvas size
Reduce smoothing value
Close other browser tabs/applications

6. TypeScript errors

Problem: Type errors when using the hook.

Solution:

Ensure you're using TypeScript 4.5+
Check that React types are installed: npm install -D @types/react
Verify you're using the correct import: import { useAudioVisualizer } from '@tkhdev/react-audio-visualizer'

Debug Mode

Enable verbose logging by checking the browser console. The hook logs important events:

AudioContext creation/resumption
Renderer loading
Errors and warnings

🏗️ Architecture

Project Structure

react-audio-visualizer/
├── src/
│   ├── audio/              # Audio processing utilities
│   │   ├── analyser.ts     # AnalyserNode configuration
│   │   ├── createAudioContext.ts  # AudioContext creation
│   │   └── createSource.ts # Audio source creation (mic/element)
│   ├── renderers/          # Visualization renderers (38 modes)
│   │   ├── waveform.ts
│   │   ├── spectrum.ts
│   │   └── ...
│   ├── utils/              # Utility functions
│   │   ├── clamp.ts
│   │   ├── rms.ts
│   │   ├── scaleCanvas.ts
│   │   └── getCanvasDimensions.ts
│   ├── types.ts            # TypeScript type definitions
│   ├── useAudioVisualizer.ts  # Main hook implementation
│   └── index.ts            # Public API exports
├── examples/               # Example applications
├── test/                   # Test files
└── dist/                   # Built output

How It Works

Initialization: When start() is called, the hook:
- Creates or reuses an AudioContext
- Creates an AnalyserNode with configured FFT size
- Connects the audio source (mic or element) to the analyser
- Allocates data buffers for frequency/time domain data
Animation Loop:
- Uses requestAnimationFrame for 60 FPS rendering
- Reads audio data from AnalyserNode (frequency or time domain)
- Dynamically loads the appropriate renderer if not cached
- Renders the visualization to the canvas
Cleanup: When stop() is called or component unmounts:
- Cancels animation frames
- Stops media stream tracks (for mic)
- Disconnects audio nodes
- Closes AudioContext (when safe)
- Clears all refs and buffers

Renderer System

Renderers are dynamically imported to enable code splitting:

// Renderers are loaded on-demand
const renderer = await import('./renderers/spectrum');
renderer.drawSpectrum(canvas, context, data, ...);

This ensures only the renderers you use are included in your bundle.

🤝 Contributing

Contributions are welcome! Here's how you can help:

Development Setup

# Clone the repository
git clone https://github.com/tkhdev/react-audio-visualizer.git
cd react-audio-visualizer

# Install dependencies
npm install

# Run development server
npm run dev

# Run tests
npm test

# Build
npm run build

# Lint
npm run lint

Adding a New Visualization Mode

Create a new renderer file in src/renderers/:

// src/renderers/my-visualization.ts
export function drawMyVisualization(
  canvas: HTMLCanvasElement,
  context: CanvasRenderingContext2D,
  data: ArrayLike<number>,
  backgroundColor: string,
  barColor: string | ((value: number) => string),
  mirror: boolean
): void {
  // Your rendering logic here
}

Register it in src/renderers/index.ts:

const rendererMap: Record<VisualizerMode, ...> = {
  // ... existing renderers
  'my-visualization': () => import('./my-visualization').then(m => ({ default: m.drawMyVisualization })),
};

Add the mode to src/types.ts:

export type VisualizerMode =
  // ... existing modes
  | 'my-visualization';

Update the examples and documentation.

Code Style

Follow the existing code style
Use TypeScript for all new code
Write tests for new features
Update documentation

Submitting Changes

Fork the repository
Create a feature branch (git checkout -b feature/amazing-feature)
Commit your changes (git commit -m 'Add amazing feature')
Push to the branch (git push origin feature/amazing-feature)
Open a Pull Request

📄 License

MIT License - see LICENSE file for details.

🙏 Acknowledgments

Built with Web Audio API
Inspired by various audio visualization projects
Thanks to all contributors and users

📞 Support

Made with ❤️ for the React community

⭐ Star this repo if you find it useful!

Name		Name	Last commit message	Last commit date
Latest commit History 3 Commits
examples/unified-demo		examples/unified-demo
src		src
test		test
.eslintrc.json		.eslintrc.json
.gitignore		.gitignore
.npmignore		.npmignore
.prettierrc		.prettierrc
CHANGELOG.md		CHANGELOG.md
LICENSE		LICENSE
README.md		README.md
eslint.config.js		eslint.config.js
index.html		index.html
package-lock.json		package-lock.json
package.json		package.json
tsconfig.json		tsconfig.json
tsup.config.ts		tsup.config.ts
vite.config.ts		vite.config.ts
vitest.config.ts		vitest.config.ts

License

tkhdev/react-audio-visualizer

Folders and files

Latest commit

History

Repository files navigation

React Audio Visualizer Hook

📋 Table of Contents

🎯 Overview

Key Highlights

🎨 Visual Gallery

✨ Features

Core Capabilities

📦 Installation

Peer Dependencies

🚀 Quick Start

Basic Example with Microphone

Basic Example with Audio Element

🎨 Visualization Modes

Waveform Modes

Spectrum Modes

Artistic Modes

Analysis Modes

Example: Using Different Modes

📚 API Reference

useAudioVisualizer(options)

Parameters

options: UseAudioVisualizerOptions

Returns

UseAudioVisualizerReturn

Type Definitions

🎮 Live Demo

💡 Usage Examples

Example 1: Dynamic Color Function

Example 2: Microphone Device Selection

Example 3: Multiple Visualizations

Example 4: Error Handling

Example 5: Next.js Integration

Example 6: Custom Styling with Transparent Background

🔧 Advanced Usage

FFT Size Selection

Smoothing Configuration

Decibel Range Tuning

Responsive Canvas

⚡ Performance

Optimization Features

Performance Tips

Benchmarks

🌐 Browser Support

Web Audio API Support

Browser-Specific Considerations

Feature Detection

🐛 Troubleshooting

Common Issues

1. "Audio element is not available"

2. "Permission denied" for microphone

3. No visualization appears

4. Audio plays but no visualization

5. Performance issues

6. TypeScript errors

Debug Mode

🏗️ Architecture

Project Structure

How It Works

Renderer System

🤝 Contributing

Development Setup

Adding a New Visualization Mode

Code Style

Submitting Changes

📄 License

🙏 Acknowledgments

📞 Support

About

Resources

License

Uh oh!

Stars

Watchers

Forks

`useAudioVisualizer(options)`

`options: UseAudioVisualizerOptions`

`UseAudioVisualizerReturn`

Packages
