MahantapaiSudSanook

Overview

Thailand is one of the country that face many natural disasters. However, these data concerning the topic is not-well format, hard to access, and sparse. Many natural disaster such as landslide, earthquake, fire are neglected. That’s why we come up of a way to collect those datas in the form of API, for easy usage and access

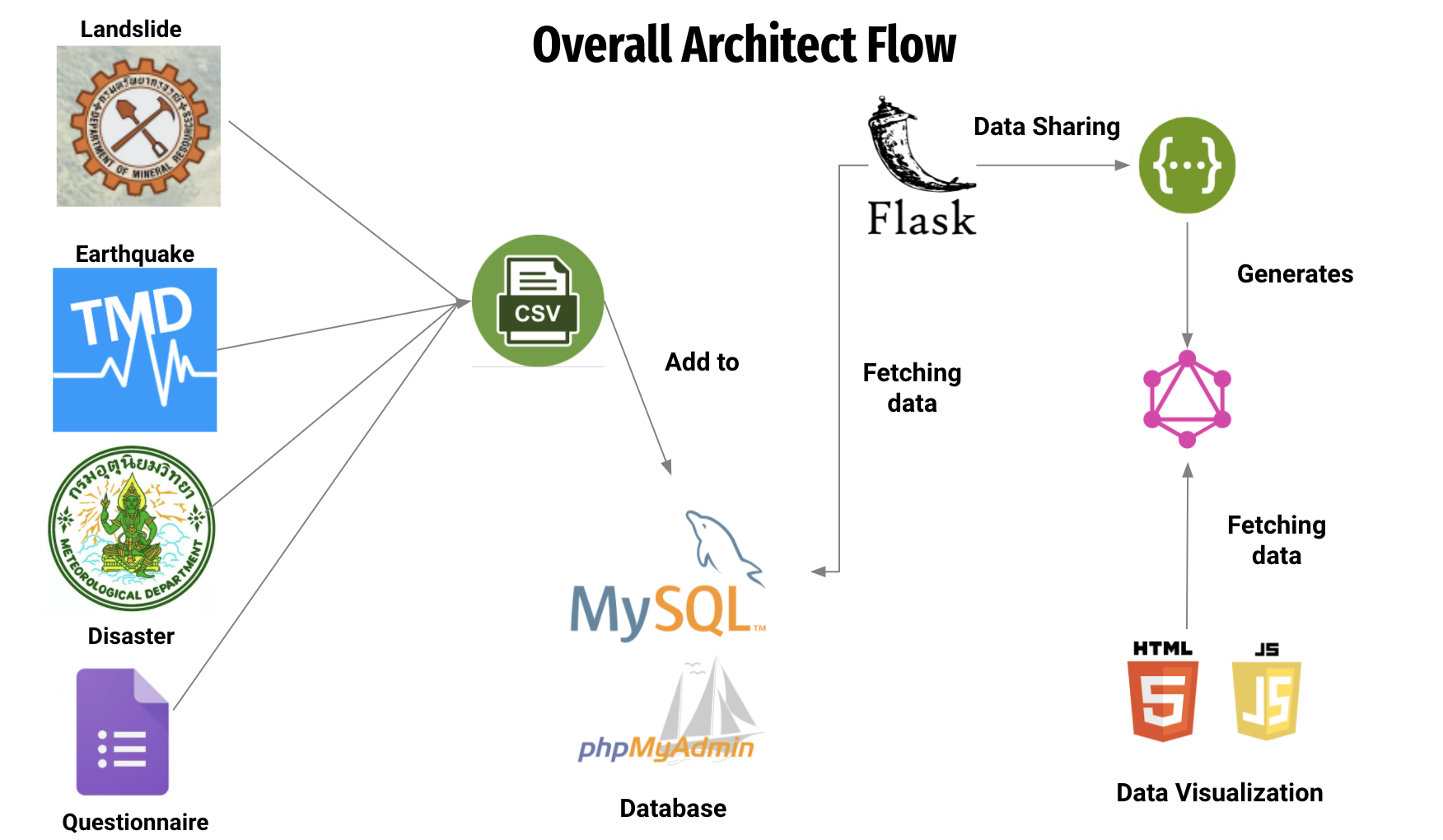

Overall Architect

Disaster in Thailand API

This API provides information about common natural disaster happening in Thailand. It's separated into 4 categories:

• Overall monthly natural disaster in each region of Thailand. Raw data provided by Thai Meteorological DepartMent (TMD).
• Earthquake data in Thailand between 2011 and 2021. Raw data provided by Earthquake Observation Division.
• Landslide risks area in Thailand. Raw data provided by Department of Mineral Resources (DMR).
• Rainfall and storm data gathered by our group in Google form.

API features

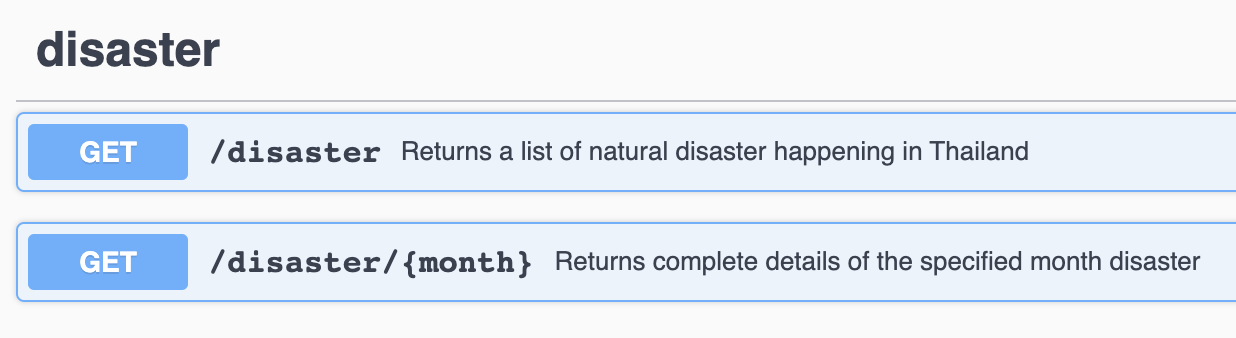

1. disaster

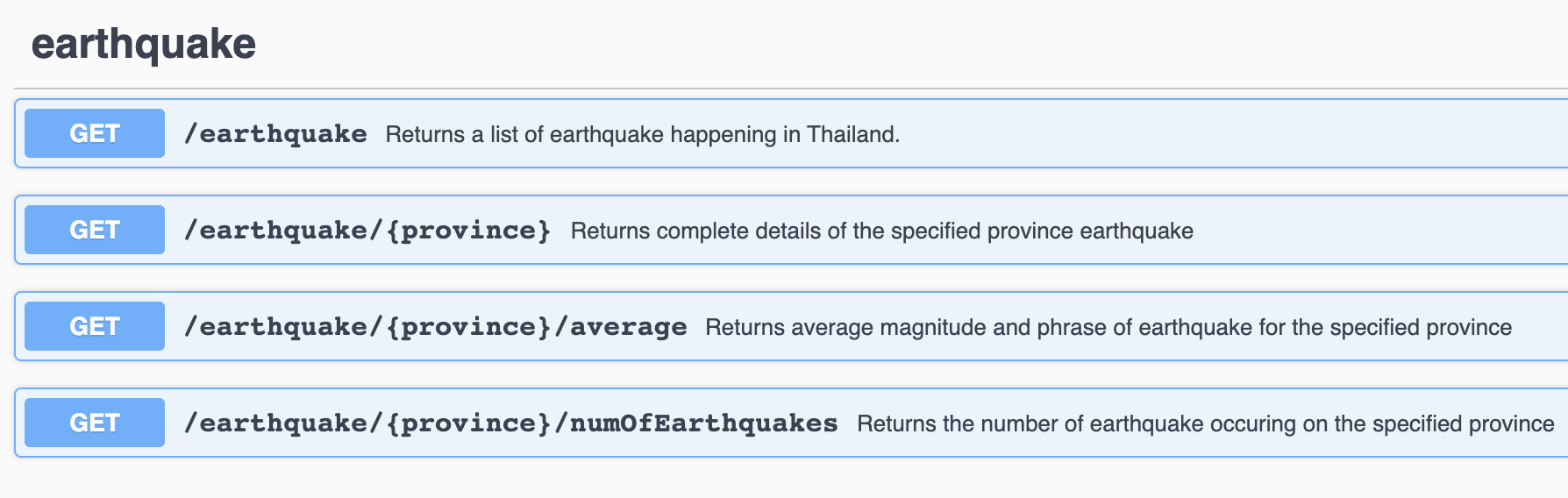

2. earthquake

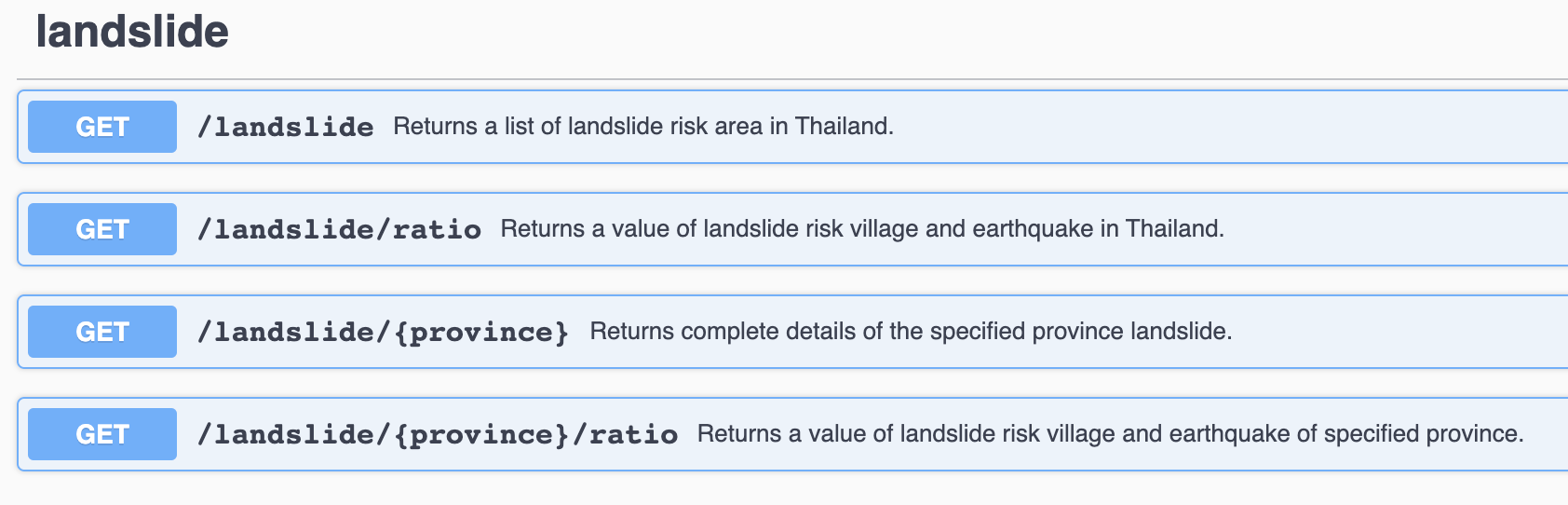

3. landslide

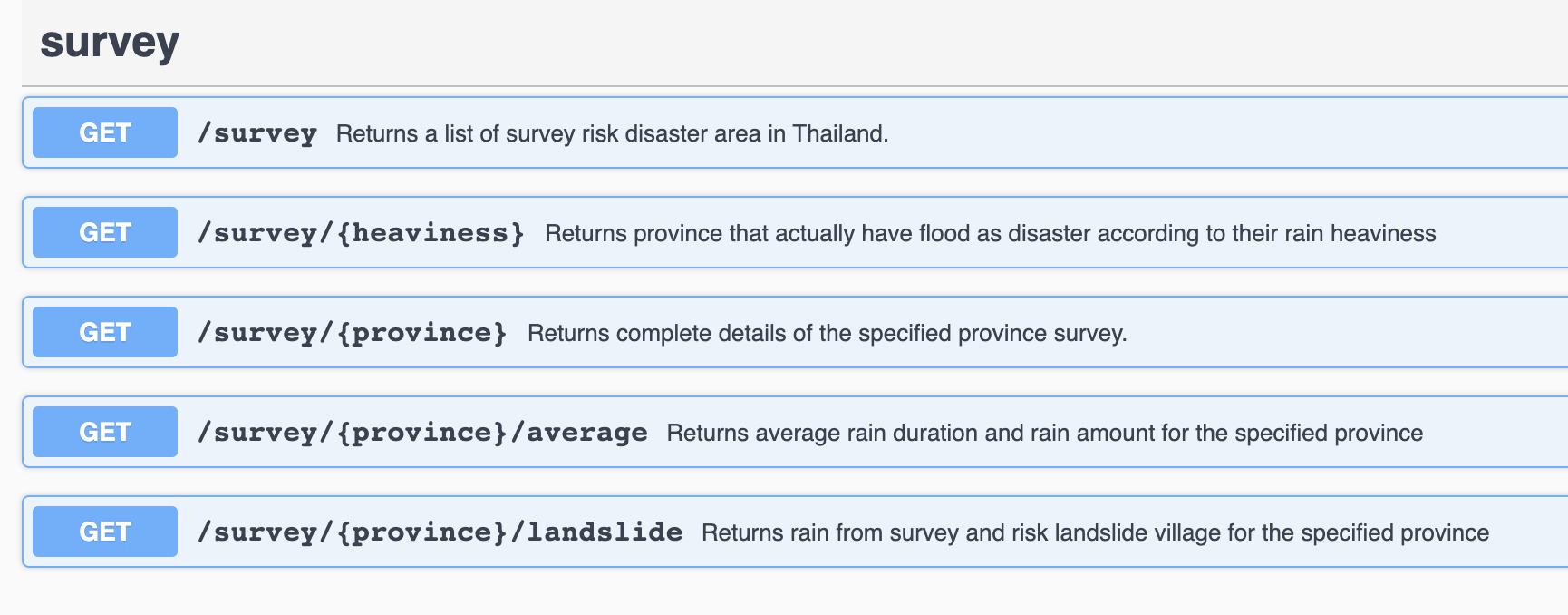

4. survey


Data visualization features

1. Earthquake count by magnitude

   This graph provides the number of earthquake occur compare with the range of earthquake magnitude

2. Earthquake count by the risk landslide village

   This graph provides the number of earthquake occur compare with risk landslide village

3. Average Monthly Rainfalls

   This graph provides average rain amount and average rain duration from survey

Prerequisites

1. Install Node.js (version 3.6 or higher)
2. Install Python (version 16.13.0 or higher)
3. Create database in phpMyAdmin (MySQL)
   • Create 4 tables in your database with schema as follows:

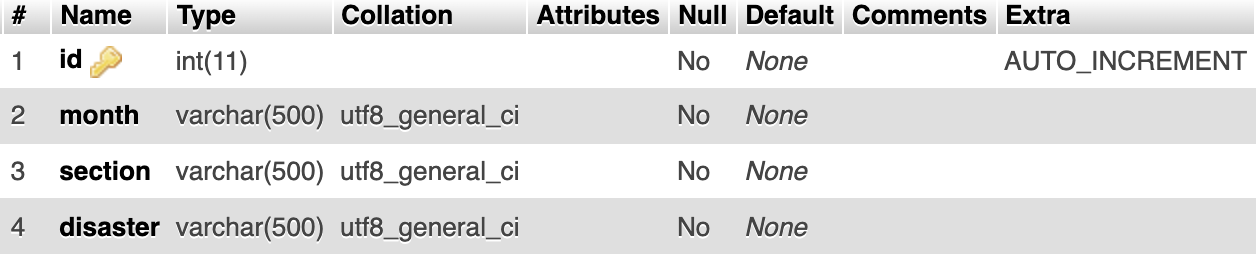

     • disaster

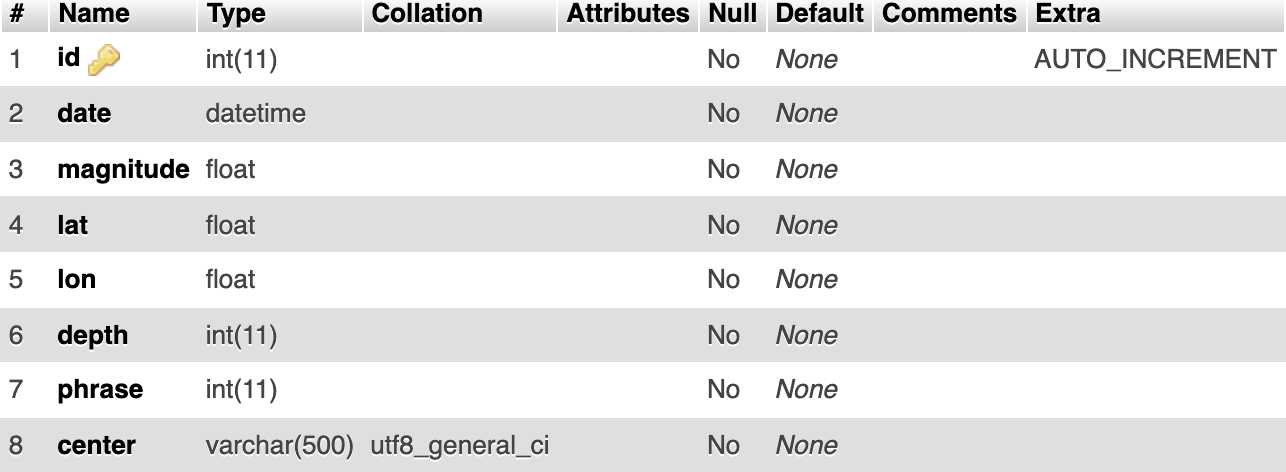

     • earthquake

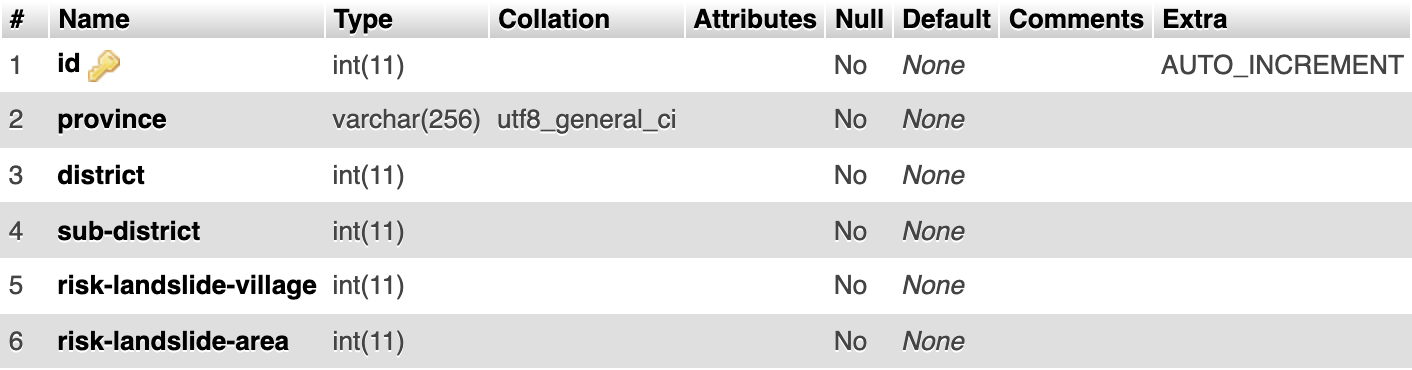

     • landslide

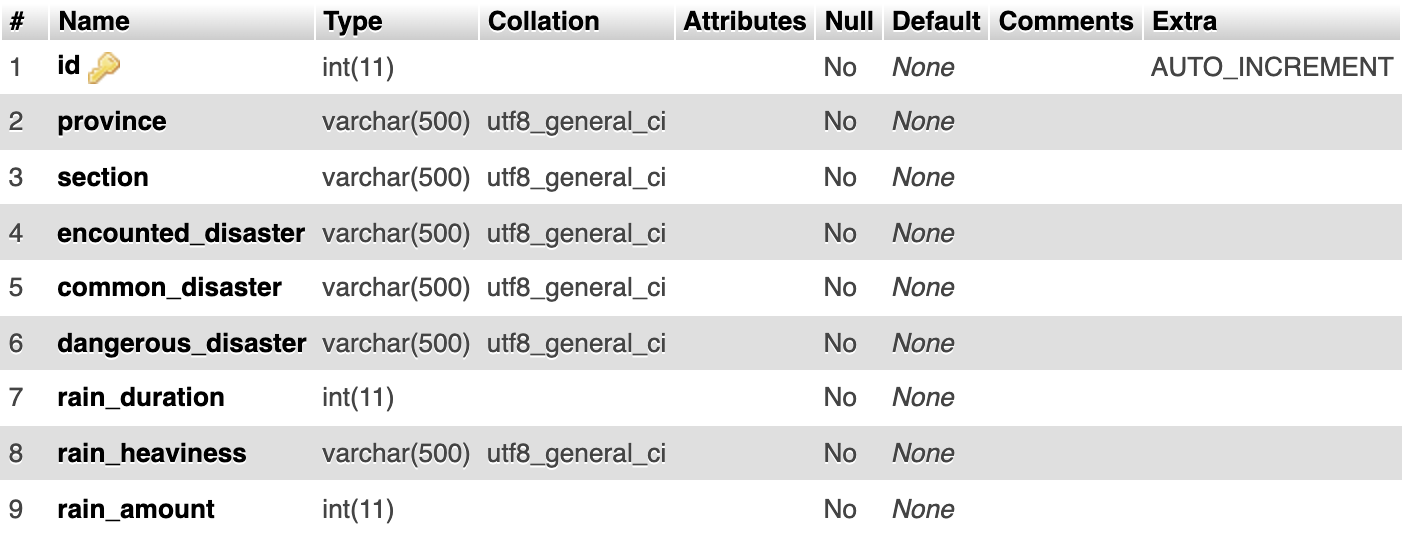

     • survey

4. Add all disasters data from file data to database

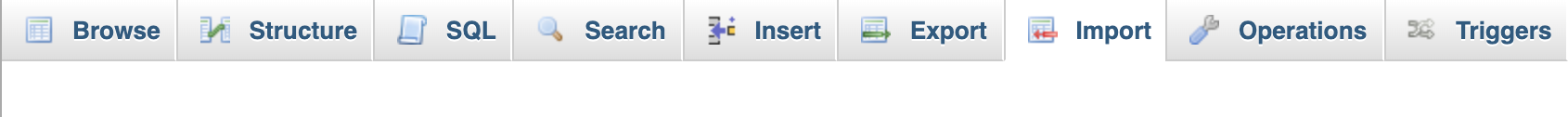

   1. Select import

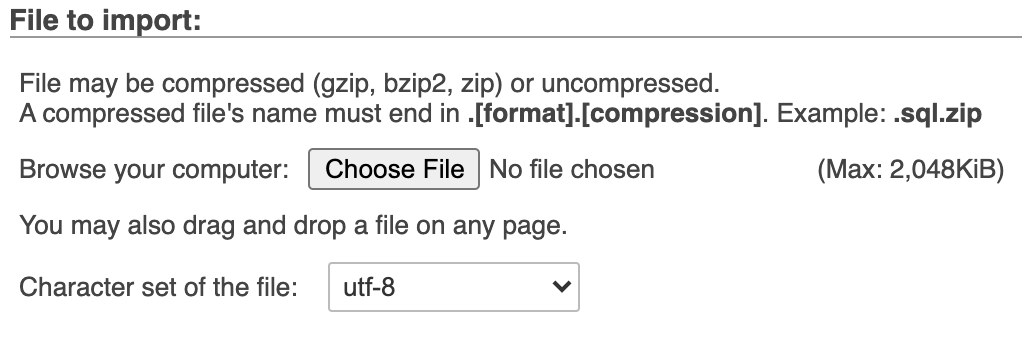

   2. Select Choose File

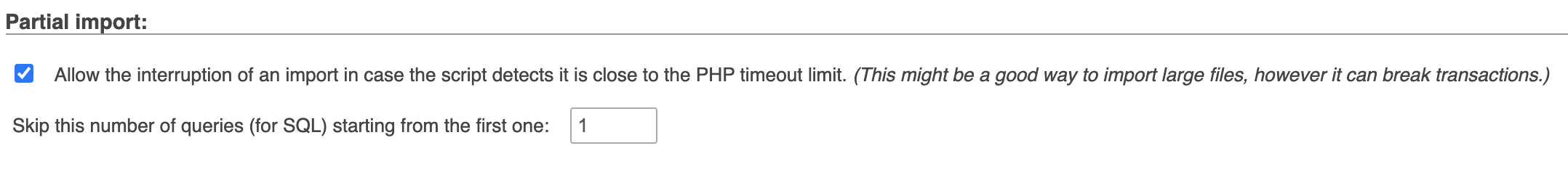

   3. Add one number to skip number

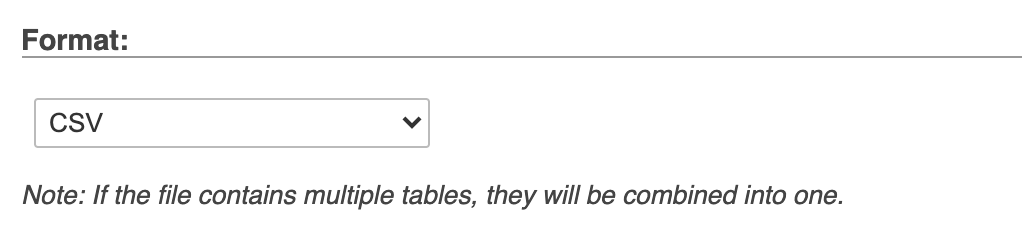

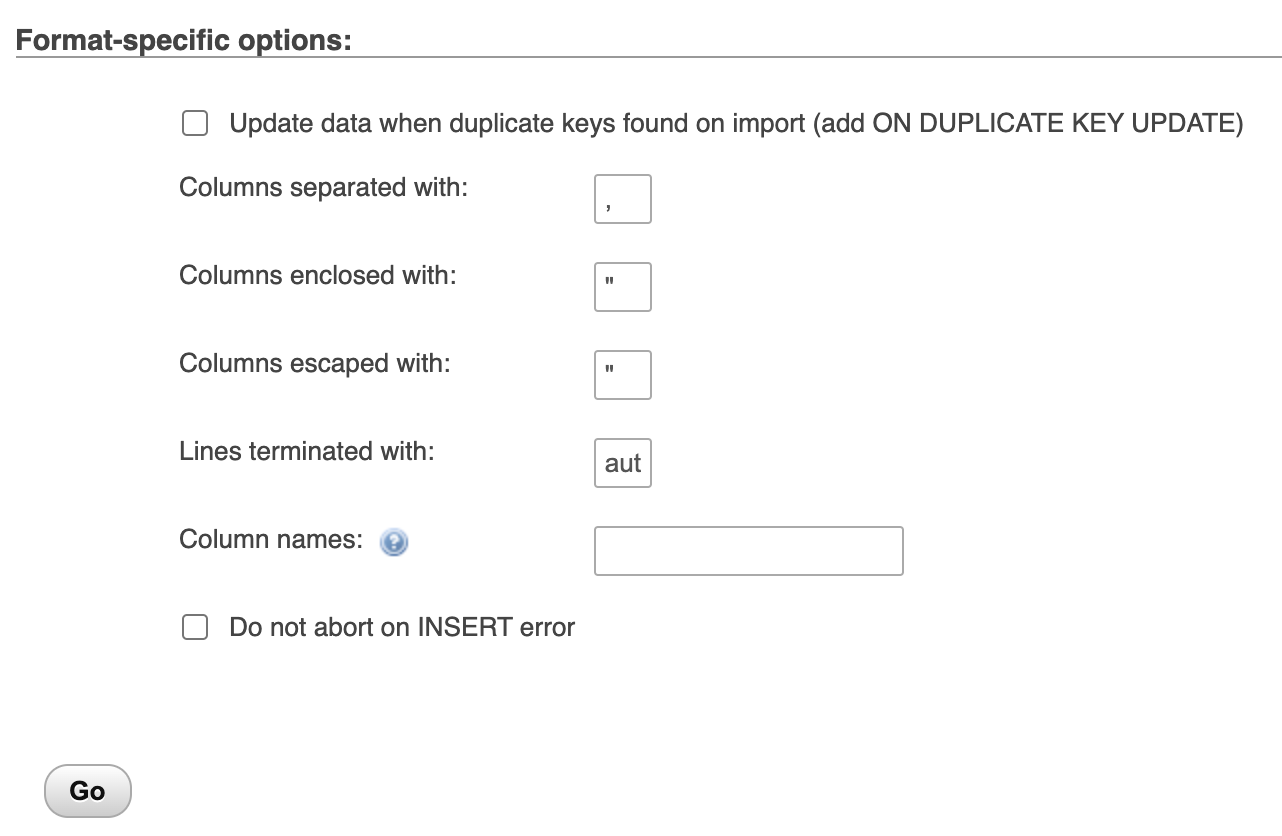

   4. Select format

   5. write column name then click Go


Instruction for virtual environment

1. Install virtual environment
   • Linux/MacOS:

     python3 -m pip install virtualenv

   • Windows:

     python -m pip install virtualenv

2. Create new virtual environment.

   virtualenv venv

3. Activate a virtual environment.
   • Linux/MacOS:

     . env/bin/activate

   • Windows:

     env\Scripts\activate

Installation

1. Clone the repo

   git clone https://github.com/ttxking/disaster-api.git

2. Change directory

   cd Disaster-API

3. Install required libraries

   pip install -r requirements.txt

4. Install OpenAPI-to-GraphQL

   npm install -g openapi-to-graphql-cli@2.5.0

5. Edit config.py for your phpMyAdmin database

   OPENAPI_AUTOGEN_DIR="autogen"
   DB_HOST="Your database host"
   DB_USER="Your username"
   DB_PASSWD="Your password"
   DB_NAME="Your table name"


(back to top)

Usage

1. Run jar file

   java -jar openapi-generator-cli-5.3.0.jar generate -i openapi/disaster-api.yaml -o autogen -g python-flask

2. Start the REST API server

   python app.py

   • swagger tool avalible on http://localhost:8080/disaster-api/ui
3. Start openapi-to-graphql in another terminal

   openapi-to-graphql --cors -u http://localhost:8080/disaster-api openapi/disaster-api.yaml

   • GraphQL window avalible on http://localhost:3000/graphql
4. Open the index page in http://localhost:8080

Interact with our database

1. Your can just download openapi-to-graphql and run with this command

   openapi-to-graphql --cors -u http://localhost:8080/disaster-api/ openapi/disaster-api.yaml

   • GraphQL window avalible on http://localhost:3000/graphql

But the query it quite slow, you need to wait for 15-30 second

2. Open the index page in templates\index.html

(back to top)

Contributor

Student ID	Name	Github	E-mail	University	Faculty	Department
6210546714	Anusid Wachiracharoenwong	ttxking	anusid.w@ku.th	Kasetsart University	Faculty of Engineering	Software and Knowledge Engineering
6210545556	Peerasu Watanasirang	BellBoyZz	peerasu.w@ku.th	Kasetsart University	Faculty of Engineering	Software and Knowledge Engineering
6210546382	Kittitouch Ingkasompob	kinkinkinxd	kittitouch.i@ku.th	Kasetsart University	Faculty of Engineering	Software and Knowledge Engineering

(back to top)
