v1.0.0 — framesmith

First public release. npx framesmith — an open-source MCP server that gives your AI coding agent a visual design canvas: sketch the UI, review it in a browser, agree on the design before any framework code gets written.

Formerly canvas-mcp — renamed to framesmith for v1.0.

Headline: your designs live in your repo

Canvases persist as open JSON in a .framesmith/ directory, checked in alongside your code — committable, diffable in code review, and self-contained on clone. The repo is the source of truth; no proprietary, encrypted store. Bind a workspace with canvas_bind and the server auto-detects it on startup.

What's in 1.0

• Scene graph → HTML/CSS → Puppeteer screenshots — agents author via MCP tools, you review real browser renders.
• Workspaces / projects and a Figma-style standalone viewer (read-only gallery across global + every bound repo).
• Design systems with workspace → project → canvas token inheritance.
• Responsive breakpoints (stack / wrap / fluid widths) with true reflow.
• Evaluation — heuristic design scoring + optional LLM-as-judge, with auto-fix ops.
• Repo-bound storage — deterministic JSON, asset externalization (.framesmith/assets/), external-change safety, viewer write-back.

Install

# Claude Code
claude mcp add framesmith -- npx framesmith

Works with any MCP client (Cursor, Windsurf, VS Code, Codex). See the README for per-client config.

MIT licensed.

v0.9.0 — Workspace-level design systems

Tokens declared once, inherited everywhere.

The Coide use case finally clicks: set the design system once on the workspace, every canvas under it resolves $primary / $bg / $lg automatically.

Highlights

• Workspace.designSystem + symmetric Project.designSystem — declare tokens once at the workspace level; projects can override.
• Three-layer resolution at render: canvas.variables (override) → project.designSystem → workspace.designSystem → built-in defaults. Per-category merge — setting only colors doesn't reset spacing/radius/typography.
• Six new MCP tools: workspace_set_design_system, workspace_get_design_system, workspace_apply_preset + symmetric project_* trio. Presets (dark, light, material, minimal) installable at workspace OR project level.
• Shared getCanvasTokens(canvas) helper in src/workspaces.ts — every render path (MCP tools, viewer, evaluate, canvas_diff) routes through it. The docstring warns against the anti-pattern that bit us in #40.

Authoring story

// Once per workspace — brand colors set globally
workspace_set_design_system({
  workspaceId,
  variables: {
    colors: { primary: "#0066ff", bg: "#0a0a0a" },
    spacing: { sm: 8, md: 16, lg: 24 }
  }
});

// Every canvas under that workspace
batch_design({ canvasId, operations: 'I(parent, { fill: "$primary" })' });
// → resolves to #0066ff via workspace inheritance, no canvas-level redefinition

Bonus

• Fix #40 — viewer / canvas_diff / evaluate were missed in the Phase 9 PR, leaving them with the old resolveVariables(canvas.root, canvas.variables) bypass. Caught while dogfooding the release page.

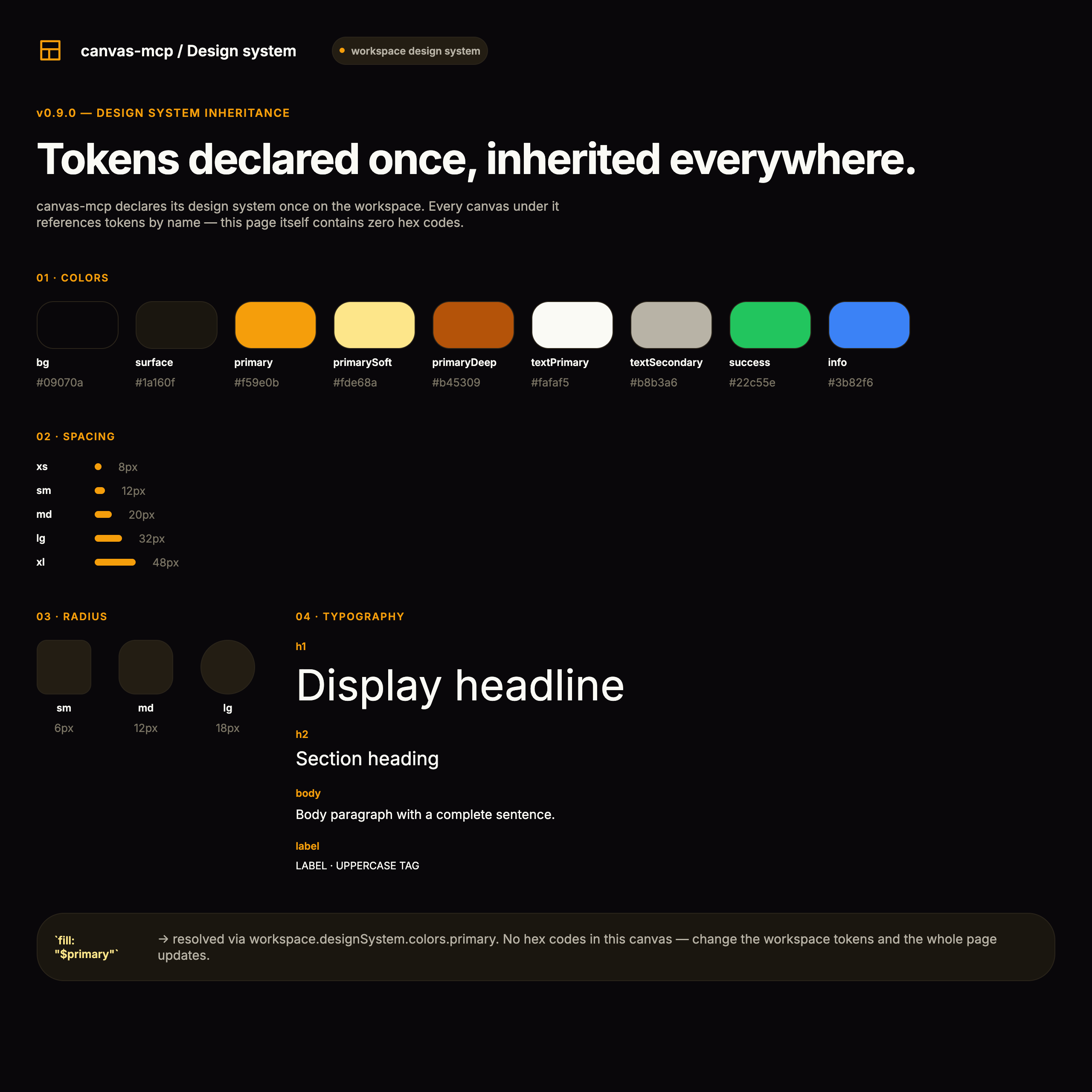

• Dogfood #41 — scripts/build-phase9-showcase.ts composes a single-canvas hero that visually documents canvas-mcp's design system AND proves three-layer inheritance works end-to-end (canvas itself has variables: {} — every value resolves from workspace tokens). Plus reorganized canvas-mcp's own dogfood artifacts into Design system / UI / Releases projects following Figma + atomic design + Spotify Encore conventions.

Backward compatibility

All Phase 9 additions are opt-in:

• Existing canvases without workspace/project designSystem render identically — the merge falls through to canvas.variables alone.
• setVariables / getVariables / canvas-level apply_preset unchanged.
• Workspace/Project JSON gain an optional designSystem field; older persisted entries without it load cleanly.

No migration needed.

What's next

Only Phase 10 (Ecosystem — image generation, HTTP transport, VS Code extension, Figma import, marketplace, plugins) remains for the v1.0 push.

v0.8.0 — Renderer expressiveness

The renderer learned how to fade in, blur what's behind it, load a real typeface, draw a custom mark, and know which ancestor to anchor against.

Five primitives that expand what a canvas-mcp design can express. Every item came from a concrete Phase 7 slice-5 design moment the renderer couldn't render.

Highlights

• Auto position: relative — frames automatically receive position: relative when a descendant uses position: absolute without a positioned ancestor. Fixes the slice-5a "absolute child escapes to body coordinates" bug. (#31)
• Custom fonts — set_fonts / get_fonts MCP tools. Renderer emits @font-face + <link rel="preconnect"> per origin + font-display: swap. (#32)
• backdropFilter — structured object with blur / saturate / brightness / contrast. Both backdrop-filter and -webkit-backdrop-filter emitted for Safari. Legacy backdropBlur still works. (#33)
• path node type — custom SVG marks via raw d + viewBox. Fill/stroke apply to the path element (not the wrapper). Tight character whitelist on d. (#34)
• Animations — structured animation field referencing built-in keyframes (fadeIn, slideUp, slideDown, scaleIn). @keyframes auto-emitted only when referenced. Structured transition ready for future hover/JS state changes. (#35)

Bonus

• Inline style escape fix — " and & in CSS values now HTML-escape correctly. Found while dogfooding the release page with fontFamily: '"Inter", system-ui, sans-serif' (the inner " was prematurely closing the outer style="..." attribute). (#36)

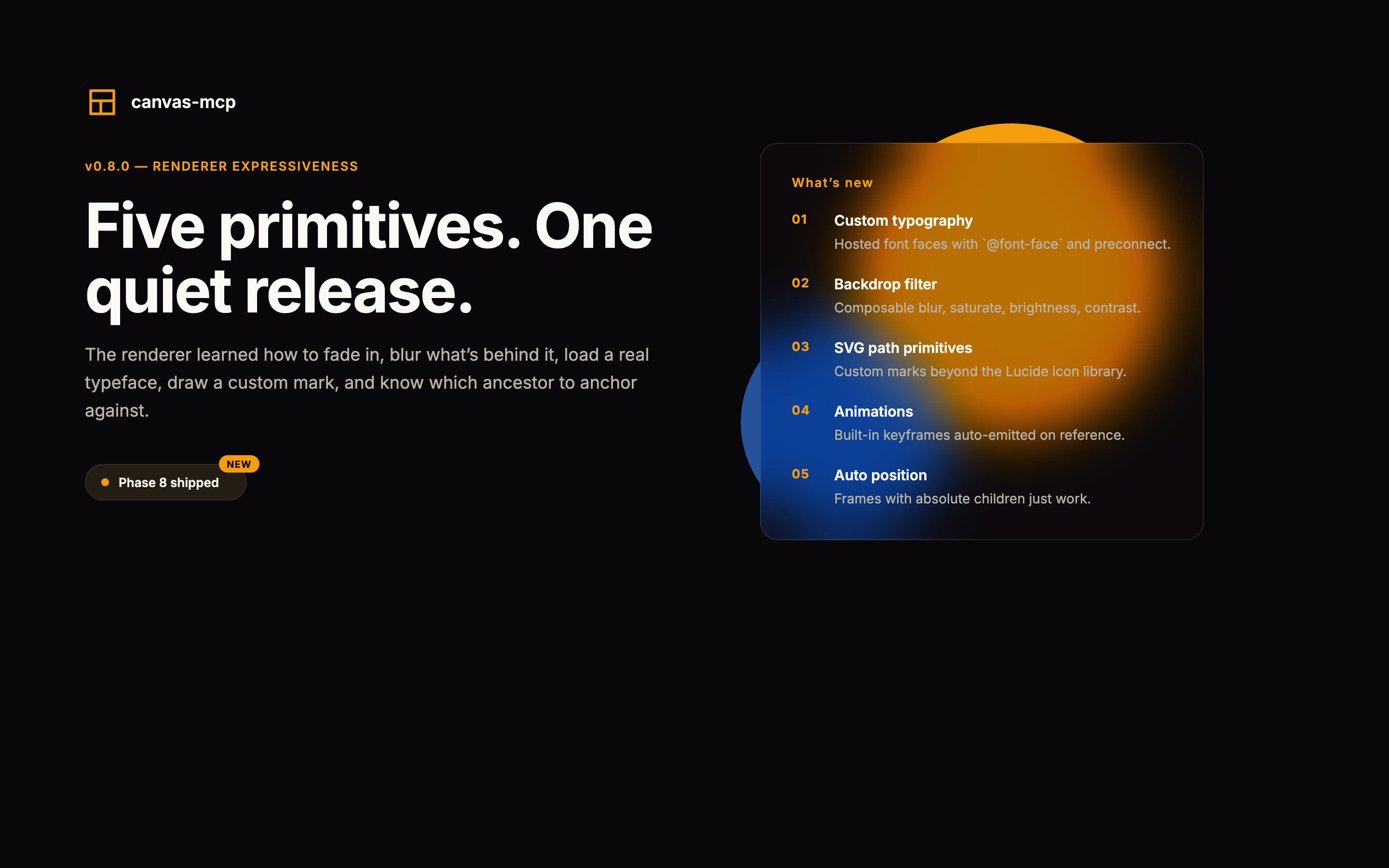

• Dogfood release page — single-canvas hero composed via canvas-mcp itself, exercising every Phase 8 primitive. Reproduce with npx tsx scripts/build-phase8-release.ts, then visit /canvas/phase8-release in the viewer to see animations play. (#37)

Backward compatibility

All Phase 8 additions are opt-in:

• Existing canvases without fonts / animation / transition / backdropFilter / path nodes render identically.
• The legacy backdropBlur: number field keeps working unchanged.
• Auto position: relative only applies via external stylesheet rule, so inline position declarations always win.
• The renderer escape fix is invisible to canvases that didn't trip the bug.

No migration needed.

What's next

Phase 9 — Workspace-level design systems. Promote per-canvas variables to workspace-inherited tokens with explicit per-canvas overrides. "Every Coide canvas should follow Coide's design system without redefining colors per canvas."

v0.7.0 — Workspace UI overhaul

canvas-mcp grows up from a flat dashboard into a real workspace. Workspaces → Projects → Canvases hierarchy on the MCP side, a Figma-style viewer with sidebar navigation and archive surface, and a visual refresh that drops the AI-default purple for a flat amber identity.

Highlights

• Hierarchy — workspace_create / project_create / canvas_move and friends. 11 new MCP tools let the AI organise canvases without the user touching the filesystem.
• Sidebar viewer — workspaces and projects in a collapsible left sidebar, project-scoped main pane with breadcrumb, archive surface for soft-deleted canvases with restore + permadelete actions.
• Visual refresh — flat amber accent on warm-dark surfaces (no gradients, no purple), Linear-style restraint executed with a distinct identity. Cards get glass-rim shadows, empty thumbnails get the "layered canvas" treatment, detail toolbar groups buttons into clusters with hairline dividers.
• Mobile — sidebar collapses to an off-canvas drawer below 768px; detail toolbar stacks clusters into full-width rows with proper touch targets.
• Migration — existing canvases auto-gain a projectId on first load and land in the default Personal / Untitled bucket. No manual intervention.

What's in this release (10 PRs)

• #21 Roadmap for Phase 7 added
• #22 Slice 1 data model + migration
• #23 Slice 2 workspace/project CRUD + canvas lifecycle MCP tools
• #24 Slice 3 empty thumbnail placeholder
• #25 Slice 4a sidebar + project-scoped main pane
• #26 Slice 4b archive surface + lifecycle UI
• #27 Slice 5a dogfood mock for the visual refresh
• #28 Slice 5b implementation (flat amber palette, mobile drawer, toolbar clusters)
• #29 Phase 7 closeout + Phase 8/9 roadmap added
• #30 Version bump

Backward compatibility

Existing canvas files gain "projectId": "default-project" on first load — one-shot rewrite, idempotent on subsequent runs. The MCP server adds 11 tools but doesn't change any existing tool surface. canvas_create and canvas_list are backward-compatible (new parameters are optional with sensible defaults).

What's next

Phase 8 (Renderer expressiveness) — backdrop-filter, custom font loading, SVG paths, animations. Every item came from a concrete slice 5 design moment the renderer couldn't express.

v0.6.0 — Evaluation & AI Loops

Phase 6 closes the generator-evaluator loop. canvas_evaluate now ships alongside a benchmark suite that catches scoring drift, a canvas_autofix tool that returns mechanical fixes as ready-to-run batch_design ops, and an opt-in LLM-judge mode that brings a vision model's holistic critique alongside the deterministic heuristics.

Highlights

• canvas_autofix returns the subset of canvas_evaluate issues that have a mechanically derived fix — off-scale spacing snaps to scale, multi-child frames without layout get vertical, recoverable WCAG contrast failures get #000 or #FFF based on background luminance. Each fix is a ready-to-paste batch_design Update op. Closes the loop without judgement calls.
• LLM-judge mode — canvas_evaluate({ mode: "llm" }) runs the fast heuristics and adds an llmCritique field (score / summary / strengths / weaknesses / suggestions). Pluggable provider table: Anthropic Claude and OpenAI GPT shipped, third provider is one entry in src/llm-judge.ts. Provider picked from CANVAS_LLM_PROVIDER env var or whichever API key is set.
• Benchmark suite — npm run bench runs canvas_evaluate over a fixed corpus (hero, minimal, bad-contrast) and diffs against benchmark/baselines.json. Detects drift in overallScore, per-category scores, issue counts, and issue messages. Re-baseline with npx tsx benchmark/run.ts --update.

What's in this release (4 PRs)

• #17 Benchmark suite + drift-detecting runner
• #18 canvas_autofix with mechanical fixes for spacing, layout, contrast
• #19 LLM-judge mode (pluggable Anthropic / OpenAI)
• #20 Version bump

Backward compatibility

EvaluationResult.mode extends to 'fast' | 'detailed' | 'llm'; all new fields are optional. Heuristic-only callers see no breaking change. The benchmark runner uses fast mode, so adding llm does not affect existing baselines.

v0.5.0 — Responsive Layout

canvas-mcp is an open-source MCP server that gives any AI assistant a visual design canvas. This release makes canvases actually adapt across breakpoints instead of just rescaling.

Highlights

• responsive hint on containers (stack / wrap / fixed) — author desktop-first, the renderer derives the mobile layout from the same scene graph.
• Fluid widths — width, minWidth, maxWidth accept percentages, fit-content, and other CSS lengths so designs flex within bounds.
• True reflow everywhere — screenshot_responsive now re-renders per breakpoint, and the viewer has a new Compare mode showing mobile / tablet / desktop side-by-side, each at its real viewport.
• Authoring guidelines as an MCP resource (canvas-mcp://guidelines): width strategies, common patterns, anti-patterns.
• Renderer polish — system sans-serif default, root document fills + centers the viewport on wide screens, batch_design parser handles embedded 'Segoe UI'-style strings.

What's in this release (9 PRs)

• #6 responsive hint + renderer mapping
• #7 Fluid widths (minWidth / maxWidth)
• #8 README hero composed via canvas-mcp itself
• #9 Default sans-serif at the renderer level
• #10 Root document fills + centers viewport
• #11 Quote-aware batch_design parser
• #12 canvas-mcp://guidelines MCP resource
• #13 screenshot_responsive true reflow
• #14 Viewer Compare view
• #15 Version bump

Still open

• Phase 5 #8 (stretch) — per-breakpoint override map as opt-in escape hatch. Deferred by the original design memo.
• 768px breakpoint boundary fix (next PR after this tag).
