Firecracker-Based Serverless Runtime

An AWS Lambda like execution platform built on Firecracker microVMs exploring microVM isolation, snapshot-based cold starts, IPC, and multi-tenant scheduling.

---

Overview

This project is a high performance serverless execution platform that runs user submitted functions inside isolated Firecracker microVMs. It demonstrates how modern serverless platforms like AWS Lambda work under the hood, with a focus on low-latency execution, strong isolation, and high throughput.

---

Features

MicroVM-Based Isolation

• Each function runs inside a dedicated Firecracker microVM
• Minimal attack surface using a custom kernel and rootfs
• Stronger isolation compared to traditional containers

Snapshot-Based Cold Start Optimization

Pre-initialized VM state is snapshotted and restored on each invocation, dramatically reducing startup time:

Boot Method	Latency
Cold boot	200ms
Snapshot restore	1–5ms

High-Performance IPC

• Host ↔ VM communication via vsock
• Internal routing via Unix domain sockets
• Eliminated per request connection overhead for better throughput

Custom Runtime

• Node.js based runtime executing user handlers
• Deterministic execution model: 1 request → 1 execution → response
• Handles success, errors, and malformed input

Control Plane & VM Manager

• Manages function deployment and VM lifecycle (create, snapshot, restore, destroy)
• Routes invocations and enforces execution boundaries and resource limits

Multi-Tenant Scheduling

• Per function queues with concurrency control
• Fair scheduling across multiple concurrent workloads

---

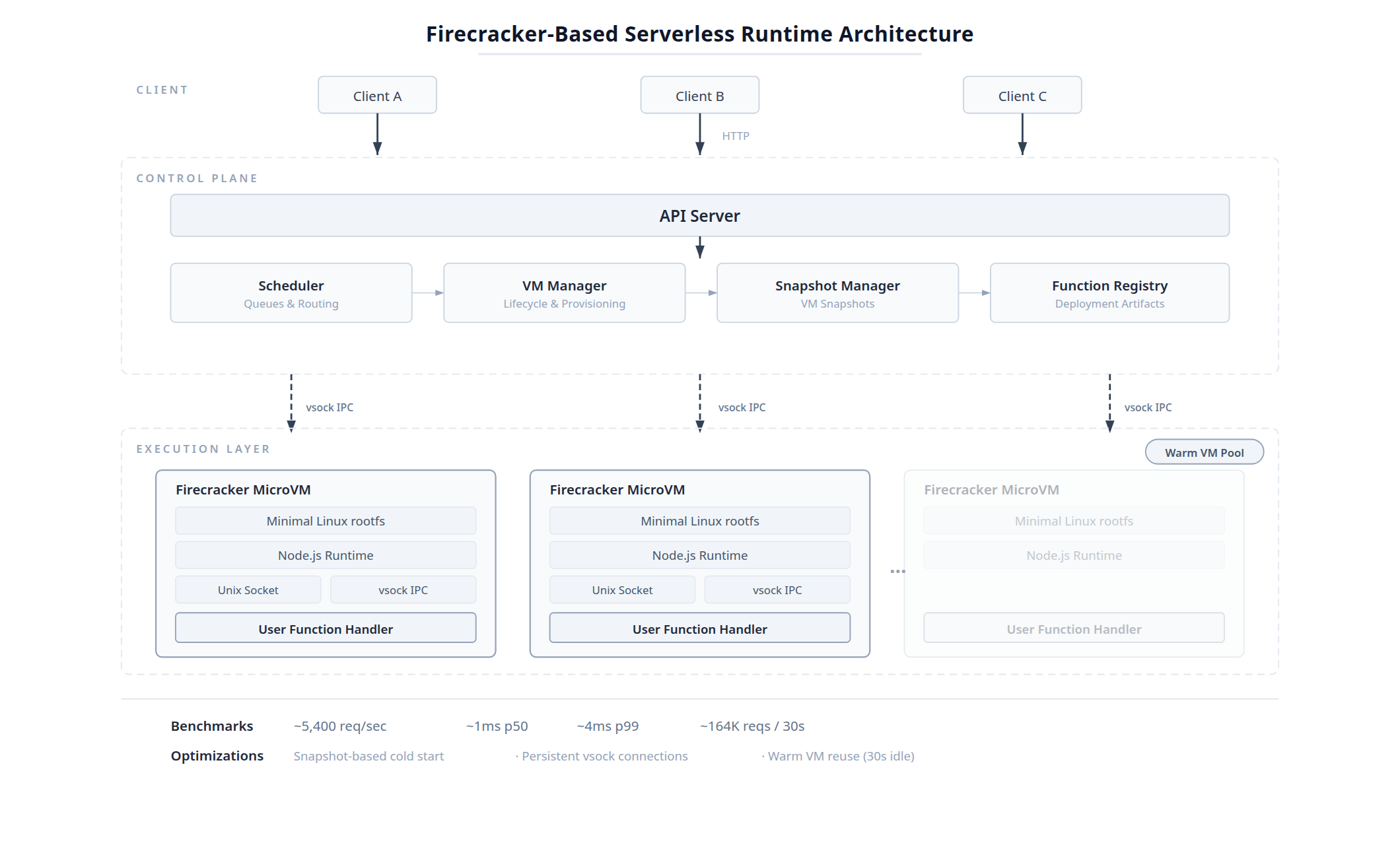

Architecture

The control plane manages deployment, scheduling, snapshot orchestration, and request routing. Functions execute inside isolated Firecracker microVMs communicating with the host via vsock.

---

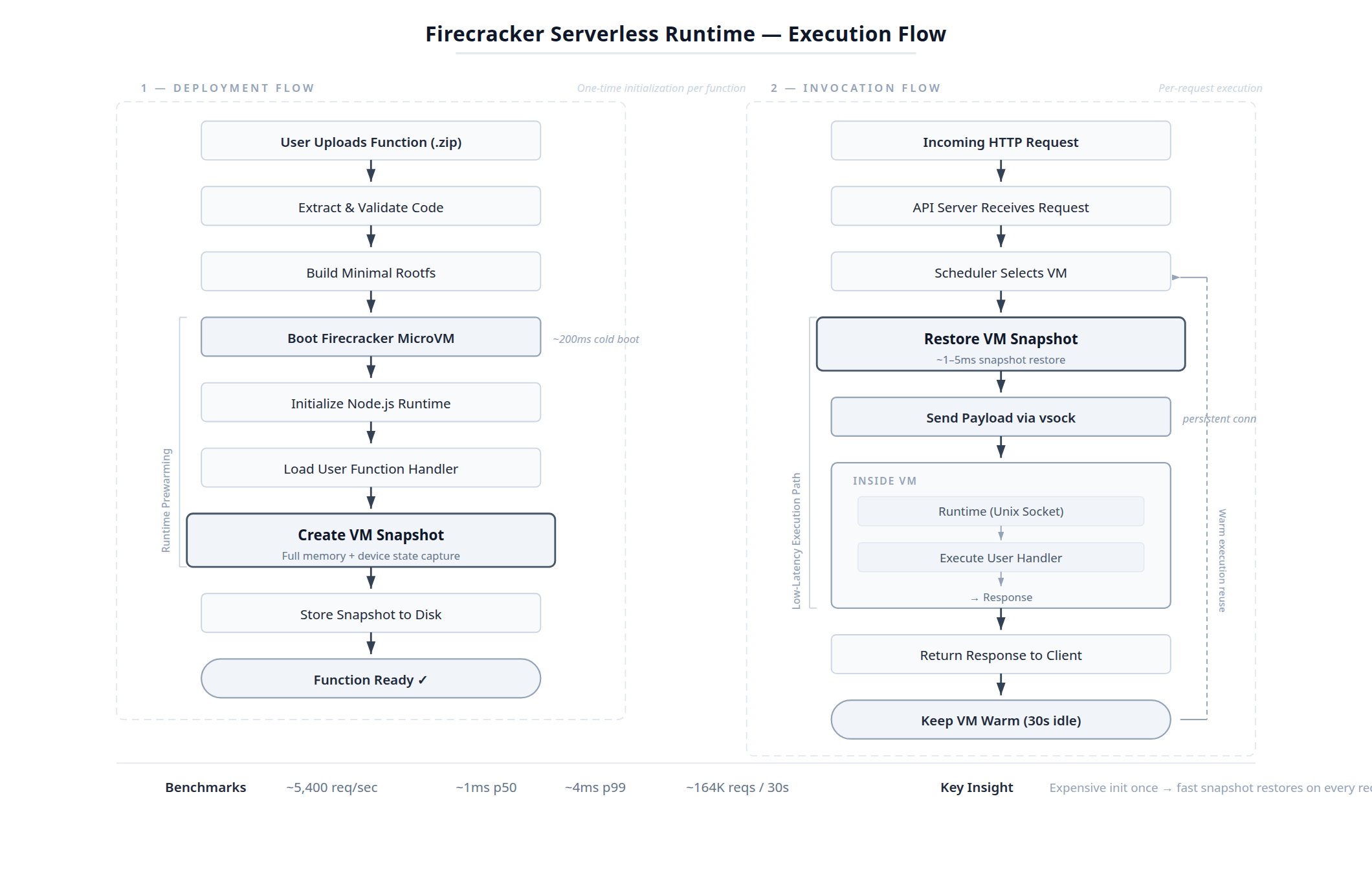

Execution Flow

1. User deploys function code
2. System builds a minimal rootfs containing the user code
3. Firecracker VM boots and the runtime initializes
4. A snapshot of the initialized VM state is created
5. On each invocation:
   • Pre warm VM is used
   • If no warm VM is present then a VM is restored from the snapshot
   • Request is sent via vsock
   • Runtime executes the handler
   • Response is returned to the client

---

Usage

Prerequisites

• Linux host with KVM support (/dev/kvm must be accessible)
• Firecracker binary in PATH
• Node.js v18+ and npm

Kernel image and rootfs

Pre built demo assets are available in the Beta release:

Asset	Download
Linux kernel image	vmlinux
Root filesystem	rootfs.ext4.gz

Download and place them in the project root:

wget https://github.com/vivek1504/serverless-runtime/releases/download/Beta/vmlinux
wget https://github.com/vivek1504/serverless-runtime/releases/download/Beta/rootfs.ext4.gz

# Extract the rootfs
gunzip rootfs.ext4.gz

Installation

git clone https://github.com/vivek1504/serverless-runtime.git
cd serverless-runtime

# directories to store usercode and snapshots
mkdir extracted mem rootfs snapshot userCode

# log file for firecracker.log
touch firecracker.log

npm install

Start the control plane:

npm start

# listening on http://localhost:3000

Deploying a Function

Preparing your code

Your function must export a handler using serverless-http — app.listen is not supported inside a microVM. Wrap your Express (or any Node.js HTTP framework) app like so:

// app.js
const express = require('express');
const serverless = require('serverless-http');

const app = express();

app.get('/', (req, res) => {
  res.send('Hello from Firecracker!');
});

module.exports.handler = serverless(app);

Zip your project with node_modules included:

zip -r function.zip . # node_modules must be inside the zip

Note: The runtime has no network access to install packages, so node_modules must be bundled inside the zip.

Deploying

Send the zip as a multipart form upload to /deploy:

curl -X POST http://localhost:3000/deploy \
  -F "code=@function.zip"

Response:

{
  "functionId": "44ca883e56733724",
  "status": "deployed",
  "snapshotReady": true,
  "url": "http://localhost:3000/f/44ca883e56733724"
}

Invoking a Function

Use the url returned from the deploy response to invoke your function:

curl http://localhost:3000/f/44ca883e56733724

You can also pass a path or body depending on your handler's routing:

curl -X POST http://localhost:3000/f/44ca883e56733724/greet \
  -H "Content-Type: application/json" \
  -d '{ "name": "John Doe" }'

Running Benchmarks

With the control plane running and a function deployed, run the autocannon benchmark:

npx autocannon -c 10 -d 30 -m POST \
  -H "Content-Type: application/json" \
  -b '{ "name": "John Doe" }' \
  http://localhost:3000/f/44ca883e56733724

This replicates the benchmark configuration used to produce the performance numbers in this README (10 concurrent connections, 30-second duration).

---

Performance

Benchmarked using autocannon with 10 concurrent connections over 30 seconds:

Metric	Result
Throughput	~5,400 req/sec
p50 latency	~1ms
p99 latency	~4ms
Total requests	~164,000

Key optimizations: snapshot reuse, persistent runtime, reduced IPC overhead.

---

Tech Stack

Component	Technology
MicroVMs	Firecracker
Control plane & runtime	Node.js / Express
Virtualization	Linux (KVM, namespaces)
Host ↔ VM IPC	vsock
Intra-VM IPC	Unix domain sockets
Benchmarking	autocannon

---

Design Tradeoffs

Aspect	Decision
Latency	Warm execution reuse for low latency
Isolation	Strong VM isolation; runtime reuse introduces shared state
Throughput	Optimized for high throughput over strict per-request isolation

---

Future Improvements

• Per function autoscaling
• Rate limiting and priority scheduling
• Distributed execution across multiple hosts

---

Why This Project Matters

This project demonstrates:

• Deep understanding of OS-level virtualization
• Practical use of Firecracker and microVMs
• Handling of real-world concurrency challenges
• Thoughtful tradeoffs between latency, isolation, and throughput
• System design comparable to production serverless platforms

---

Author

Vivek Jadhav — github.com/vivek1504
