ExplodeView

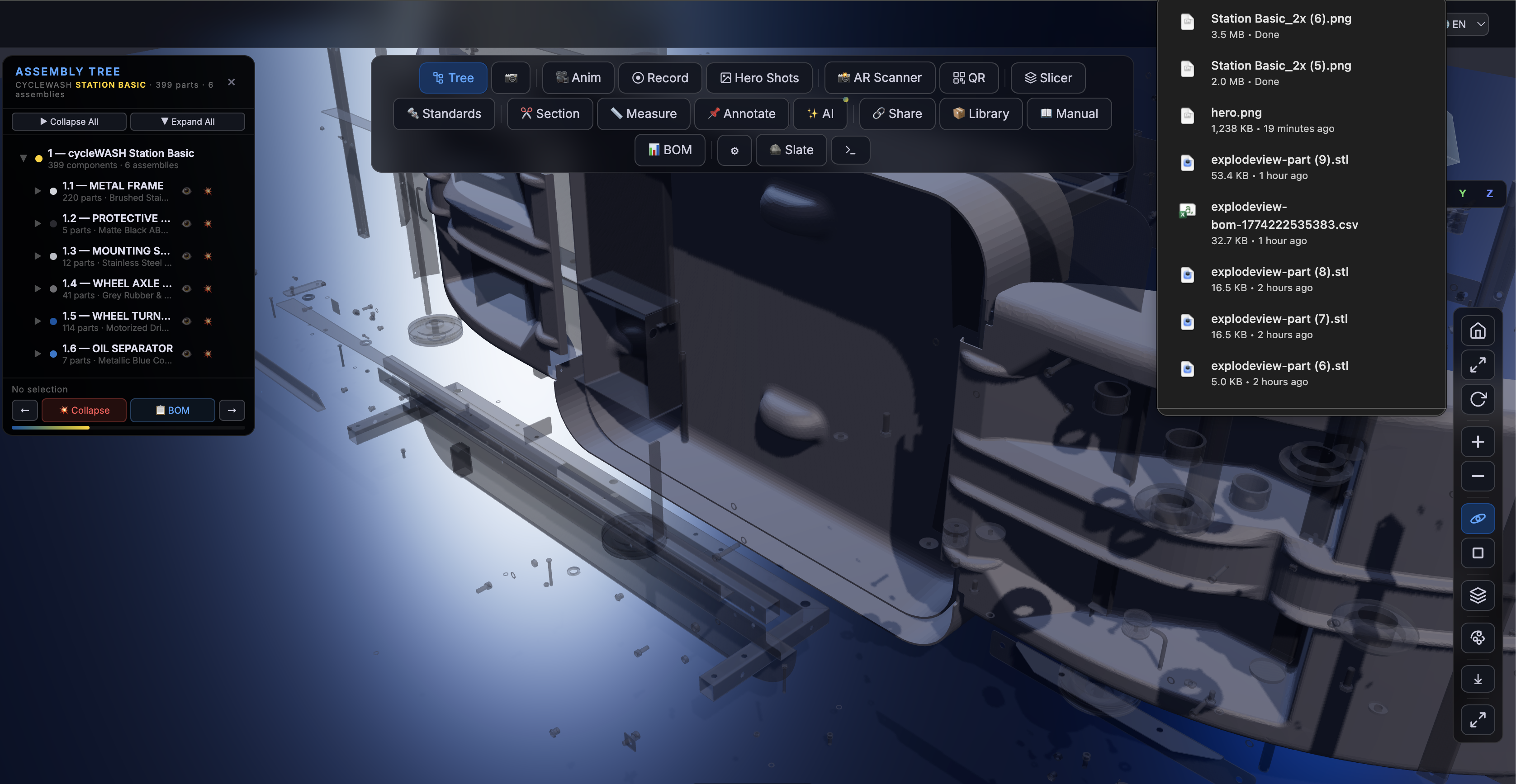

Turn any STEP/CAD file into an interactive 3D exploded-view on your website.

ExplodeView takes STEP/STP CAD assembly files and creates embeddable, interactive 3D viewers with:

• Exploded views — blow apart assemblies to show internal components
• Sub-assembly highlighting — click any assembly to isolate and inspect it
• Realistic materials — brushed steel, matte plastic, rubber, metallic finishes
• Full controls — zoom, rotate, pan, collapse/expand, auto-orbit
• Measurement tools — distance, angles, section cuts, annotations
• Manufacturing integration — Kiri:Moto (FDM/CNC/Laser/SLA), STL export, BOM export
• QR codes — scannable deep-links per part for AR and sharing
• Assembly animations — step-by-step disassembly/assembly sequences
• DIN/ISO identification — standard parts recognition + McMaster-Carr links
• Zero dependencies — single script, loads Three.js from CDN
• Responsive — works on desktop, tablet, mobile

Quick Start

1. Process your STEP file

pip install cadquery OCP
python3 bin/explodeview-process.py input.step output/ --name "My Product"

2. Embed in your page

<div data-stp-viewer="/output/"
     data-brand="Your Brand"
     data-product-name="Product Name"
     style="width:100%; height:600px">
</div>
<script src="https://unpkg.com/explodeview"></script>

That's it. Two lines.

Installation

npm

npm install explodeview

CDN

<script src="https://unpkg.com/explodeview"></script>

Self-hosted

Download dist/explodeview.js and serve it from your own server.

Processing STEP Files

The CLI tool converts STEP/STP files into web-ready assets:

python3 bin/explodeview-process.py <input.step> <output_dir> [options]

Options:
  --name        Product display name
  --brand       Brand name
  --tolerance   Mesh quality (default: 0.5, lower = finer)

Requirements: Python 3.8+ with cadquery and OCP packages.

pip install cadquery OCP

Output structure:

output/
├── parts/           # Individual STL meshes per solid
├── manifest.json    # Part metadata (centers, bounding boxes)
├── assemblies.json  # Auto-detected assembly grouping
└── config.json      # Viewer configuration

JavaScript API

// Programmatic initialization
const viewer = await STPViewer.init({
  container: '#my-viewer',
  src: '/path/to/processed/assets/',
  brand: 'Your Brand',
  productName: 'Product Name',
  assemblies: [],  // auto-loaded from assemblies.json
  captions: {
    brand: 'Your Brand',
    productName: 'Product Name',
    loaderTitle: 'Loading...',
    loaderText: 'Preparing 3D model...',
    btnOverview: 'Overview',
    btnCollapse: 'Collapse',
    btnExplode: 'Explode',
  }
});

Custom Assemblies

Override auto-detected assemblies with your own grouping:

STPViewer.init({
  container: '#viewer',
  src: '/assets/',
  assemblies: [
    {
      key: 'frame',
      name: 'MAIN FRAME',
      subtitle: 'Structural Steel',
      detail: 'Load-bearing frame assembly.',
      color: '#0055A4',
      indices: [0, 150],  // solid index range
    },
    {
      key: 'motor',
      name: 'DRIVE UNIT',
      subtitle: 'Electric Motor Assembly',
      color: '#FFD100',
      indices: [150, 200],
    }
  ]
});

Custom Materials

Each assembly can have custom material properties in the assemblies JSON:

{
  "key": "covers",
  "name": "PROTECTIVE COVERS",
  "color": "#2A2A30",
  "material": {
    "metalness": 0.0,
    "roughness": 0.85
  }
}

Features

Feature	Free (MIT)	Pro
3D exploded view	✅	✅
Assembly tree + highlighting	✅	✅
Collapse/expand controls	✅	✅
Auto-rotate, pan, zoom	✅	✅
Wireframe toggle	✅	✅
Custom branding	✅	✅
Embed on your site	✅	✅
STEP processing CLI	✅	✅
Multi-language (6 langs)	✅	✅
QR codes per part	—	✅
Part info cards	—	✅
BOM export (CSV)	—	✅
Measurement (distance + angles)	—	✅
Annotation pins	—	✅
Section cut / cross-section	—	✅
Assembly/disassembly animation	—	✅
DIN/ISO standard parts + McMaster	—	✅
STL export per part	—	✅
Kiri:Moto (FDM/CNC/Laser/SLA)	—	✅
Hero shots (marketing images)	—	✅
AR Scanner (WebXR)	—	✅
Interactive manual generator	—	✅
Cloud processing API	—	Enterprise
White-label (remove branding)	—	Enterprise
Priority support	—	Enterprise

Who is this for?

• Manufacturing companies — showcase products on your website
• E-commerce — interactive product pages that convert
• Engineering docs — maintenance and assembly manuals
• Sales teams — impressive presentations and proposals
• Education — teach mechanical engineering concepts

Examples

Full-page viewer

<div id="viewer"
     data-stp-viewer="/assets/"
     data-brand="cycleWASH"
     data-product-name="Station Basic"
     style="width:100vw; height:100vh">
</div>
<script src="https://unpkg.com/explodeview"></script>

Embedded in a product page

<div class="product-3d"
     data-stp-viewer="/assets/my-machine/"
     data-brand="ACME Corp"
     data-product-name="Widget Pro 3000"
     style="width:100%; height:500px; border-radius:12px; overflow:hidden">
</div>
<script src="https://unpkg.com/explodeview"></script>

Browser Support

Chrome 90+, Firefox 90+, Safari 15+, Edge 90+

Contributing

PRs welcome! See CONTRIBUTING.md.

License

MIT — free for personal and commercial use.

---

Built by Sachin Kumar — creator of cycleWASH, the world's first automated bicycle washing station.
