Segments are not saved

[viktor6]

What happened?

Segments are not saved

To Reproduce Bug

I break the tape into segments
1 segment 0-75
2 segment 75-95
save and reboot

Expected Behavior

To keep segments after restart

Install Method

Binary from WLED.me

What version of WLED?

Server message: WLED 0.13.0-b5 (build 2111170)

Which microcontroller/board are you seeing the problem on?

ESP8266

Relevant log/trace output

No response

Anything else?

Code of Conduct

• I agree to follow this project's Code of Conduct

[blazoncek]

You need to save a preset.
Not a bug.

[shampeon]

This is still a bug, actually. I originally set up my ESP32 with 50 LEDs, and then added more. The Segments only show 50. When I update the segment to 250, click Apply, and reboot, it goes back to a single segment of 50.

[shampeon]

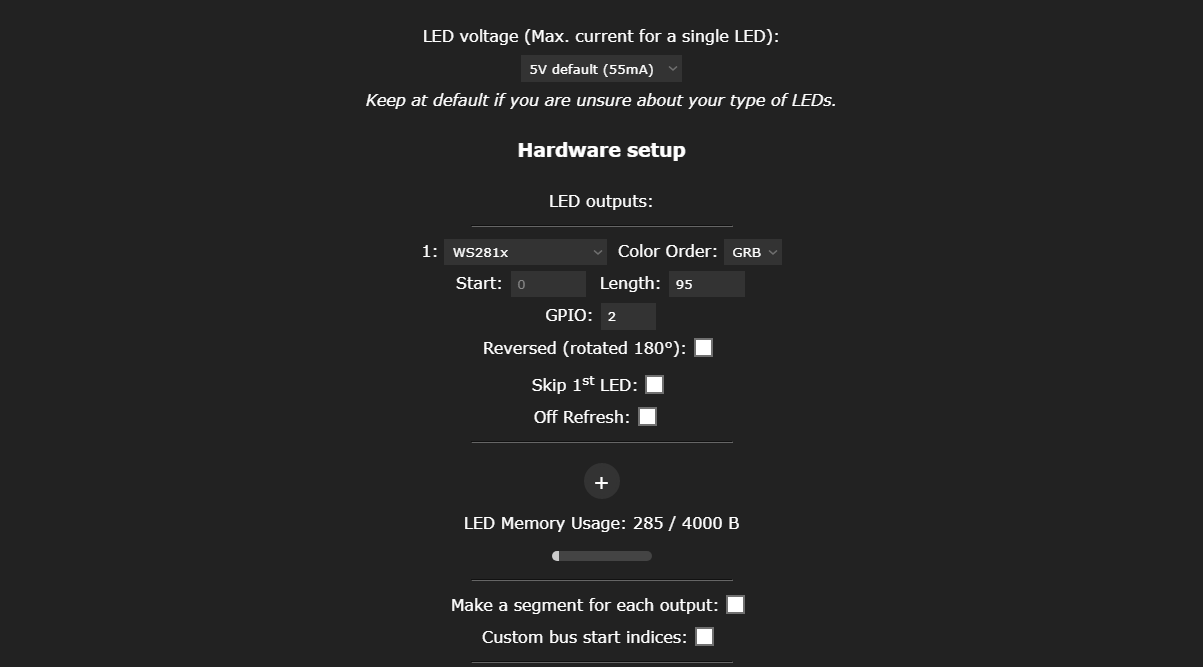

Before:

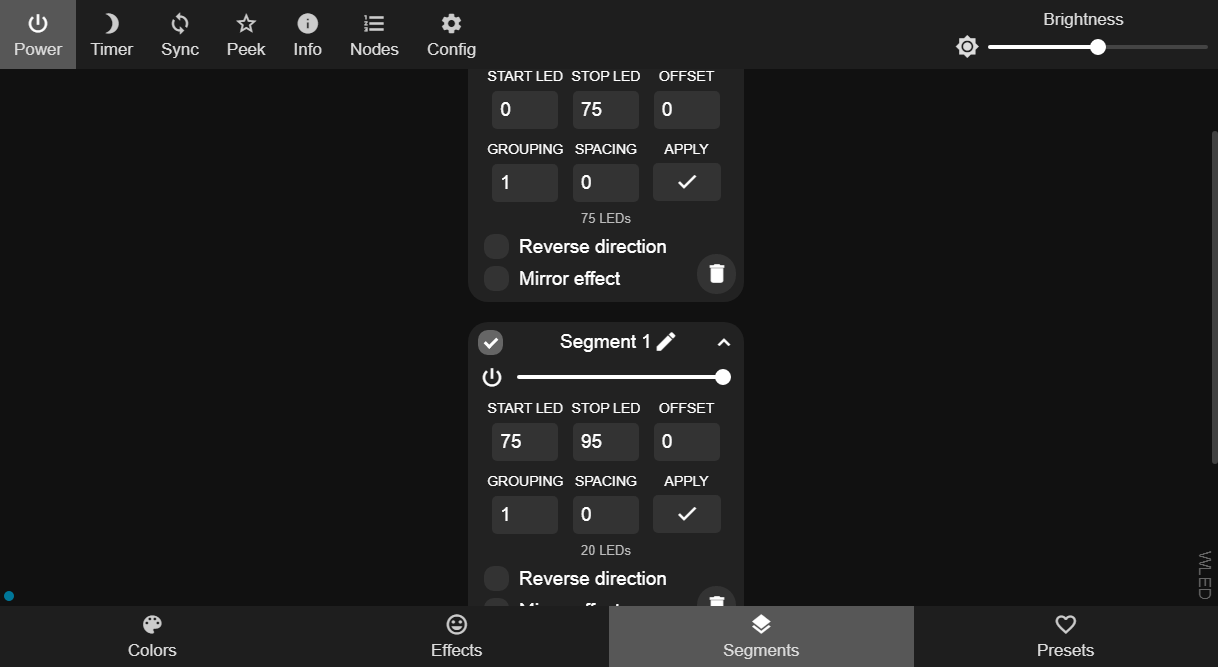

After reboot:

[blazoncek]

Segments are saved in PRESET not by themselves.
There is no SAVE button on the screenshots.

[Aircoookie]

@shampeon still a feature 🙂 If you only have a single segment and plan to add more LEDs and want the preset to adjust dynamically, uncheck "Save segment bounds"

[shampeon]

Ok. Then I'd suggest moving the segment dialog under the presets to make it clear that segments are per preset in the UI. It looks like they're distinct things.

[Aircoookie]

It's already arranged that way, just left to right: Colors and palettes are part of effects which are part of segments which are part of presets. Putting everything underneath would make the UI very impractical to use.
