Export Images in the Golden Disk

v1.5

try to decode all images in the wav files its left channel

The very first step to decode an image

voyager-1

Voyager 1 is a space probe that was launched by NASA on September 5, 1977. Part of the Voyager program to study the outer Solar System, Voyager 1 was launched 16 days after its twin, Voyager 2. --Wikipedia

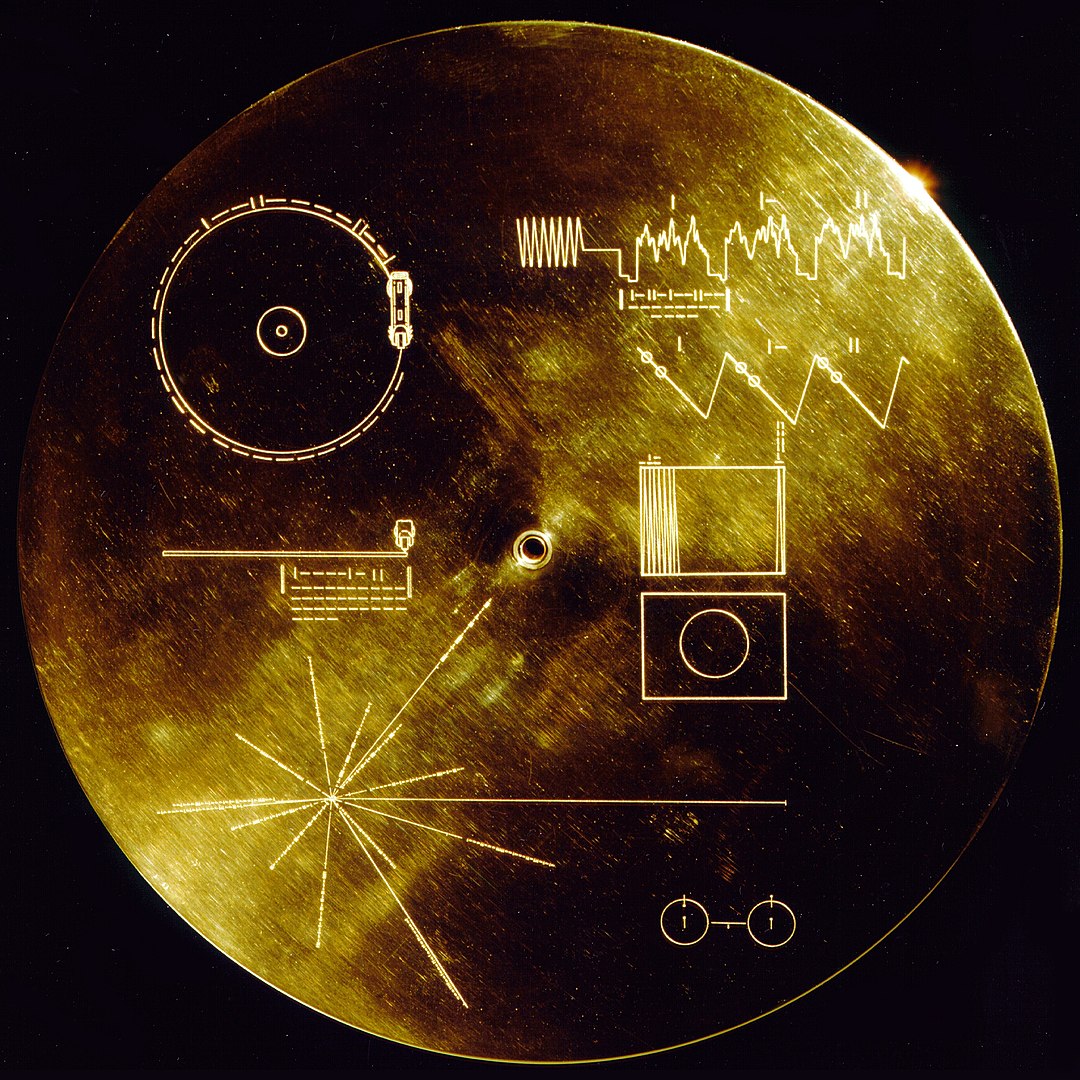

this repository contains the necessary code for R# scripting to decode the image data on the Voyager Golden Record.

Credits: the test wav file data is comes from the project repository: Voyager-Golden-Record-Decoder.

demo and library usage

Here is an example R# script for decode the first circle image in the goden record:

# R# "E:\voyager-1\Rscript\first-circle.R" --debug --ignore-missing-startup-packages
imports "voyager1" from "voyager";
imports "wav" from "signalKit";

const goldenRecord as string = "J:\GoogleDrive\Voyager\384kHzStereo.wav";

# A demo R# script for image decode from the goden record wave data
# this very first circle image on the goden record is used for
# parameter calibration of the image decoder
using wav as read.wav(file = file(goldenRecord), lazy = TRUE) {
    # view of the raw file data summary;
    print(wav);

    # parameters of the first circle image
    # and wav decoder arguments
    let first_circle = new image.chunk(channel = "Left", start = 6000208, length = 1928181);
    let decoder = new decode(windowSize = 3400, offset = 217);

    print(first_circle);

    # run decoder and save the
    # result image file
    wav
    :> decode(chunk = first_circle, decode = decoder)
    :> bitmap(file = `${dirname(!script$dir)}/docs/circle.png`)
    ;
}

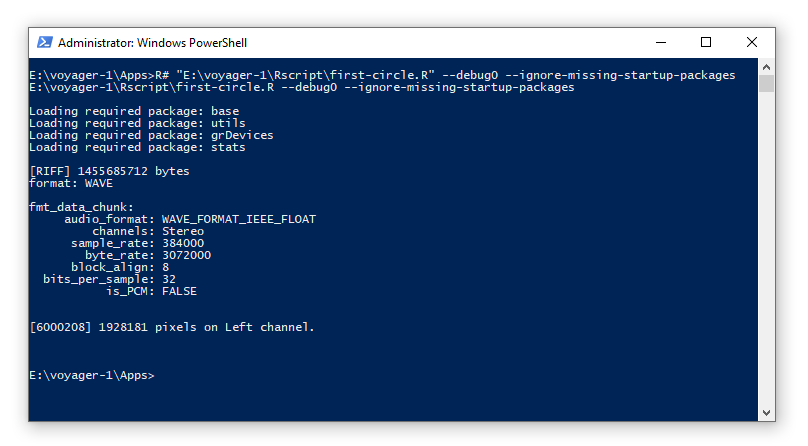

Run the demo script with R# interpreter:

then the demo script will output an gray style image that decoded from the wav data and looks like:
