omp-dx

A high-performance, server-authoritative 2D rendering and interactive user interface system for open.mp servers and SA-MP clients. The system consists of a server-side component (omp-dx.dll) and a client-side ASI plugin (omp-dx.asi) that communicate via custom RPCs to render dynamic, responsive, and hardware-accelerated user interfaces directly within the Direct3D9 loop.

Videos

Repository Structure

omp-dx/
├── client/                      # Client-side (ASI Plugin - C++)
│   ├── source/                  # D3D9 Hooking, WndProc handler, and widget rendering engine
│   │   ├── Plugin.cpp           # D3D9 Present Hook, WndProc input routing, and widget drawing
│   │   ├── Plugin.h             # Element definitions, font handlers, and state schemas
│   │   └── dllmain.cpp          # DLL entry point
│   ├── libs/                    # Third-party dependencies (RakHook, samp-api)
│   └── CMakeLists.txt           # CMake configuration for building the ASI plugin
│
├── server/                      # Server-side (open.mp Component & Pawn API)
│   ├── main.cpp                 # Server component entry point
│   ├── dx-component.cpp         # RPC handling and Pawn event dispatcher
│   ├── dx-renderer.cpp          # RPC serialization functions
│   ├── natives.cpp              # Native definitions for the Pawn scripting interface
│   ├── omp-dx.inc               # Pawn include file containing natives and callback forwards
│   └── CMakeLists.txt           # CMake configuration for building the open.mp component
│
└── test/                        # Pawn Test Suite (Modular Scripting API Validation)
    ├── test_dx.pwn              # Main entry script routing hooks to modules
    └── modules/                 # Modular subsystems
        ├── test_defs.inc        # State declarations and configurations
        ├── test_speedo.inc      # Speedometer HUD logic
        ├── test_dash.inc        # Diagnostic and GPS panel logic
        ├── test_widgets.inc     # Standard form widget logic
        ├── test_features.inc    # Premium visual effect widgets logic
        └── test_misc.inc        # Shape and image drawing helpers

---

Installation

To install pre-built release versions of omp-dx without compiling from source:

1. Client Setup

1. Download omp-dx.asi from the repository releases section.
2. Place omp-dx.asi into your Grand Theft Auto: San Andreas game root directory.
3. Ensure you have an ASI Loader (such as vorbisFile.dll) in your game directory to automatically load the plugin.

2. Server Setup

1. Download omp-dx.dll from the repository releases section.
2. Place omp-dx.dll into your open.mp server's components/ folder.
3. Copy omp-dx.inc from the server/ directory of the source repository to your Pawn include path (e.g. qawno/include/).
4. Include omp-dx in your server scripts:

   #include <omp-dx>

---

Compilation and Deployment

1. Client-Side Plugin (omp-dx.asi)

The client component hooks the Direct3D9 device context and intercepts input window messages to render widgets and process cursor events locally.

• Requirements: Visual Studio 2022 (with Desktop Development with C++ workload).
• Compilation Steps:
  1. Open a command prompt or terminal in the client/ directory.
  2. Generate the build files using CMake:

     cmake -B build -A Win32

  3. Compile the release binary:

     cmake --build build --config Release

  4. The compiled plugin will be located at client/bin/Release/omp-dx.asi.
• Deployment:
  • Copy omp-dx.asi into the Grand Theft Auto: San Andreas root directory.
  • Ensure a working ASI Loader (e.g., vorbisFile.dll) is installed in the game client directory.

2. Server-Side Component (omp-dx.dll)

The server component integrates into the open.mp modular host, providing the Pawn API and managing network communications with clients.

• Requirements: CMake 3.19+, Conan 1.53+, Visual Studio 2022.
• Compilation Steps:
  1. Open a command prompt or terminal in the server/ directory.
  2. Generate the build files (Win32 architecture is required as open.mp operates on a 32-bit server architecture):

     cmake -G "Visual Studio 17 2022" -A Win32 -B build

  3. Compile the component:

     cmake --build build --config Release

  4. The compiled DLL will be located at server/build/Release/omp-dx.dll.
• Deployment:
  • Copy omp-dx.dll to your open.mp server's components/ directory.
  • Update the server config.json file to load omp-dx under the components/plugins list.

3. Pawn Integration

• Copy server/omp-dx.inc into your Pawn compiler's include directory (e.g., pawno/include/ or qawno/include/).
• Copy the test/ directory to your development environment.
• Open test/test_dx.pwn in your Pawn compiler, make sure the include files in test/modules/ are accessible, and compile it. Load the resulting test_dx.amx as a filterscript in your open.mp server.

---

Pawn Test Suite and Verification

The repository contains a highly structured, modular test suite inside the test/ directory. This test suite validates all available visual primitives, complex widgets, dynamic assets, sound overlapping, and local drag-and-drop mechanics.

Modular Architecture

• test_dx.pwn: The main entry point script routing standard Pawn player callbacks (such as OnPlayerClickDX, OnPlayerChangeDXSlider, and OnPlayerDragDX) directly to module-specific event handlers.
• modules/test_defs.inc: Unified header declaring macros for element coordinates, ID allocations, and player state variables (e.g., fuel level, speed limiter values, engine states).
• modules/test_speedo.inc: Implements a real-time dial needle speedometer, fuel gauge level, seatbelt status flashing animation, and interactive control buttons (Engine, Lights, and Lock) rendering in the bottom-right corner.
• modules/test_dash.inc: Implements an interactive GPS Map ring dashboard with compass vectors, engine temp metrics, custom input limiters, and hardware-clipping live alert feeds.
• modules/test_widgets.inc: Implements a multi-tab settings panel demonstrating sliders, comboboxes, listviews, password fields, and radial progress synchronization.
• modules/test_features.inc: Validates dynamic color picker spectrum arrays, scrollable containers with mousewheel clipping layers, vector line graphs, dynamic audio playbacks, and vector icons.
• modules/test_misc.inc: Handles basic primitive render checks including geometric outlines, color gradient panels, rounded corners, custom textures, and hardware scissor-clipping validation.

In-Game Commands

Once the test_dx filterscript is loaded on your open.mp server, the following commands are available to test the features:

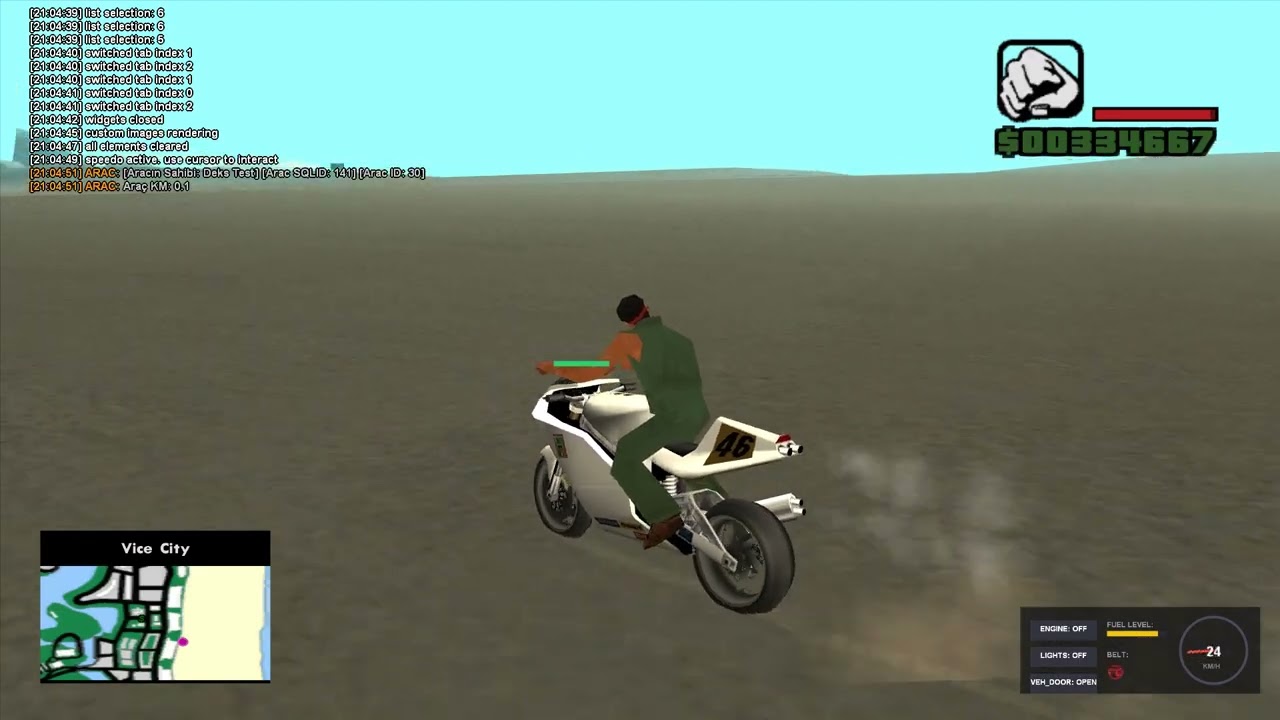

• /dxspeed: Toggles the real-time Speedometer HUD in the bottom-right corner. Use the cursor to interact with Engine, Lights, and Lock buttons.
• /dxshow / /dxhide: Opens/closes the Vehicle Diagnostics Dashboard in the center of the screen, allowing speed limiter values to be updated via text inputs.

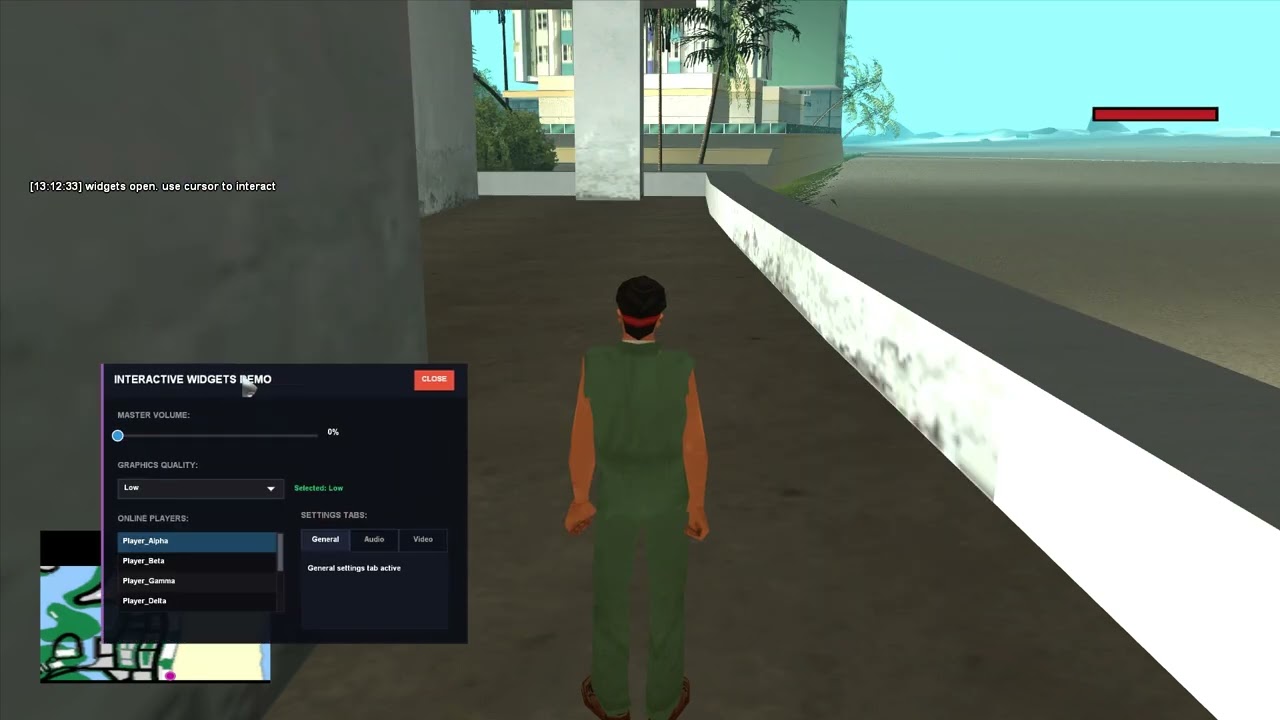

• /dxwidgets / /dxhidewidgets: Opens/closes the Classic Interactive Widgets Panel for adjusting values, combobox dropdown selections, and tab transitions.

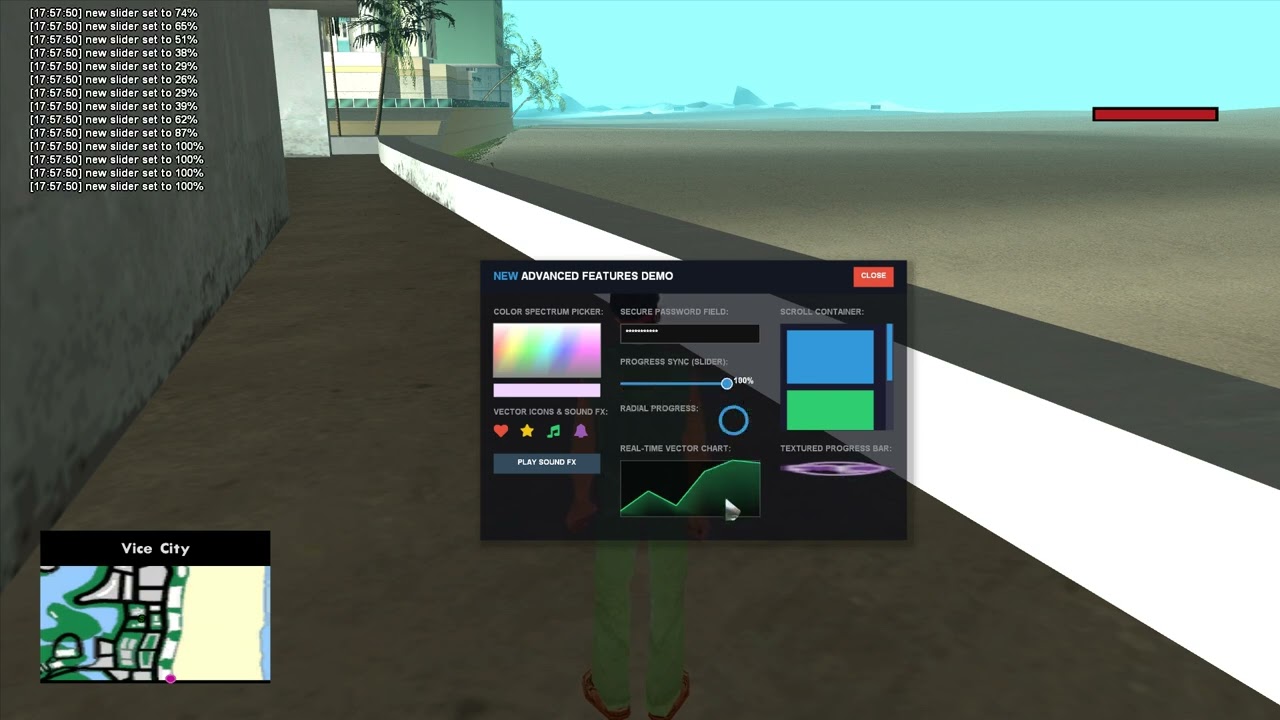

• /dxnew / /dxhidenew: Opens/closes the Advanced Features Panel to interact with color pickers, scrollable blocks, overlapping sound clips, and vector graphs.
• /dximage: Downloads and renders dynamic texture assets.
• /dxshapes / /dxshapes2 / /dxhideall2: Visualizes line thicknesses, polygon triangles, custom circle parameters, gradient rectangles, and rounded cards.
• /dxclip: Renders clipping boundaries demonstrating scissor mask alignments.
• /dxhideall: Instantly destroys and clears all active UI elements on the screen.

---

Core Capabilities and Architecture

• Network-Optimized Vector Rendering: Server-directed commands for basic primitives (rectangles, rounded rectangles, gradient rectangles, circles, triangles, lines, clips, icons, and textures) are serialized and transmitted through dedicated client-server RPCs (RPC 190 and 192), minimizing bandwidth usage while enabling custom UI components.
• Interactive UI Widgets: Built-in stateful widgets including buttons, checkboxes, input text fields, sliders, comboboxes, listviews, tab panels, radial menus, inventory slots, color pickers, and scrollable containers.
• Parent-Child Hierarchy: Supports logical grouping where child widgets inherit parent transforms. When a parent element is dragged or animated, all child elements are updated client-side instantly with zero network delay and zero CPU overhead.
• Direct3D9 Device Reset Resilience: Handles transitions such as Alt-Tab window toggling, resolution modifications, and graphic settings adjustments without visual degradation. Direct3D9 texture surfaces are safely cleared and re-created while font references remain persistently registered in memory, preventing the common "square box" font placeholder bug.
• Hardware-Accelerated Effects: Supports high-performance features including multi-layered dropshadows, single-pass circular progress indicators, and pixel-shader based background blur (glassmorphism) rendered directly within the D3D9 viewport.
• Dynamic Font and Vector Asset Loading: Supports dynamic runtime font registration over HTTP. The server can stream .ttf font files to the client, which registers them process-wide. This enables crisp vector rendering of icons (e.g., FontAwesome) or custom typography without modifying client game archives.
• Robust Input Handler: Windows message loop hook (WndProc) coordinates and scales mouse operations, accounting for OS DPI scaling offsets and windowed mode resolution adjustments to ensure pixel-perfect hover and click detections.
• Integrated Audio Manager: Asynchronously downloads, caches, and plays audio resources over HTTP using a multi-channel overlapping sound player, providing sub-second execution times and minimizing network re-downloads.
• Network RPC Throttling: Interactive UI transitions (such as sliders and drags) are computed locally at the client’s display rate (up to 1000Hz+), while state synchronization packets sent to the server are throttled to a maximum of 60Hz, preventing packet congestion and jitter.

---

Scripting Reference

Natives

DX_DrawRectangle

native bool:DX_DrawRectangle(playerid, elementid, Float:x, Float:y, Float:w, Float:h, color);

Renders a 2D flat rectangle on the screen.

• playerid: The ID of the target player.
• elementid: A unique ID to identify the UI element.
• x, y: Screen coordinates (top-left corner).
• w, h: Width and height of the rectangle in pixels.
• color: Color value in ARGB format (e.g., 0xFFFFFFFF for solid white).
• Returns true on success, false otherwise.

DX_DrawGradientRectangle

native bool:DX_DrawGradientRectangle(playerid, elementid, Float:x, Float:y, Float:w, Float:h, colorTL, colorTR, colorBL, colorBR);

Renders a rectangle with a multi-directional color gradient.

• colorTL, colorTR, colorBL, colorBR: ARGB colors for the Top-Left, Top-Right, Bottom-Left, and Bottom-Right corners.

DX_DrawRoundedRectangle

native bool:DX_DrawRoundedRectangle(playerid, elementid, Float:x, Float:y, Float:w, Float:h, Float:radius, color);

Renders a rectangle with rounded corners.

• radius: Radius of the corner rounding in pixels.

DX_DrawText

native bool:DX_DrawText(playerid, elementid, const text[], Float:x, Float:y, color, Float:scale, const font[] = "");

Renders text at specified screen coordinates. Supports BBCode-style color formatting (e.g., "{FF0000}Red {00FF00}Green").

• text: String to display.
• scale: Scaling factor for the text size.
• font: Optional registered font name (defaults to default UI font).

DX_DrawButton

native bool:DX_DrawButton(playerid, elementid, Float:x, Float:y, Float:w, Float:h, color, Float:scale, const text[], const font[] = "");

Creates an interactive button that triggers OnPlayerClickDX when clicked. Automatically manages hover color transition effects.

DX_DrawCheckbox

native bool:DX_DrawCheckbox(playerid, elementid, Float:x, Float:y, Float:w, Float:h, color, bool:checked, Float:scale, const label[], const font[] = "");

Creates a stateful checkbox that triggers OnPlayerToggleDXCheckbox.

• checked: Initial selection state.

DX_DrawInput

native bool:DX_DrawInput(playerid, elementid, Float:x, Float:y, Float:w, Float:h, color, Float:scale, const defaultText[], const placeholder[], const font[] = "");

Creates a text input field. Triggers OnPlayerDXInputSubmit when the player presses Enter.

• defaultText: Initial text content.
• placeholder: Text displayed when the field is empty.

DX_DrawSlider

native bool:DX_DrawSlider(playerid, elementid, Float:x, Float:y, Float:w, Float:h, color, Float:value, const font[] = "");

Renders an interactive horizontal slider. Triggers OnPlayerChangeDXSlider on modification.

• value: Initial value ratio between 0.0 (0%) and 1.0 (100%).

DX_DrawComboBox

native bool:DX_DrawComboBox(playerid, elementid, Float:x, Float:y, Float:w, Float:h, color, selectedIndex, const options[], const font[] = "");

Creates a dropdown menu selection widget. Triggers OnPlayerSelectDXComboBox.

• selectedIndex: Index of the option selected by default (0-indexed).
• options: Options separated by commas (e.g., "Option 1,Option 2,Option 3").

DX_DrawListView

native bool:DX_DrawListView(playerid, elementid, Float:x, Float:y, Float:w, Float:h, color, selectedIndex, const items[], const font[] = "");

Renders a scrollable vertical selection list. Triggers OnPlayerSelectDXListView.

• items: Item values separated by commas.

DX_DrawTabPanel

native bool:DX_DrawTabPanel(playerid, elementid, Float:x, Float:y, Float:w, Float:h, color, selectedIndex, const tabs[], const font[] = "");

Renders an interactive horizontal tab selector. Triggers OnPlayerSelectDXTab.

• tabs: Comma-separated tab labels.

DX_DrawImage

native bool:DX_DrawImage(playerid, elementid, const url[], Float:x, Float:y, Float:w, Float:h, color = 0xFFFFFFFF);

Downloads asynchronously over HTTP, caches, and renders a 2D image.

• url: Direct path to the image asset (PNG/JPG).

DX_DrawIcon

native bool:DX_DrawIcon(playerid, elementid, Float:x, Float:y, Float:size, const iconName[], color, const font[] = "FontAwesome");

Renders a crisp vector icon from a loaded font library.

• iconName: The name of the icon code inside the specified font family (e.g., "heart").
• font: The font family name. Must be preloaded via DX_LoadFont. Defaults to "FontAwesome".

DX_DrawLine

native bool:DX_DrawLine(playerid, elementid, Float:x1, Float:y1, Float:x2, Float:y2, Float:thickness, color);

Draws a 2D line between two screen points.

DX_DrawCircle

native bool:DX_DrawCircle(playerid, elementid, Float:x, Float:y, Float:radius, color, Float:thickness = 0.0);

Draws a circle. If thickness is greater than 0.0, an outlined circle is drawn instead of a filled one.

DX_DrawTriangle

native bool:DX_DrawTriangle(playerid, elementid, Float:x1, Float:y1, Float:x2, Float:y2, Float:x3, Float:y3, color);

Draws a filled polygon triangle using hardware vertices.

DX_DrawCircularProgress

native bool:DX_DrawCircularProgress(playerid, elementid, Float:x, Float:y, Float:radius, Float:progress, color, Float:thickness);

Renders a circular speedometer or ring indicator.

• progress: Value ratio between 0.0 (0%) and 1.0 (100%).

DX_DrawShadow

native bool:DX_DrawShadow(playerid, elementid, Float:x, Float:y, Float:w, Float:h, color, Float:size = 8.0, Float:offset = 4.0);

Applies a hardware-optimized gradient-layered box shadow around a rectangular area.

DX_DrawGraph

native bool:DX_DrawGraph(playerid, elementid, Float:x, Float:y, Float:w, Float:h, color, const Float:values[], numValues, Float:maxVal);

Draws a real-time line graph plotting an array of floating-point values.

DX_DrawInventorySlot

native bool:DX_DrawInventorySlot(playerid, elementid, Float:x, Float:y, Float:w, Float:h, color, const iconUrl[], const label[], amount);

Creates an inventory slot containing an image icon, label, and numerical counter. Supports item dragging and swapping.

DX_DrawTexturedProgressBar

native bool:DX_DrawTexturedProgressBar(playerid, elementid, Float:x, Float:y, Float:w, Float:h, const bgTextureUrl[], const fillTextureUrl[], Float:progress, color = 0xFFFFFFFF);

Renders a progress bar utilizing customized texture URLs for both its background and foreground layers.

DX_DrawRadialMenu

native bool:DX_DrawRadialMenu(playerid, elementid, Float:x, Float:y, Float:radius, color, selectedIndex, const items[], const icons[]);

Renders an interactive circular pie menu. Triggers OnPlayerSelectRadialItem.

• items: Comma-separated labels.
• icons: Comma-separated asset URLs.

DX_DrawScrollContainer

native bool:DX_DrawScrollContainer(playerid, elementid, Float:x, Float:y, Float:w, Float:h, Float:contentHeight, Float:scrollVal, color);

Renders a container with an interactive vertical scroll bar. Triggers OnPlayerScrollDXContainer.

• contentHeight: Real vertical height of the scroll content in pixels.
• scrollVal: Current vertical scroll position percentage from 0.0 to 1.0.

DX_DrawColorPicker

native bool:DX_DrawColorPicker(playerid, elementid, Float:x, Float:y, Float:w, Float:h, selectedColor);

Renders an interactive RGB gradient color picker spectrum. Triggers OnPlayerSelectDXColor.

DX_Destroy

native bool:DX_Destroy(playerid, elementid);

Removes a specific UI element for a player.

DX_ClearAll

native bool:DX_ClearAll(playerid);

Removes all active UI elements for a player.

DX_LoadFont

native bool:DX_LoadFont(playerid, const fontFamily[], const url[]);

Downloads a TrueType Font (.ttf) from a URL and registers it process-wide in the client's OS for safe, high-fidelity rendering.

• fontFamily: Unique family name identifier to bind the font to (e.g., "Comfortaa").
• url: Direct HTTP web link hosting the .ttf file.

DX_PlaySound

native bool:DX_PlaySound(playerid, const url[]);

Downloads, locally caches, and plays a dynamic multichannel overlapping sound.

• url: Direct HTTP link to the .mp3 or .wav audio track.

DX_SetDraggable

native bool:DX_SetDraggable(playerid, elementid, bool:draggable);

Enables or disables local drag interaction. Triggers OnPlayerDragDX callback upon coordinate modifications.

DX_SetParent

native bool:DX_SetParent(playerid, elementid, parentid);

Links an element as a child of another. Child elements move relative to their parents instantly on the client side.

DX_SetTooltip

native bool:DX_SetTooltip(playerid, elementid, const tooltipText[]);

Binds an automated hover popup tooltip message to a specific UI widget.

DX_SetInputPassword

native bool:DX_SetInputPassword(playerid, elementid, bool:enable);

Toggles password mode on input boxes, masking letters locally as asterisks while maintaining text integrity in server sync calls.

DX_SetBlurBehind

native bool:DX_SetBlurBehind(playerid, elementid, bool:enable);

Enables pixel-shader based glassmorphism background blurring inside the boundaries of a given element.

DX_SetClipArea

native bool:DX_SetClipArea(playerid, elementid, Float:x, Float:y, Float:w, Float:h);

Defines a bounded rectangular clipping viewport limiting child render pipelines.

DX_Animate

native bool:DX_Animate(playerid, elementid, Float:targetX, Float:targetY, Float:targetW, Float:targetH, Float:targetAlpha, durationMs, easingType);

Triggers a hardware-interpolated transition for position, size, and transparency.

• easingType: Interpolation curve calculation code (0 = Linear, 1 = EaseIn, 2 = EaseOut, 3 = EaseInOut).

Getters

native bool:DX_GetScreenSize(playerid, &Float:width, &Float:height);
native bool:DX_GetCheckboxState(playerid, elementid, &bool:checked);
native bool:DX_GetInputText(playerid, elementid, text[], len = sizeof(text));
native bool:DX_GetSliderValue(playerid, elementid, &Float:value);
native bool:DX_GetComboBoxIndex(playerid, elementid, &index);
native bool:DX_GetListViewIndex(playerid, elementid, &index);
native bool:DX_GetTabActive(playerid, elementid, &index);
native bool:DX_GetColorPickerColor(playerid, elementid, &color);
native bool:DX_GetScrollContainerVal(playerid, elementid, &Float:value);
native bool:DX_IsReady(playerid);

Various API routines to query current state metrics and player readiness securely on the server side.

---

Callbacks

OnPlayerClickDX

forward OnPlayerClickDX(playerid, elementid);

Triggered when a player clicks a clickable widget (e.g., button, image, rectangle).

OnPlayerToggleDXCheckbox

forward OnPlayerToggleDXCheckbox(playerid, elementid, bool:checked);

Triggered when a player toggles the state of a checkbox.

OnPlayerDXInputSubmit

forward OnPlayerDXInputSubmit(playerid, elementid, const text[]);

Triggered when a player submits text inside an input field by pressing Enter.

OnPlayerChangeDXSlider

forward OnPlayerChangeDXSlider(playerid, elementid, Float:value);

Triggered when a player changes the position of a slider.

OnPlayerSelectDXComboBox

forward OnPlayerSelectDXComboBox(playerid, elementid, index);

Triggered when a player selects a dropdown option from a ComboBox.

OnPlayerSelectDXListView

forward OnPlayerSelectDXListView(playerid, elementid, index);

Triggered when a player clicks a list item inside a ListView.

OnPlayerSelectDXTab

forward OnPlayerSelectDXTab(playerid, elementid, index);

Triggered when a player selects a tab from a TabPanel.

OnPlayerDragDX

forward OnPlayerDragDX(playerid, elementid, Float:x, Float:y);

Triggered when a player drags an element designated as draggable.

OnPlayerSwapDXSlots

forward OnPlayerSwapDXSlots(playerid, sourceElementid, targetElementid);

Triggered when a player drags and drops one inventory slot element over another.

OnPlayerSelectRadialItem

forward OnPlayerSelectRadialItem(playerid, elementid, index);

Triggered when a player selects a segment in a Radial Menu.

OnPlayerSelectDXColor

forward OnPlayerSelectDXColor(playerid, elementid, color);

Triggered when a player selects a color on a Color Picker spectrum.

OnPlayerScrollDXContainer

forward OnPlayerScrollDXContainer(playerid, elementid, Float:scrollVal);

Triggered when a player scrolls within a Scroll Container.

OnPlayerDXReady

forward OnPlayerDXReady(playerid);

Triggered when the player's client-side DirectX eklenti (ASI plugin) has successfully initialized, hooked the D3D9 renderer, and is ready to draw custom elements.
