Retail Case Study

Objectives:

In this project, we will be migrating an existing Retail Case Study project to use a New Architecture using PySpark, Apache Airflow and Snowflake.

Setup:

• Enable Windows Subsystem for Linux in Windows Features
• Install Ubuntu 18.04 LTS in Microsoft Store
• Clone repo into your home directory and execute setup.sh NOTE (You will need root access so enter your password after executing and let installation run)
• Execute setup_tables.sh to alter food_mart table
• You will need to configure your S3 bucket and setup boto3 credentials instructions here
• Open setup_bucket.py and change the bucketName variable.
• Create a snowflake credentials file with your account (or skip this part and comment that task out in the DAG):

  $ echo "<snowflake user>,<snowflake password>,<snowflake_account>" >> ~/.snowflake_credentials


• Copy the retail_dag in this repo into your airflow dags folder: (You can configure airflow to point to this repo in ~/airflow/airflow.cfg if you want to instead)

  $ cp -r ~/RetailCaseStudy/dags/ ~/airflow/dags/


• If needed start the postgres and mysql services: (did this in setup.sh but will be needed if the services go down)

  $ sudo service mysql start
  $ sudo service postgresql start


• Start the airflow web server and scheduler in separate terminals:

  $ airflow webserver -p 9990
  $ airflow scheduler

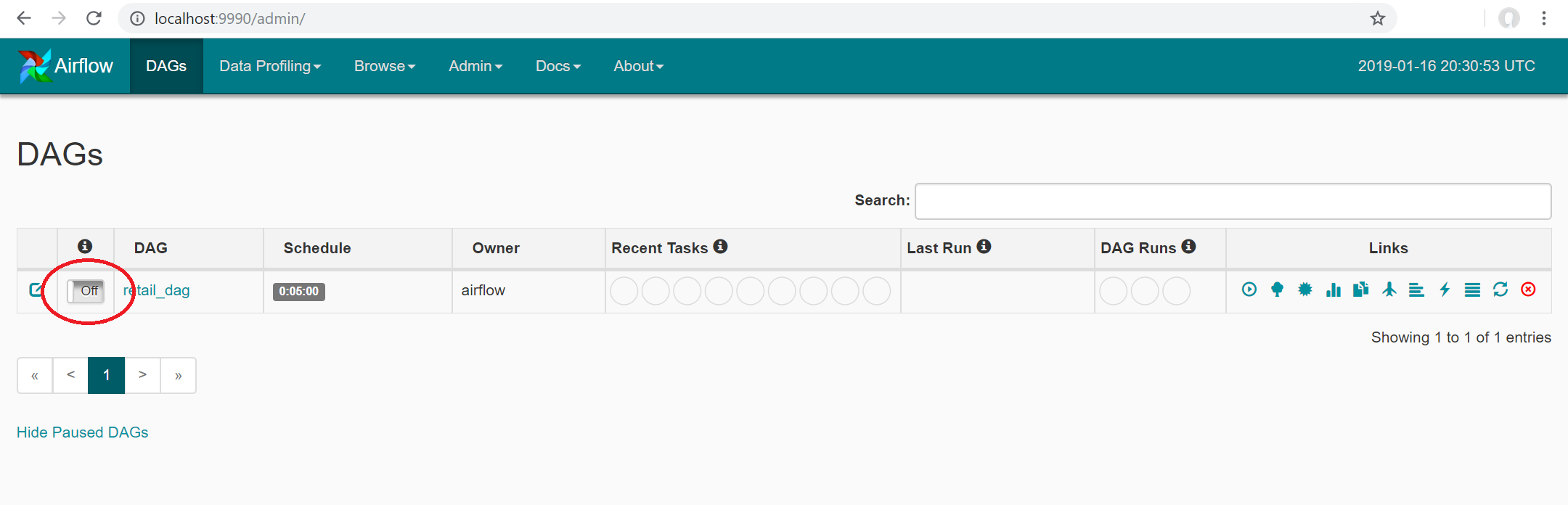

• Switch on the dag in the web UI and it watch it run:

Assignment:

• Find total Promotion sales generated on weekdays and weekends for each region, year & month
• Find the most popular promotion which generated highest sales in each region

Steps Involved:

• Create PySpark scripts for initial and incremental loads. The script will read sales and promotion tables based on last_update_date column from mysql and store them in AVRO format in S3 buckets. You might want to add a last_update_date in the tables

• A second PySpark script will read the AVRO files, filter out all non-promotion records from input, join the promotion and sales tables and save the data in Parquet format in S3 buckets.

• The Parquet file is aggregated by regionID, promotionID, sales_year, sales_month to generate total StoreSales for weekdays and weekends and the output is saved as a CSV file in S3 buckets.

• The CSV file generated is loaded into a Snowflake database.

• Following queries are executed on the Snowflake table

  • Query1: List the total weekday sales & weekend sales for each promotions: Following columns are required in output: Region ID, Promotion ID, Promotion Cost, total weekday sales, total weekend sales
  • Query 2: List promotions, which generated highest total sales (weekday + weekend) in each region. Following columns are required in output: Region ID, Promotion ID, Promotion Cost, total sales

• Automate the workflow using Airflow scheduler
