9Drive

9Drive is a storage gateway web app for connecting multiple Google Drive accounts into one virtual storage dashboard. Users can register with email/password or Google, automatically connect their first Google Drive account during Google sign-in, track quota, upload files into a dedicated 9drive Drive folder, organize files with virtual folders, preview files, sync MySQL from Google Drive, and let the backend route uploads to the Drive account with enough free space.

Features

• React + Vite frontend.
• Express + TypeScript backend.
• MySQL database with Prisma migrations.
• Bearer token authentication.
• Email/password auth plus Google sign-in/register with automatic first Drive connection.
• Global Google OAuth config stored encrypted in DB.
• Optional reCAPTCHA on email/password registration.
• Direct upload stream to Google Drive. Files are not stored on the server.
• Google Drive uploads are stored under a root 9drive folder.
• Manual sync from the Google Drive 9drive folder back into MySQL.

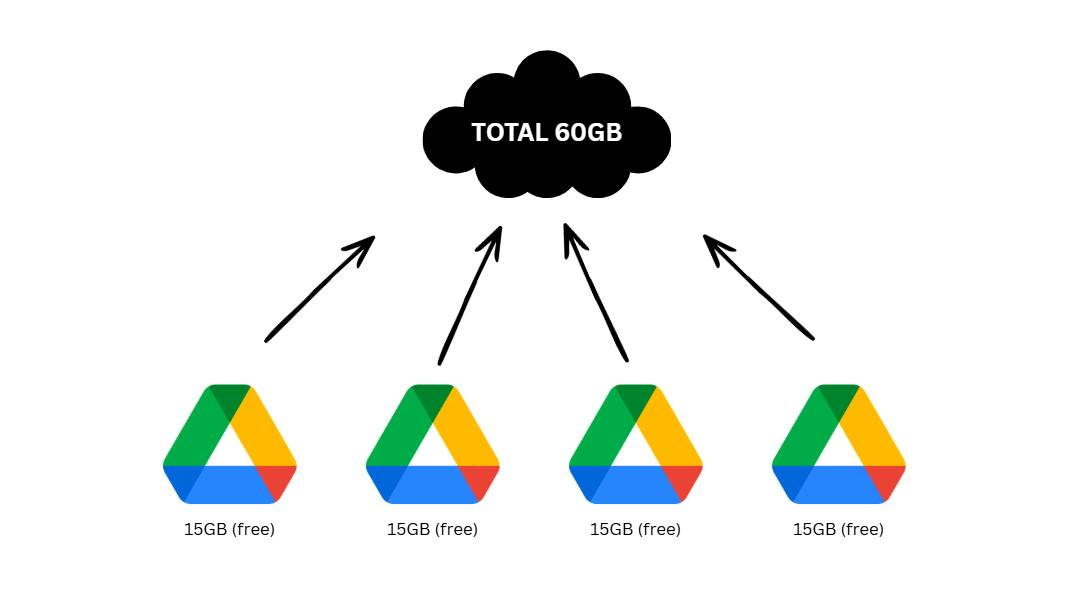

• Multi-account storage quota summary.

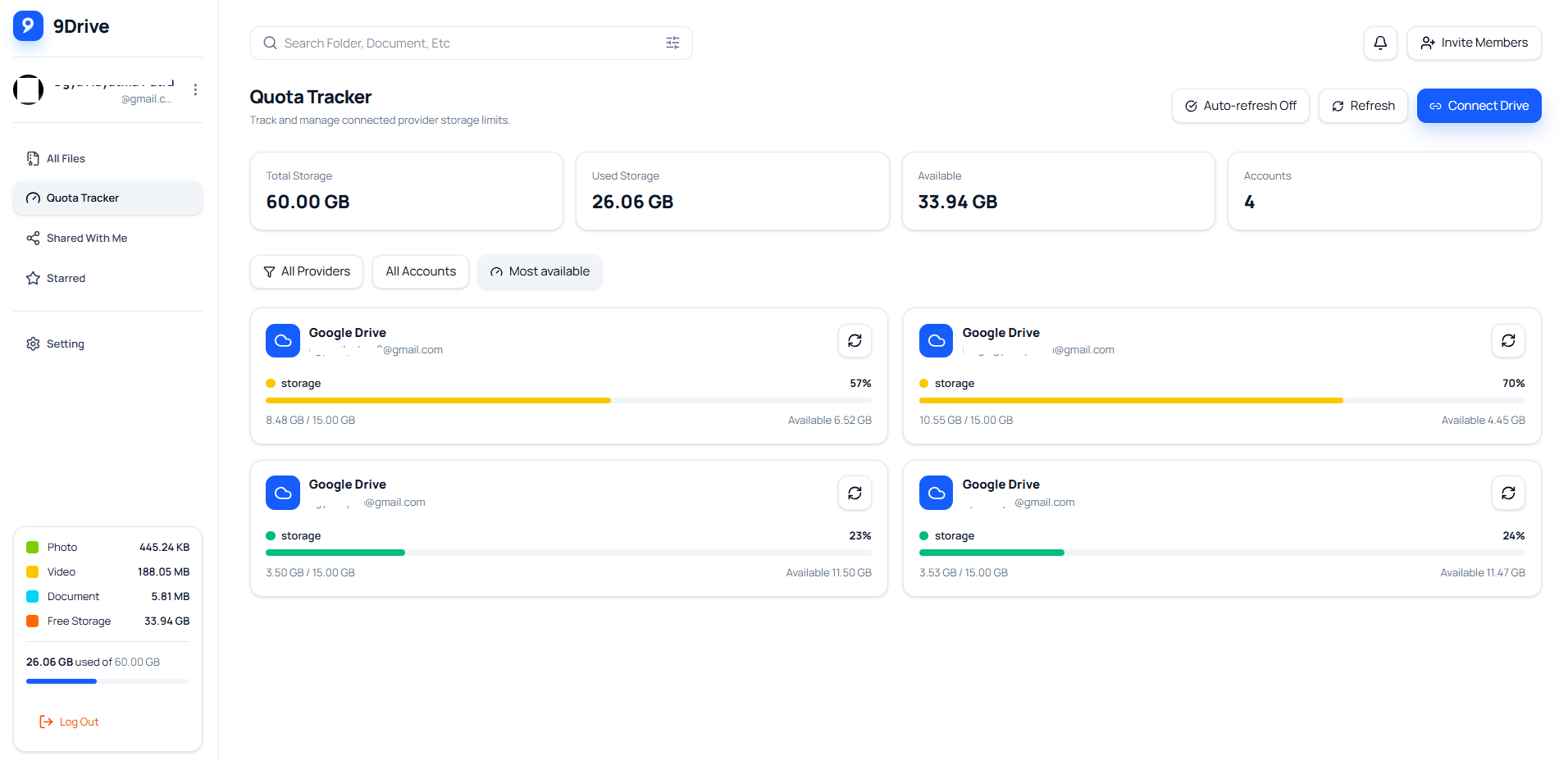

• Quota tracker page.
• Virtual folders.
• File preview, download, rename, move, and delete actions.
• Bottom-right upload progress panel.

Preview

Live preview: https://9drive.zenhosta.com

Star History

Project Structure

backend/   Express API, Prisma schema, Google Drive integration
frontend/  Vite React app

Requirements

• Node.js 20+
• npm
• MySQL running locally
• Google Cloud project
• Google OAuth Client ID and Client Secret

Default database used by this project:

host: localhost
port: 3306
database: 9drive
user: root
password: empty

1. Clone And Install

git clone git@github.com:zenhosta/9drive.git
cd 9drive

Install backend dependencies:

cd backend
npm install

Install frontend dependencies:

cd ../frontend
npm install

2. Create MySQL Database

Create database:

CREATE DATABASE 9drive;

If using MySQL CLI:

mysql -u root -e "CREATE DATABASE IF NOT EXISTS 9drive;"

3. Backend Environment

Create backend/.env:

DATABASE_URL="mysql://root@localhost:3306/9drive"
APP_PORT=4000
FRONTEND_URL="http://localhost:5173"
JWT_ACCESS_SECRET="change-this-jwt-secret-at-least-32-chars"
TOKEN_ENCRYPTION_KEY="change-this-encryption-key-32bytes!"
ACCESS_TOKEN_TTL_SECONDS=900
REFRESH_TOKEN_TTL_DAYS=30
MAX_UPLOAD_BYTES=5368709120
RECAPTCHA_SECRET_KEY=""

# Used only by `npm run seed:google-config`.
# These values are encrypted and stored in DB as global Google OAuth config.
GOOGLE_CLIENT_ID=""
GOOGLE_CLIENT_SECRET=""
GOOGLE_REDIRECT_URI="http://localhost:4000/connected-accounts/google/callback"

Important:

• JWT_ACCESS_SECRET should be long and random.
• TOKEN_ENCRYPTION_KEY should be long and random.
• Do not commit backend/.env.
• Google OAuth credentials are used by the seed script, then stored encrypted in the database.

4. Frontend Environment

Create or confirm frontend/.env:

VITE_API_URL=http://localhost:4000
VITE_RECAPTCHA_SITE_KEY=

Captcha is disabled when VITE_RECAPTCHA_SITE_KEY or backend RECAPTCHA_SECRET_KEY is empty. Set both values to enable captcha on registration.

5. Run Prisma Migrations

cd backend
npm run prisma:migrate

If Prisma client generation is blocked on Windows by a running Node process, stop running backend/frontend dev servers and run:

npx prisma generate

6. Google Cloud Setup

Google setup is done in Google Cloud Console, not Google Search Console. Google Search Console is for website indexing/search ownership. OAuth and Drive API are managed in Google Cloud Console.

Open Google Cloud Console:

https://console.cloud.google.com/

6.1 Create Or Select Project

1. Open Google Cloud Console.
2. Click project selector in top bar.
3. Create a new project or select an existing project.
4. Remember the project name because OAuth client and Drive API must be in the same project.

6.2 Enable Google Drive API

1. Go to:

APIs & Services -> Library

2. Search:

Google Drive API

3. Open Google Drive API.
4. Click Enable.
5. Wait a few minutes if Google says the API was enabled recently.

Direct URL pattern:

https://console.developers.google.com/apis/api/drive.googleapis.com/overview?project=YOUR_PROJECT_ID

If Google Drive API is disabled, you will see an error like:

Google Drive API has not been used in project ... before or it is disabled.

6.3 Configure OAuth Consent Screen

1. Go to:

APIs & Services -> OAuth consent screen

2. Choose app type:

External

3. Fill required fields:

App name
User support email
Developer contact email

4. Add scopes:

https://www.googleapis.com/auth/drive
https://www.googleapis.com/auth/userinfo.email
https://www.googleapis.com/auth/userinfo.profile

Full Drive access is required so Google sign-in can connect the first Drive account automatically and sync files manually added to the 9drive folder.

5. If publishing status is Testing, add test users.

Add every Google account that will test the app:

OAuth consent screen -> Test users -> Add users

If you do not add test users, Google may show:

Access blocked: app has not completed the Google verification process
Error 403: access_denied

6.4 Create OAuth Client

1. Go to:

APIs & Services -> Credentials

2. Click:

Create Credentials -> OAuth client ID

3. Application type:

Web application

4. Add authorized JavaScript origin:

http://localhost:5173

5. Add authorized redirect URI:

http://localhost:4000/connected-accounts/google/callback

6. Click Create.
7. Copy:

Client ID
Client Secret

6.5 Seed Google OAuth Config

Put values into backend/.env:

GOOGLE_CLIENT_ID="your-client-id"
GOOGLE_CLIENT_SECRET="your-client-secret"
GOOGLE_REDIRECT_URI="http://localhost:4000/connected-accounts/google/callback"

Then run:

cd backend
npm run seed:google-config

This stores the Google OAuth config as a global encrypted provider config in MySQL. Google sign-in uses the same config and automatically connects the first Drive account. Logged-in users can still click Connect Drive in Settings to add more Drive accounts.

7. Run Development Servers

Start backend:

cd backend
npm run dev

Backend runs at:

http://localhost:4000

Start frontend:

cd frontend
npm run dev

Frontend runs at:

http://localhost:5173

Docker Deployment

This repository includes Docker files for running MySQL, backend, and frontend together.

Files:

docker-compose.yml
.env.docker.example
backend/Dockerfile
frontend/Dockerfile
frontend/nginx.conf

1. Prepare Docker Env

Copy the example env file:

cp .env.docker.example .env

On Windows PowerShell:

Copy-Item .env.docker.example .env

Edit .env:

MYSQL_ROOT_PASSWORD=root
MYSQL_DATABASE=9drive

FRONTEND_URL=http://localhost:5173
VITE_API_URL=http://localhost:4000
VITE_RECAPTCHA_SITE_KEY=

JWT_ACCESS_SECRET=replace-with-long-random-secret
TOKEN_ENCRYPTION_KEY=replace-with-long-random-secret
RECAPTCHA_SECRET_KEY=

GOOGLE_CLIENT_ID=your-google-client-id
GOOGLE_CLIENT_SECRET=your-google-client-secret
GOOGLE_REDIRECT_URI=http://localhost:4000/connected-accounts/google/callback

Captcha is disabled when either VITE_RECAPTCHA_SITE_KEY or RECAPTCHA_SECRET_KEY is empty.

2. Start Containers

docker compose up -d --build

Services:

frontend: http://localhost:5173
backend:  http://localhost:4000
mysql:    localhost:3306

The backend container runs Prisma migrations automatically on startup:

npx prisma migrate deploy

3. Seed Google OAuth Config In Docker

After containers are running, seed the global Google OAuth config:

docker compose exec backend npm run seed:google-config

This stores GOOGLE_CLIENT_ID, GOOGLE_CLIENT_SECRET, and GOOGLE_REDIRECT_URI from Docker env into MySQL as encrypted global config.

4. View Logs

docker compose logs -f backend
docker compose logs -f frontend
docker compose logs -f mysql

5. Stop Containers

docker compose down

Remove database volume too:

docker compose down -v

Docker Production Notes

• Replace localhost URLs with production domain.
• Update Google OAuth authorized JavaScript origin.
• Update Google OAuth redirect URI.
• Use strong JWT_ACCESS_SECRET and TOKEN_ENCRYPTION_KEY.
• Do not expose MySQL port publicly in production.
• Put frontend/backend behind HTTPS reverse proxy.
• Rebuild frontend when VITE_API_URL changes because Vite embeds env at build time.
• Rebuild frontend when VITE_RECAPTCHA_SITE_KEY changes because Vite embeds env at build time.

8. Manual Test Flow

1. Open frontend:

http://localhost:5173

2. Register a user with email/password and captcha, or click Continue with Google and connect Drive.
3. If using Google sign-in, approve Drive access once and confirm /settings already shows the connected account.
4. If using email/password, open Settings, click Connect Drive, approve access, and confirm the account appears.
5. Open Quota Tracker.
6. Confirm quota appears.

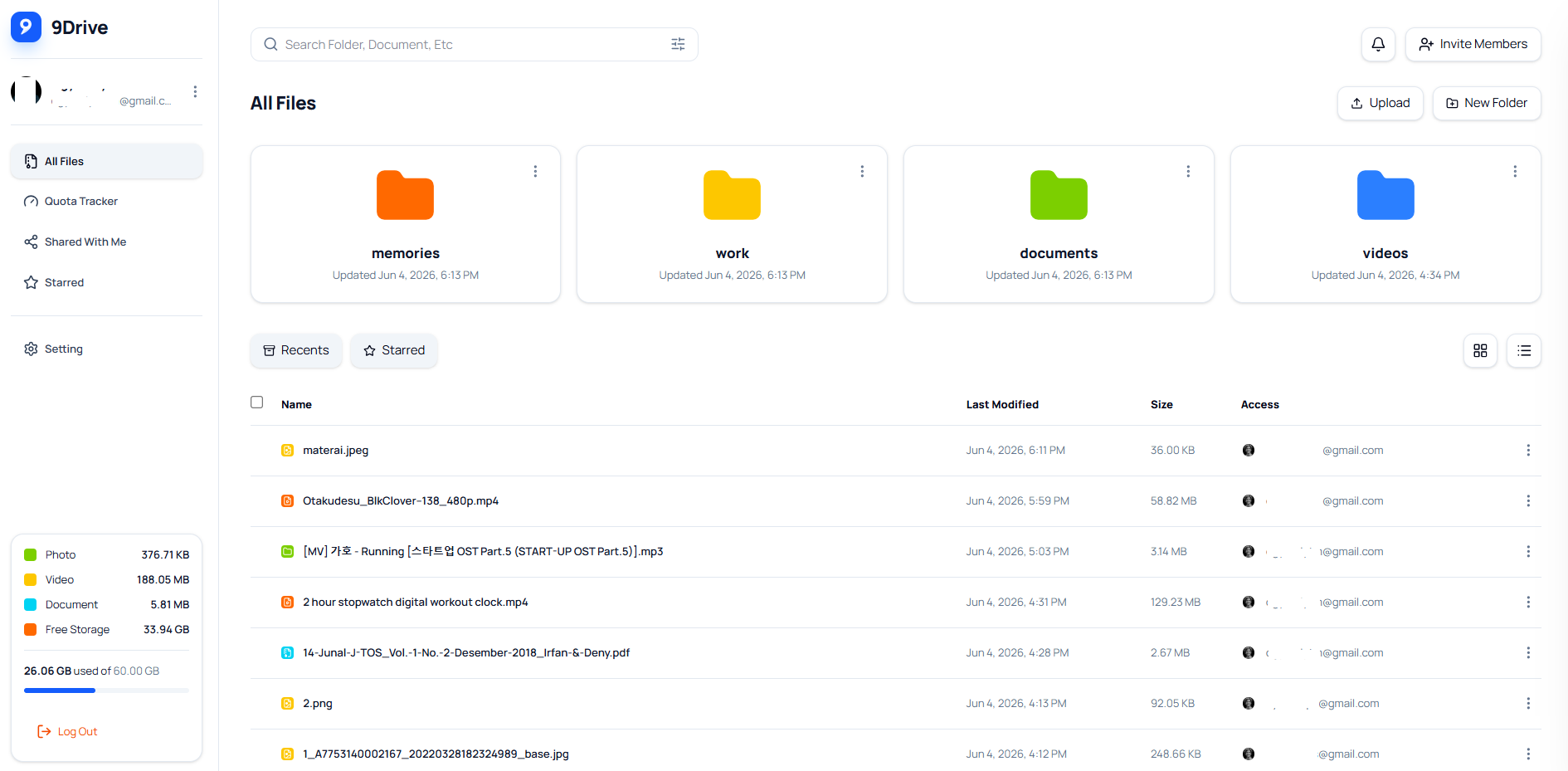

7. Open All Files.
8. Create nested virtual folders.
9. Upload a file and confirm it appears under Google Drive root folder 9drive.
10. Add or remove a file manually inside Google Drive folder 9drive, then click Sync Drive in All Files.
11. Watch bottom-right upload progress.
12. Right-click file row for actions:

View
Download
Rename
Move to Folder
Delete

API Overview

Auth:

POST /auth/register
POST /auth/login
GET /auth/google/url
GET /auth/google/callback
POST /auth/google/exchange
POST /auth/refresh
POST /auth/logout
GET /auth/me

Google accounts:

GET /connected-accounts/google/connect-url
GET /connected-accounts/google/callback
GET /connected-accounts
POST /connected-accounts/:id/sync-quota
DELETE /connected-accounts/:id

Storage:

GET /storage/summary

Folders:

GET /folders
GET /folders/recent?limit=4
POST /folders
DELETE /folders/:id

Files:

GET /files
GET /files?folderId=<id>
GET /files?q=<search>
GET /files/shared-links
GET /files/:id
PATCH /files/:id
PATCH /files/batch
DELETE /files/batch
POST /files/sync-google
POST /files/:id/share
DELETE /files/:id/share
POST /files/:id/preview-token
GET /files/:id/view-url
GET /files/:id/download
DELETE /files/:id
GET /files/preview/:token

Uploads:

POST /uploads

Upload is multipart/form-data. Metadata fields should be appended before the file:

sizeBytes
fileName
mimeType
folderId optional
file

Security Notes

• Backend never stores uploaded files on disk.
• Uploads are streamed through the backend to Google Drive folder 9drive.
• Google tokens are encrypted in MySQL.
• Refresh tokens for app sessions are hashed in MySQL.
• Google auth handoff tokens, public share tokens, and preview tokens are hashed before lookup/use.
• backend/.env is ignored by git.
• Do not expose TOKEN_ENCRYPTION_KEY, JWT_ACCESS_SECRET, RECAPTCHA_SECRET_KEY, OAuth client secrets, or raw share/preview/handoff tokens.

Production Notes

• Replace localhost redirect URIs with production URLs.
• Add production domain to Google OAuth authorized origins.
• Set OAuth consent screen to production when ready.
• Google may require verification for public apps.
• Use strong secrets.
• Put the backend behind HTTPS.
• Consider secure cookies or stronger token storage for production.

Build

Backend:

cd backend
npm run build

Frontend:

cd frontend
npm run build
