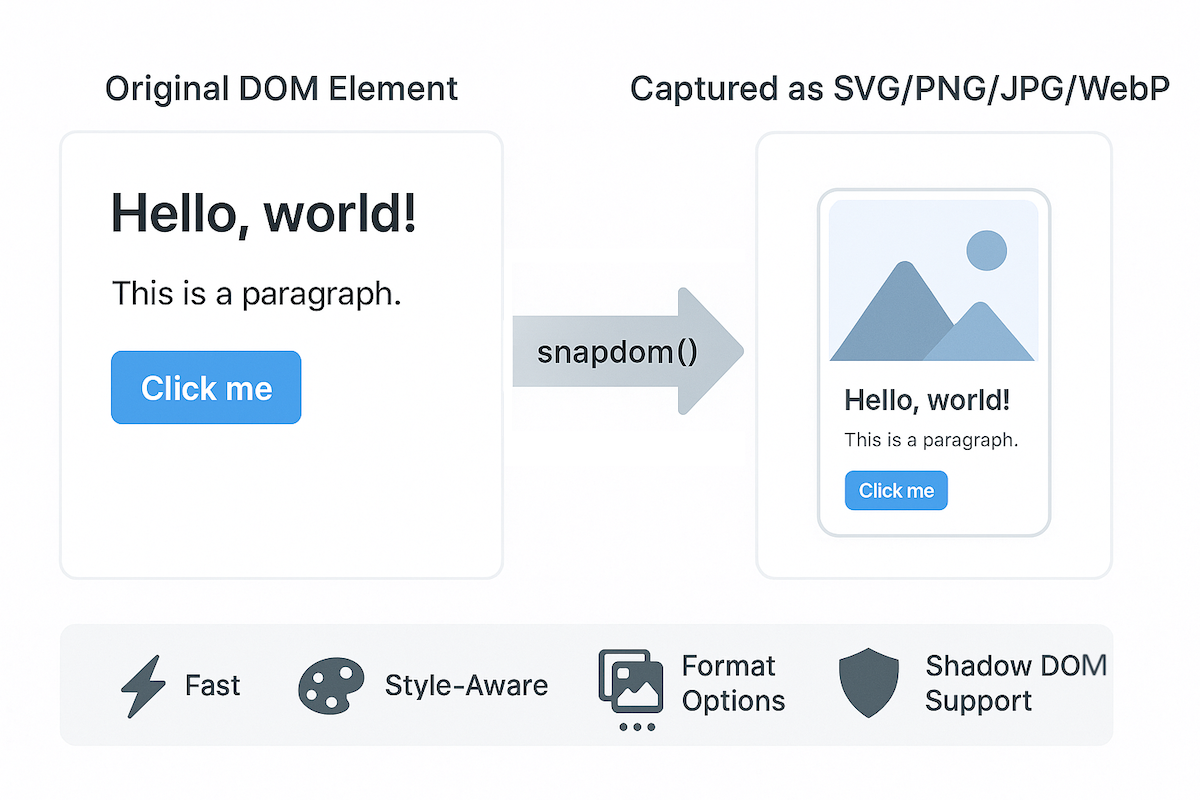

snapDOM is a fast and accurate DOM-to-image capture tool built for Zumly, a zoom-based view transition framework.
It captures any HTML element as a scalable SVG image, preserving styles, fonts, background images, pseudo-elements, and even shadow DOM. It also supports export to raster image formats and canvas.
- πΈ Full DOM capture
- π¨ Embedded styles, pseudo-elements, and fonts
- πΌοΈ Export to SVG, PNG, JPG, WebP, or
canvas
- β‘ Ultra fast, no dependencies
- π¦ 100% based on standard Web APIs
https://zumerlab.github.io/snapdom/
npm i @zumer/snapdom
yarn add @zumer/snapdom
<script src="https://cdn.jsdelivr.net/npm/@zumer/snapdom/dist/snapdom.min.js"></script>
<script src="snapdom.js"></script>
import { snapdom } from './snapdom.mjs';
<script type="module">
import { snapdom } from 'https://cdn.jsdelivr.net/npm/@zumer/snapdom/dist/snapdom.mjs';
</script>
const el = document.querySelector('#target');
const result = await snapdom(el, { scale: 2 });
const img = await result.toPng();
document.body.appendChild(img);
await result.download({ format: 'jpg', filename: 'my-capture' });
const el = document.querySelector('#target');
const png = await snapdom.toPng(el);
document.body.appendChild(png);
const blob = await snapdom.toBlob(el);
Returns an object with reusable export methods:
{
url: string;
toRaw(): string;
toImg(): Promise<HTMLImageElement>;
toCanvas(): Promise<HTMLCanvasElement>;
toBlob(): Promise<Blob>;
toPng(): Promise<HTMLImageElement>;
toJpg(options?): Promise<HTMLImageElement>;
toWebp(options?): Promise<HTMLImageElement>;
download(options?): Promise<void>;
}
Method | Description |
---|---|
snapdom.toImg(el, options?) |
Returns an HTMLImageElement |
snapdom.toCanvas(el, options?) |
Returns a Canvas |
snapdom.toBlob(el, options?) |
Returns an SVG Blob |
snapdom.toPng(el, options?) |
Returns a PNG image |
snapdom.toJpg(el, options?) |
Returns a JPG image |
snapdom.toWebp(el, options?) |
Returns a WebP image |
snapdom.download(el, options?) |
Triggers download in specified format |
All capture methods accept an options
object:
Option | Type | Default | Description |
---|---|---|---|
compress |
boolean | true |
Removes redundant styles |
fast |
boolean | true |
Skips idle delay for faster results |
embedFonts |
boolean | false |
Inlines fonts (icon fonts always embedded) |
scale |
number | 1 |
Output scale multiplier |
width |
number | - | Output specific width size |
height |
number | - | Output specific height size |
backgroundColor |
string | "#fff" |
Fallback color for JPG/WebP |
quality |
number | 1 |
Quality for JPG/WebP (0 to 1) |
useProxy |
string | '' | Specify a proxy for handling CORS images as fallback |
type |
string | svg |
Select png , jpg , webp Blob type |
exclude |
string[] | - | CSS selectors for elements to exclude |
filter |
function | - | Custom filter function ie (el) => !el.classList.contains('hidden') |
Use the width
and height
options to generate an image with specific dimensions.
Examples:
1. Fixed width (proportional height) Sets a specific width while maintaining the aspect ratio. Height adjusts proportionally.
const result = await snapdom(element, {
width: 400 // Outputs a 400px-wide image with auto-scaled height
});
2. Fixed height (proportional width) Sets a specific height while maintaining the aspect ratio. Width adjusts proportionally.
const result = await snapdom(element, {
height: 200 // Outputs a 200px-tall image with auto-scaled width
});
3. Fixed width and height (may distort image) Forces exact dimensions, potentially distorting the image if the aspect ratio differs.
const result = await snapdom(element, {
width: 800, // Outputs an 800px Γ 200px image (may stretch/squish content)
height: 200
});
Note: If scale
is different from 1, it takes priority over width and height.
Example: { scale: 3, width: 500 }
ignores width and scales the image 3x instead.
By default, snapDOM loads images with crossOrigin="anonymous"
or crossOrigin="use-credentials"
. In case fails to get the images, useProxy
can be used to deal with CORS images:
const result = await snapdom(element, {
useProxy: 'your/proxy/' //Example: 'https://corsproxy.io/?url=' or 'https://api.allorigins.win/raw?url='
});
{
format?: "svg" | "png" | "jpg" | "jpeg" | "webp"; // default: "png"
filename?: string; // default: "capture"
backgroundColor?: string; // optional override
}
The preCache()
function can be used to load external resources (like images and fonts) in advance. It is specially useful when the element to capure is big and complex.
import { preCache } from '@zumer/snapdom';
await preCache(document.body);
import { snapdom, preCache } from './snapdom.mjs';
window.addEventListener('load', async () => {
await preCache();
console.log('π¦ Resources preloaded');
});
Options for preCache()
:
embedFonts
(boolean, default: true) β Inlines non-icon fonts during preload.reset
(boolean, default: false) β Clears all existing internal caches.useProxy
(string) β Proxy for handling CORS images as fallback.
- Captures shadow DOM and Web Components
- Supports
::before
,::after
and::first-letter
pseudo-elements - Inlines background images and fonts
- Handles Font Awesome, Material Icons, and more
data-capture="exclude"
to ignore an elementdata-capture="placeholder"
withdata-placeholder-text
for masked replacements
- External images shloud be CORS-accessible (use
useProxy
option for handling CORS denied) - Iframes are not supported
- When WebP format is used on Safari, it will fallback to PNG rendering.
@font-face
CSS rule is well supported, but if need to use JSFontFace()
, see this workaround#43
Snapdom has received significant performance improvements since version v1.8.0
. The following benchmarks compare:
- Snapdom (current)
- Snapdom v1.8.0
html2canvas
html-to-image
Scenario | Snapdom (current) | Snapdom v1.8.0 | html2canvas | html-to-image |
---|---|---|---|---|
Small (200Γ100) | 0.4 ms | 1.2 ms | 70.3 ms | 3.6 ms |
Modal (400Γ300) | 0.4 ms | 1.1 ms | 68.8 ms | 3.6 ms |
Page View (1200Γ800) | 0.4 ms | 1.0 ms | 100.5 ms | 3.4 ms |
Large Scroll (2000Γ1500) | 0.4 ms | 1.0 ms | 153.1 ms | 3.4 ms |
Very Large (4000Γ2000) | 0.4 ms | 1.0 ms | 278.9 ms | 4.3 ms |
Scenario | Snapdom (current) | Snapdom v1.8.0 | html2canvas | html-to-image |
---|---|---|---|---|
Small (200Γ100) | 1.1 ms | 3.2 ms | 76.0 ms | 15.3 ms |
Modal (400Γ300) | 4.5 ms | 14.0 ms | 133.2 ms | 55.4 ms |
Page View (1200Γ800) | 32.9 ms | 113.6 ms | 303.4 ms | 369.1 ms |
Large Scroll (2000Γ1500) | 133.9 ms | 387.4 ms | 594.4 ms | 1,163.0 ms |
Very Large (4000Γ2000) | 364.0 ms | 1,200.4 ms | 1,380.8 ms | 3,023.9 ms |
- Snapdom (current) is 2Γβ6Γ faster than
v1.8.0
- Up to 150Γ faster than
html2canvas
- Up to 8Γ faster than
html-to-image
in large scenarios
Benchmarks run in Chromium using Vitest.
Hardware: MacBook Air 2018.
git clone https://github.com/zumerlab/snapdom.git
cd snapdom
npm install
npm run test:benchmark
To contribute or build snapDOM locally:
# Clone the repository
git clone https://github.com/zumerlab/snapdom.git
cd snapdom
# Switch to dev branch
git checkout dev
# Install dependencies
npm install
# Compile the library (ESM, CJS, and minified versions)
npm run compile
# Run tests
npm test
# Run Benchmarks
npm run test:benchmark
The main entry point is in src/
, and output bundles are generated in the dist/
folder.
For detailed contribution guidelines, please see CONTRIBUTING.
Special thanks to @megaphonecolin for supporting this project!
If you'd like to support this project too, you can become a sponsor.
MIT Β© Zumerlab
