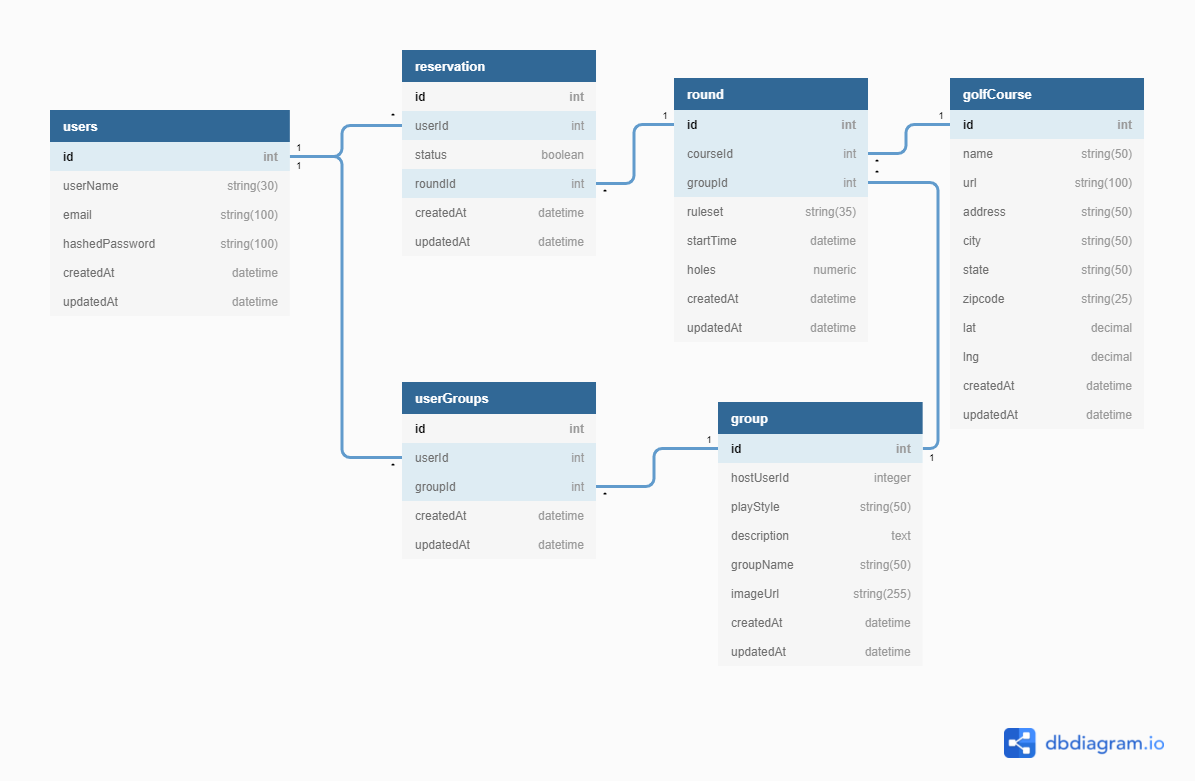

Database Schema

users

column name	data type	details
id	integer	not null, primary key
username	string	not null, unique
email	string	not null, unique
hashedPassword	string	not null
created_at	datetime	not null
updated-at	datetime	not null

reservation

column name	data type	details
id	integer	not null, primary key
userId	integer	not null
status	boolean	not null
roundId	integer	not null
created_at	datetime	not null
updated-at	datetime	not null

• 'roundId' references the round table
• 'userId' references the users table

userGroups

column name	data type	details
id	integer	not null, primary key
userId	integer	not null
groupId	integer	not null
created_at	datetime	not null
updated-at	datetime	not null

• 'groupId' references the group table
• 'userId' references the users table

group

column name	data type	details
id	integer	not null, primary key
hostUserId	integer	not null
playStyle	string(50)	not null
description	text
groupName	string(50)	not null
imageUrl	string(255)
created_at	datetime	not null
updated-at	datetime	not null

• 'hostUserId' references the users table (user whom creates the table)

golfCourse

column name	data type	details
id	integer	not null, primary key
name	string(50)	not null
url	string(100)	not null
address	string(50)	not null
city	string(50)	not null
state	string(50)	not null
zipcode	string(50)	not null
lat	decimal	not null
lng	decimal	not null
created_at	datetime	not null
updated-at	datetime	not null

round

column name	data type	details
id	integer	not null, primary key
courseId	integer	not null
groupId	integer	not null
ruleset	string(35)
startTime	datetime	not null
holes	numeric	not null
created_at	datetime	not null
updated-at	datetime	not null

• 'groupId' references the group table
• 'courseId' references the course table
