@m-dobler m-dobler commented Nov 28, 2019

I believe the partial derivative of an observation with respect to the angle should be equal to -1, yet in the code it's currently -1/q.

Here is a source I could find on the topic:

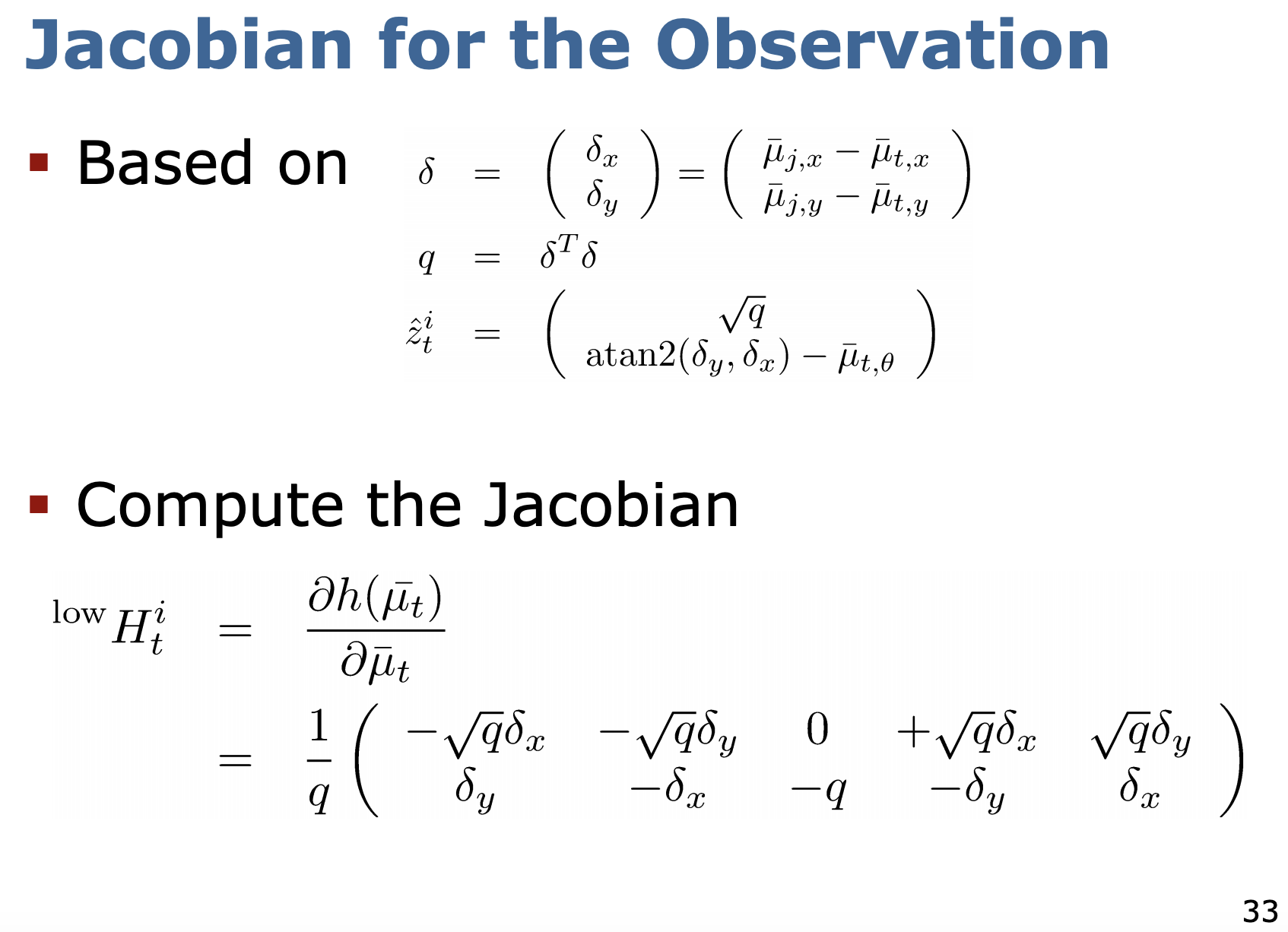

http://ais.informatik.uni-freiburg.de/teaching/ws12/mapping/pdf/slam04-ekf-slam.pdf, Slide 33
jacobian_observation

Would greatly appreciate it if someone would take a second look!

@coveralls
Copy link

Pull Request Test Coverage Report for Build 1088

  • 0 of 0 changed or added relevant lines in 0 files are covered.
  • 5 unchanged lines in 2 files lost coverage.
  • Overall coverage decreased (-0.05%) to 90.385%

Files with Coverage Reduction New Missed Lines %
PathPlanning/ClosedLoopRRTStar/pure_pursuit.py 1 96.12%
ArmNavigation/n_joint_arm_to_point_control/n_joint_arm_to_point_control.py 4 93.59%
Totals Coverage Status
Change from base Build 1087: -0.05%
Covered Lines: 6731
Relevant Lines: 7447

💛 - Coveralls

@m-dobler m-dobler marked this pull request as ready for review November 28, 2019 22:54
@AtsushiSakai AtsushiSakai merged commit c29d425 into AtsushiSakai:master Nov 29, 2019
@AtsushiSakai
Copy link
Owner

@m-dobler Good catch!! I think you are right. Thank you!!
