Concatenate rotations and split #233

@Peque

Description

@Peque

With CadQuery, I can concatenate workplane rotations like so:

Workplane('XY').transformed(
        rotate=(0, 0, 20)
    ).transformed(
        rotate=(45, 0, 0)
    ).box(1, 1, 1)

Which works as expected, creating a cube that is rotated in two axes:

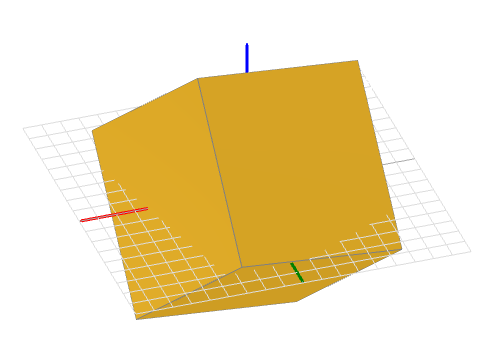

Screenshot from 2019-12-11 03-01-09

Now, I would like to:

  • Start with a cube
  • Select one of its vertices
  • Create a workplane at that vertex and apply concatenated rotations
  • Split the cube with that plane and get the lower part only

I would expect the splitting plane to be rotated in two axes, but it seems it is not:

vector = Vector(1, 1)
box = Workplane('XY').box(1, 1, 1)
box.faces(">Z").vertices(DirectionMinMaxSelector(vector, True)).first().\
    workplane().transformed(
        rotate=(0, 0, 20)
    ).transformed(
        rotate=(45, 0, 0)
    ).split(keepBottom=True)

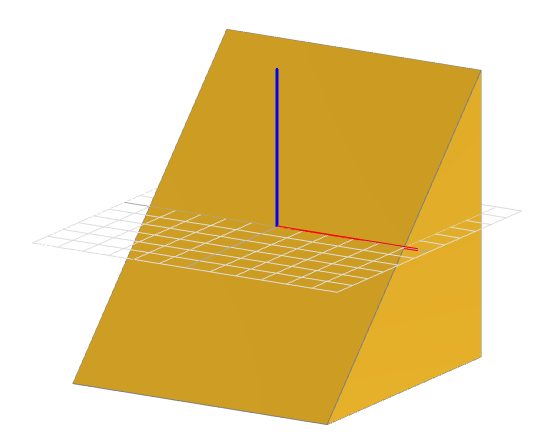

Screenshot from 2019-12-11 03-05-30

Am I missing something or doing something wrong?
