Real-Time Limited-Edition Sneaker Drop System

A high-concurrency inventory management system built for the Techzu Ichicode technical assessment. Users reserve limited-edition sneakers in real time, complete purchases within a 60-second window, and see live stock updates across all connected clients.

Live Demo

	URL
Frontend	`<frontend-url>`
Backend	`<backend-url>`
Video Walkthrough	`<loom-video-link>`

Backend Setup

Clone Repository

git clone https://github.com/Code5linger/techzu.backend.git
cd techzu.backend

Install Dependencies

npm install

Configure Environment Variables

Create a .env file in the project root:

PORT=5000
DATABASE_URL=postgresql://neondb_owner:<---your-id>@<---your-password>.c-2.ap-southeast-1.aws.neon.tech/neondb?sslmode=verify-full&channel_binding=require
NODE_ENV=development


ALLOWED_ORIGINS=https://techzu-frontend.vercel.app,https://techzu-frontend-p29fe7h8v-codeslingers-projects.vercel.app, http://localhost:5173, http://localhost:5174

Database Setup

Create a PostgreSQL database named techzu.

Seed the database with sample data:

npm run seed

Start Backend Server

npm run dev

The API will be available at:

http://localhost:5000

Features

Real-time stock updates. All connected clients see inventory changes instantly via WebSocket
Atomic reservation. Concurrent requests are handled at the database level; overselling is impossible
60-second purchase window. Reservations expire automatically, releasing stock back to inventory
Activity feed. The 3 most recent purchasers are shown per drop, updated live
User registration. Enter a username to access drops; identity persists across page reloads

Tech Stack

Frontend


React 19 + Vite	UI framework and build tool
TypeScript	Type safety
Tailwind CSS v4	Styling (via `@tailwindcss/vite` plugin, no PostCSS config)
Socket.io Client	Real-time WebSocket events
Plain `useState` / `useCallback`	No external state library needed at this scale

Backend


Node.js + Express	HTTP server
TypeScript + `tsx`	Runtime and type safety
Socket.io	WebSocket server
Sequelize v6	ORM
Zod	Request validation

Infrastructure


PostgreSQL (Neon)	Primary database
Vercel	Frontend deployment
Railway / Render	Backend deployment

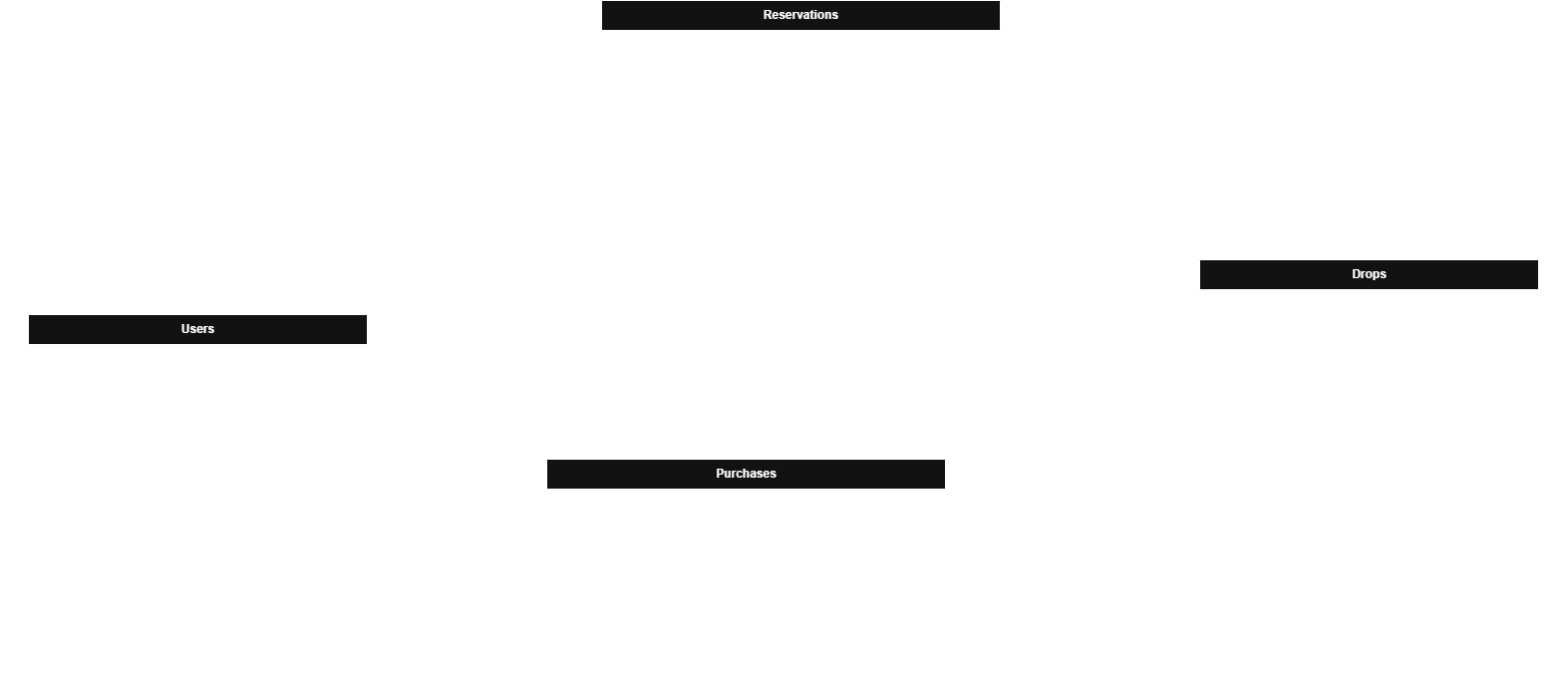

ERD

System Architecture

┌─────────────────┐
│   React Client  │  ← Vite dev server (port 5173)
└────────┬────────┘
         │  REST API  (HTTP)
         │  WebSocket (Socket.io)
         ▼
┌─────────────────┐
│ Express Server  │  ← port 5000
└────────┬────────┘
         │  Sequelize ORM
         ▼
┌─────────────────┐
│   PostgreSQL    │  ← Neon (serverless Postgres)
└────────┬────────┘
         │
         ▼
┌─────────────────────┐
│ Expiration Sweep Job │  ← runs every 5 seconds in-process
└────────┬────────────┘
         │  emits socket events on expiry
         ▼
┌─────────────────────┐
│  Socket.io Broadcast │
└─────────────────────┘

Database Schema

Users

Column	Type
id	UUID (PK)
username	VARCHAR
createdAt	TIMESTAMP

Drops

Column	Type
id	UUID (PK)
name	VARCHAR
price	DECIMAL
totalStock	INTEGER
availableStock	INTEGER
startsAt	TIMESTAMP
createdAt	TIMESTAMP

Reservations

Column	Type
id	UUID (PK)
userId	UUID (FK → Users)
dropId	UUID (FK → Drops)
status	ENUM: `active`, `purchased`, `expired`
expiresAt	TIMESTAMP
createdAt	TIMESTAMP

Purchases

Column	Type
id	UUID (PK)
userId	UUID (FK → Users)
dropId	UUID (FK → Drops)
reservationId	UUID (FK → Reservations)
createdAt	TIMESTAMP

Reservation Lifecycle

User clicks Reserve
        │
        ▼
   status: ACTIVE
   expiresAt: now + 60s
        │
   ┌────┴────┐
   │         │
   ▼         ▼
PURCHASED  EXPIRED (sweep job fires)
               │
               ▼
        availableStock + 1
        socket: stock:updated

Concurrency Strategy

The Problem

Multiple users may attempt to reserve the last available item at the same millisecond.

availableStock = 1
100 users click Reserve simultaneously
→ Without concurrency control: overselling occurs

The Solution

Stock decrement is executed as a single atomic SQL statement — no application-level lock needed:

UPDATE "Drops"
SET "availableStock" = "availableStock" - 1
WHERE id = :dropId
  AND "availableStock" > 0;

If the update affects 0 rows, the item is already claimed and the request receives a 409 Conflict immediately.

Load Test Result

Running 100 concurrent reservation requests against a drop with availableStock = 1:

Run

npm run load-test

◇ injected env (0) from .env // tip: ⌘ custom filepath { path: '/custom/path/.env' }
Executing (default): SELECT 1+1 AS result
Executing (default): INSERT INTO "Drops" ("id","name","price","totalStock","availableStock","startsAt","createdAt","updatedAt") VALUES ($1,$2,$3,$4,$5,$6,$7,$8) RETURNING "id","name","price","totalStock","availableStock","startsAt","createdAt","updatedAt";
Executing (default): INSERT INTO "Users" ("id","username","createdAt","updatedAt") VALUES ($1,$2,$3,$4) RETURNING "id","username","createdAt","updatedAt";
Firing 100 concurrent reserve requests at drop 2ba67c59-c076-4c62-afc1-ca44948e3a59 (stock = 1)...
Results: 1 succeeded (201), 99 rejected (409), 0 other
Executing (default): SELECT "id", "name", "price", "totalStock", "availableStock", "startsAt", "createdAt", "updatedAt" FROM "Drops" AS "Drop" WHERE "Drop"."id" = '2ba67c59-c076-4c62-afc1-ca44948e3a59';
Final availableStock in DB: 0
✅ PASS: exactly one reservation succeeded, stock correctly at 0

✓  1 request  → 201 Created  (reservation granted)
✗ 99 requests → 409 Conflict (out of stock)

Zero oversells. The database constraint makes this guarantee hold regardless of server concurrency, connection pool size, or network timing.

Reservation Expiration

A background sweep runs every 5 seconds inside the Express process:

Query all ACTIVE reservations where expiresAt < now
Mark them EXPIRED in a single batch update
Increment availableStock on the affected drops
Emit stock:updated via Socket.io to all clients in the drop's room

This approach survives server restarts (state lives in Postgres, not memory) and requires no external scheduler.

Real-Time Events (Socket.io)

Event	Direction	Payload	Description
`joinDrop`	Client → Server	`{ dropId }`	Subscribe to a drop's room
`leaveDrop`	Client → Server	`{ dropId }`	Unsubscribe from a drop's room
`stock:updated`	Server → Client	`{ dropId }`	Stock count changed (reservation or expiry)
`purchase:completed`	Server → Client	`{ dropId, username, purchasedAt }`	A purchase was completed

API Reference

Users

Register / look up user

POST /api/users
Content-Type: application/json

{ "username": "alice" }

Returns the user record (creates if username not yet registered).

Drops

List all drops

GET /api/drops

Response includes availableStock and recentPurchasers (last 3, newest first).

Create a drop

POST /api/drops
Content-Type: application/json

{
  "name": "Air Jordan 1 Retro High OG",
  "price": 250,
  "totalStock": 10,
  "startsAt": "2026-06-21T12:00:00Z"
}

Reservations

Reserve an item

POST /api/drops/:dropId/reserve
Content-Type: application/json

{ "userId": "<uuid>" }

Returns a Reservation with expiresAt 60 seconds from now. Returns 409 if out of stock.

Complete a purchase

POST /api/reservations/:reservationId/purchase
Content-Type: application/json

{ "userId": "<uuid>" }

Returns 410 if the reservation has expired.

Running Locally

Prerequisites

Node.js ≥ 20
A PostgreSQL database (Neon free tier works fine)

Backend

cd backend
npm install

Create backend/.env:

DATABASE_URL=postgresql://user:pass@host/dbname?sslmode=require
PORT=5000
NODE_ENV=development

Run migrations, then seed demo data:

npx sequelize-cli db:migrate
npx sequelize-cli db:seed:all   # optional — seeds 5 demo users

Start the dev server:

npm run dev

Server starts on http://localhost:5000.

Frontend

cd frontend
npm install

Create frontend/.env:

VITE_API_URL=http://localhost:5000

Start the dev server:

npm run dev

App opens on http://localhost:5173.

Creating a drop (quick start)

With the backend running, create a drop via curl or Postman:

curl -X POST http://localhost:5000/api/drops \
  -H "Content-Type: application/json" \
  -d '{"name":"Air Jordan 1","price":250,"totalStock":5,"startsAt":"2026-01-01T00:00:00Z"}'

Then open http://localhost:5173, enter a username, and the drop appears.

Environment Variables

Backend (`backend/.env`)

Variable	Description
`DATABASE_URL`	Postgres connection string (Neon or local)
`PORT`	HTTP server port (default: `5000`)
`NODE_ENV`	`development` or `production`

Frontend (`frontend/.env`)

Variable	Description
`VITE_API_URL`	Backend base URL (e.g. `http://localhost:5000`)

Project Structure

techzu.demo/
├── backend/
│   ├── src/
│   │   ├── config/          # Sequelize config, associations, env
│   │   ├── jobs/            # Expiration sweep job
│   │   ├── middlewares/     # Error handler, request validation
│   │   ├── migrations/      # Sequelize migrations (4 tables)
│   │   ├── modules/
│   │   │   ├── drops/       # Model, controller, routes, service, schema
│   │   │   ├── reservations/
│   │   │   ├── purchases/
│   │   │   └── users/
│   │   ├── scripts/         # Seed, load test, socket test client
│   │   ├── services/        # stock.service.ts (atomic decrement)
│   │   └── socket/          # Socket.io setup and event handlers
│   ├── .sequelizerc
│   └── package.json
│
└── frontend/
    ├── src/
    │   ├── components/
    │   │   ├── DropCard.tsx      # Per-card state machine (idle→reserving→reserved→…)
    │   │   ├── StockBadge.tsx    # Colour-coded stock indicator
    │   │   └── PurchaseFeed.tsx  # Recent purchasers list
    │   ├── hooks/
    │   │   ├── useSocket.ts      # Socket.io connection + room management
    │   │   └── useCountdown.ts   # 60s reservation countdown
    │   ├── api.ts                # Typed fetch wrappers + ApiError class
    │   ├── types.ts              # Shared TypeScript interfaces
    │   └── App.tsx               # Root: drops state, socket wiring, login screen
    └── package.json

Future Improvements

Redis pub/sub for horizontal WebSocket scaling across multiple backend instances
BullMQ for durable background job processing
JWT authentication replacing the current username-based identity
Rate limiting per user / IP
Distributed locking (Redlock) for reservation critical sections
Monitoring and observability (OpenTelemetry, Sentry)
Admin dashboard for managing drops in real time

Author

Sheikh Sakib Ahmed. Full Stack Developer
