Reports

Reports

Export audit results as CSV, JSON, or HTML for sharing with leads, QA, and producers. Reports always reflect a complete audit snapshot — asset path, rule, severity, suggested fix — with optional milestone labels and diff tracking between runs.

Entry points

There are five ways to trigger an export. All of them produce the same file formats.

Where	How to trigger	Source data
Tools menu	Tools → Asset Standards Validator → Export Report...	Runs a fresh full audit

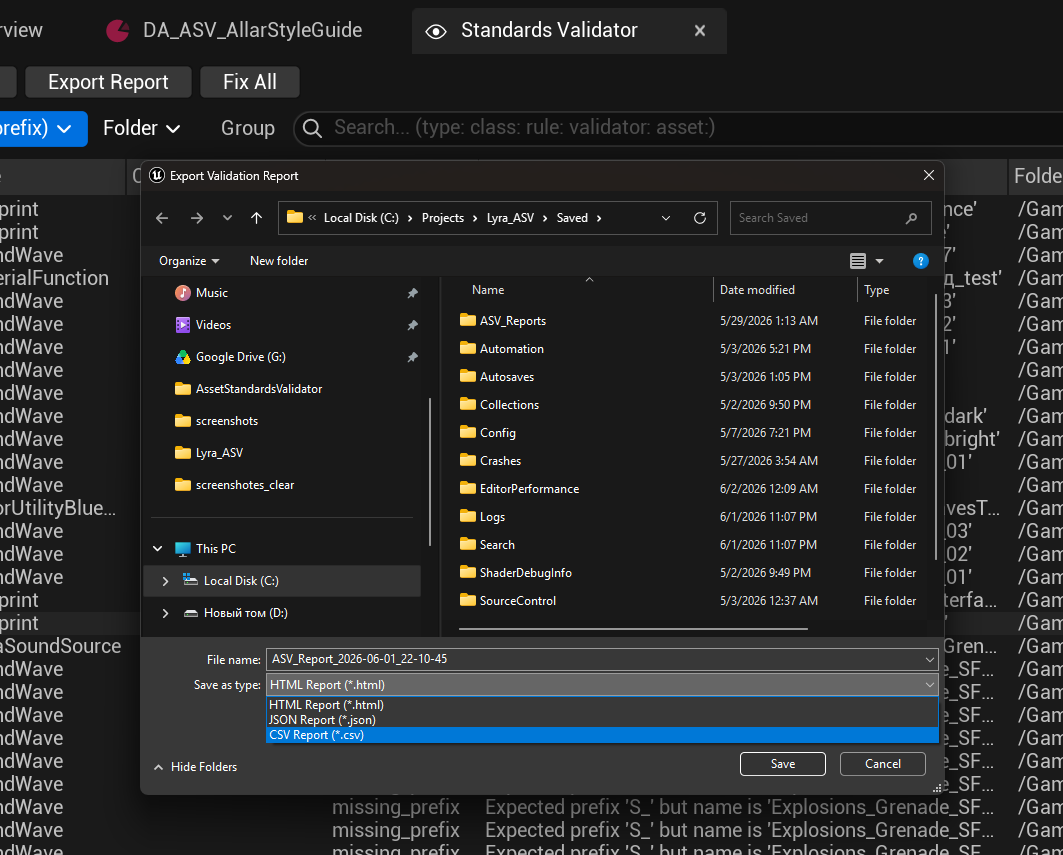

ASV Panel	Click the Export button in the panel toolbar	Current panel results — filtered subset or all results, your choice
Message Log	Click [Export Report] in the Content Validation log after an audit	The last completed audit stored in the subsystem
Console command	ASV.Export <format> <output_dir> [milestone]	Runs a fresh full audit
Commandlet (CI)	-run=ASVCommandlet -format=html -output=path	Runs a fresh full audit headlessly

Tip: The ASV Panel export is the only entry point that can export a filtered subset. If your panel shows 40 of 200 results (e.g. only P0 errors in one folder), the export can capture exactly those 40. All other entry points always run a fresh full audit.

Output files

Every export writes two files to the chosen directory:

• ASV_Report_2026-04-14_14-30-00.<ext> — timestamped file for archiving
• ASV_Report_latest.<ext> — always overwritten, easy to reference from scripts

A companion file ASV_Report_latest.asv-report.json is also written alongside any export. It stores metadata for diff tracking — if the same checker configuration is used on the next run, the report will include a diff section showing new violations and resolved ones.

CSV format

Comma-separated values, UTF-8. Suitable for import into Excel, Google Sheets, or any data tool.

Comment header

The first lines start with # and are skipped by most CSV parsers. They contain audit metadata:

# schemaVersion: 1.0
# timestamp: 2026-04-14T14:30:00.000Z
# projectName: MyGame
# asvVersion: 0.5.0
# checkerConfigs: StrictConfig
# scanRoots: /Game/
# auditSource: fresh_audit
# assetsScanned: 1247
# assetsWithViolations: 38
# assetsWithCriticalViolations: 15
# totalViolations: 38
# healthScore: 94.32
# p0: 5  p1: 12  p2: 18  p3: 3  autoFixable: 10

Columns

Column	Description
AssetPath	Full content path, e.g. /Game/Characters/BP_Enemy
AssetClassName	UE class name, e.g. Blueprint
PackagePath	Parent folder path, e.g. /Game/Characters
RuleId	Rule identifier, e.g. missing_prefix
Severity	P0 / P1 / P2 / P3
Problem	Human-readable description of the violation
Suggestion	Short suggested action, or empty if no fix is available
AutoFixAvailable	true / false
ProposedFix	Detailed proposed fix string used by auto-fix
ValidatorName	Validator class, e.g. ASVValidator_NamingConvention
CheckerName	Checker config asset that triggered this rule
TriggerName	Trigger class that started the audit, e.g. ASVTrigger_Manual

JSON format

Condensed JSON, UTF-8. Structured for programmatic use — CI scripts, dashboards, trend tracking.

Top-level structure

{
  "meta": { ... },
  "summary": { ... },
  "diff": { ... },          // only present if a previous report exists with same config
  "violations": [ ... ]
}

meta

Field	Description
schemaVersion	Always "1.0" in this release
timestamp	ISO 8601 timestamp: 2026-04-14T14:30:00.000Z
projectName	Project name from FApp::GetProjectName()
asvVersion	Plugin version string
milestoneLabel	Label passed via -milestone or console command, or empty string
auditSource	fresh_audit, accumulated, or filtered
checkerConfigNames	Sorted array of active checker config names — used for diff matching
scanRoots	Array of scanned content paths, e.g. ["/Game/"]

summary

Field	Description
assetsScanned	Total assets checked
totalIssues	Total violation count
p0 / p1 / p2 / p3	Per-severity counts
healthScore	Percentage of assets with no P0/P1 violations: (scanned − criticalAssets) / scanned × 100
topRules	Array of {"rule", "count"}, sorted by count descending, top 10
byFolder	Map of top-level folder → issue count
byValidator	Map of validator name → issue count
top3Actions	Top 3 most common suggested fixes

diff (optional)

Only present when a companion .asv-report.json from a previous run exists and the checker config matches exactly.

Field	Description
previousTimestamp	Timestamp of the previous run
deltaTotal	Net change in total issues (positive = more issues)
deltaP0 / deltaP1 / deltaP2 / deltaP3	Per-severity delta
newCount	Violations not in the previous run
resolvedCount	Violations from the previous run that are gone
newViolations	Array of new violation objects (same shape as items in violations)

violations array

Each item has: assetPath, assetClassName, packagePath, ruleId, severity, problem, suggestion, autoFixAvailable, proposedFix, validatorName, checkerName, triggerName.

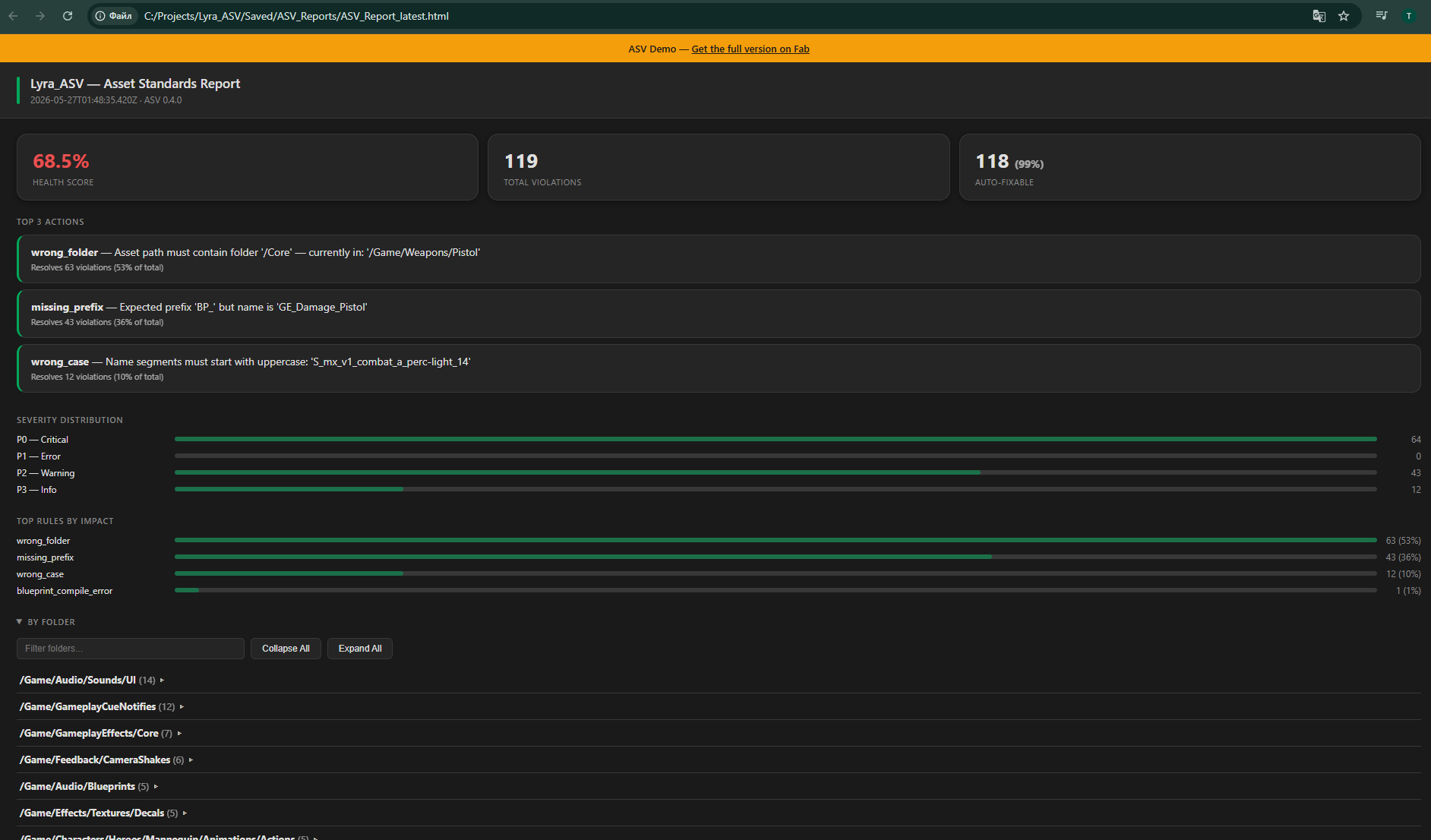

HTML report

A self-contained HTML file — no external dependencies, works offline. Designed for sharing with leads and producers who don't have the editor open.

Executive summary

At the top: health score (color-coded green / yellow / red), total issue count with per-severity breakdown, assets scanned, top violated rules, issues by folder, and top suggested actions.

Violations table

Interactive table with:

• Search — filters across all columns in real time
• Sort — click any column header
• Pagination — 50 rows per page, fast on large reports
• View toggle — switch between violation-per-row and grouped-by-asset views

Health score thresholds

Score	Color	Meaning
≥ 90%	Green	Pipeline-safe — only minor issues remain
70–89%	Yellow	Needs attention — some P0/P1 violations
< 70%	Red	Critical — significant P0/P1 violations found

Tip: Health score counts assets, not violations. One asset with five P0 violations still counts as one affected asset. This prevents a single badly-named asset from disproportionately tanking the score.

Commandlet flags

When running from CI, pass export flags alongside the existing commandlet arguments:

UnrealEditor-Cmd.exe MyProject.uproject -run=ASVCommandlet \
  -Root=/Game/Content \
  -severity=P0 \
  -format=html \
  -output=C:/Artifacts/Reports \
  -milestone=Sprint-42

Flag	Values	Default	Description
-format	csv, json, html	none	Export format. If omitted, no export file is written.
-output	Directory path	none	Directory to write the report into. Created if it doesn't exist.
-milestone	Any string	Empty	Label embedded in the report header (e.g. Sprint-42, Beta-1.3).

Exit codes:

• 0 — success (or violations found but below -severity threshold)
• 1 — violations found at or above -severity
• 2 — export write failure (file path invalid, disk full, etc.)

Console command

Run an export from the editor's output console or a -ExecCmds argument:

ASV.Export html C:/Reports/MyProject Sprint-42

Argument	Required	Description
<format>	Yes	csv, json, or html
<output_dir>	Yes	Directory to write to
[milestone]	No	Optional label embedded in the report

The command runs a fresh full audit before exporting. Results are also sent to the UE Output Log and the Content Validation Message Log listing.

Tip: To automate exports in a build pipeline without using the commandlet, add -ExecCmds="ASV.Export html C:/Reports;Quit" to any editor launch command. The Quit command exits the editor after the export completes.
