Release Notes — v0.0.48

Covers changes from v0.0.47 to v0.0.48.

Configurations

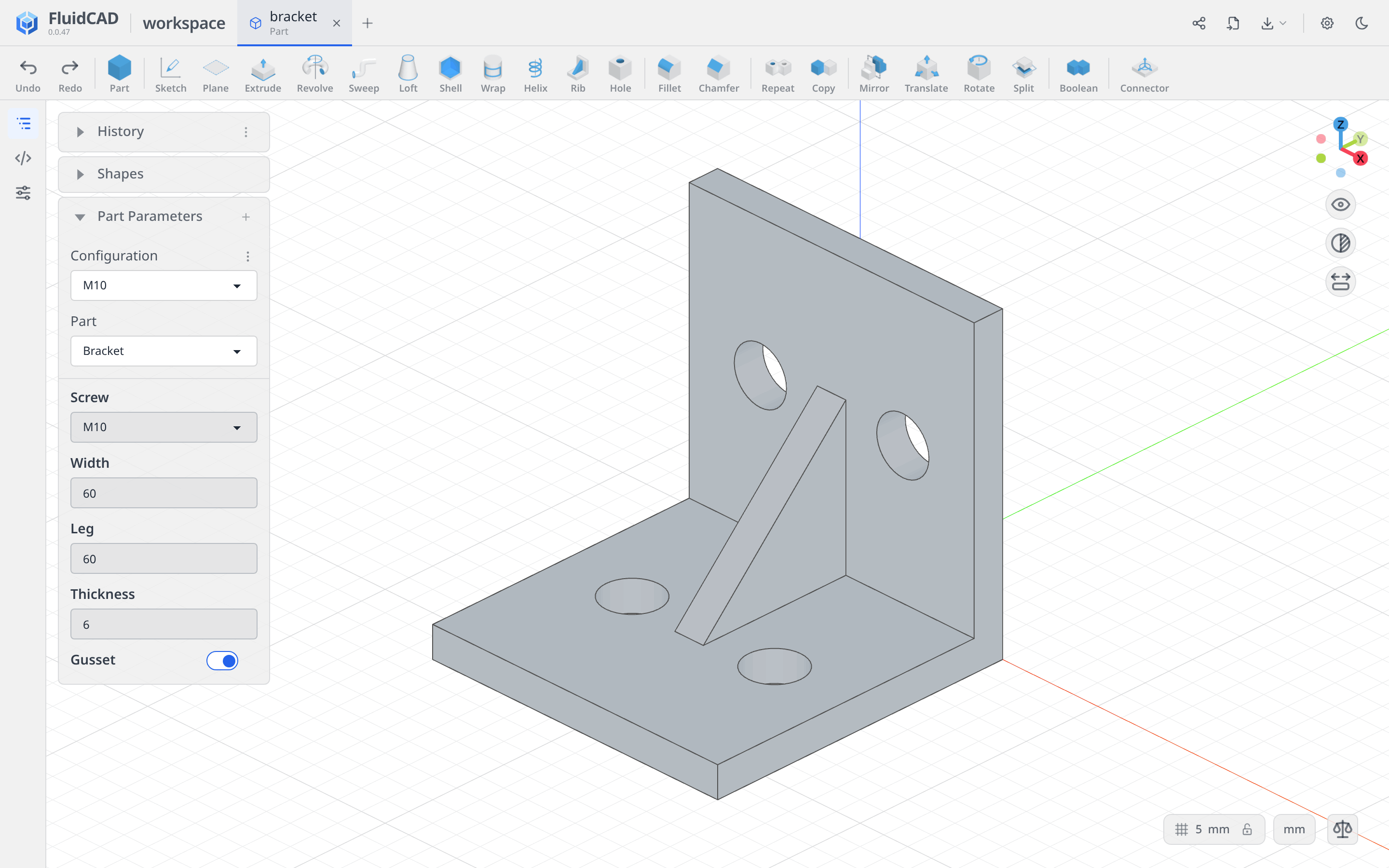

New configurations({...}) table: named sets of values for a part's or an assembly's parameters, such as a bracket in M6, M8 and M10.
Each row lists only the values it changes. Everything else stays shared, and Default is the param() values themselves.
Switch, add, duplicate, rename and delete configurations from the Configuration row of the Parameters panel.

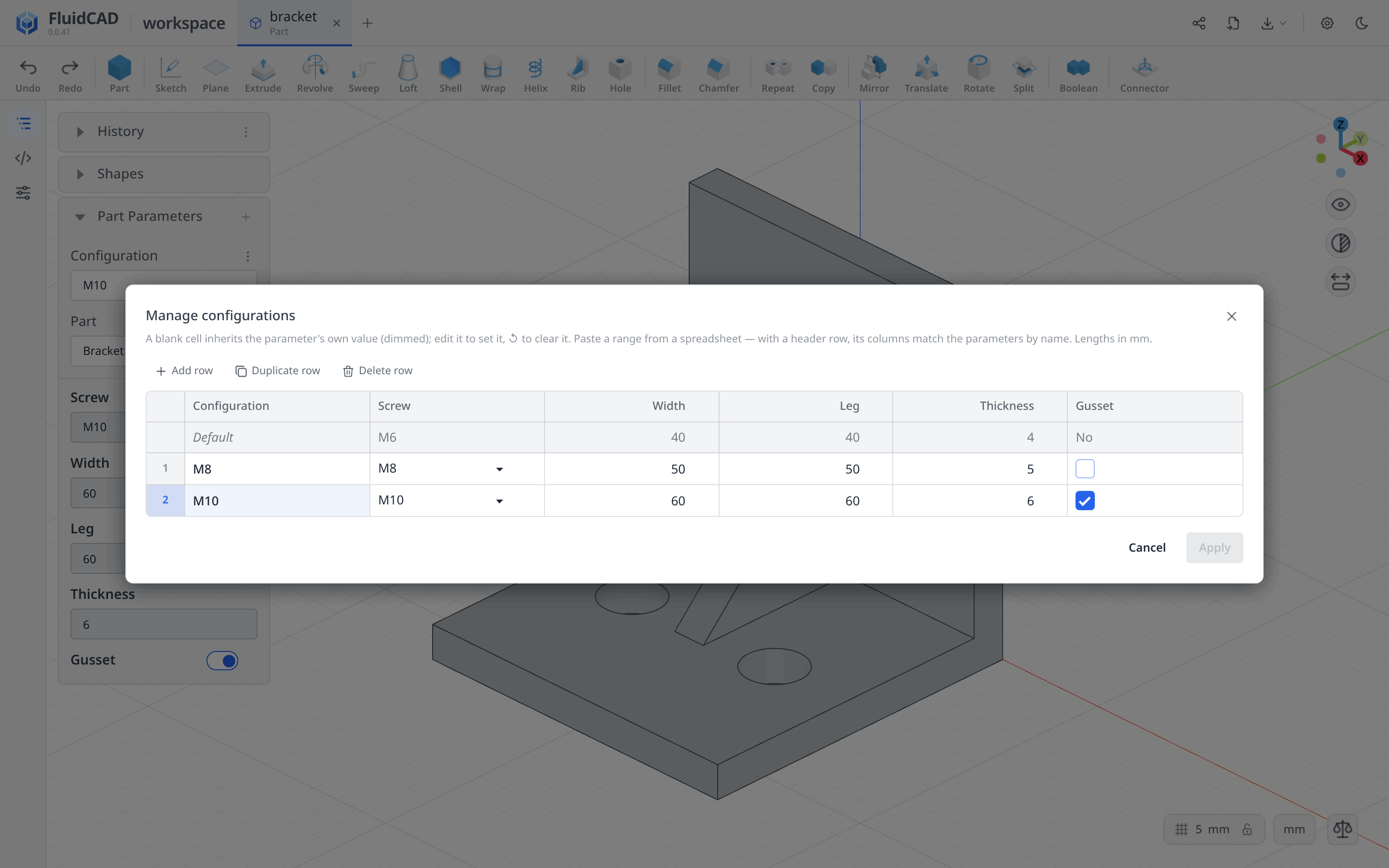

Manage… opens the whole table as a grid. Paste ranges straight from a spreadsheet.

Assemblies insert a configuration by name: insert(bracket, 'M8'), or pick it in the Insert dialog.
Export one configuration, or All configurations into one zip. The CLI takes --configuration and --all-configurations.

A *.params.js file holds parameters shared by the whole project: export const wall = param('Wall thickness', 3).
Any part or assembly reads them with a normal import, and rebuilds when they change.
The new Global Parameters button on the left rail, below Code, lists and edits them.
Every expression input offers them under a G chip and writes the import for you.

The panel is now Part Parameters or Assembly Parameters.
Changes are saved into the source as you make them, each one an undo step. No more Save button.
A value outside a parameter's range or options is refused with a message.

New Translate dialog on the toolbar, next to Mirror and Rotate.
Drag the gizmo to move the solids, with a live preview, or type exact distances.
Copy keeps the originals and adds moved copies.

Shell previews its walls while you set the thickness, its side and the join type.
Extrude up to a face previews where it ends, for a picked face and for first/last face.

Make an inserted part see-through with .transparent(v), or Transparency… in the Parts panel.
The + file picker creates a part, an assembly or a global parameters file.

Breaking: every part() must be exported from the top level of its file, and part names must be unique within a file. A part that breaks either rule does not build, and the error says how to fix it.
Picking an edge shared by two touching bodies now picks the one you clicked.
Repeating a split cuts the same bodies again at the moved cut.
Timeline: dragging the breakpoint keeps a single stop, and the list no longer jumps or flashes scrollbars.
Lower memory use: the engine frees its temporary geometry after every build.

Extrude to first/last face stops at the face it actually reaches.
repeat() and copy() of a sketch with a spline, Bezier or 2D copy no longer fail.
Repeating a feature now also repeats the axis() and 2D copy() inside its sketch.
Face colors no longer disappear from parts in an assembly after the first render.
Hover-picking in a section view skips the faces and edges the cut hides.
Finishing a sketch keeps the breakpoint it was created at.
Editing a feature no longer lifts or misplaces the breakpoint.
A hole's placements no longer add extra Select rows to the timeline.
