Android MPEG–H offload playback and UI handling

This document outlines a concept for MPEG-H integration into the Android OS, focusing on enabling MPEG-H offload playback and defining the API usage for 2-way MPEG-H UI XML message communication between the MPEG-H decoder running in Audio HW layer and an OTT/OTA application.

Integration overview

MPEG-H decoder and MPEG-H UI manager part of Audio HW / SoC HW (accessible via Audio HAL)
MPEG-H bitstream offload playback using AudioTrack API as ENCODING_MPEGH_* audio format
New MEPG-H AudioSceneInformation availability event using AudioTrack API
2-way MPEG-H UI XML message communication using AudioManager system service

MPEG-H offload playback

Enable MPEG-H offload playback using AudioTrack API:

MPEG-H Audio HAL offload support for AUDIO_FORMAT_MPEGH_* types
- as defined in system/media/audio/include/system/audio-hal-enums.h
  - AUDIO_FORMAT_MPEGH_BL_L3
  - AUDIO_FORMAT_MPEGH_BL_L4
  - AUDIO_FORMAT_MPEGH_LC_L3
  - AUDIO_FORMAT_MPEGH_LC_L4
MPEG-H offload playback using ENCODING_MPEGH_* audio formats with AudioTrack API
- as defined in frameworks/base/core/jni/android_media_AudioFormat.h or frameworks/base/media/java/android/media/AudioFormat.java
  - ENCODING_MPEGH_BL_L3
  - ENCODING_MPEGH_BL_L4
  - ENCODING_MPEGH_LC_L3
  - ENCODING_MPEGH_LC_L4

Exposing the supported MPEG-H profiles & levels

To enable an OTT/OTA application to identify the supported MPEG-H profiles and levels on the device, it is advisable to expose the supported ENCODING_MPEGH_* encoding formats with the AudioManager→AudioDeviceInfo→getEncodings() API.

Exposing HDMI sink device capability

To enable an OTT/OTA application to identify the supported MPEG-H profiles and levels of the connected HDMI sink device, it is advisable to expose the supported ENCODING_MPEGH_* encoding formats with the AudioManager→AudioDeviceInfo→getEncodings() API according to the HDMI EDID MPEG-H SAD

If the HDMI sink device capability will not be exposed with AudioManager→AudioDeviceInfo→getEncodings() API, it is advisable at least to expose the HDMI EDID of the connected soundbar in AudioManager→AudioDeviceInfo→getAudioDescriptors() API using the AudioDescriptor::STANDARD_EDID type

MPEG-H UI handling

The MPEG-H UI XML communication needs to be implemented using AudioManager service. The AudioManager service API allows:

request data from Android audio system (from Audio HAL implementation)
send data to Android audio system (to Audio HAL implementation)

NOTE: the AudioTrack API doesn't provide a way to send custom messages (in this case MPEG-H UI XML commands) to the Android audio system.

A notification about availability of a new MPEG-H Audio Scene Configuration shall be signaled using:

[for OTT applications] AudioTrack.OnCodecFormatChangedListener interface
[for LiveTV applications] TvInputService.Session.notifyTvMessage TIF API interface

Signaling and retrieving of the MPEG-H Audio Scene Configuration

As soon as the MPEG-H UI manager, integrated in SoC HW, will provide a new MPEG-H Audio Scene Configuration XML, a notification needs to be sent
to a registered OTT/OTA application.

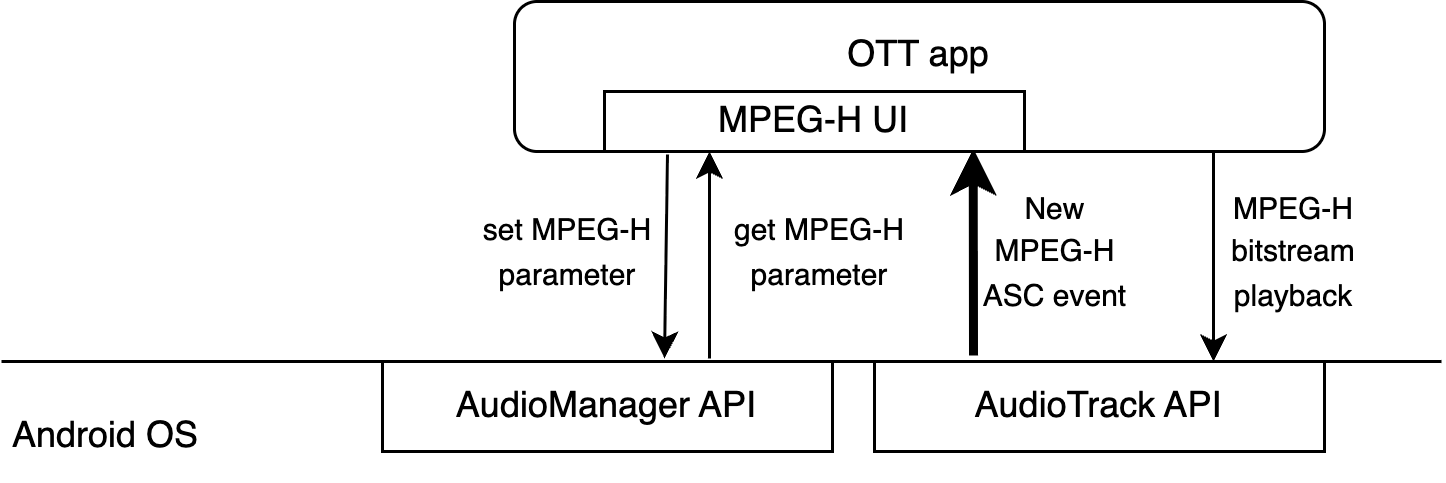

OTT use case handling

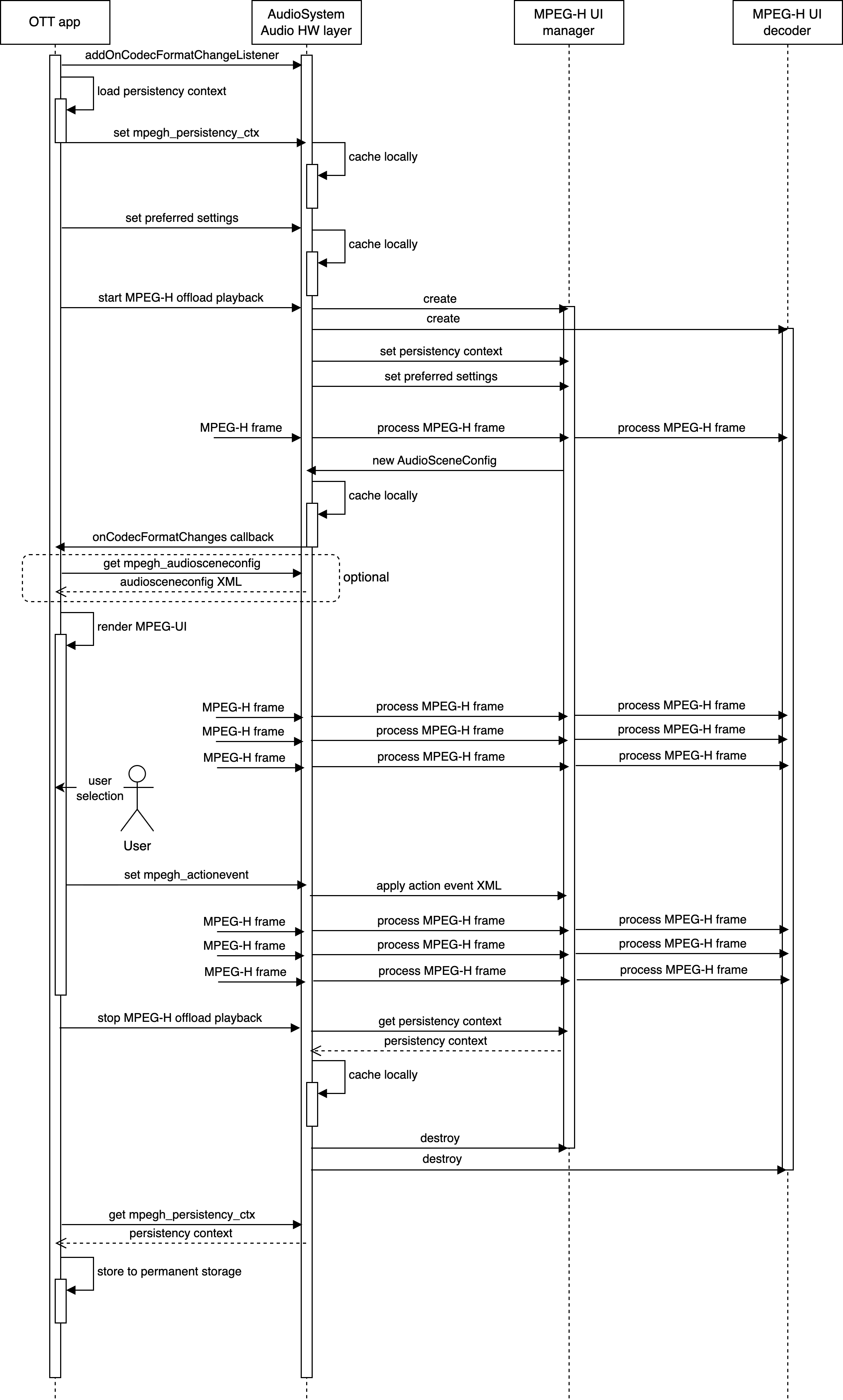

Android audio system (from Audio HAL implementation) signals and delivers a new MPEG-H Audio Scene Configuration to the OTT application using the AudioTrack.OnCodecFormatChangedListener callback.

Since the AudioMetadata.Format class doesn't contain a suitable key definition the OTT application needs to create MPEG-H specific key type "mpegh_audiosceneconfig"

NOTE: the Android audio system (from Audio HAL implementation) needs to call the AudioTrack::OnCodecFormatChanged with the same key definition.

...
@NonNull public static final AudioMetadata.Key<String> KEY_MPEGH_AUDIOSCENECONFIG =
        createKey("mpegh_audiosceneconfig", String.class);

public static <T> AudioMetadata.Key<T> createKey(@NonNull String name, @NonNull Class<T> type) {
    // Implementation specific.
    return new AudioMetadata.Key<T>() {
        private final String mName = name;
        private final Class<T> mType = type;

        @Override
        @NonNull
        public String getName() {
            return mName;
        }

        @Override
        @NonNull
        public Class<T> getValueClass() {
            return mType;
        }

        /**
         * Return true if the name and the type of two objects are the same.
         */
        @Override
        public boolean equals(Object obj) {
            if (obj == this) {
                return true;
            }
            if (!(obj instanceof AudioMetadata.Key)) {
                return false;
            }
            AudioMetadata.Key<?> other = (AudioMetadata.Key<?>) obj;
            return mName.equals(other.getName()) && mType.equals(other.getValueClass());
        }

        @Override
        public int hashCode() {
            return Objects.hash(mName, mType);
        }
    };
}
...

@Override
public void onCodecFormatChanged(AudioTrack audioTrack, AudioMetadataReadMap info) {
    if (info.containsKey(KEY_MPEGH_AUDIOSCENECONFIG)) {
        String mpegh_audiosceneconfig_xml = info.get(KEY_MPEGH_AUDIOSCENECONFIG)
        // Pass the received mpegh_audiosceneconfig_xml to the MPEG-H UI renderer component
    }
}

The Android audio system (from Audio HAL implementation) needs also to support polling method to retrieve the MPEG-H Audio Scene Configuration using AudioManager.getParameters function:

...
String mpegh_audiosceneconfig_xml = audioManager.getParameters("mpegh_audiosceneconfig");

// process the retrieved MPEG-H AudioSceneConfig XML

Note:

In a case the Audio HAL implementation supports multiple MPEG-H offload playback sessions and only one MPEG-H UI manager instances runs, the Audio HAL implementation shall return MPEG-H Audio Scene Configuration from a running MPEG-H UI manager instance.

The Audio HAL implementation may prefix the return value with the HW_SYNC_ID parameter, for example:
hw_sync_id=<ID>;mpegh_audiosceneconfig=<AudioSceneConfig .../>

This allows the OTT application to retrieve the required HW_SYNC_ID for subsequent calls in cases where the MPEG-H UI renderer component and Audio Sink implementation cannot easily communicate to obtain the HW_SYNC_ID from the created AUDIO_SESSION_ID.

If the Audio HAL implementation supports multiple MPEG-H offload playback sessions and multiple MPEG-H UI manager instances are running, the Audio HAL implementation shall return NULL as the parameter value.

OTA use case handling

The processing of indication and delivery of a new MPEG-H Audio Scene Configuration in OTA use cases involves following components:

TIS input service → responsible to communicate to the Android audio system
LiveTV app → responsible for visualization of the MPEG-H User Interface

The TV input service acts like an OTT application. The handling to receiving a new MPEG-H Audio Scene Configuration is identical to the process described above (see "OTT use case handling").

After the new MPEG-H Audio Scene Configuration is received by the TV input service it will be forwarded to the LiveTV app using the TvInputService.Session.notifyTvMessage function:

...
class TvInputSessionImpl extends TvInputService.Session implements AudioTrack.OnCodecFormatChangedListener {

    ...
    @Override
    public void onCodecFormatChanged(AudioTrack audioTrack, AudioMetadataReadMap info) {
        if (info.containsKey(KEY_MPEGH_AUDIOSCENECONFIG)) {
            String mpegh_audiosceneconfig_xml = info.get(KEY_MPEGH_AUDIOSCENECONFIG);
            // Pass the received MPEG-H Audio Scene Configuration to the LiveTV app
            Bundle bundle = new Bundle();
            bundle.putString("android.media.tv.TvInputManager.TV_MESSAGE_KEY_MPEGH_AUDIO_SCENE_CONFIG", mpegh_audiosceneconfig_xml);
            this.notifyTvMessage(TvInputManager.TV_MESSAGE_TYPE_OTHER, bundle);
        }
    }
   ...

The LiveTV app will receive the sent message using the TvView.TvInputCallback.onTvMessage callback:

...
class TvInputCallbackImpl implements TvView.TvInputCallback {

   ...
   @Override
   public void onTvMessage(String inputId, int type, Bundle data) {
      if (type == TvInputManager.TV_MESSAGE_TYPE_OTHER) {
         String mpegh_audiosceneconfig_xml = bundle.getString("android.media.tv.TvInputManager.TV_MESSAGE_KEY_MPEGH_AUDIO_SCENE_CONFIG");

         // process rendering of the new received MPEG-H Audio Scene Configuration
         ...
      }
   }
   ...

MPEG-H Preferred Audio Settings

The OTT/OTA application will use AudioManager.setParameters() function to submit the MPEG-H Preferred Audio Settings such as:

Preferred Audio Language
- associated parameter key: "mpegh_audio_lang"
Preferred Label Language
- associated parameter key: "mpegh_label_lang"
Accessibility Mode
- associated parameter key: "mpegh_accessibility"
Preferred DRC Effect
- associated parameter key: "mpegh_drc_effect"
DRC Album Mode
- associated parameter key: "mpegh_drc_album"
DRC Boost Factor
- associated parameter key: "mpegh_drc_boost"
DRC Attenuation Factor
- associated parameter key: "mpegh_drc_att"
Target Loudness
- associated parameter key: "mpegh_tl"

Pseudo-code example to set MPEG-H Preferred Audio Language to English and to disable MPEG-H Accessibility Mode:

audioManager.setParameters("mpegh_audio_lang=eng;mpegh_accessibility=0");

The parameter values are defined in MPEG-H UI manager specification

Note:
The OTT/OTA application may set MPEG-H Preferred Audio Settings before MPEG-H playback begins. Therefore, the Android audio system (Audio HW layer) should cache these settings and apply the cached parameters as soon as the MPEG-H UI manager instance is created.

Pseudo-code example for parameter cache handling:

std::unordered_map<std::string, std::string> mpegh_preferred_settings;

...

void process_setParameters(const std::string& param) {
    std::unordered_map<std::string, std::string> parameters = parseSetParameters(param);
    for (const auto& pair : parameters) {
        std::cout << "key: " << pair.first << ", value: " << pair.second << std::endl;

        if (pair.first == "mpegh_audio_lang" ||
            pair.first == "mpegh_label_lang" ||
            pair.first == "mpegh_accessibility" ||
            pair.first == "mpegh_drc_effect" ||
            pair.first == "mpegh_drc_album" ||
            pair.first == "mpegh_drc_boost" ||
            pair.first == "mpegh_drc_att" ||
            pair.first == "mpegh_tl") {
            // cache the received MPEG-H preferred setting
            mpegh_preferred_settings[pair.first] = pair.second;
        } else if (/* other conditions */) {
            // handle other parameters
        }
        // ...
    }
}

...

Pseudo-code example to pass the cached preferred settings after MPEG-H UI manager instance creation:

std::unordered_map<std::string, std::string> mpegh_preferred_settings;

void init_playback() {
    // ... (other initialization code)

    HANDLE_MPEGH_UI_MANAGER mpegh_uim = mpegh_UI_Manager_Open();

    for (const auto& pair : mpegh_preferred_settings) {
        std::string mpegh_action_event;

        if (pair.first == "mpegh_audio_lang") {
            mpegh_action_event =
                "<ActionEvent uuid=\"00000000-0000-0000-0000-000000000000\" "
                "version=\"1.1.0\" actionType=\"70\" paramText=\"" + pair.second + "\"/>";
        } else if (pair.first == "mpegh_label_lang") {
            // ... handle label language
        }
        // ... handle other keys

        // apply preferred audio setting
        mpegh_UI_ApplyXmlAction(mpegh_uim, mpegh_action_event.c_str(), mpegh_action_event.size(), &flags);
    }

    // ... (other code)
}

Note:
OTT/OTA applications can retrieve the cached MPEG-H Preferred Settings using the AudioManager.getParameters() function.
Example:
String mpegh_preferred_audio_language = audioManager.getParameters("mpegh_audio_lang");
For the OTA use case, the TV input service is responsible for setting the MPEG-H Preferred Settings.

These settings are global and should not be bound to individual audio sessions, especially if the Audio HAL implementation supports multiple MPEG-H offload playback sessions.

The MPEG-H Preferred Settings message will not be prefixed with HW_SYNC_ID.

MPEG-H Audio Personalization Settings

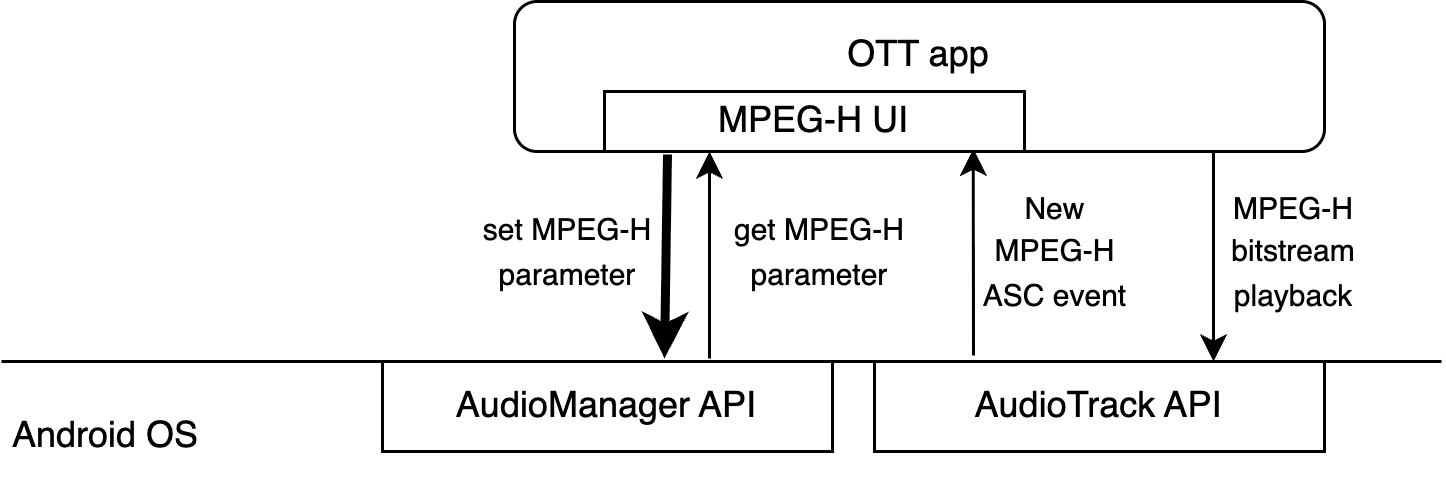

OTT use case handling**

An OTT application will use AudioManager.setParameters() function to pass the user selections as MPEG-H ActionEvent XML messages according to the MPEG-H UI manager specification:

...

// create and send action event 1
String action_event_xml = "<ActionEvent uuid=\"12345678-1234-1234-1234-123456789012\" version=\"1.1.0\" actionType=\"41\" paramInt=\"1\" paramFloat=\"-6.0\" />";

audioManager.setParameters("mpegh_action_event=" + action_event_xml);

// create and send action event 2
action_event_xml = "<ActionEvent uuid=\"12345678-1234-1234-1234-123456789012\" version=\"1.1.0\" actionType=\"42\" paramInt=\"1\" paramFloat=\"160.0\" />";

audioManager.setParameters("mpegh_action_event=" + action_event_xml);

...

Note:

The OTT application may send multiple MPEG-H ActionEvent XML messages in sequence. Therefore, the Android audio system (Audio HAL implementation) should cache received messages in a queue if they cannot be immediately passed to the MPEG-H UI manager instance.

The OTT application may prefix the mpegh_action_event message with the HW_SYNC_ID, e.g., hw_sync_id=<ID>;mpegh_action_event=<ActionEvent ...>.
This allows the Audio HAL implementation to route the MPEG-H Action Event to the correct MPEG-H UI manager instance if multiple MPEG-H offload playback sessions are supported.

If the mpegh_action_event message is not prefixed with HW_SYNC_ID and there is only one running MPEG-H offload playback session, the Audio HAL implementation should pass the received mpegh_action_event message to the running MPEG-H UI manager instance.

Pseudo-code example for MPEG-H ActionEvent XML messages handling in case the MPEG-H UI manager instance can be used in thread-safe mode:

void process_setParameters(const std::string& param) {
    std::unordered_map<std::string, std::string> parameters = parseSetParameters(param);

    for (const auto& pair : parameters) {
        std::cout << "key: " << pair.first << ", value: " << pair.second << std::endl;

        if (pair.first == "mpegh_action_event") {
            mpegh_uim_mutex.lock();
            mpegh_UI_ApplyXmlAction(mpegh_uim, pair.second.c_str(), pair.second.size(), &flags);
            mpegh_uim_mutex.unlock();
        } else if (/* other condition */) {
            // ...
        }
        // ...
    }
}

Pseudo-code example for MPEG-H ActionEvent XML messages handling in case the MPEG-H UI manager instance cannot be used in thread-safe mode:

std::queue<std::string> mpegh_action_event_queue;

...

void process_setParameters(const std::string& param) {

    std::unordered_map<std::string, std::string> parameters = parseSetParameters(param);

    for (const auto& pair : parameters) {

        std::cout << "key: " << pair.first << ", value: " << pair.second << std::endl;

        if (pair.first == "mpegh_action_event") {

            // put the received MPEG-H ActionEvent XML to the queue
            mpegh_action_event_queue.push(pair.second);

        } else if (/* other condition */) {
            // ...
        }
        // ...
    }
}

...

void process_MpeghFrame(...) {
    // Pass all cached MPEG-H ActionEvent XML messages to MPEG-H UI manager
    while (!mpegh_action_event_queue.empty()) {
        const std::string& xml = mpegh_action_event_queue.front();
        mpegh_UI_ApplyXmlAction(mpegh_uim, xml.c_str(), xml.size(), &flags);
        mpegh_action_event_queue.pop();
    }

    // ...
    mpegh_UI_FeedMHAS(mpegh_uim, ...);
}

OTA use case handling

For the OTA use case:

the LiveTV app sends the user selections as MPEG-H ActionEvent XML messages using the TvView.sendAppPrivateCommand() function
the TV input service forwards the received MPEG-H ActionEvent XML messages from the LiveTV app to the Audio HAL implementation using the AudioManager.setParameters()

Pseudo-code for the LiveTV app:

...

class TvViewImpl extends TvView {

    ...

    @Override
    public void onUserEvent(...) {
        ...
        String mpeghActionEventXml = createMpeghActionEventXML(...);

        Bundle bundle = new Bundle();
        bundle.putString(
            "android.media.tv.TvInputManager.TV_MESSAGE_KEY_MPEGH_ACTION_EVENT",
            mpeghActionEventXml
        );

        this.sendAppPrivateCommand(
            "android.media.tv.TvInputManager.TV_COMMAND_MPEGH_ACTION_EVENT",
            bundle
        );
        ...
    }
    ...

Pseudo-code for the LTV input service:

...

class TvInputSessionImpl extends TvInputService.Session implements AudioTrack.OnCodecFormatChangedListener {

    ...

    @Override
    public void onAppPrivateCommand(String action, Bundle data) {
        if (action.equals("android.media.tv.TvInputManager.TV_COMMAND_MPEGH_ACTION_EVENT")) {
            // Get MPEG-H Action Event XML message
            String mpeghActionEventXml = data.getString(
                "android.media.tv.TvInputManager.TV_MESSAGE_KEY_MPEGH_ACTION_EVENT"
            );

            // Pass the received MPEG-H Action Event XML message to the Audio HAL implementation
            audioManager.setParameters("mpegh_action_event=" + mpeghActionEventXml);
        }
    }
    ...

MPEG-H Persistency handling

In order to allow the MPEG-H Persistency handling, the Android audio system (Audio HAL implementation) shall allow to set/get MPEG-H UI manager persistency context using the AudioManager.setParameters() and AudioManager.getParameters() functions.

The OTT/OTA application will set the MPEG-H persistency context before the MPEG-H offload playback starts and request this, for further saving to a permanent storage, after the MPEG-H offload playback is finished. Therefore the Android audio system (Audio HAL implementation) shall:

cache the set MPEG-H persistency context received from OTT/OTA application and pass to the MPEG-H UI manager immediately after the MPEG-H UI manager instance is created
retrieve and cache the MPEG-H persistency context before the MPEG-H UI manager instance is destroyed.

Pseudo-code example to handle received MPEG-H persistency context from OTT/OTA application:

std::string mpegh_persictency_context;

...

void process_setParameters(const std::string& param) {
    std::unordered_map<std::string, std::string> parameters = parseSetParameters(param);

    for (const auto& pair : parameters) {
        std::cout << "key: " << pair.first << ", value: " << pair.second << std::endl;

        if (pair.first == "mpegh_persistency_ctx") {
            // cache the received MPEG-H persistency context
            mpegh_persistency_context = pair.second;
        } else if (/* other conditions */) {
            // ...
        }
        // ...
    }
}

void init_playback() {
    // ...

    HANDLE_MPEGH_UI_MANAGER mpegh_uim = mpegh_UI_Manager_Open();

    // base64 decoding
    char* binary_data = nullptr;
    int binary_size = 0;
    std::tie(binary_data, binary_size) = Base64Decode(mpegh_persistency_context);

    mpegh_UI_SetPersistenceMemory(mpegh_uim, binary_data, binary_size);

    // ...
}

...

Pseudo-code example to handle the OTT/OTA application request for the MPEG-H persistency context:

std::string mpegh_persistency_context;

...

std::string process_getParameters(const std::string& parameters) {
    std::vector<std::string> parameter_keys = parseSetParameters(parameters);
    std::string rval;

    for (const auto& key : parameter_keys) {
        std::cout << "requested parameter: " << key << std::endl;

        if (key == "mpegh_persistency_ctx") {
            if (mpegh_uim != nullptr) { // get from running MPEG-H UI manager instance (should be thread-safe)
                char* binary_data = nullptr;
                int binary_size = 0;
                mpegh_UI_GetPersistenceMemory(mpegh_uim, binary_data, binary_size);
                rval += "mpegh_persistency_ctx=" + Base64Encode(binary_data, binary_size) + ";";
            } else { // otherwise return cached persistency context
                rval += "mpegh_persistency_ctx=" + mpegh_persistency_context + ";";
            }
        } else if (/* other conditions */) {
            // ...
        }
        // ...
    }

    return rval;
}

...

void stop_playback() {
    // ...

    char* binary_data = nullptr;
    int binary_size = 0;
    mpegh_UI_GetPersistenceMemory(mpegh_uim, binary_data, binary_size); // get MPEG-H persistency context
    mpegh_persistency_context = Base64Encode(binary_data, binary_size); // encode as base64 string and cache
    mpegh_UI_Manager_Close(mpegh_uim);

    // ...
}

...

Note:

Since the AudioManager set/get API supports only string values, the MPEG-H persistency context must be handled as follows:

Base64 encode the data after retrieving it from the MPEG-H UI manager before returning it to the OTT/OTA application.

Base64 decode the received MPEG-H persistency context from the OTT/OTA application before passing it to the MPEG-H UI manager.

For the OTA use case, the TV input service is responsible for MPEG-H persistency handling:

The TV input service loads and stores the MPEG-H persistency context from/to permanent storage.

Overall workflow

Following diagram shows overall workflow for MPEG-H offload playback and MPEH-UI manager handling for OTT use case

Following diagram shows overall workflow for MPEG-H offload playback and MPEH-UI manager handling for OTA use case

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

Uh oh!

Android MPEG–H offload playback and UI handling

Integration overview

MPEG-H offload playback

Exposing the supported MPEG-H profiles & levels

Exposing HDMI sink device capability

MPEG-H UI handling

Signaling and retrieving of the MPEG-H Audio Scene Configuration

OTT use case handling

OTA use case handling

MPEG-H Preferred Audio Settings

MPEG-H Audio Personalization Settings

OTT use case handling**

OTA use case handling

MPEG-H Persistency handling

Overall workflow

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Clone this wiki locally
