This PR enables longitudinal refinement for the refined level.
This is done in the following way:

The beam is binned per level. In the loop over the slices of the coarse grid, a sub-loop over the refined grid is done. For a refinement ratio of 4, 4 slices are calculated.

Additionally, in the InterpolateBoundaries, the correct longitudinal index is used in the coarse grid. This enables parallel runs.

This PR is tested in a parallel run in vacuum.

Additionally, I tested it with in a combined version with #561 and 564 in the blowout/ion motion case. However, the longitudinal refinement produces small step like ripples.
Screenshot from 2021-07-15 20-18-38

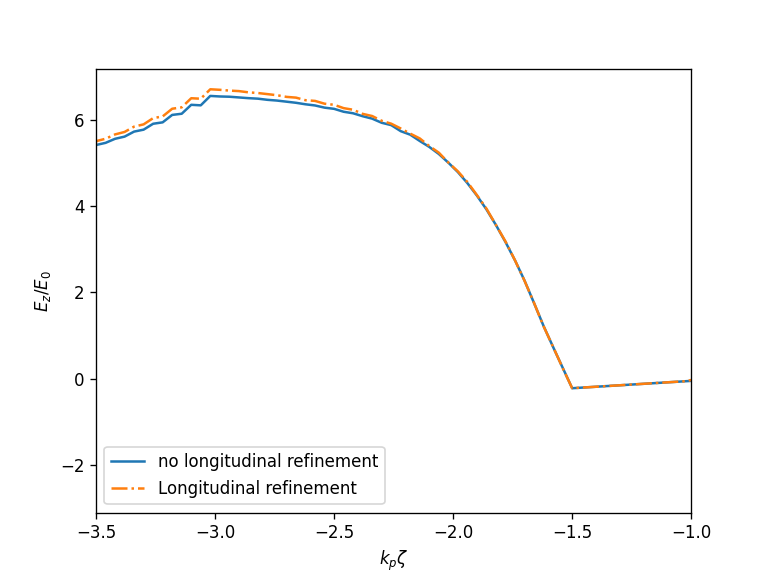

This was resolved by using a linear interpolation longitudinally. The fields Psi, Ez, Bz are also shifted to the Previous1 slice. Bx, By were already available. Then, a linear interpolation between the previous and the current slice is used. The ripples disappear:


  • Small enough (< few 100s of lines), otherwise it should probably be split into smaller PRs
  • Tested (describe the tests in the PR description)
  • Runs on GPU (basic: the code compiles and run well with the new module)
  • Contains an automated test (checksum and/or comparison with theory)
  • Documented: all elements (classes and their members, functions, namespaces, etc.) are documented
  • Constified (All that can be const is const)
  • Code is clean (no unwanted comments, )
  • Style and code conventions are respected at the bottom of https://github.com/Hi-PACE/hipace
  • Proper label and GitHub project, if applicable

@SeverinDiederichs SeverinDiederichs changed the title Mesh refinement: enable long refinement and parallel runs Mesh refinement: enable longitudinal refinement and parallel runs Jul 15, 2021
@SeverinDiederichs SeverinDiederichs changed the title Mesh refinement: enable longitudinal refinement and parallel runs [WIP] Mesh refinement: enable longitudinal refinement and parallel runs Jul 15, 2021
@SeverinDiederichs SeverinDiederichs changed the title [WIP] Mesh refinement: enable longitudinal refinement and parallel runs Mesh refinement: enable longitudinal refinement and parallel runs Jul 19, 2021
@SeverinDiederichs SeverinDiederichs changed the title Mesh refinement: enable longitudinal refinement and parallel runs Mesh refinement: enable longitudinal refinement Jul 21, 2021
@SeverinDiederichs SeverinDiederichs added the mesh refinement anything related to mesh refinement label Jul 22, 2021
@SeverinDiederichs
Copy link
Copy Markdown
Member Author

outdated by #574
