Retrovisor 3D v0.8.0

Latest
Latest

Choose a tag to compare

View all tags
@github-actions github-actions released this 29 Jul 09:47
v0.8.0
483adea

Retrovisor 3D v0.8.0 — Forge, motion and local agent

Release date: 2026-07-29

Retrovisor 3D v0.8.0 expands the editor from object authoring into a more
complete character workflow: build avatars, rig and animate them, recover
motion from local video, create 2.5D models from transparent images, and use a
local agent without sending scene data through an intermediary.

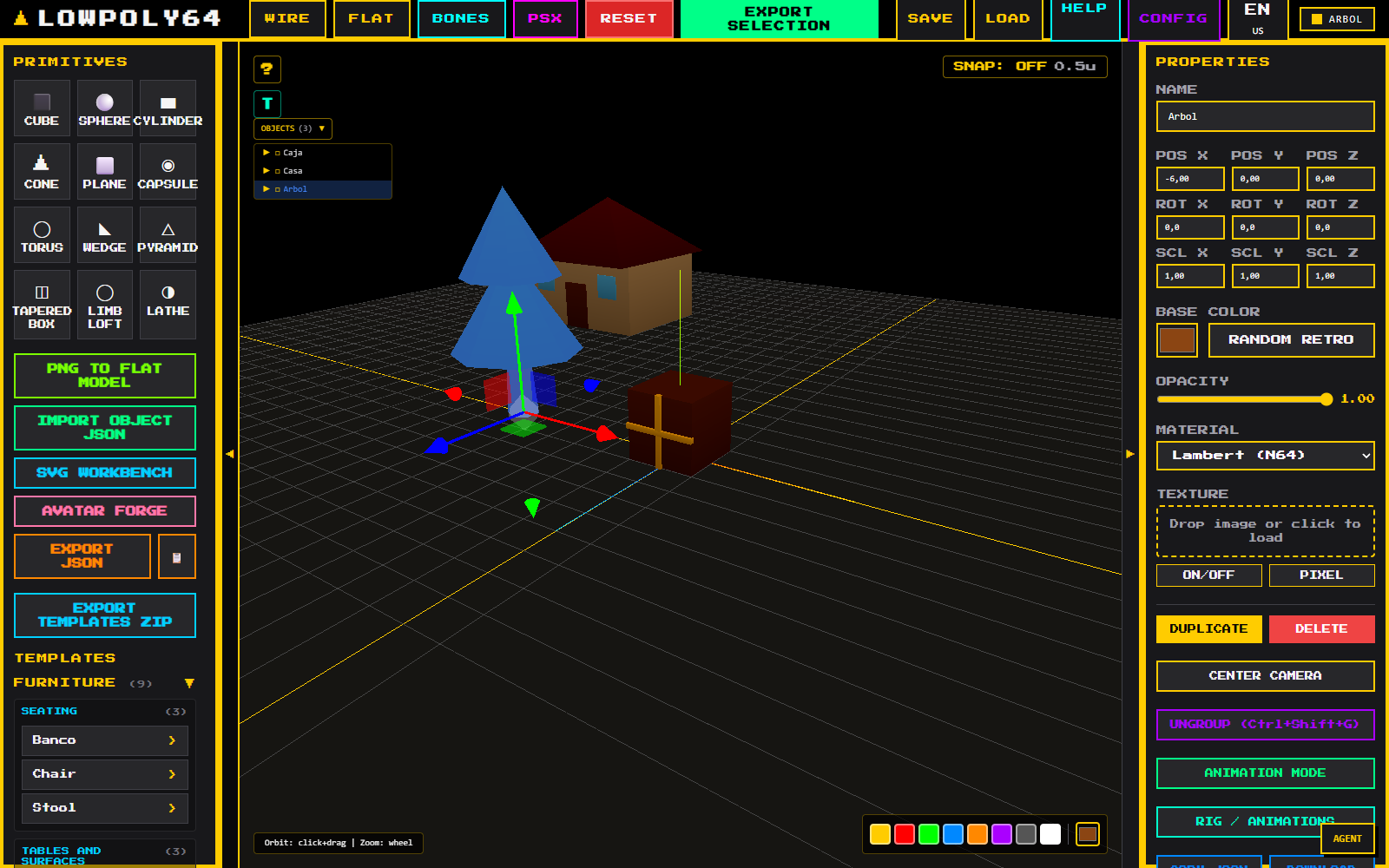

Retrovisor 3D editor

Highlights

Local-first agent

The new AGENT panel and MCP bridge expose the same validated scene commands
and undo/redo path. Provider credentials remain in the local Node companion
instead of being bundled into the browser.

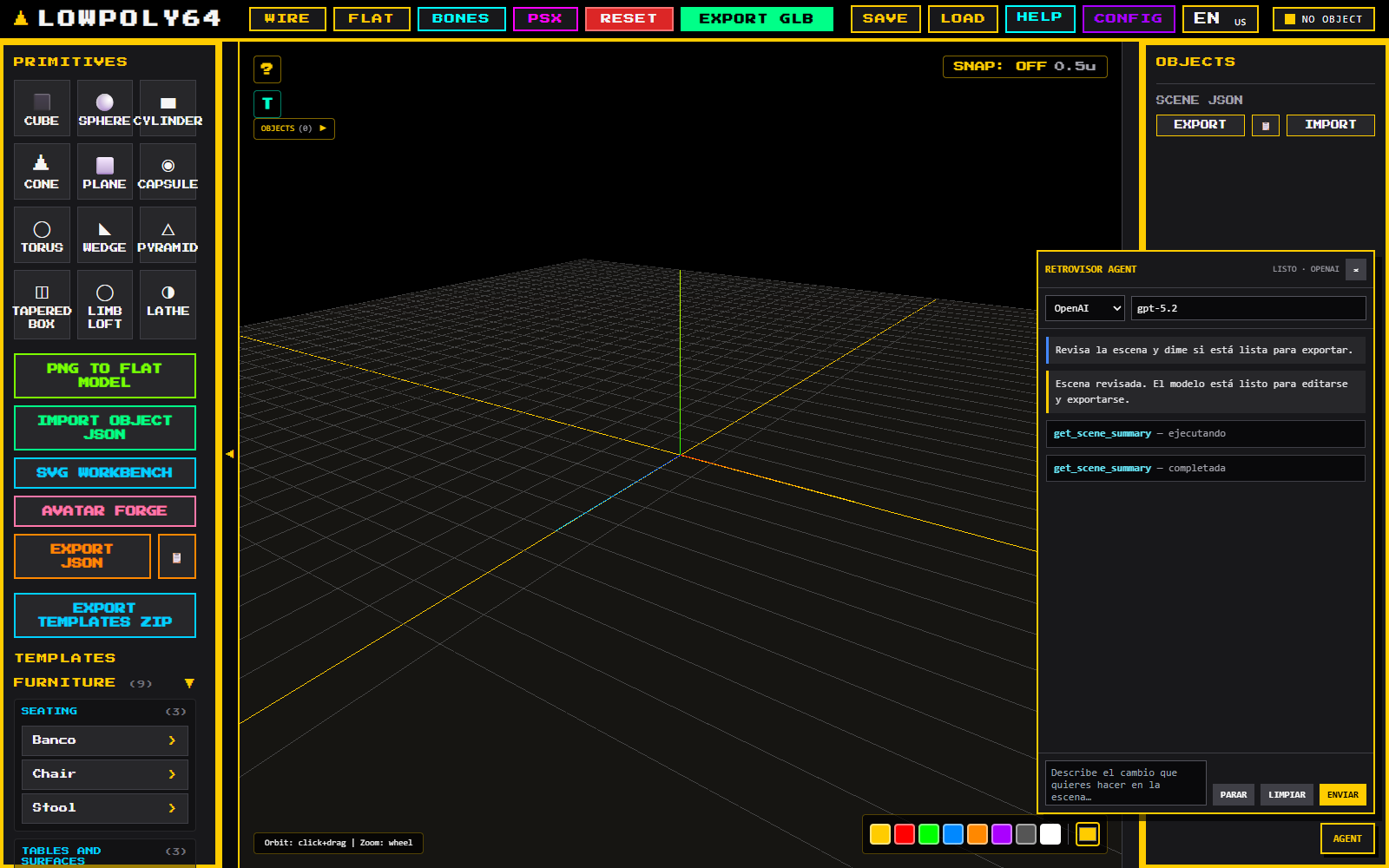

Local agent tool turn

See README-MCP.md and
docs/retrovisor-agent.md.

PNG to Flat Model

Transparent PNG/WebP silhouettes can now become closed, textured 2.5D meshes.
The workbench includes density, thickness, bulge, alpha and smoothing controls,
plus paintable inflate/deflate corrections and a live orbitable preview.

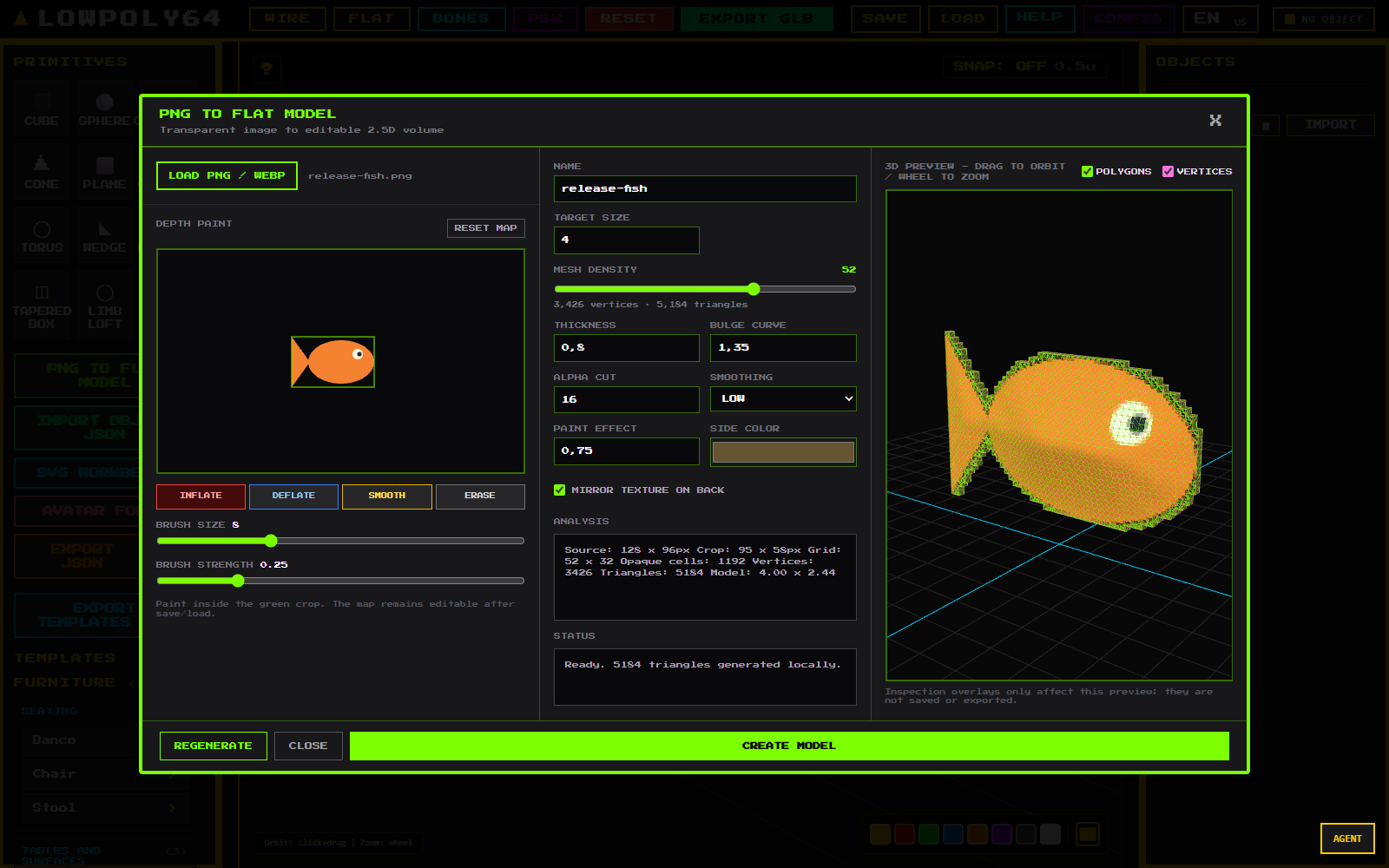

PNG to Flat Model

See docs/png-to-flat-model.md.

Avatar Forge

Avatar Forge now provides generated head molds, facial placement controls, six
Starter Hero recipes, per-section randomization, a turntable preview and recipe
copying. Legacy saved head IDs migrate to the closest generated mold.

Avatar Forge

Animation and Motion Ripper

HUMANOID_STANDARD now contains 13 clips, including smoke, pickaxe,
shovel, sit, sleep and cheer, together with a rebuilt fall-and-hold
die animation.

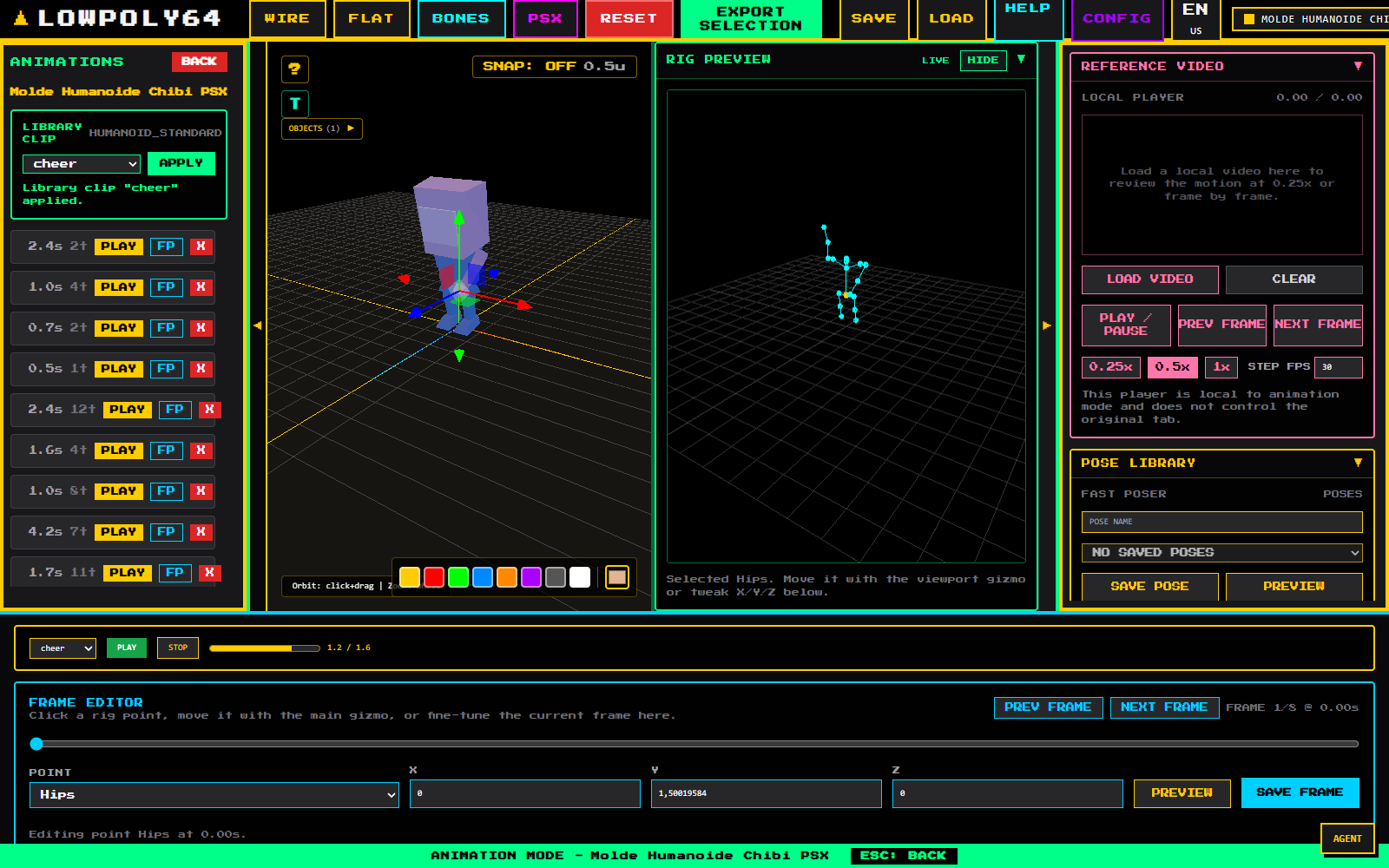

Standard clip library

Motion Ripper can load a local video or capture a shared tab/window, track the
body and retarget the result into the selected humanoid rig. Local video keeps
real playback timing and provides frame stepping, speed controls and lower-body
stabilization.

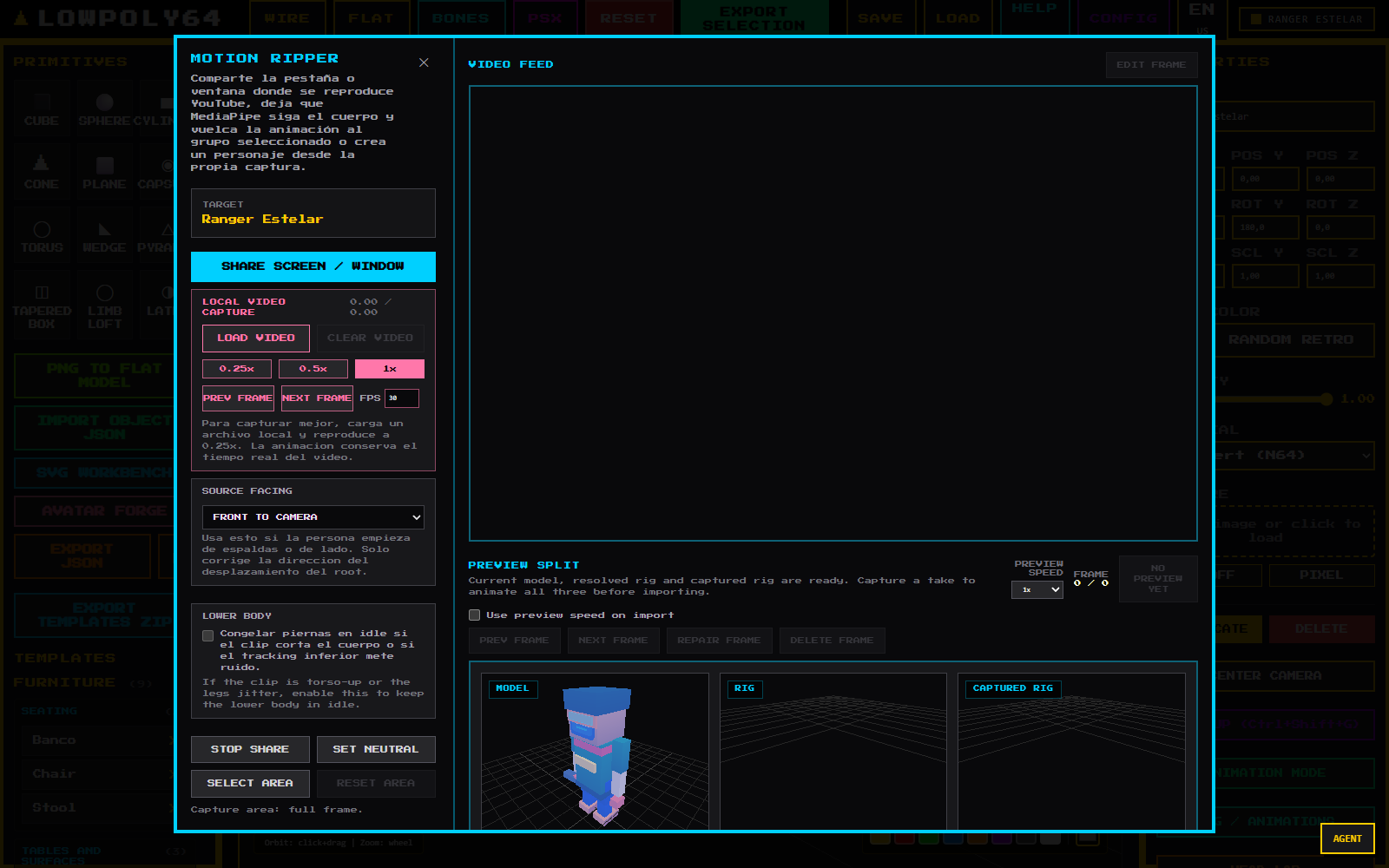

Motion Ripper local video

MediaPipe is loaded from its pinned CDN module the first time Motion Ripper is
used, so that feature requires network access unless the dependency is vendored.

Rigging, SVG and texture workflows

The release also includes editable rig bindings and previews, the SVG
workbench/head lab, sprite-sheet texture editing, AI/local texture integrations,
retro style-budget diagnostics and a headless render CLI.

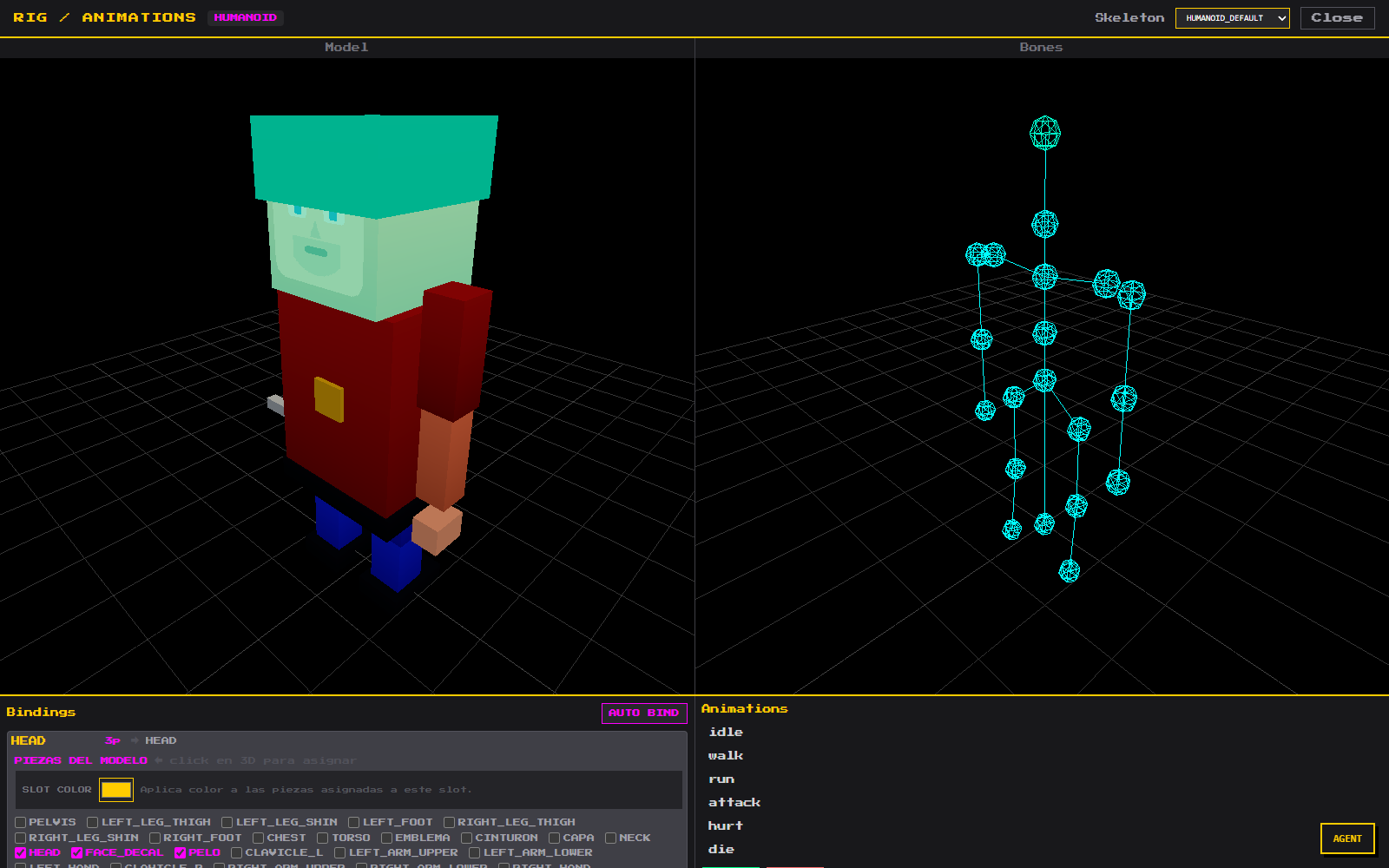

Humanoid rig panel

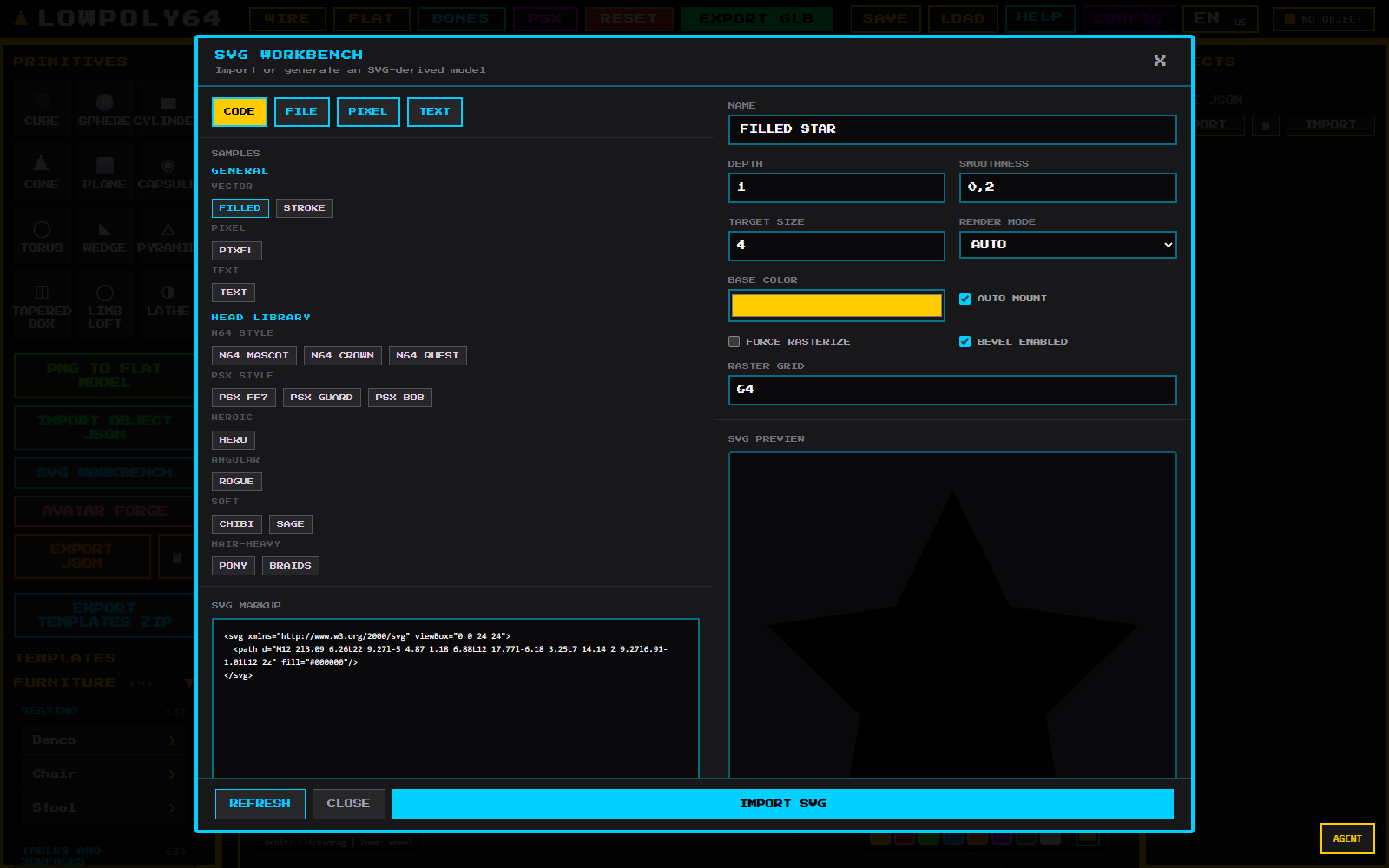

SVG workbench

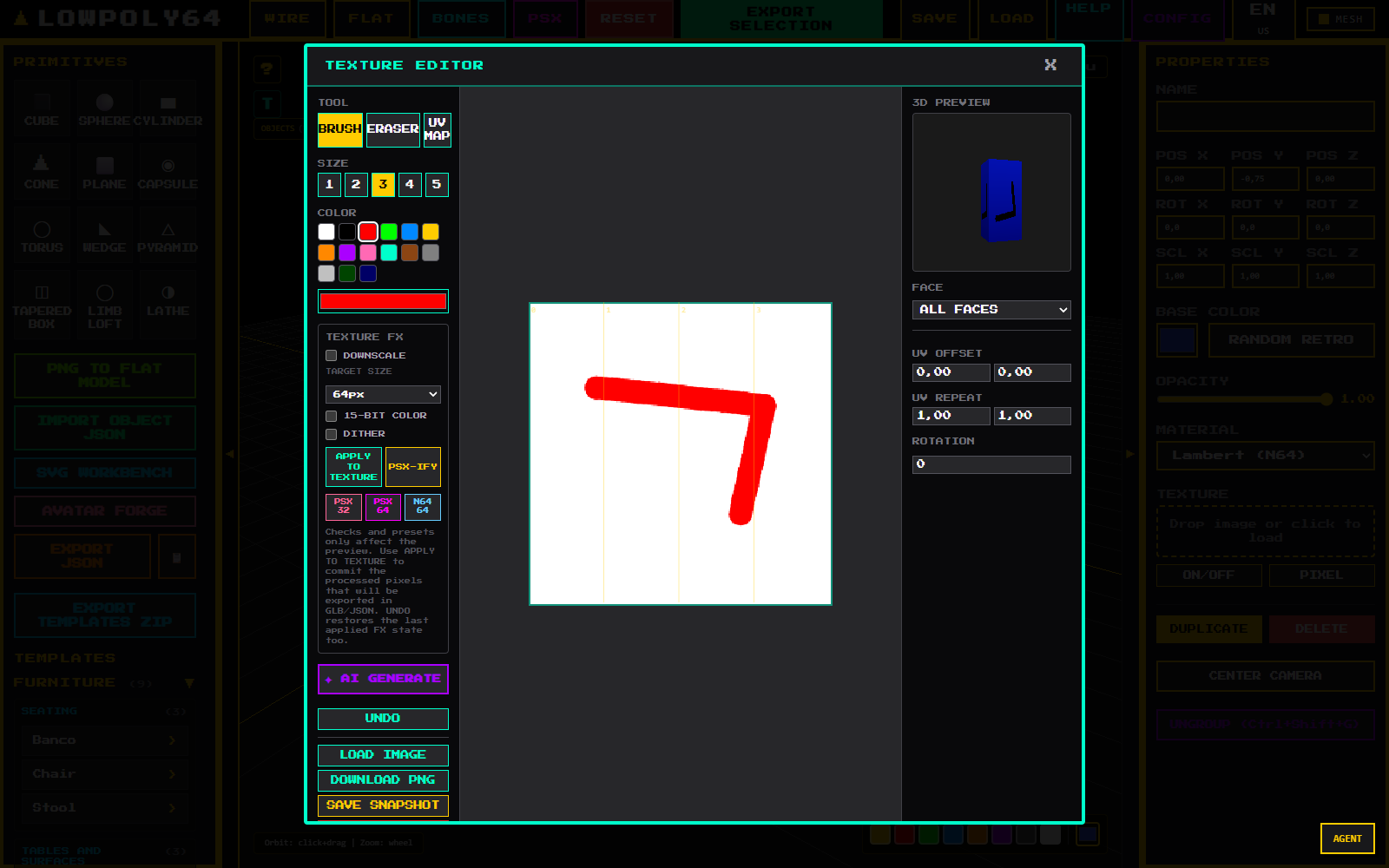

Texture editor

New character templates

Seven release renders and their machine-readable style reports are stored under
docs/releases/v0.8.0/characters:

Template Archetype Triangles
psx_black_mage_cm HUMANOID 900
n64_skull_knight_cm HUMANOID 872
n64_chibi_ninja_cm HUMANOID 872
psx_mecha_unit_cm HUMANOID 712
n64_fenix_chick_cm BIRD 420
psx_drake_pup_cm QUADRUPED 774
psx_cloud_ff7_kimi_cm HUMANOID 868

All seven are within the release authoring range of 400–900 triangles. Four
exceed the stricter 800-triangle diagnostic threshold; the importer reports
that as a non-blocking optimization warning.

Reliability and security

  • Vite is pinned to ^8.0.16 in the package and lock files.
  • Dependabot security updates move PostCSS to 8.5.24, Nano ID to 3.3.16,
    the MCP SDK to 1.30.0 and Hono's Node server to 2.0.12.
  • Tailwind output and the Press Start 2P font are local assets; the editor no
    longer relies on the Tailwind browser CDN or Google Fonts at runtime.
  • Playwright starts and closes Vite programmatically on Windows, preventing
    orphaned servers and shutdown hangs.
  • Trace and release video recording are opt-in to avoid multi-gigabyte artifact
    growth during repeated audits.
  • Motion Ripper modal startup is covered by a regression test for the status
    controller failure fixed in this release.
  • Avatar visual audits dispose Three.js resources between cases to prevent
    browser memory exhaustion.

The two dependency alerts reported by GitHub before tagging (one high and one
moderate) are addressed by the versions above.

Validation

The release candidate is checked by:

  • 53 Node unit tests.
  • 109 Playwright smoke scenarios, including the new Motion Ripper regression.
  • 11 deterministic release-capture scenarios.
  • Character, clip, sprite, template, Avatar Forge and visual audits.
  • A production Vite build covering 739 modules.

Run the same local checks with:

npm run verify
npm run test:e2e
npm run capture:release

Capture details are documented in
docs/e2e-release-captures.md.

Upgrade

git pull
npm install
npm run verify

Node.js 20.19+ or 22.12+ is recommended by Vite 8.
