Cannot overlay point set on image

[tbirdso]

Summary

Passing an image and a point set that are in correspondence to an itkwidgets.view results in only the image being displayed.

Expected behavior

In the 0.32.5 release calling itkwidgets.view(image, point_sets=points) would result in both the image and point set being overlaid in the 3D scene.

Observed behavior

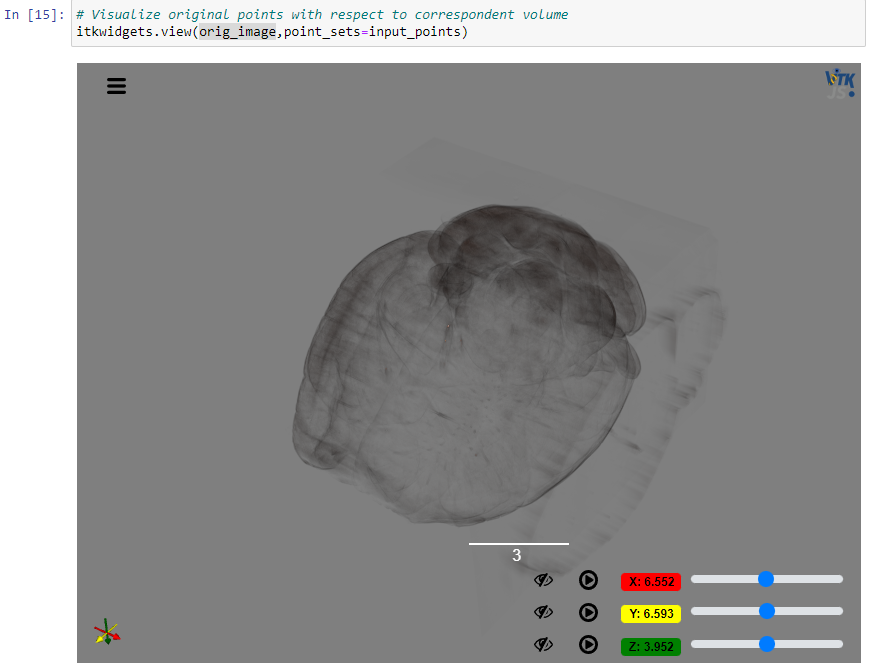

Image is shown but no points are visible in the scene. Overlay shows no evidence that point set is displayed.

Versions

itkwidgets==1.0a22
itk==v5.3.0
notebook==6.1.6

Platforms

Windows 10
Google Chrome browser

Additional Notes

• The image I am trying to show has a non-identity direction matrix and depends on the fix in Point set and image are displayed out of correspondence in 0.32.5 #596, therefore I cannot downgrade to 0.32.5.
• Could be related to Point set tools are not displayed #605. I cannot see points when I drag the scene around, but it is possible that they are simply very small.

cc @thewtex @PaulHax

[tbirdso]

Note that the ui="reference" workaround for point set overlay given in #605 produces incorrect results when applied here for visualizing an image + point set in a scene. The point set is shown but is not correctly spatially located and moves in space when the point size is scaled.

Initial points display

Same points with slider adjusted for larger point size
