Liquid Volume

Liquid Volumes define an area with a certain buoyancy.

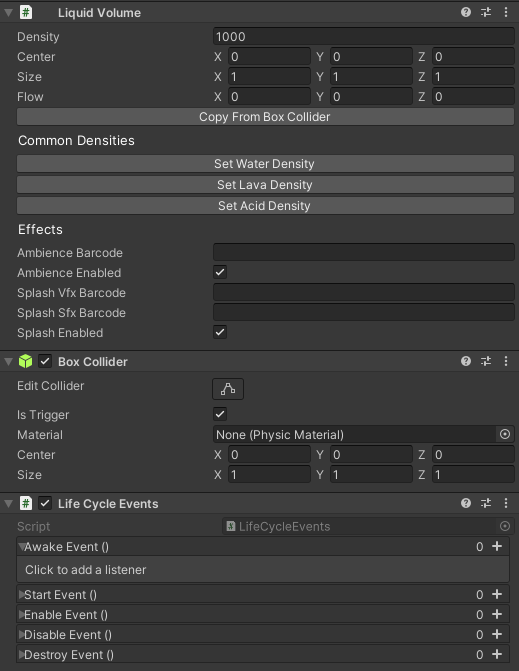

You can change them with the following properties:

• Density
  • The density of the liquid. Defaults to 1000 kg/m^3, the density of water.
• Center
  • The center of the liquid, relative to the object.
• Size
  • The size of the liquid, relative to the object.
• Flow
  • A velocity that all objects in the liquid will be dragged towards.
• Copy From Box Collider
  • If a Box Collider is on the same GameObject, you can copy the collider's center and size variables to the liquid easily
• Set Water/Lava/Acid Density
  • Sets the Density value to common densities.
• Ambience Barcode
  • The MonoDisc barcode of the ambience that plays while the player is submerged in the liquid.
• Ambience Enabled
  • Toggles whether the ambience will play.
• Splash VFX Barcode
  • The Spawnable barcode for the visual effect that plays when objects impact the liquid.
• Splash SFX Barcode
  • The MonoDisc barcode for the sound that plays when objects impact the liquid.
• Splash Enabled
  • Toggles whether splashes will occur.
