Flutter Mesh Transform 🌊

A drop-in mesh distortion / warp effect for any Flutter widget.

Driven by a spring simulation and a fragment shader — flip a bool and the wrapped widget warps in or out.

---

dependencies:
  flutter_mesh_transform: ^0.1.0

import 'package:flutter_mesh_transform/flutter_mesh_transform.dart';

MeshTransform(
  active: isOpen,
  child: YourWidget(),
);

The widget owns its spring controller and caches the compiled shader program across instances, so it's safe to mount many of them.

🎚️ API

MeshTransform parameters:

Parameter	Default	Notes
active	required	When this flips, the warp animates between 0 and 1.
child	required	The widget to warp.
xSpread	2.1	Horizontal warp width.
yFalloff	3.0	How quickly the warp falls off vertically.
yTravel	1.1	Vertical displacement.
response	0.85	Spring response (seconds). Lower = snappier.
dampingRatio	0.75	Spring damping. 1.0 = critical.
maxBlur	20.0	Peak blur sigma at active = true. Set to 0 to disable.
padding	EdgeInsets.symmetric(vertical: 40, horizontal: 24)	Empty space around the child captured by the shader so it doesn't clip.

📱 Platforms

Tested on Android and iOS. Should work anywhere Flutter's fragment shader pipeline is supported, but other platforms are unverified.

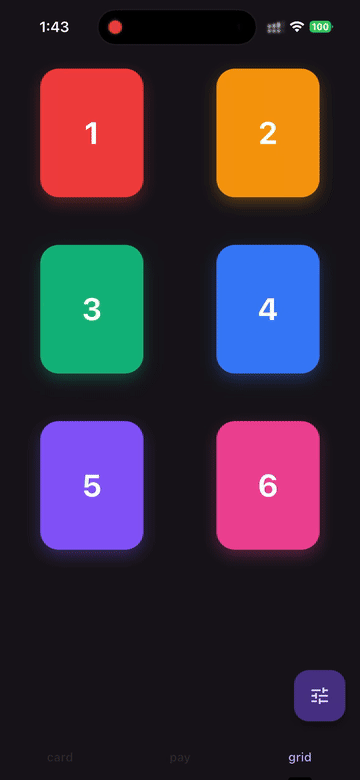

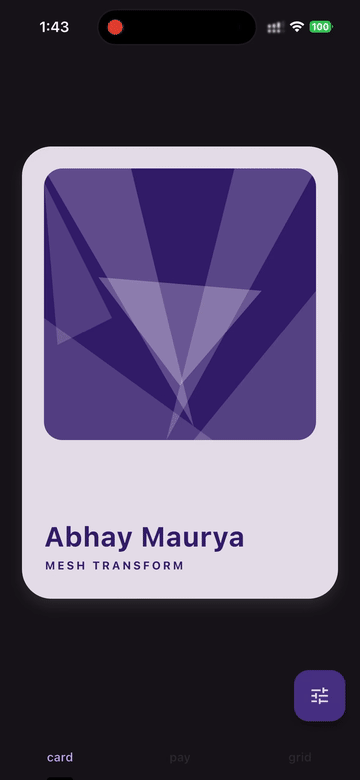

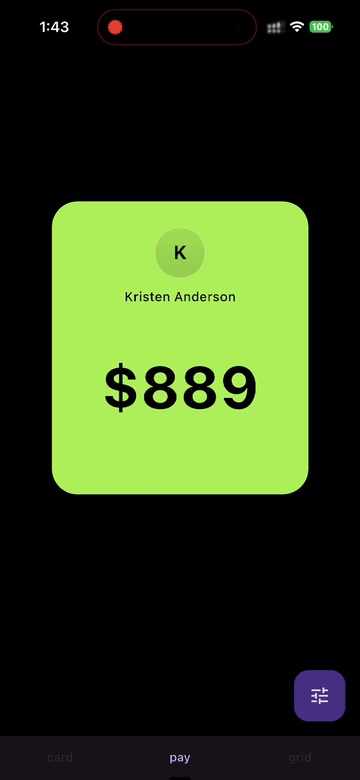

🚀 Example

A runnable demo app with interactive sliders for every parameter lives in example/:

cd example
flutter run

📄 License

BSD 3-Clause. See LICENSE.
