FiveM Custom Loading Screen

A slick, fully custom FiveM loading screen with a video background, music controls, live player count, and animated UI elements. Theme colors are controlled from a single block at the top of styles.css.

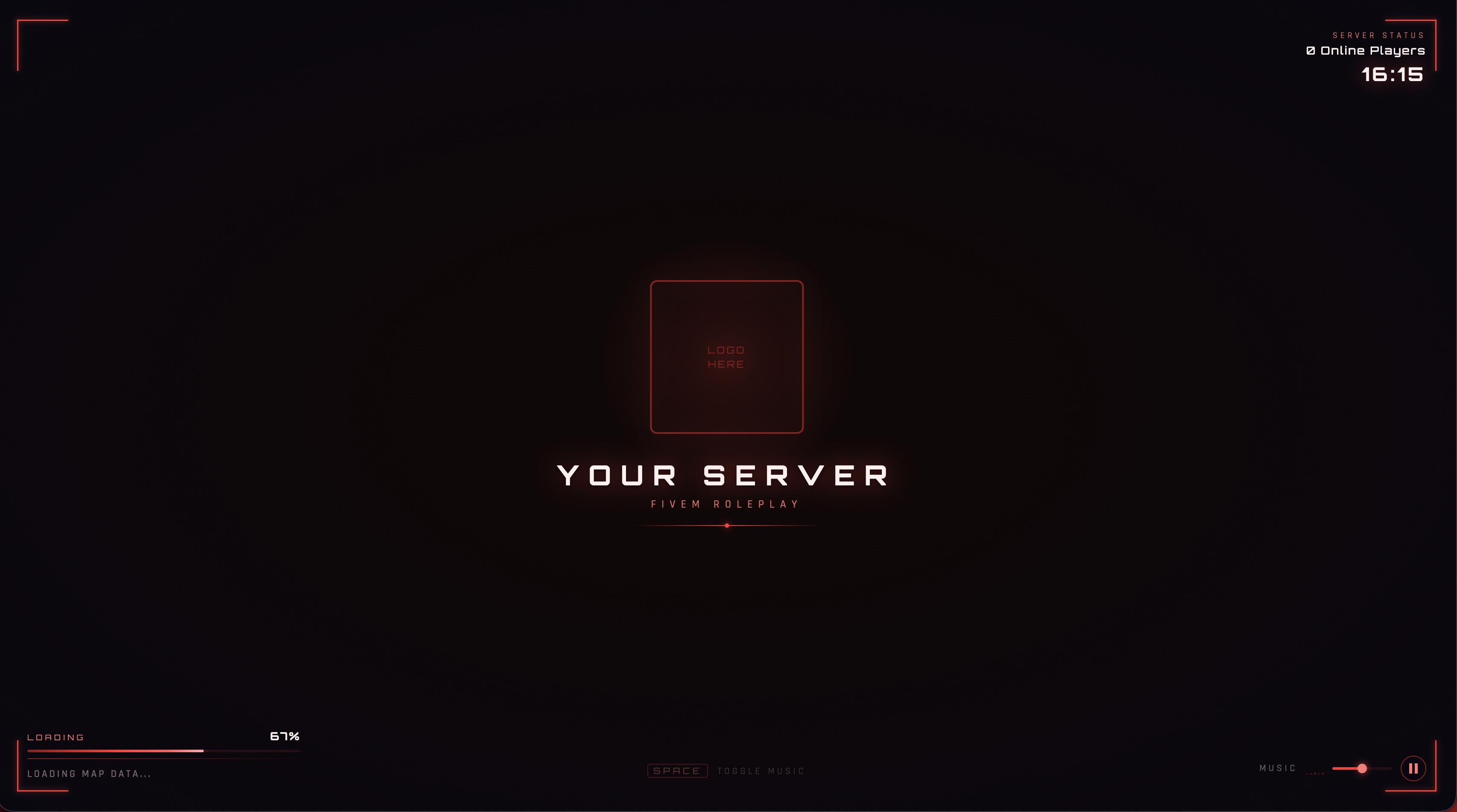

Preview

---

Features

• MP4 video background with smooth fade-in on load
• MP3 background music with play/pause toggle and volume slider
• Spacebar toggles music on/off
• Animated equalizer bars that collapse flat when music is paused
• Live loading bar tied to FiveM's real loadProgress event with stage-aware status labels
• Live player count fetched from the server's /players.json endpoint, auto-refreshes every 30 seconds (click to manually refresh)
• Live clock in the top-right corner
• Animated corner brackets, scanlines, noise grain, and vignette overlay
• Floating logo with glow pulse animation
• Fully theme-able — change all colors from one place

---

File Structure

robins-loading/
├── fxmanifest.lua    — FiveM resource manifest
├── index.html        — Loading screen markup
├── styles.css        — All styles and animations
├── script.js         — All JavaScript logic
├── bg.mp4            — Your background video (you provide this)
├── music.mp3         — Your background music (you provide this)
└── logo.png          — Your server logo (you provide this)

README.md does not need to be included in the resource folder.

---

Installation

1. Drop the folder into your server's resources/ directory
2. Add the following to your server.cfg:

ensure robins-loading

3. Replace bg.mp4, music.mp3, and logo.png with your own files
4. Restart your server

---

Changing the Theme Color

Open styles.css and edit the :root block at the very top of the file. This is the only place you need to change to re-theme the entire loading screen.

:root {
  --accent-primary: #ff3333;   /* Main accent color */
  --accent-light:   #ff7777;   /* Lighter variant (glow, hover) */
  --accent-dim:     #8b1a1a;   /* Dimmer variant (corners, divider) */
  --accent-deep:    #2d0000;   /* Deepest variant (backgrounds) */
  --dark:           #0e0404;   /* Page background */
  --dark-2:         #180505;   /* Secondary background */
  --white:          #fff0f0;   /* Primary text color */
  --muted:          rgba(255, 210, 210, 0.45);  /* Muted text */
  --bar-bg:         rgba(255, 51, 51, 0.1);     /* Bar track background */
}

Example Themes

Purple

--accent-primary: #9b6dff;
--accent-light:   #c4a3ff;
--accent-dim:     #5a3d99;
--accent-deep:    #2a1560;
--dark:           #06040e;
--dark-2:         #0e0820;
--white:          #f0ecff;
--muted:          rgba(220, 210, 255, 0.45);
--bar-bg:         rgba(155, 109, 255, 0.1);

Red

--accent-primary: #ff3333;
--accent-light:   #ff7777;
--accent-dim:     #8b1a1a;
--accent-deep:    #2d0000;
--dark:           #0e0404;
--dark-2:         #180505;
--white:          #fff0f0;
--muted:          rgba(255, 210, 210, 0.45);
--bar-bg:         rgba(255, 51, 51, 0.1);

Blue

--accent-primary: #3b82f6;
--accent-light:   #93c5fd;
--accent-dim:     #1e3a8a;
--accent-deep:    #0d1f4e;
--dark:           #04080e;
--dark-2:         #080f1e;
--white:          #f0f4ff;
--muted:          rgba(210, 225, 255, 0.45);
--bar-bg:         rgba(59, 130, 246, 0.1);

Gold

--accent-primary: #c8a96e;
--accent-light:   #e8c98e;
--accent-dim:     #8a6e40;
--accent-deep:    #3a2a10;
--dark:           #06050a;
--dark-2:         #0d0c10;
--white:          #f0ece4;
--muted:          rgba(240, 220, 180, 0.45);
--bar-bg:         rgba(200, 169, 110, 0.1);

---

Customizing Content

What	Where	How
Server name	index.html	Change Your Server inside <div id="server-name">
Subtitle	index.html	Change FiveM Roleplay inside <div id="server-sub">
Logo size	styles.css	Change width and height on #logo
Music default volume	index.html	Change value="50" on the volume slider (0–100)
Player count refresh rate	script.js	Change 30000 in setInterval(fetchPlayerCount, 30000)

---

How the Loading Bar Works

The loading bar listens for FiveM's built-in loadProgress NUI message, which sends:

• loadFraction — a number from 0.0 to 1.0 representing overall load progress
• initiatorType — a string describing what is currently being loaded (network, cdn, resource, map, etc.)

The status label below the bar updates automatically based on initiatorType. No configuration needed.

---

How the Player Count Works

The player count fetches /players.json — a built-in HTTP endpoint that every FiveM server exposes automatically. No extra scripts or exports are needed. It shows 0 Online Players if the fetch fails or the server returns an empty list.

If player count always shows 0, check that sv_endpointprivacy is not blocking the endpoint in your server.cfg.

---

Troubleshooting

Loading screen doesn't disappear after joining Ensure loadscreen_manual_shutdown is not present in fxmanifest.lua. FiveM handles shutdown automatically without it.

Black screen on join Confirm all files (bg.mp4, music.mp3, logo.png) are present in the resource folder and listed under files {} in fxmanifest.lua.

Video doesn't fill the screen Make sure bg.mp4 is exported at 16:9 aspect ratio (e.g. 1920×1080) with no black bars baked into the video itself unless that is the look you are going for.

Music doesn't play FiveM's CEF browser may block autoplay until user interaction. The screen will attempt autoplay on load — if it fails, clicking anywhere or pressing Space will start it.

Player count shows 0 in preview This is expected when opening index.html directly in a browser. The /players.json endpoint only resolves correctly inside FiveM while connected to a live server.
