See what a demonstration compiled INTO

A compiled bundle is a governed program, not a video. This adds a way to see its structure — the ordered steps, how each target is re-resolved, whether an identity gate protects the click, what real system-of-record effect must hold, what the screen must look like afterward, its risk class, and where the run will halt rather than guess.

One spec, three surfaces (this PR = engine + CLI)

The engine is the single source of truth. openadapt_flow.visualize.build_program_graph(workflow) projects a compiled Workflow onto a versioned, serializable ProgramGraphSpec. Every visualization surface — this CLI, the cloud view (app.openadapt.ai), the desktop app — renders that spec; none re-parse the bundle IR. Companion cloud + desktop PRs render the same spec.

Spec (v1): nodes = compiled steps/program states (each with its target-resolution ladder + top rung, identity gate armed/unarmed+reason, effect check, verification postconditions, risk class, control guards); edges = sequence with typed room for branch/loop/exception/loop_body; per-node halt points as first-class annotations; bundle header with PHI/encryption flags, provenance/certification, params, rollups. A linear bundle projects to a straight chain of action nodes ending in a success terminal; a Phase-2 program graph projects its full state machine 1:1, so richer structure renders without a spec break.

Committed JSON Schema schemas/program-graph-v1.json lets non-Python surfaces validate the same shape; a sample emitted spec is at docs/showcase-openemr/program-graph.json.

Rendering choice & tradeoffs

• Engine emits the spec; surfaces render it (vs each surface re-parsing the bundle) — one projection of the compiled semantics, one wire contract, and cloud/desktop need no Python engine.
• Custom lightweight layout, not a graph lib — the program is a vertical sequence with room for branches, and the value is the per-node annotations, far clearer as node cards than edges-and-boxes. A graph lib (d3/cytoscape/reactflow) is heavy overkill and would break the self-contained/CSP-safe requirement. Mermaid offered as a portable secondary format; JSON for tooling.
• Self-contained HTML — inlines the shared CSS + a dependency-free vanilla-JS renderer and embeds the spec as JSON, so it opens offline under a strict CSP. The desktop (Tauri, CSP `'self'`) vendors those same two files; cloud reimplements the same layout in React over the same spec.

CLI

```bash
openadapt-flow visualize path/to/bundle -o program.html # self-contained HTML
openadapt-flow visualize path/to/bundle --format mermaid # Mermaid flowchart
openadapt-flow visualize path/to/bundle --format json # shared graph spec
```

What's here

• openadapt_flow/visualize/{spec,builder,render}.py + static/program_graph.{css,js} (the shared renderer).
• schemas/program-graph-v1.json, CLI visualize subcommand, docs/VISUALIZE.md.
• 11 tests (tests/test_visualize.py): projection counts, resolution ladder/top-rung, identity-gate + halt-point surfacing, JSON roundtrip, self-contained-HTML assertion, Mermaid validity, schema-in-sync validation, CLI, and a regression against the real committed OpenEMR showcase bundle (18 steps, 2 irreversible, 3 identity gates, 1 halt point).

Verification

• pytest tests/test_visualize.py → 11 passed; existing lint/report tests still green.
• ruff check + ruff format --check clean; mypy openadapt_flow/visualize/ clean.

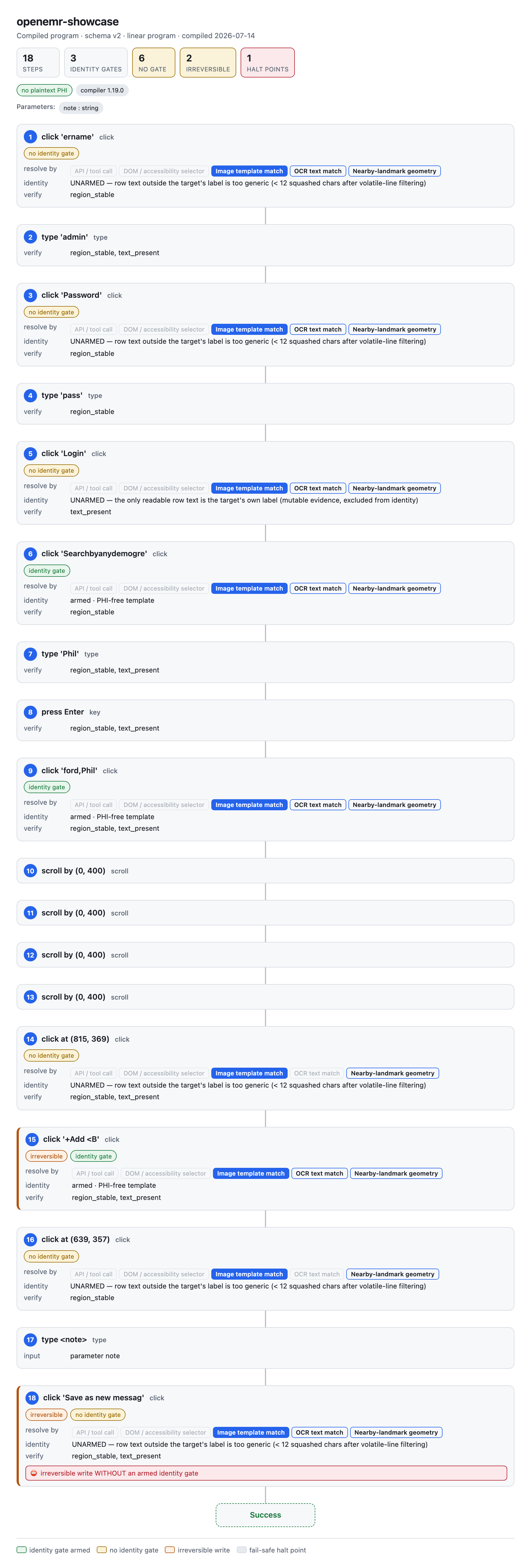

• The rendered example (docs/showcase-openemr/program-graph.{html,png}) is produced by the CLI from the committed bundle.
