Max hit improvement

[Edvinas-Smita]

Fixes #1645 #4847.

Description of the problem being solved:

Max hit taken should not depend on enemy damage. This aims to fix that by changing how max hit is calculated.

Steps taken to verify a working solution:

• Flat damage reduction (i.e. endurance charges) checked at low, mid and extreme values
• Overwhelm checked at low, mid and extreme values
• Damage taken as checked at low, mid and extreme values
• Transcendence and/or unbreakable checked
• Damage taken-as was kept in mind
• Math?
• Spreadsheets

Link to a build that showcases this PR:

https://pobb.in/KAH_0AClx7EI (stolen from poe ninja)

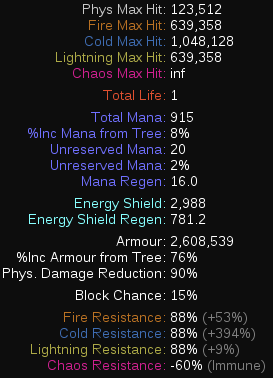

Before screenshot:

Damage reduction for reported phys max hit (88% taken as phys = 108690) results in 2608539 / (2608539 + 5 * 108690) = 0.82758 reduction. Plugging that back in for damage received from physical portion of the "max hit" results in 108690 * 0.17242 * 1.1 (Aspect of Carnage) = 20614 damage. This character has total pool of 11956 (molten shell). Seems pretty dead to me.

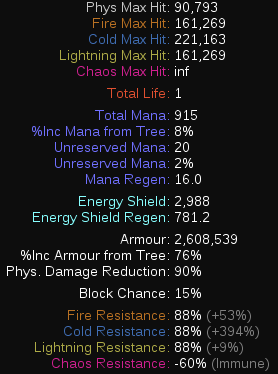

After screenshot:

Damage reduction for reported phys max hit (88% taken as phys = 79898) results in 2608539 / (2608539 + 5 * 79898) = 0.86719 reduction. Lightning portion (10895 damage) after resists and penetration (1852 dmg) gets a 208683 / (208683 + 5 * 1852) = 0.9 reduction. Plugging that back in for damage received results in (79898 * 0.13281 + 1852 * 0.17 * 0.1) * 1.1 = 11707 damage. Not quite exact, but better?

The discrepancy happens due to complexity of calculations when taken-as modifiers are involved. With no conversions this is as accurate as floating point operations and rounding can get. With conversion to a single element, highest observed ratio between the pool and damage taken from the reported hit is ~40%. Converting to two elements go up to ~72%. Element to element conversion is still quite broken.

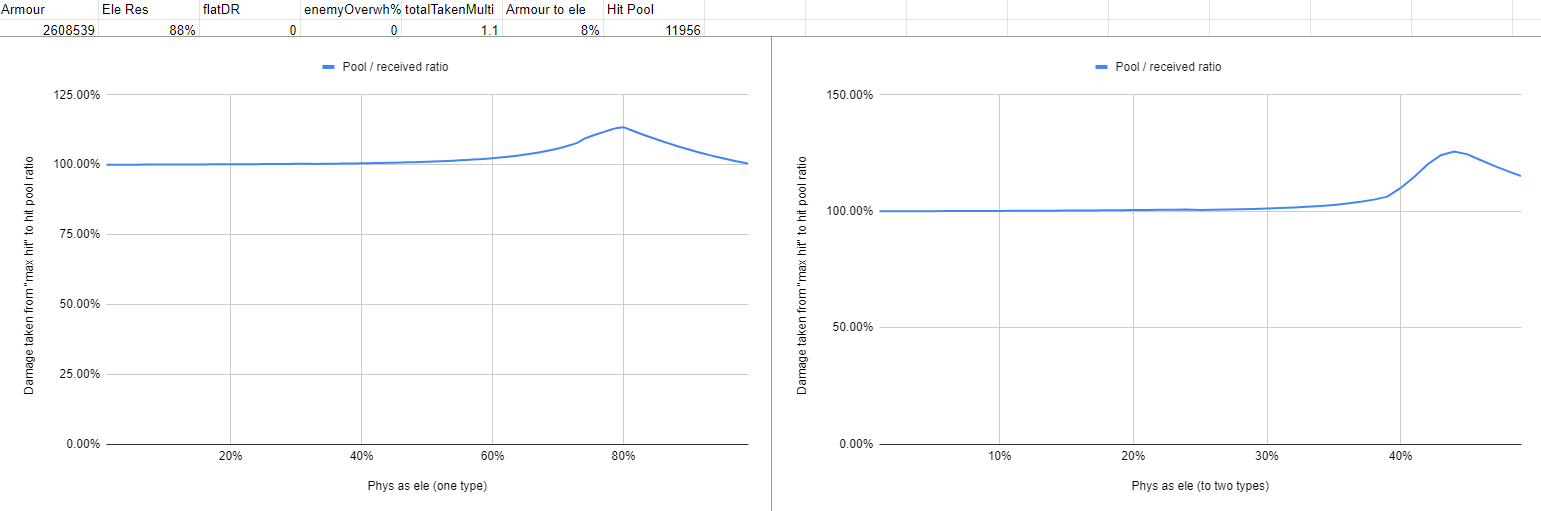

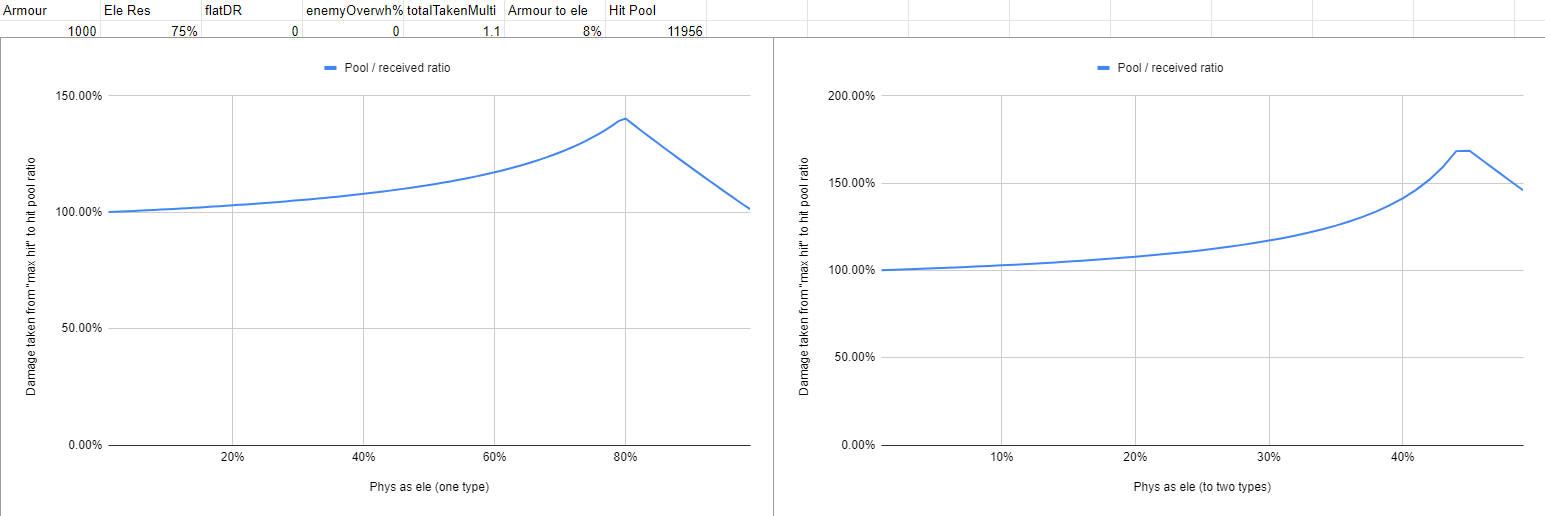

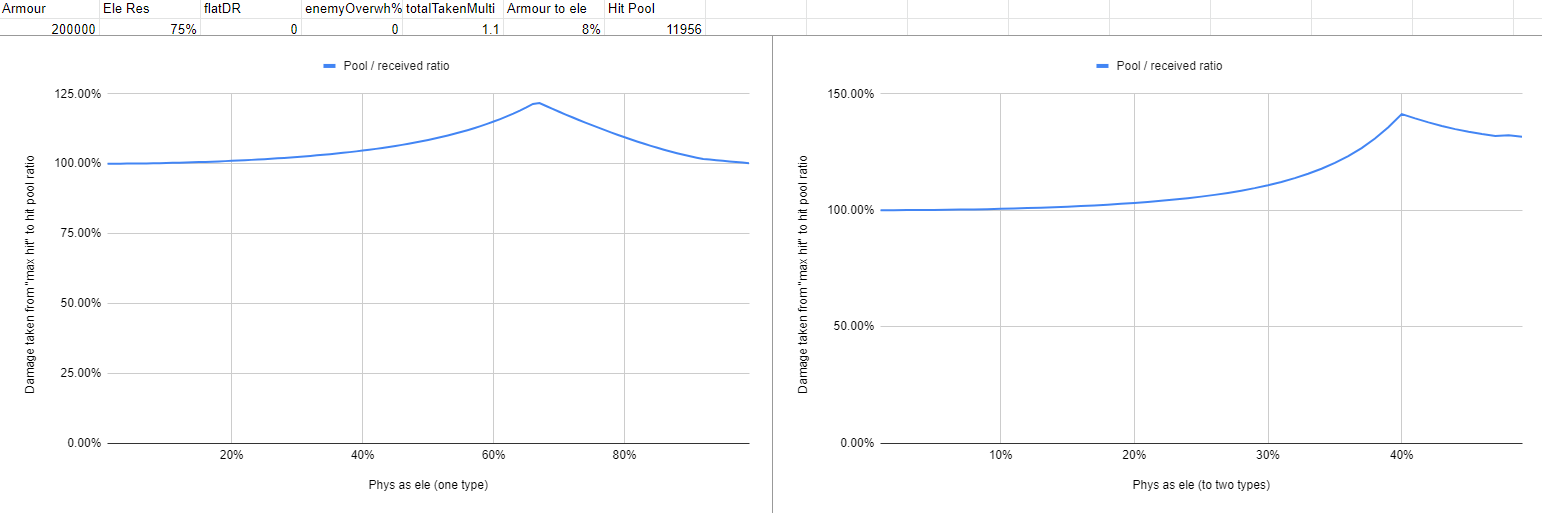

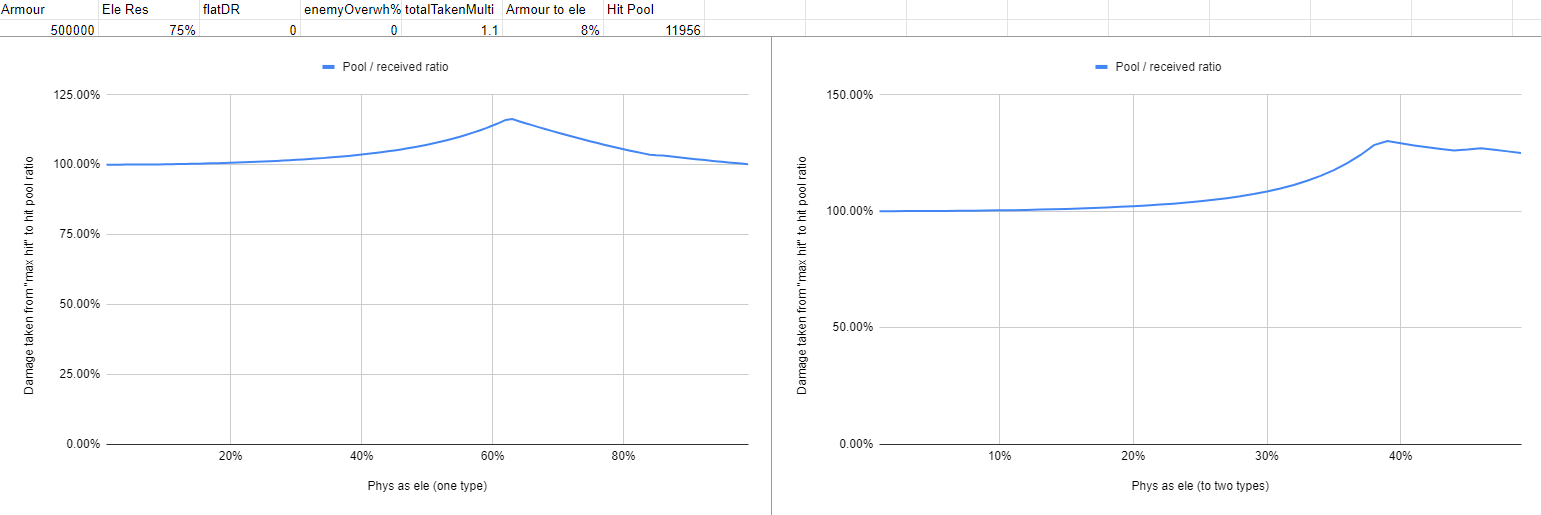

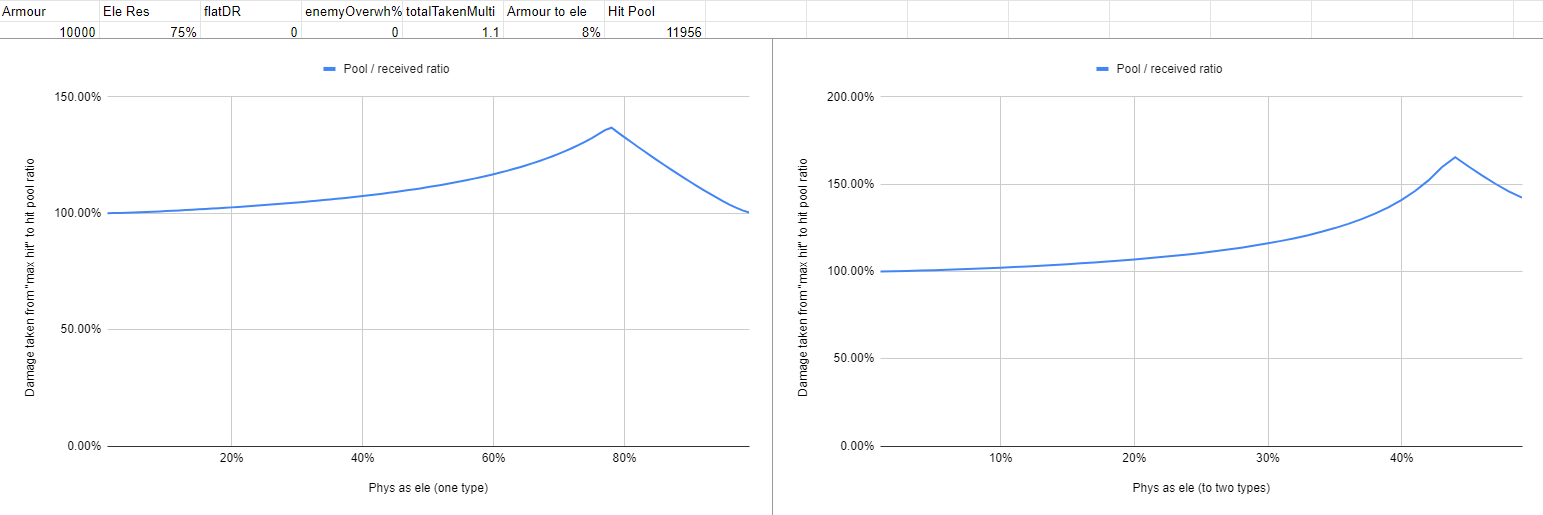

Some examples of produced deviations:

Flashbang warning

[QuickStick123]

This looks pretty good maybe capture the magic armour formula number in a variable
Yes overwhelm probably applies after damage reduction is capped then made sure to not go bellow zero.

[QuickStick123]

This does not fix #4847 as that was a different issue with enemy armour not correctly setting when changing between modes.

[Edvinas-Smita]

My bad with the #4847. I changed changed both of the occurrences of damage reduction capping. Not sure which magic number You referred to, but if it was the smoothing ratio then I made that available in breakdowns.

good maybe capture the magic armour formula number in a variable

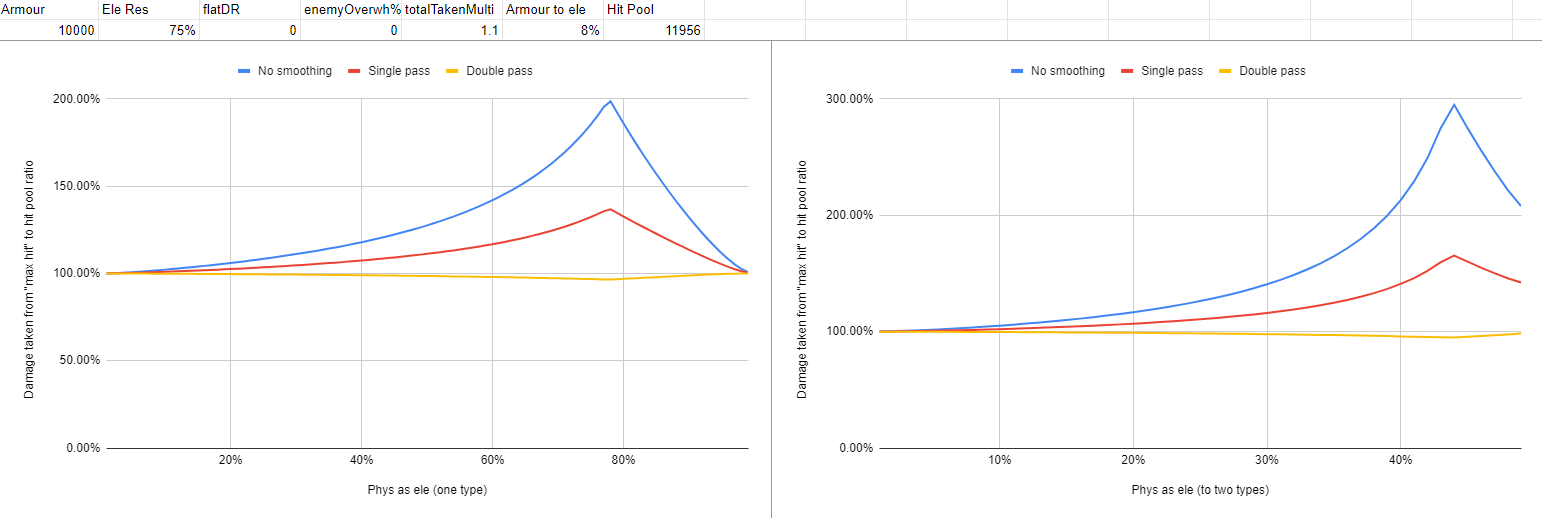

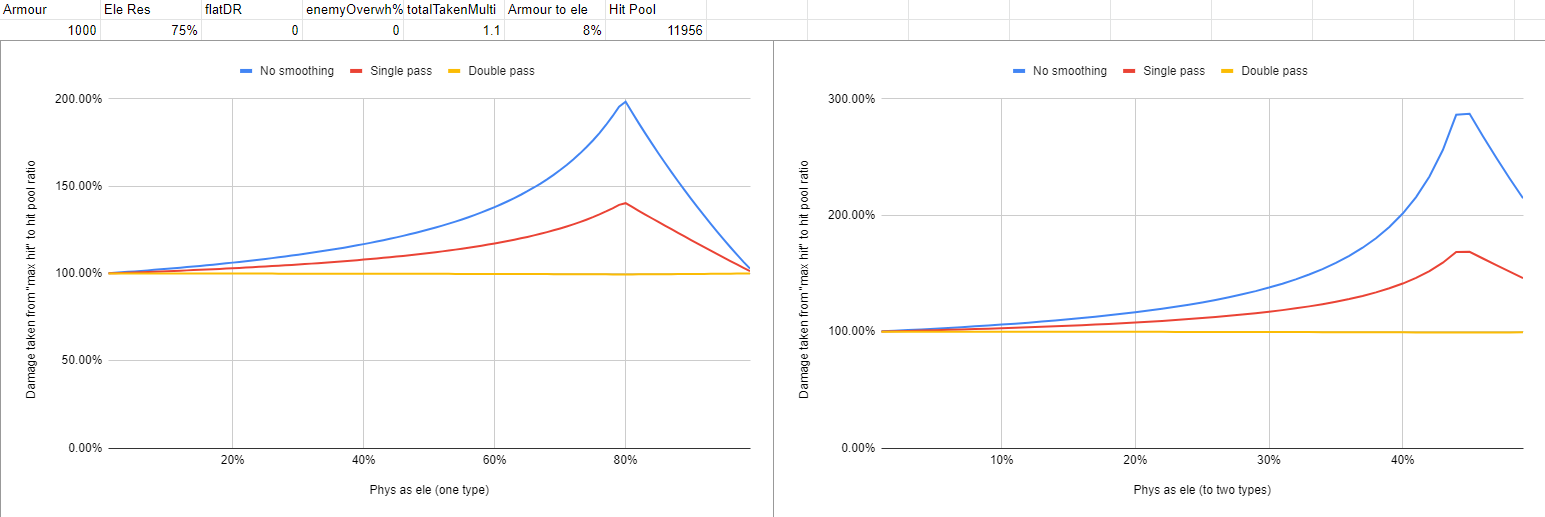

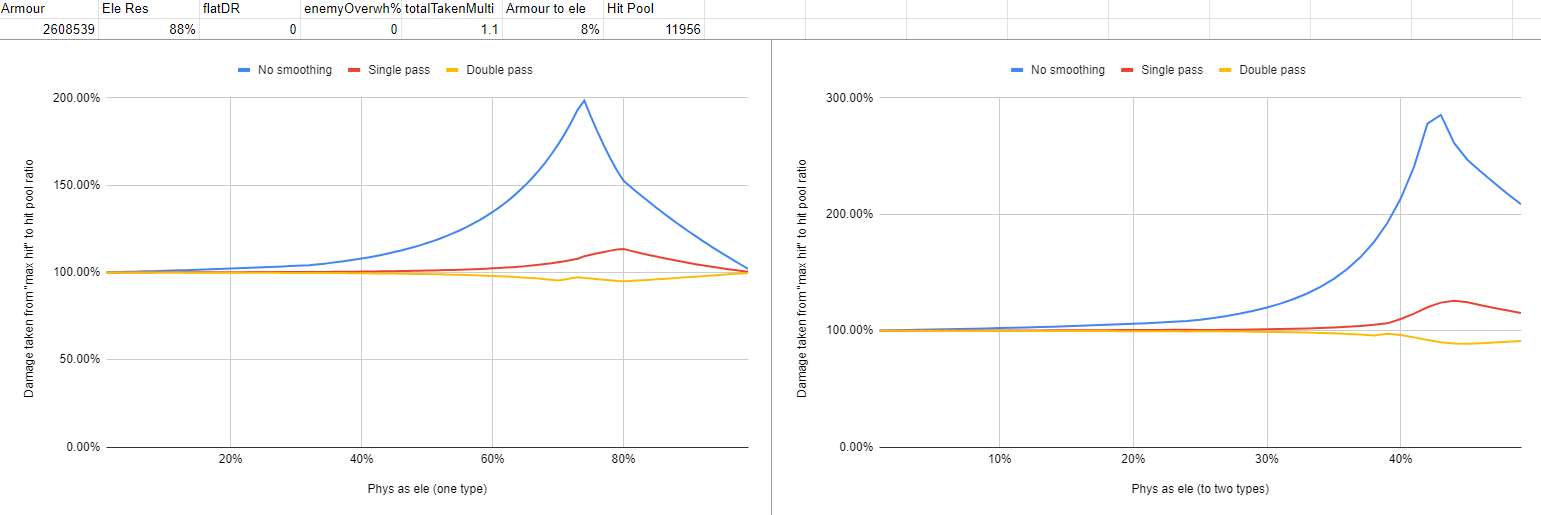

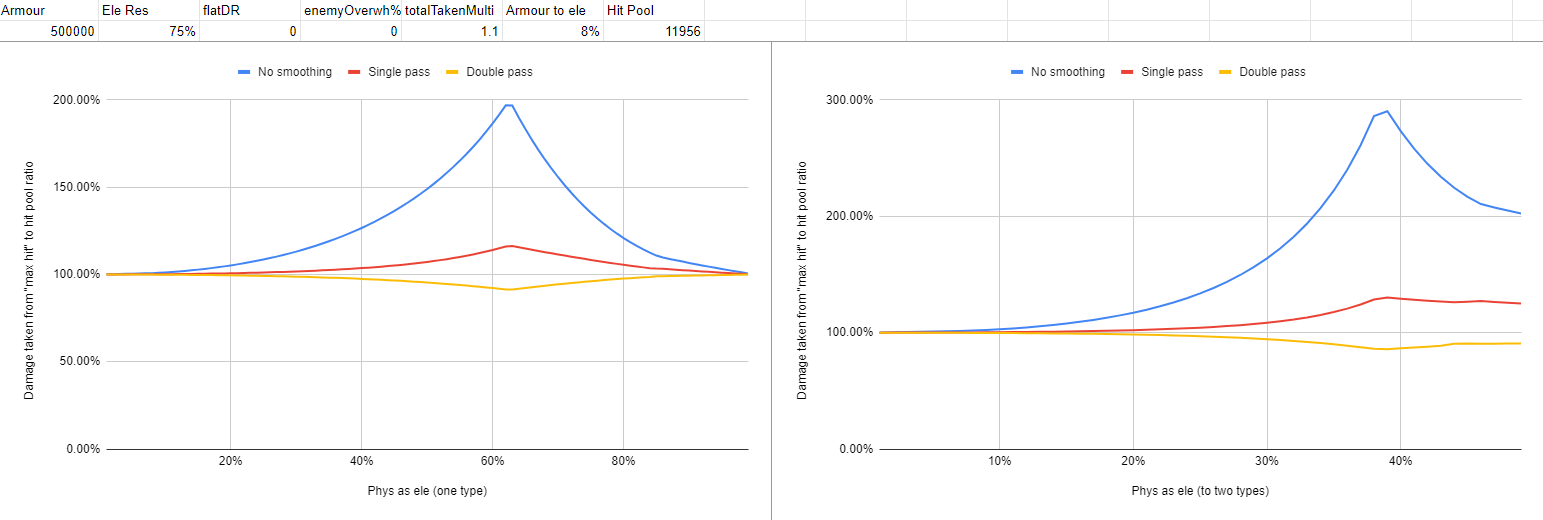

Talking about smoothing I added one more magic step which produces pretty magical results:

Flashbang warning

(orange line is current, red was previous)

With the latest commit elemental taken-as elemental is also captured and it seems to work much, much better.

[QuickStick123]

How well does this fare on the divine flesh / tempered by war if it is with 10% of actual value I think it is good enough to close.
#3632
#4444
#1930

[Edvinas-Smita]

Without any armour applying to elemental damage, the max hit is calculated basically within floating point accuracy. With armour applied, max hit stays within 8% error (a bit eyeballed, but easily within 10%).

From #3632 the DoT taken is still broken, as there was no work done here that would have affected it.
#4444 should be fully resolved.
For #1930 I'm not quite sure about the math performed in the initial described issue, but it does look resolved to me.

[QuickStick123]

Mostly solves #5118

[QuickStick123]

Mostly solves #4917

[QuickStick123]

Mostly solves remaining issues of #2264

[QuickStick123]

Fixes #5223
