Use dotnet strong typed resource builder

[iSazonov]

PR Summary

Now .Net SDK brought back a strong typed resource support so we can switch from our ResGen tool.

For WPF projects (Microsoft.Management.UI.Internal) the .Net SDK support does not work OOB so we have to implement a workaround in csproj file.

(Also I discovered that now all .Net dll-s is in ReadyToRun format and PowerShell distributive doubled in size. So we could turn on the feature too. It will add ~20Mb (10%). I removed this in last commit but could bring back.)

Docs https://docs.microsoft.com/en-us/dotnet/core/compatibility/msbuild#net-core-30

PR Context

Fix #2882

Related #666
Related #5777

PR Checklist

• PR has a meaningful title
  • Use the present tense and imperative mood when describing your changes
• Summarized changes
• Make sure all .h, .cpp, .cs, .ps1 and .psm1 files have the correct copyright header
• This PR is ready to merge and is not Work in Progress.
  • If the PR is work in progress, please add the prefix WIP: or [ WIP ] to the beginning of the title (the WIP bot will keep its status check at Pending while the prefix is present) and remove the prefix when the PR is ready.
• Breaking changes
  • None
  • OR
  • Experimental feature(s) needed
    • Experimental feature name(s):
• User-facing changes
  • Not Applicable
  • OR
  • Documentation needed
    • Issue filed:
• Testing - New and feature
  • N/A or can only be tested interactively
  • OR
  • Make sure you've added a new test if existing tests do not effectively test the code changed
• Tooling
  • I have considered the user experience from a tooling perspective and don't believe tooling will be impacted.
  • OR
  • I have considered the user experience from a tooling perspective and enumerated concerns in the summary. This may include:
    • Impact on PowerShell Editor Services which is used in the PowerShell extension for VSCode (which runs in a different PS Host).
    • Impact on Completions (both in the console and in editors) - one of PowerShell's most powerful features.
    • Impact on PSScriptAnalyzer (which provides linting & formatting in the editor extensions).
    • Impact on EditorSyntax (which provides syntax highlighting with in VSCode, GitHub, and many other editors).

[TravisEz13]

Please add ready to run in a separate PR as it needs to be back ported.
cc me.

[adityapatwardhan]

@iSazonov master branch has moved to .NET 5 preview 3, do want to check if the workaround is still needed?

[iSazonov]

@adityapatwardhan Yes, we need (I checked).
I do not see any progress in MSBuild repo. Tracking issue dotnet/msbuild#4751

[TravisEz13]

We should do more clean-up or file an issue to do it

[iSazonov]

Yes, after MSFT team confirm that the PR is good I will clean up all scripts.

[iSazonov]

/cc @mklement0 The PR is one step to resolve #666

[iSazonov]

@daxian-dbw Could you please merge?

[daxian-dbw]

@iSazonov Thanks for this work! I have 3 concerns:

1. The strongly typed .cs files are not generated during the build, and thus reference to the resource strings like ExtendedTypeSystem.InvalidCastExceptionWithInnerException are all shown as errors in VS Code. It's likely the same in Visual Studio, but I didn't try.
2. Is this workaround still needed? We have moved to .NET 5 preview.4.
3. Question: is this really more maintainable than using ResGen as before? Adding targets to .csproj always scares me. What are the benefits moving to ResXFileCodeGenerator?

[iSazonov]

Resx files are converted to cs files well for me when I run Start-PSBuild. Or I don't understand your question?

I see no activity in MSBuild and SDK. They use tricky way to compile WPF but I don't think they are going to change this now.

It seems strong typed resources are rarely used in while and in this sense it is less maintainable.

Adding targets to .csproj always scares me.

I guess you are thinking about daily enhancements. In fact, our compile workflow is stable for years. So why not solve the following:

• Localization Localization story #666
  I expect we get an increase in the number of users in 10x or 100x in next dev cycle. And user will ask about localization. This change is one step to MSFT team to make this process public and save their resources.
• Allow build that does not require circular dependency. #5777
  The change is one step to removing dependency on PowerShell to compile the project that helps third-party distributers.
  We have still to run TypeGen first. But it is a stable too and we could move the step to csproj too. As result (1) third-party distributers will be able to compile PowerShell without having to install PowerShell, (2) we will be able to compile in VS Code and VS without Start-PSBuild.

[daxian-dbw]

Resx files are converted to cs files well for me when I run Start-PSBuild. Or I don't understand your question?

I checked out the resgen-msbuild-3 branch, did a clean build using Start-PSBuild -Clean with dotnet SDK 5.0.100-preview.3.20216.6.
After that, I couldn't find the .cs files generated from the resource files. The only gen folder I could find is src\Microsoft.Management.UI.Internal\gen.

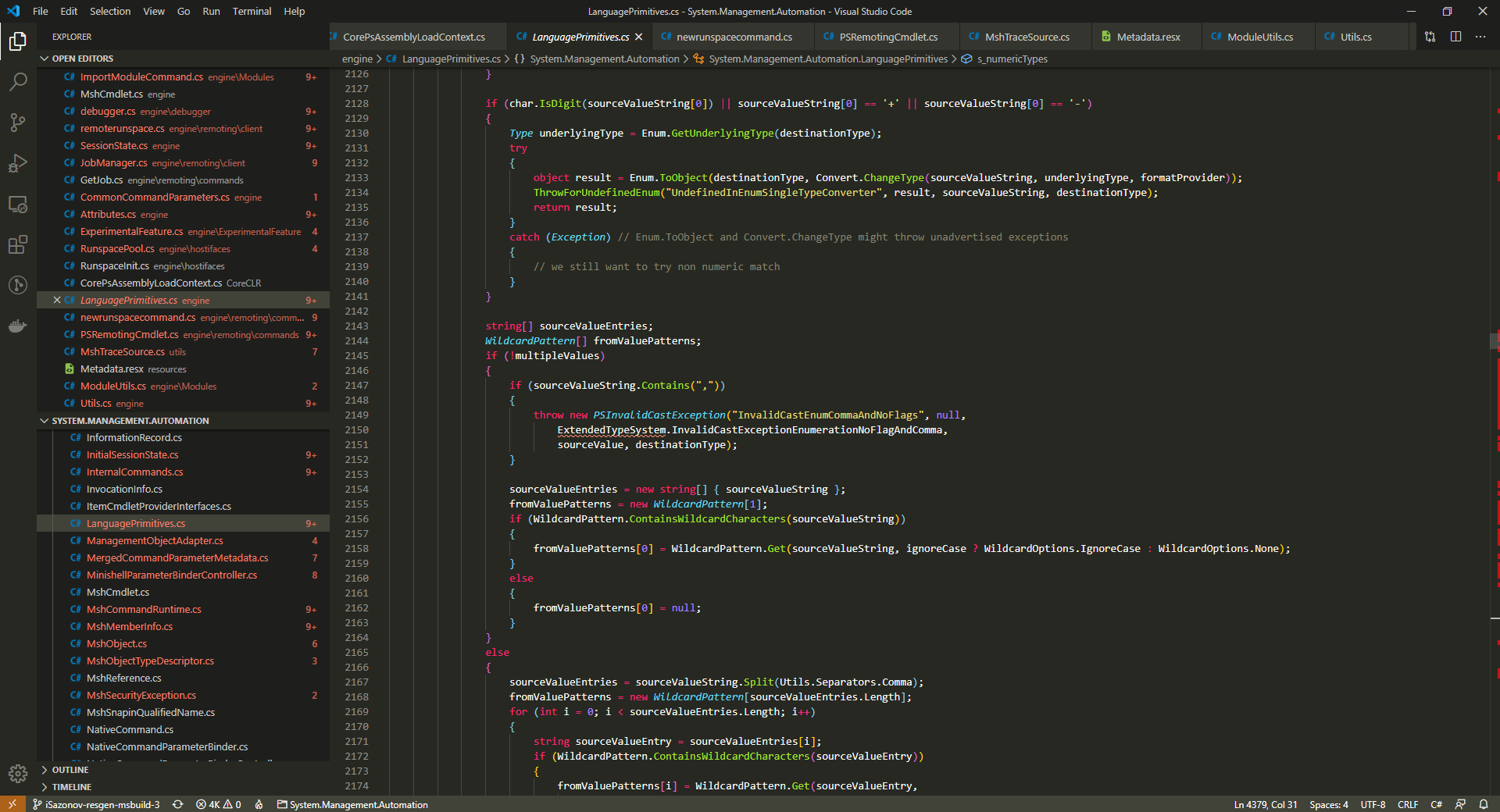

The following screenshot is what I get after opening src\System.Management.Automation folder in VS Code. A lot of errors because the property references to resources don't work anymore.

It seems strong typed resources are rarely used in while and in this sense it is less maintainable.

Just so I'm clear, you agree that the ResGen we use before this PR is more maintainable, right?

I guess you are thinking about daily enhancements.

I'm not thinking about enhancement, but purely maintenance, e.g. something changed (either dotnet sdk or the PS project itself) and we have to change this target to make it continue to work ...

So why not solve the following:

It's not clear to me how this will help solving those 2 issues,

• Localization story #666 -- we will need some people to translate the resource strings. Whether the resource strings are consumed by ResGen or ResXFileCodeGenerator doesn't seem to matter.
• Allow build that does not require circular dependency. #5777 -- this complaint is about building PowerShell using PowerShell. ResGen doesn't use PowerShell.

[iSazonov]

After that, I couldn't find the .cs files generated from the resource files. The only gen folder I could find is src\Microsoft.Management.UI.Internal\gen.

The files are generated in obj\ folder where *.resource are. If Start-PSBuild success you have the files.
VS Code works well for me too (after restart?).

Just so I'm clear, you agree that the ResGen we use before this PR is more maintainable, right?
I'm not thinking about enhancement, but purely maintenance

ResGen tool is not changed for years. We don't any maintenance.
.Net team is porting MSBuild step-by-step and it is not high priority for them. But if they did I think they will avoid breaking changes.

It's not clear to me how this will help solving those 2 issues,

Currently we have to use Build.psm1 module to build PowerShell. Third-party distribution maintainers have to port the module to bash shell to build PowerShell without PowerShell. If we change the module we break their process, they have to port again. If all build logic is in csproj files they get updates automatically.
With the change they should have a workaround only for TypeGen - resource generation now works with dotnet build. Additional benefits - now if we change any resx file it will be automatically compiled without needs to run Start-PSBuild -ResGen. We could make the same for TypeGen too.

[daxian-dbw]

The files are generated in obj\ folder where *.resource are. If Start-PSBuild success you have the files.
VS Code works well for me too (after restart?).

Found the .cs files under obj\Debug\netcoreapp5.0, but opening in VS Code still doesn't work -- a lot errors due to the resource string references. @TravisEz13 do you see the same issue?

Currently we have to use Build.psm1 module to build PowerShell.
Additional benefits - now if we change any resx file it will be automatically compiled without needs to run Start-PSBuild -ResGen.

ResGen doesn't depend on PowerShell. Anyone wants to build without PowerShell can do it as described in our doc: https://github.com/PowerShell/PowerShell/blob/master/docs/building/internals.md#resgen

I agree that's a benefit, but personally, I don't think it's convincing ... I personally don't want to incorporate everything into msbuild, as I personally believe a script is more maintainable than black magic in msbuild 😄

[iSazonov]

It seems I can repo. It seems it is OmniSharp issue. After I restart VS Code I see the reds. Then I run Start-PSBuild and the reds goes away.

[daxian-dbw]

I did run Start-PSBuild -Clean before starting VS Code. Also, we need to make sure opening VS Code with each .csproj folder should work too, for example, opening VS Code with the src/System.Management.Automation folder.

[iSazonov]

I see the same. Open SMA folder - I see the reds. Run dotnet build from the folder - the reds goes away.
It is OmniSharp. I can open new issue there. dotnet/vscode-csharp#3781

[vexx32]

@iSazonov are you running from Start-PSBuild -Clean? I'm not seeing OmniSharp pick up any of the generated classes after a clean build. 😕

[iSazonov]

After switching to the branch I run Start-PSBuild -Clean, then run VS Code. After that I run Start-PSBuild and select a file.

[JoeRobich]

I believe you should be declaring your Target's Inputs and Outputs, similar to Arcade's resource generator.

https://github.com/dotnet/arcade/blob/d6baec6b932970d1ef47238db8288b9da6e2c9ff/src/Microsoft.DotNet.Arcade.Sdk/tools/GenerateResxSource.targets#L45-L59

[ghost]

This pull request has been automatically marked as Review Needed because it has been there has not been any activity for 7 days.
Mainainer, Please provide feedback and/or mark it as Waiting on Author

[iSazonov]

@daxian-dbw Now VS Code works well.

[JoeRobich]

I don't know where the general fix should be done (in OmniSharp to follow modern .Net SDK behavior or in .Net SDK).

Here are my thoughts on this. Generating the resource classes under a /gen folder to move them out of the /obj folder is the wrong fix.

The issue seems to be that you want design time intellisense for these resource files, which is understandable. The problem is that these backing files are only generated when the Build task is run in MSBuild. Design time builds do not run the Build task, instead they run the Compile task. Since these files aren't generated during when Compile is run, they are not considered part of the compilation and not added to the open Workspace.

You can add a short Target to run the resource generator before the Compile task (See dotnet/vscode-csharp#3781 (comment)). Now they will be part of the Compilation and will be part of the Workspace when working from an IDE. They will also be updated when they are changed within the IDE instead of requiring a full build. Since you likely do not want them to be regenerated constantly, defining the Inputs and Outputs for targets is the MSBuild mechanism so that targets are only run when changes have been made.

[iSazonov]

Generating the resource classes under a /gen folder to move them out of the /obj folder is the wrong fix.

We cannot create a "fix" in PowerShell repo. We can only create a "workaround".
Right place for the fix is either OmniSharp repo or .Net SDK repo.

As I mentioned .Net explicitly moved generating strong typed resources from design time to build time - it is new standard. I don't think they will change this. So expectation is that OmniSharp will follow the new behavior too.

As for workarounds, we have two ones:

• put new files in custom gen directory
• add new target

I don't like adding new target because this again changes standard .Net SDK behavior - it can have
side effects and later we can catch other issues.

[ghost]

This pull request has been automatically marked as Review Needed because it has been there has not been any activity for 7 days.
Mainainer, Please provide feedback and/or mark it as Waiting on Author

[TravisEz13]

comment that this is a workaround for dotnet/msbuild#4751

[iSazonov]

Done.

[daxian-dbw]

Hey @iSazonov, today @anmenaga @TravisEz13 @adityapatwardhan and I had a offline discussion on this PR, and we agreed the built-in resgen tool in MSBuild is what we should move forward with. Here are some but not all the benefits:

1. No need to run Start-ResGen before the build when there is any new resource files/strings added.
2. Other powershell projects can do the same in .csproj for their resource strings, without having to copy over the src\ResGen code and the related build script.

However, the built-in resgen tool is not ready yet for us to depend on, and hence your workaround in the Microsoft.PowerShell.GraphicalHost.csproj project.
The changes in Microsoft.PowerShell.GraphicalHost.csproj is what we felt most concerned. A proposal is to use a hybrid way moving toward our ultimate goal:

1. for this PR, remove the changes to Microsoft.PowerShell.GraphicalHost.csproj and keep the rest
2. keep src\Res and make it only to generate .cs files for the GraphicalHost.csproj

So only the resources for GraphicalHost.csproj are generated using our existing tool, and all rest resources are handled by the built-in tool in MSBuild.
Do you think that's feasible?

[daxian-dbw]

why do we need extra changes to CimCmdlet.csproj?

[iSazonov]

Resx file name is in another pattern :-( My intention in the PR was to change only csproj files.
We could rename the file and use common csproj pattern.

[daxian-dbw]

Got it. We talked (offline) about the names of the resource streams we used and agreed that they should be fixed if we go with this change, but should be a separate PR.

[iSazonov]

We could rename CimCmdlet resx files before the PR so that we can remove the workaround from the PR.

[daxian-dbw]

That sounds fine, but not sure if the ResGen code needs to be updated for fixing the name.

[iSazonov]

Done in #12955.

[daxian-dbw]

That PR was merged.

[iSazonov]

The workaround is removed.

[iSazonov]

The changes in Microsoft.PowerShell.GraphicalHost.csproj is what we felt most concerned. A proposal is to use a hybrid way moving toward our ultimate goal

If it is not a priority in days I'd ask MSFT team internally communicate with SDK team (they have low public activity) - they could tell how they plan to work with WPF projects and strongly typed resources. If they have a solution or workaround we could implement this and simplify our build.

[ghost]

This pull request has been automatically marked as Review Needed because it has been there has not been any activity for 7 days.
Maintainer, please provide feedback and/or mark it as Waiting on Author
