Overview

Overview

This is an overview of AFMI-Godot plugin to import Azgaar's FMG maps into Godot. Please note that the addon does NOT support all properties exported by the map exporter. Only the following fields are made available as of right now.

• Default Properties (Properties that are available by default without specifically enabling in importer settings)
  • Biome
  • Culture
  • Religion
  • State
  • Height

Important

Bit Packed Values: These properties are stored in a single PackedInt32Array to reduce memory usage. As such, biome count is limited to 16, culture,religion,state counts are limited to 128. height value is unaffected as it's always mapped to [0,100]. See _pack_bits referece for technical details.

• Extensive Properties (Properties that need to be enabled in importer settings as necessary)
  • Burgs
  • Provinces
  • Rivers
  • Features

Caution

Extensive Properties: These properties are each stored in their own PackedInt32Array (because there is no upper limit to these values) as opposed to a single bit-packed PackedInt32Array used by default properties. Because of that, enabling one of these arrays will consume an amount of memory equal to all default properties combined.

Important

Supported Export Types: This plugin only supports Full JSON exports exported directly from Azgaar's Fantasy Map Generator. Grid Cells,Pack Cells and Minimal JSON exports from the exporter and direct *.map files are NOT supported.

More fields will not be added unless requested. If you need a specific field added, feel free to open an issue and discuss.

This plugin is implemented in two parts.

• An EditorImportPlugin that adds to the Godot resource import system an import option for *.json files.
• An AzgaarMap resource that holds imported map data in a reasonably efficient data structure.

---

1)Import Dock

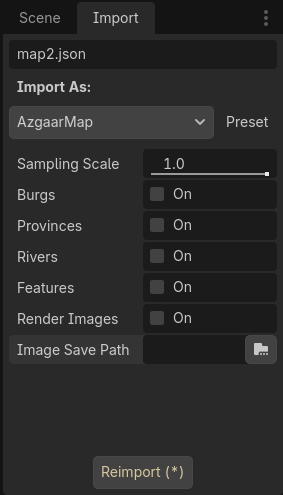

The import option AzgaarMap in Godot import dock. When opening a *.json file, you should see the following screen in the import dock.

Import Options

• Sampling Scale: (Default = 1) Specifices scaling applied to the map at importing. This can be used to import a high resolution map into a lower resolution map resource to reduce memory usage. Doesn't affect the cell count.

  Example : Importing a 1000x1000 (in FMG options) map with 0.5 Sampling Scale will give a resource that behaves as if the map was originally generated in 500x500 resolution.

• Burgs: (Default = false) Whether to save Burgs information in map resource. Required if you need to use burg_at_pixel, burg_id_at_cell, burg_by_id methods.

• Provinces: (Default = false) Whether to save Provinces information in map resource. Required if you need to use province_at_pixel, province_id_at_cell, province_by_id methods.

• Rivers: (Default = false) Whether to save Rivers information in map resource. Required if you need to use river_at_pixel, river_id_at_cell, river_by_id methods.

• Features: (Default = false) Whether to save Features information in map resource. Required if you need to use feature_at_pixel, feature_id_at_cell, feature_by_id methods.

• Render Images: (Default = false) Whether to render png image maps of biomes, states, provinces, rivers and burgs and save them.

Note

Image Formats: Rendered biomes, states, provinces images will be in format Image.FORMAT_RGBF. rivers and burgs images will be in format Image.FORMAT_R8.

• Image save path: (Default = "") A directory path indicating where to export images. Effective only when Render Images is set to true.

---

2)AzgaarMap resource

The custom resource AzgaarMap. Saves all map related data and provides methods to get any value by pixel in O(1) time.

Values in the resource are NOT designed to be changed after creation. Although there is nothing preventing a script from modifying data arrays, it's strongly discouraged.

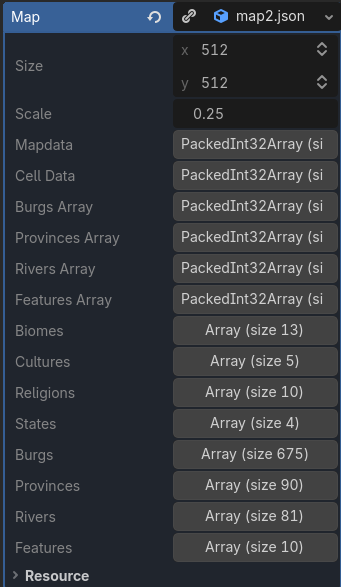

Export Variables

• Size: Original size of the map as in [info][height] and [info][width] of JSON file. Must be multplied by scale for actual pixel count along each direction.
• Mapdata: A PackedInt32Array of size widthxheightxscale². Holds one cell_id per pixel.
• Cell Data: A PackedInt32Array with a size equal to the number of cells in map. Holds a single 32 bit integer per cell that contains bit packed default properties.
• Burgs Array,Provinces Array,Rivers Array,Features Array: PackedInt32Arrays of size equal to the number of cells in map. Holds a single 32 bit integer per cell per array. Each array contains info about which cell has which property.
• Biomes, Cultures, Religions, States, Burgs, Provinces, Rivers, Features Arrays: These arrays contain Dictionaries of metadata about different types of biomes, cultures, religions, states, burgs, provinces and rivers. Length of each array depends of how many different types of each property are there in the map.

Note

For memory saving, it's possible to manually clear some of these arrays if it's abosultely certain that relevant *_at_pixel and *_by_id methods will NOT be called. However, this is highly discouraged as the gain is at most a few kilobytes in exchange for unexpected behavior.

---

Reading Values

Important

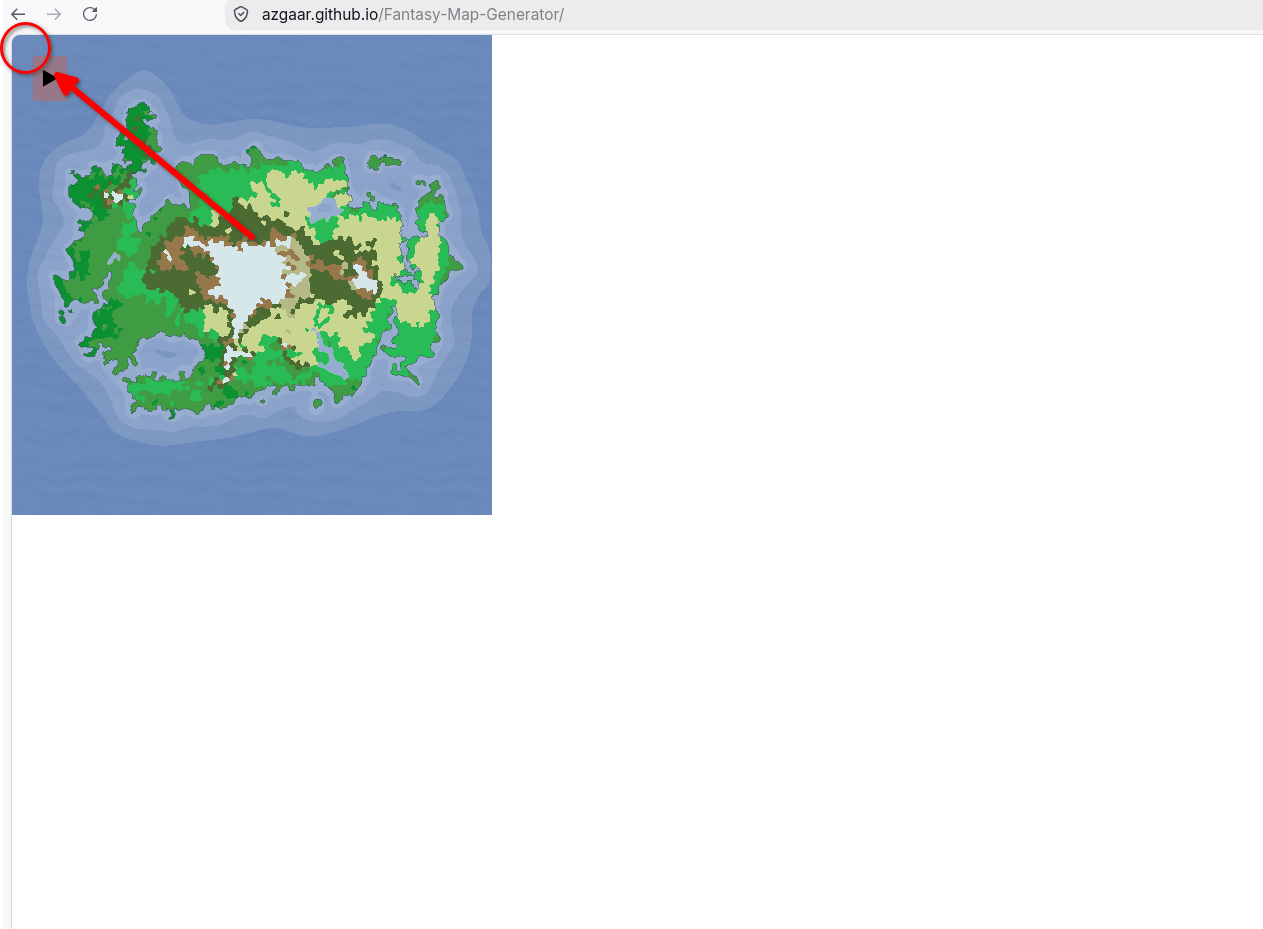

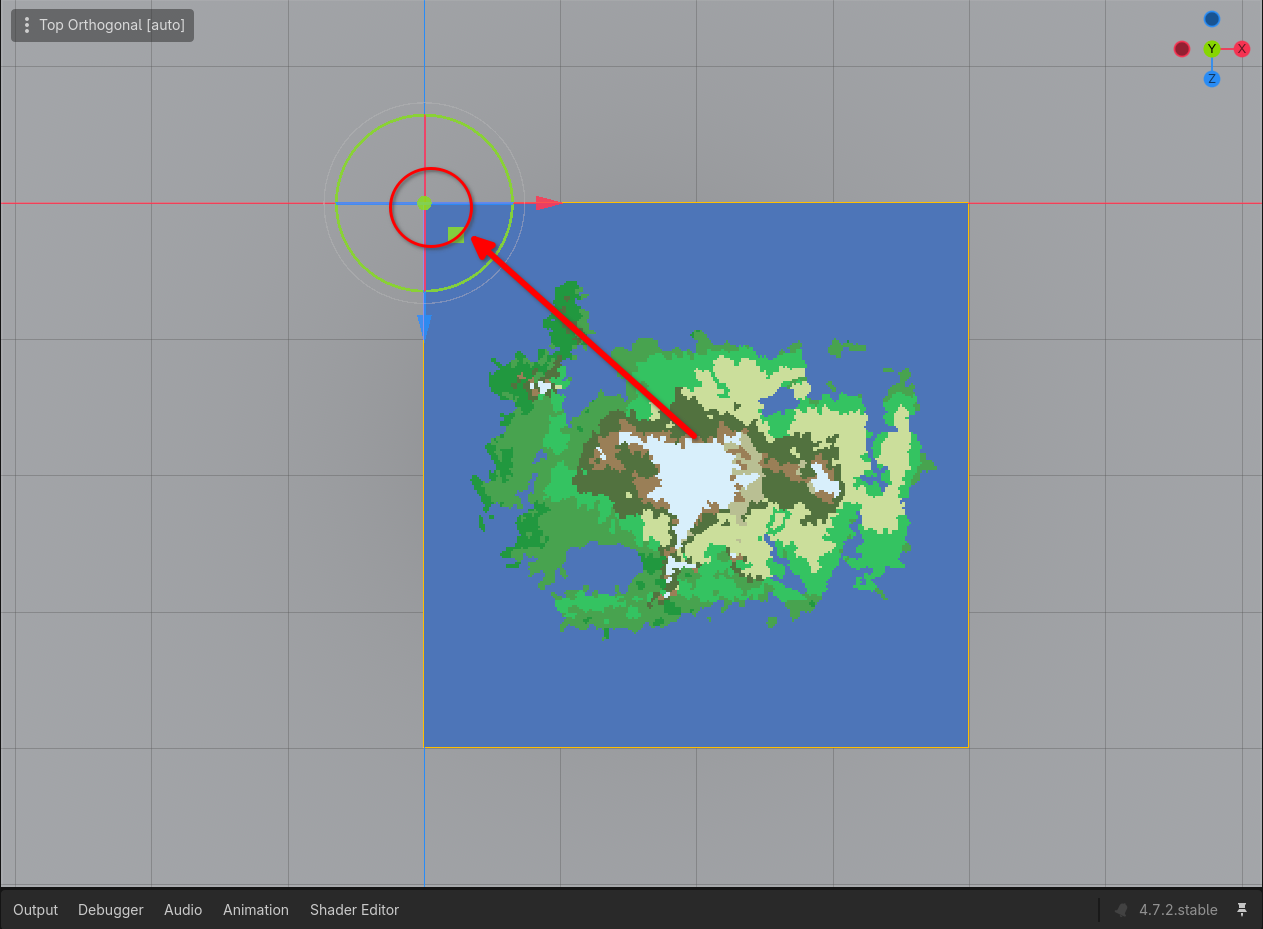

Due to the way Azgaar Maps are exported, the coordinate system origin is at top left corner. Since the map is imported as-is the coordinate system remains the same when retrieving values. All pixel coordinates always originate from top left corner of the map.

Note

Dictionary types returned by such returning functions are 1:1 replicas of the ones found in [pack] section of the JSON file with only difference being having hex code color strings converted to Godot native Color types. Allowing direct use of [color] property.

The AzgaarMap resource provides methods to,

Get by pixel

• Get Cell ID that owns a pixel Use cell_id_at_pixel(pixel:Vector2i) to get int cell ID of the cell that owns the pixel.
• Get biome/ culture/ religion/state/burg, province/river/feature dictionaries of a pixel. Use *_at_pixel(pixel:Vector2i) (replacing * with property name) to get Dictionary typed biome/ culture/ religion/ state/ burg/ province/river/feature data of the cell that own the pixel.

Get by cell ID

• Get biome/ culture/ religion/state/burg, province/river/feature IDs of a cell. Use *_id_at_cell(cell_id:int) (replacing * with property name) to get integer IDs (e.g., biome_id_at_cell, culture_id_at_cell, religion_id_at_cell, state_id_at_cell, height_at_cell, burg_id_at_cell, province_id_at_cell, river_id_at_cell, feature_id_at_cell).
• Get full details dictionary by ID. Use *_by_id(id:int) to retrieve metadata dictionaries for specific entities (biome_by_id, culture_by_id, religion_by_id, state_by_id, burg_by_id, province_by_id, river_by_id, feature_by_id).
• Unpack all default properties at once. Use def_prop_ids_at_cell(cell_id:int) to return an Array containing [biome_id, culture_id, religion_id, state_id, height].

---

Conclusion & Best Practices

When querying map data during runtime, keep the following best practices in mind:

• Performance-Critical Code: For checks occurring frequently within _process() or _physics_process(), prefer fetching integer IDs (*_id_at_cell) rather than full dictionaries to minimize allocation overhead.
• Optional Feature Enabling: Ensure that extensive properties (such as burgs, provinces, rivers, and features) are enabled in the import dock before calling their respective lookup methods.
• Bounds Checking: Always verify that cell IDs and pixel coordinates are valid (i.e. not returning -1 or empty dictionaries) before performing game logic dependent on map regions.
