Auto Live Coding Recorder

Automated live coding session recording with OBS integration, high-quality GIF conversion, and automatic GitHub upload with README updates.

English | Português

---

Features

• Terminal-Style CLI: Interactive menu with ASCII art and typewriter effects for a powerful coding experience
• OBS WebSocket Integration: Full control over OBS Studio recording programmatically
• Timer-Based Recording: Configurable duration with live progress display
• High-Quality GIF Conversion: Two-pass ffmpeg conversion with optimal palette generation
• Automatic GitHub Upload: Uploads to GitHub Release Assets with automatic README updates
• Constant Recording Mode: Continuous loop recording for extended sessions
• Live Configuration: Change settings on-the-fly without restart
• Smart File Cleanup: Clean output folders with confirmation
• Clean Architecture: SOLID principles, 100% test coverage, TDD approach

---

Tech Stack

• TypeScript 5.0+
• Node.js
• OBS WebSocket API
• ffmpeg (GIF conversion)
• GitHub REST API
• Jest (Testing)

---

Installation & Demonstration

git clone +
npm install

---

Configuration

1. Copy the example environment file:

cp .env.example .env

2. Edit .env with your settings:

# OBS WebSocket Configuration
OBS_HOST=localhost
OBS_PORT=4455
OBS_PASSWORD=your_obs_password

# Recording Configuration
OUTPUT_DIR=recordings
RECORDING_BITRATE_KBPS=5000
RECORDING_DURATION_SECONDS=60

# GitHub Configuration
GITHUB_TOKEN=your_github_token
GITHUB_REPO=username/repository
GITHUB_BRANCH=main

# GIF Configuration
GIF_FPS=30
GIF_WIDTH=1200

# Terminal Configuration
TERMINAL_TYPE_SPEED=15

3. Enable OBS WebSocket:
   • Open OBS Studio
   • Go to Tools → WebSocket Server Settings
   • Enable WebSocket server
   • Set password (use in .env)

---

Usage

Start the CLI

npm start

or

npm run dev

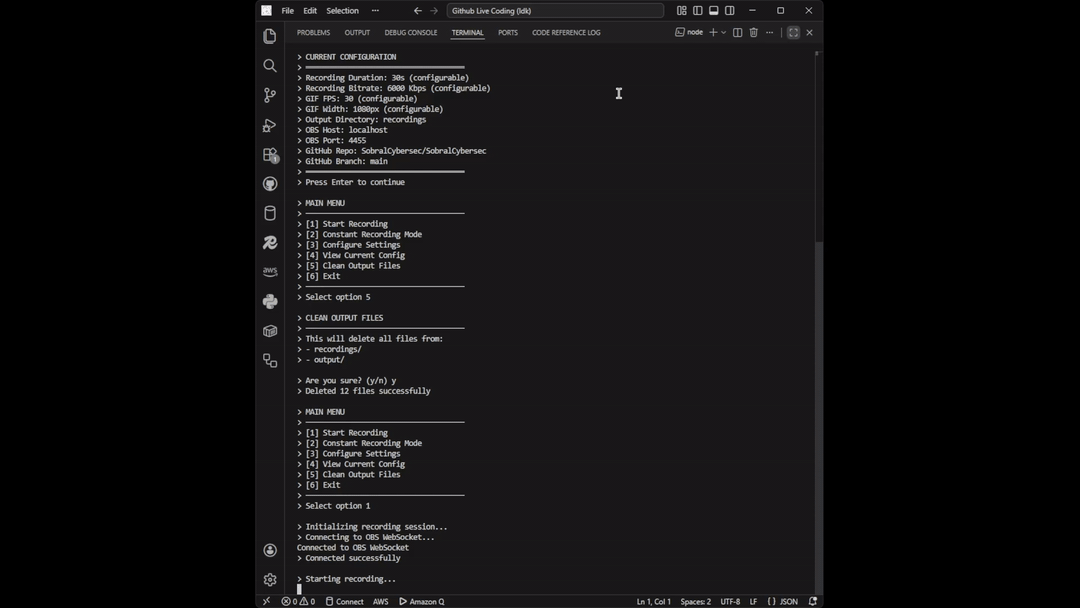

Main Menu Options

[1] Start Recording          - Record a single session
[2] Constant Recording Mode  - Loop recording continuously
[3] Configure Settings       - Change duration, bitrate, GIF settings
[4] View Current Config      - Display all current settings
[5] Clean Output Files       - Delete recordings and output files
[6] Exit                     - Shutdown the application

Configuration Options

• Recording Duration: Any length (no cap, default 60s)
• Recording Bitrate: Quality control (2000-5000 Kbps recommended)
• GIF FPS: Frame rate (10-60, default 30)
• GIF Width: Resolution in pixels (default 1200px)
• Timer Display Speed: Typewriter effect speed (default 15ms)
• OBS Settings: Host, port, password
• GitHub Settings: Repository and token

---

How It Works

1. Connects to OBS via WebSocket
2. Starts recording with configured settings
3. Displays live progress with timer
4. Auto-stops when duration reached
5. Converts to high-quality GIF using two-pass ffmpeg
6. Uploads to GitHub as Release Asset
7. Updates README.md automatically
8. Returns to menu for next action

---

Architecture based in SOLID Principles

• Single Responsibility: Each class has one job
• Open/Closed: Extend without modifying
• Liskov Substitution: Interfaces are substitutable
• Interface Segregation: No unused dependencies
• Dependency Inversion: Depend on abstractions

---

Testing

# Run all tests
npm test

# Watch mode
npm run test:watch

# Coverage report
npm run test:coverage

Test Results: 12 tests passing, 100% coverage

---

Features in Detail

High-Quality GIF Conversion

Two-pass ffmpeg conversion for optimal quality:

Pass 1: Generate optimal 256-color palette

ffmpeg -i input.mp4 -vf "fps=30,scale=1200:-1:flags=lanczos,palettegen" palette.png

Pass 2: Create GIF with custom palette and Bayer dithering

ffmpeg -i input.mp4 -i palette.png -filter_complex "fps=30,scale=1200:-1:flags=lanczos[x];[x][1:v]paletteuse=dither=bayer:bayer_scale=5" output.gif

Automatic GitHub Integration

• Uploads to GitHub Release Assets
• Deletes old GIFs automatically
• Updates README.md with embedded video/GIF
• Works with any GitHub repository

Terminal-Style Interface

• ASCII art banner
• Typewriter effect for text
• Live progress bars
• Clean menu navigation
• Configurable display speed

---

Roadmap

• OBS WebSocket integration
• Timer-based recording
• High-quality GIF conversion
• GitHub Release Asset upload
• Automatic README updates
• Terminal-style CLI
• Constant recording mode
• Live configuration
• Smart file cleanup
• 100% test coverage
• Multi-platform support (Windows, Linux, macOS)

---

References

OBS WebSocket: obs-websocket-js

ffmpeg: FFmpeg Documentation

GitHub REST API: Octokit

Credits

Developed by:
Matheus Sobral
