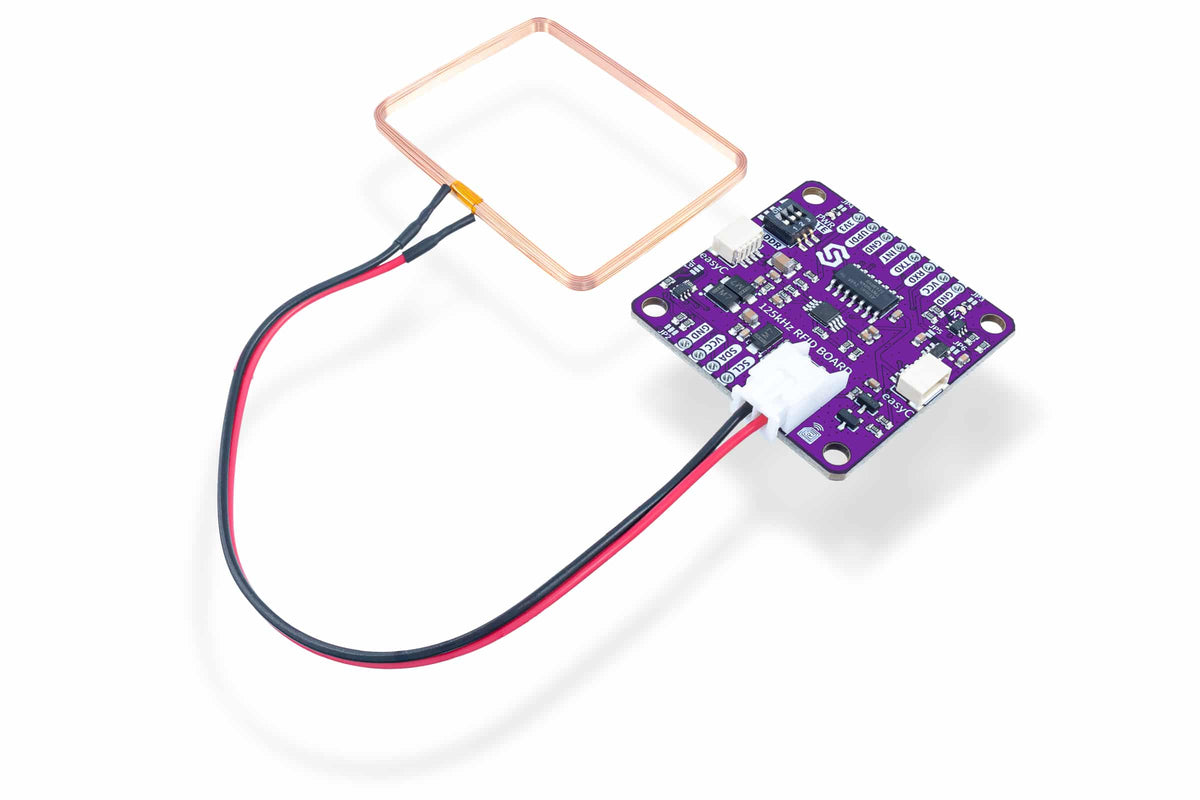

| 125kHz RFID Tag Reader Board |
This board reads 125kHz RFID tags (EM4100/EM4001) up to 5cm away, using a pre-programmed ATtiny1604 with a built-in antenna. It's available in UART (115200 bps, TTL RS232) and I2C/Qwiic variants, and this driver supports both: pass an i2c object for I2C mode, or rx_pin/tx_pin for UART mode.
After installing the mpremote package, install the library on your board using the following command:
mpremote mip install github:SolderedElectronics/Soldered-RFID-MicroPython-LibraryOr, if you're running a Windows OS:
python -m mpremote mip install github:SolderedElectronics/Soldered-RFID-MicroPython-Library- RFID.py - MicroPython driver class (UART + I2C)
- package.json - mip install manifest
- /Examples - UART and I2C examples
You can find hardware design for this board in the 125kHz RFID Tag Reader Board hardware repository.
Access library documentation here.
