360-to-RealityScan

A tool for converting SfM results from 360° Gaussian into RealityScan compatible images/XMP and COLMAP format for verification. Features automatic splitting, pose calculation, and mask support.

日本語版はこちら

---

Download

Choose one of the following methods to get this repository:

• Download ZIP: Click Code → Download ZIP at the top of the GitHub page and extract it to any folder.
  or
• Clone with Git: Use the GitHub desktop app or run the following command:

git clone https://github.com/TakashiYoshinaga/360-to-RealityScan.git

---

Setup

1. Install Anaconda

Download and install Anaconda from the page below.

https://www.anaconda.com/download

2. Create a Virtual Environment

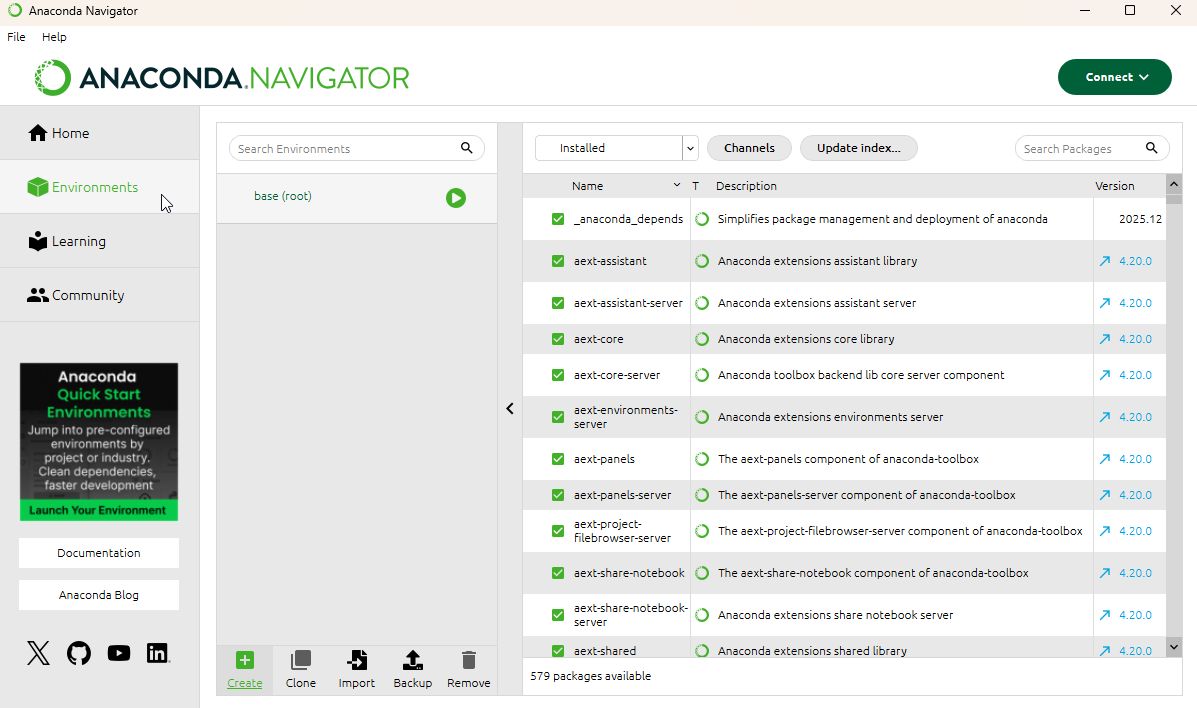

1. Launch Anaconda Navigator
2. Click Environments in the left menu
3. Click Create at the bottom

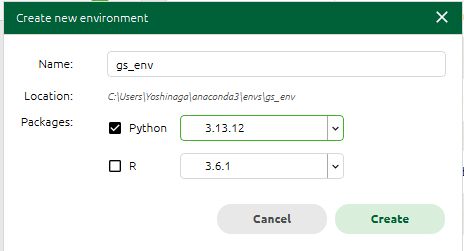

4. In the Create new environment dialog, configure the following:
   • Name: Any name (e.g. gs_env)
   • Python: Select version 3.10 or higher
5. Click Create

3. Install Required Libraries

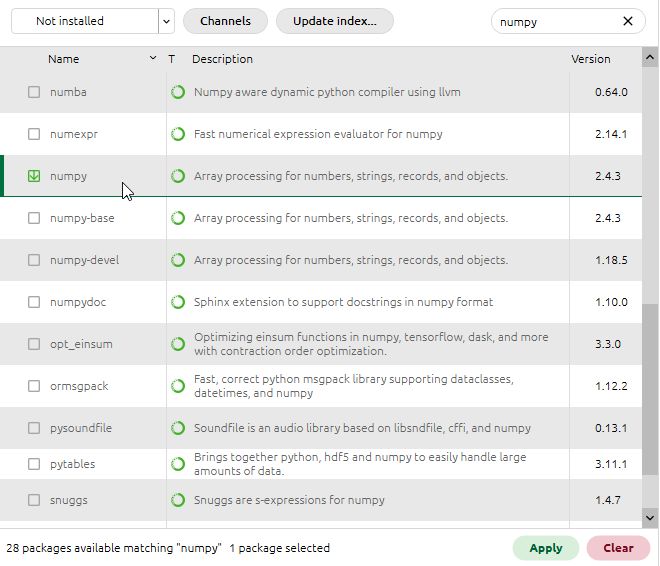

Install NumPy

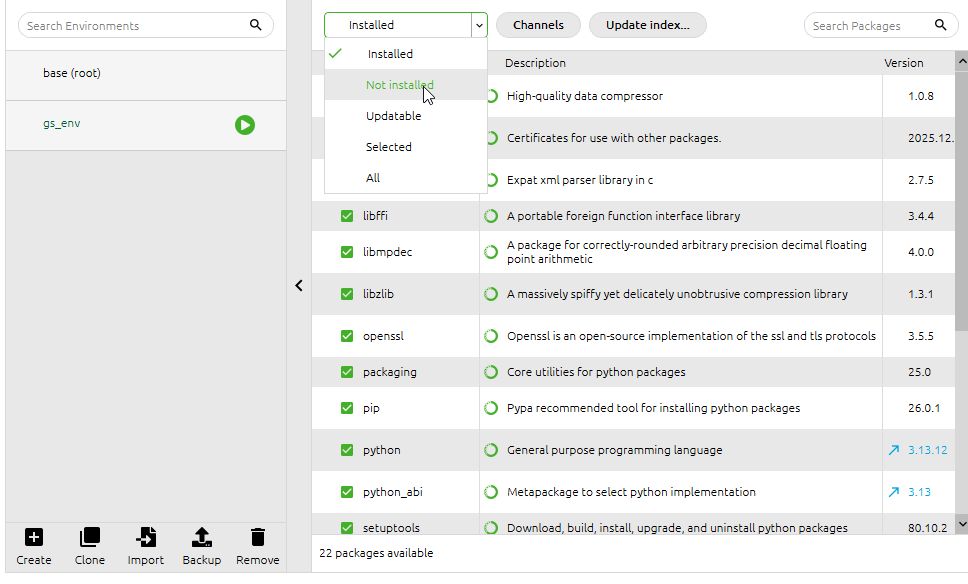

1. Click the environment you just created (e.g. gs_env)
2. Select Not installed from the dropdown menu

3. Search for numpy
4. Check the numpy entry in the list
5. Click Apply

Install FFmpeg

1. Search for ffmpeg in the same way
2. Check the ffmpeg entry in the list
3. Click Apply

---

Running the Script

Open a Terminal

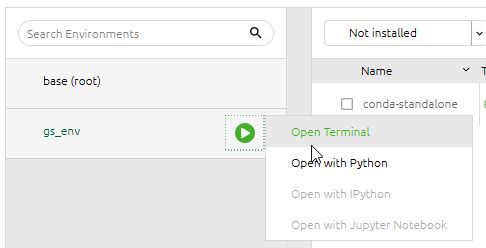

1. Click the play button next to the environment name (e.g. gs_env) in Anaconda Navigator
2. Click Open Terminal

Run the Script

1. Navigate to the folder containing the script

cd C:\path\to\360-to-RealityScan

💡 Tip
You can also type cd followed by a space and then drag and drop the 360-to-RealityScan folder into the terminal window to fill in the path automatically.

2. Run the script

python spheresfm_to_realityscan.py

The GUI will launch.

---

How to Use the Script

Configure Input / Output Paths

Once the GUI launches, specify each path as follows:

Field	Target
transform.json	transforms.json inside the lichtfeld folder
PLY file (optional)	pointcloud.ply inside the lichtfeld folder
Input folder (equirectangular)	images folder containing equirectangular images
Mask folder (equirectangular, optional)	masks folder containing mask images
Output folder	Destination folder (e.g. RealityScan)

Split Settings

The defaults work fine in most cases.

Parameter	Description
Additional Pitch Angles	The equator (vertical center of the image = 0°) is always included automatically. To also crop directions tilted up or down from the center of the equirectangular image, enter angles as comma-separated values (e.g. -45,45 adds 45° above and 45° below center). Leave blank to crop the equatorial direction only
Split Count (Equator)	Number of splits along the equator. Default is 6; set to 4 for cube map sides only

Run Conversion

Click Start Conversion to begin.

When conversion completes, the following files and folders will be created in the output folder (e.g. RealityScan):

RealityScan/
├── all/
├── images/
├── masks/
├── cameras.txt
├── images.txt
└── points3D.txt  ← Generated only when a PLY file is specified

📝 Note
When both transforms.json and a PLY file are specified, a complete COLMAP-format dataset including camera poses, point cloud, and image information will be output.

---

Advanced Usage

For instructions on integrating this tool into a full Gaussian Splatting workflow, refer to the articles below:

• SphereSfM
• MetaShape

---

Building Executables (for Developers)

You can build Windows executables from source using the provided PowerShell script.

Prerequisites

• Anaconda or Miniconda
• A conda environment with Python 3.10+ and NumPy installed (see Setup above)
• ffmpeg is NOT bundled in the exe (license reasons). Users set the path manually in the GUI.
  Download ffmpeg for Windows from: https://github.com/BtbN/FFmpeg-Builds/releases

Build

Open PowerShell and run:

Set-ExecutionPolicy -Scope Process -ExecutionPolicy Bypass -Force
.\Build\build.ps1

If your conda environment name is not gs_env, specify it with -CondaEnv:

.\Build\build.ps1 -CondaEnv myenv

You can also build only one tool at a time:

.\Build\build.ps1 -Target metashape   # MetashapeToRS.exe only
.\Build\build.ps1 -Target spheresfm   # SphereSfMToRS.exe only

Output files are placed in Build\dist\:

File	Source
MetashapeToRS.exe	Build\metashape_to_realityscan.py
SphereSfMToRS.exe	Build\spheresfm_to_realityscan.py

conda is detected automatically from PATH or common installation locations.
PyInstaller is installed automatically if not already present.
